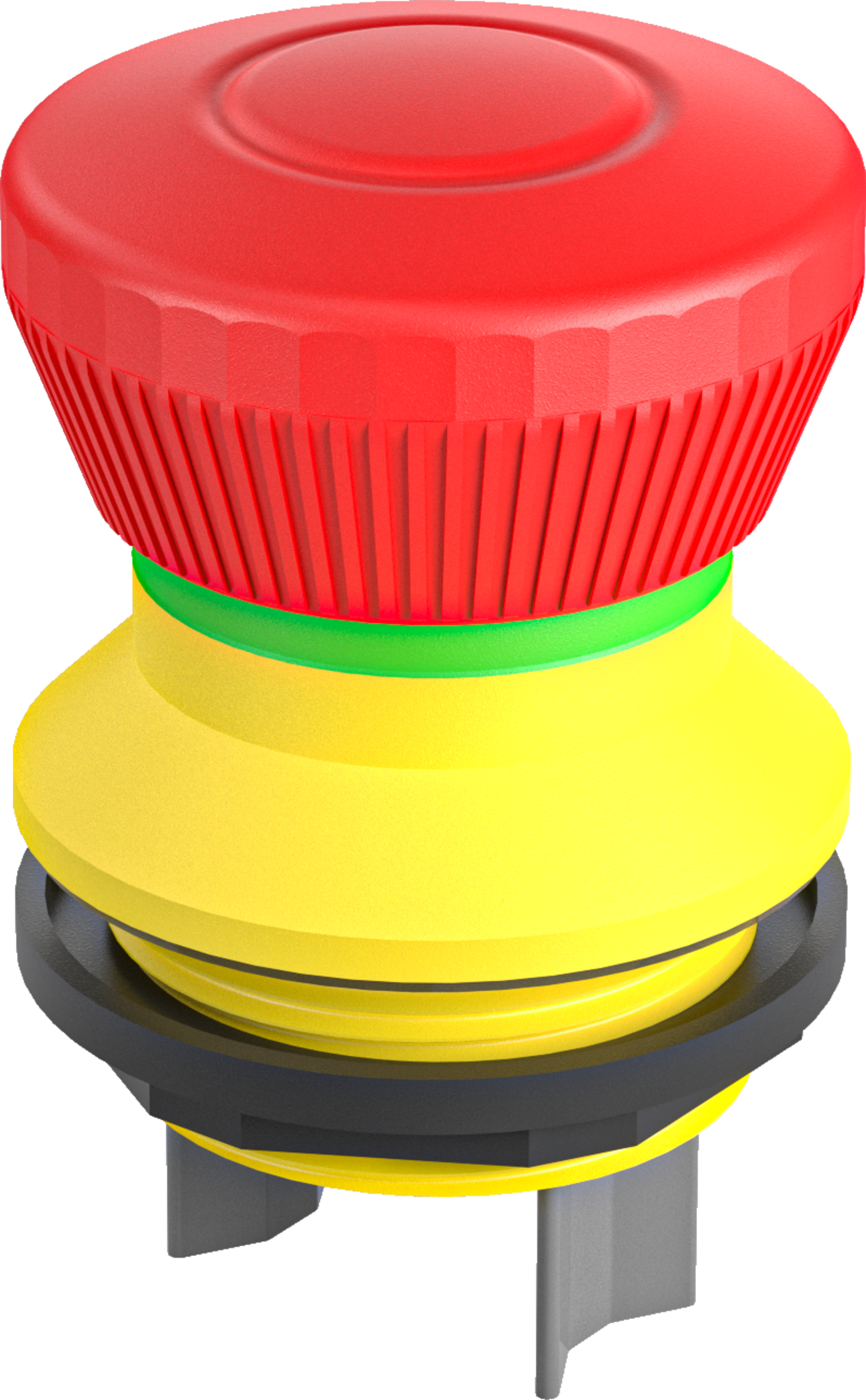

FRPVKO - Emergency stop
Compact emergency stop with pull release and blade terminals for applications with limited installation space
Series
SHORTRON®

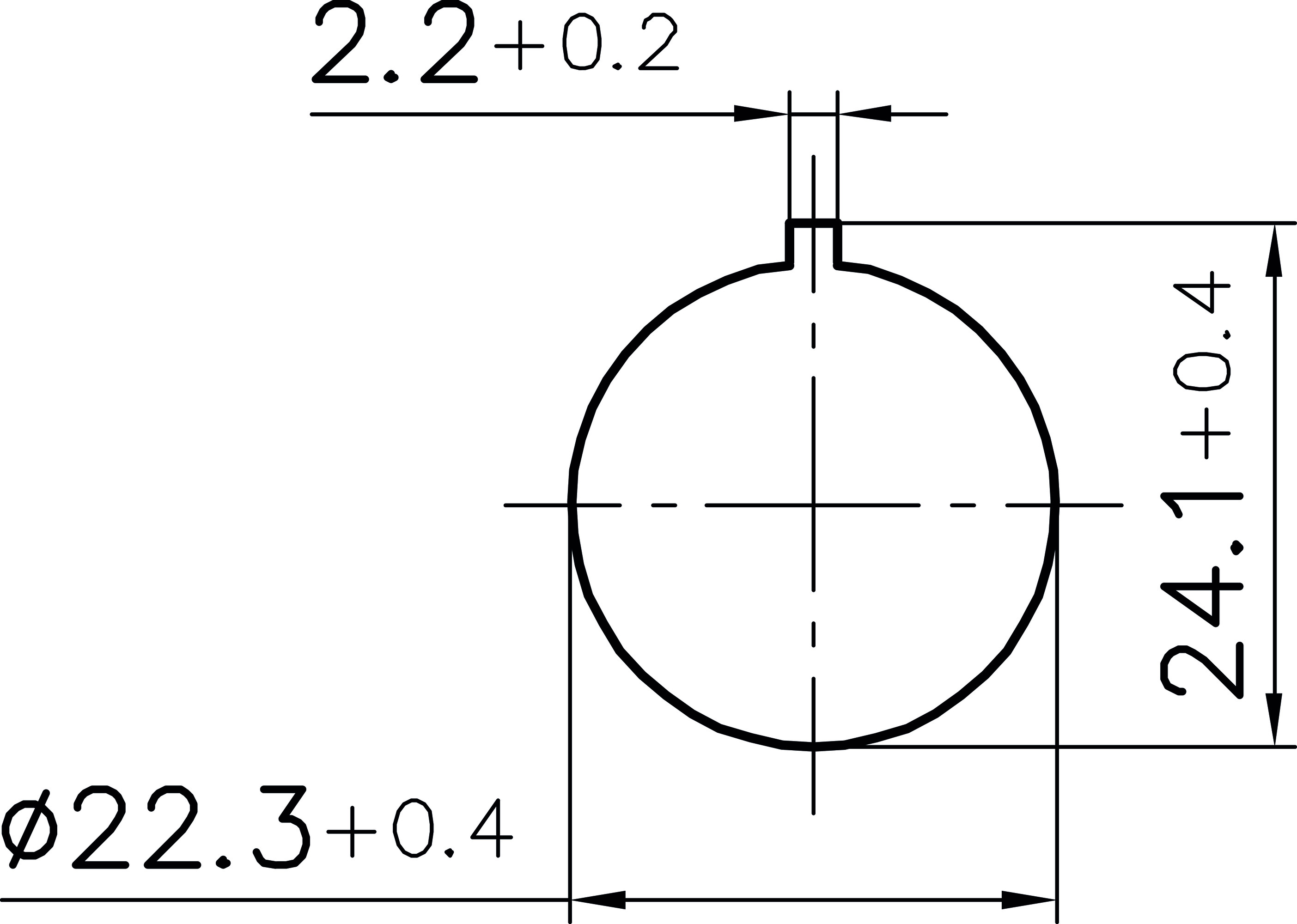

Mounting aperture
Ø 22.3 mm
Contact type
1NC
Connection
Faston terminals
Illumination
No
Front bezel colour
Yellow
Colour actuator
red
Shape
round
Degree of protection front
IP67
IP65
IP65
Operating temperature
-25°C ... 70°C
Mechanical life
30,000 switching cycles
Electrical life
30,000 switching cycles at rated voltage

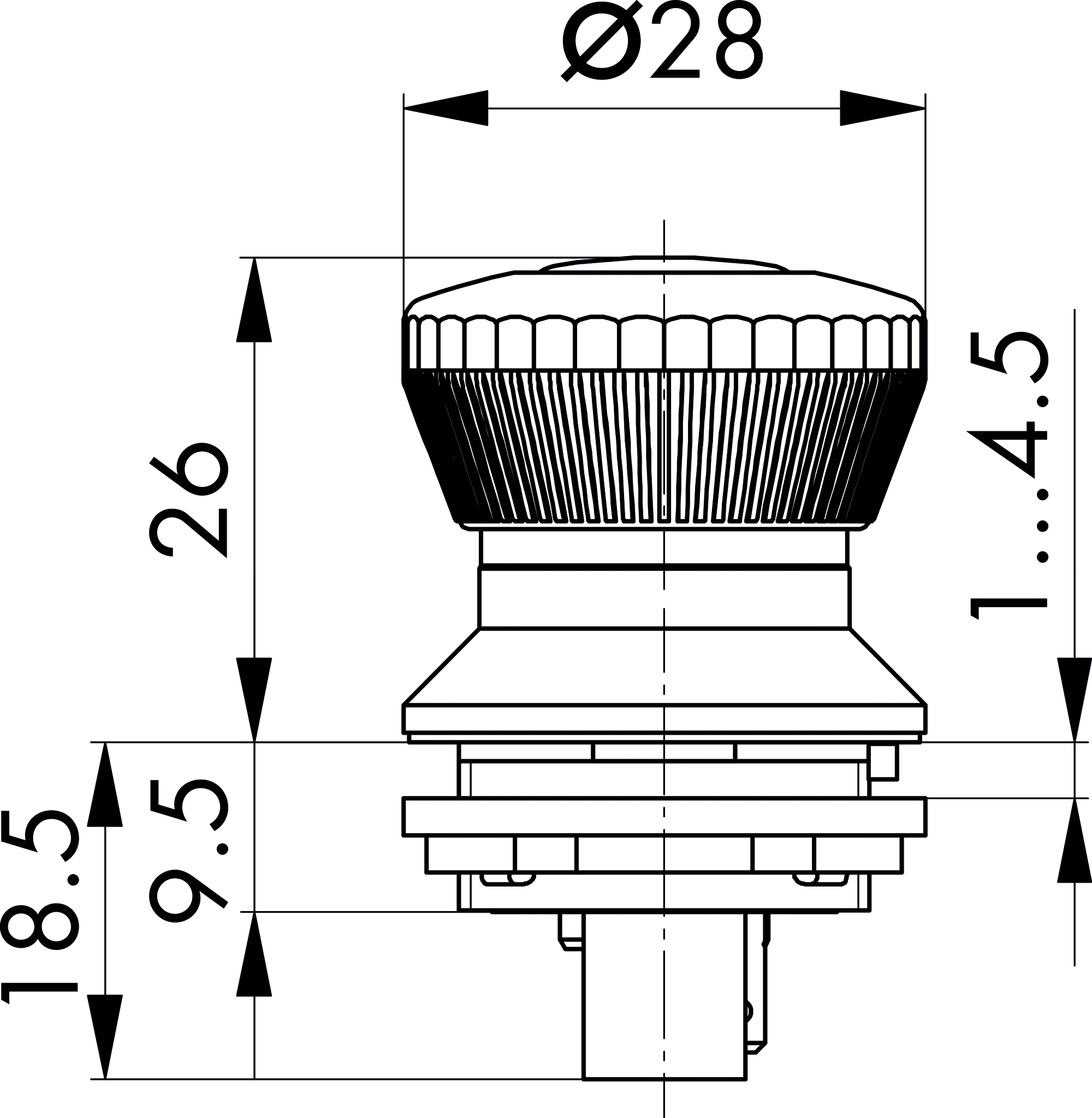

Technical sketches
