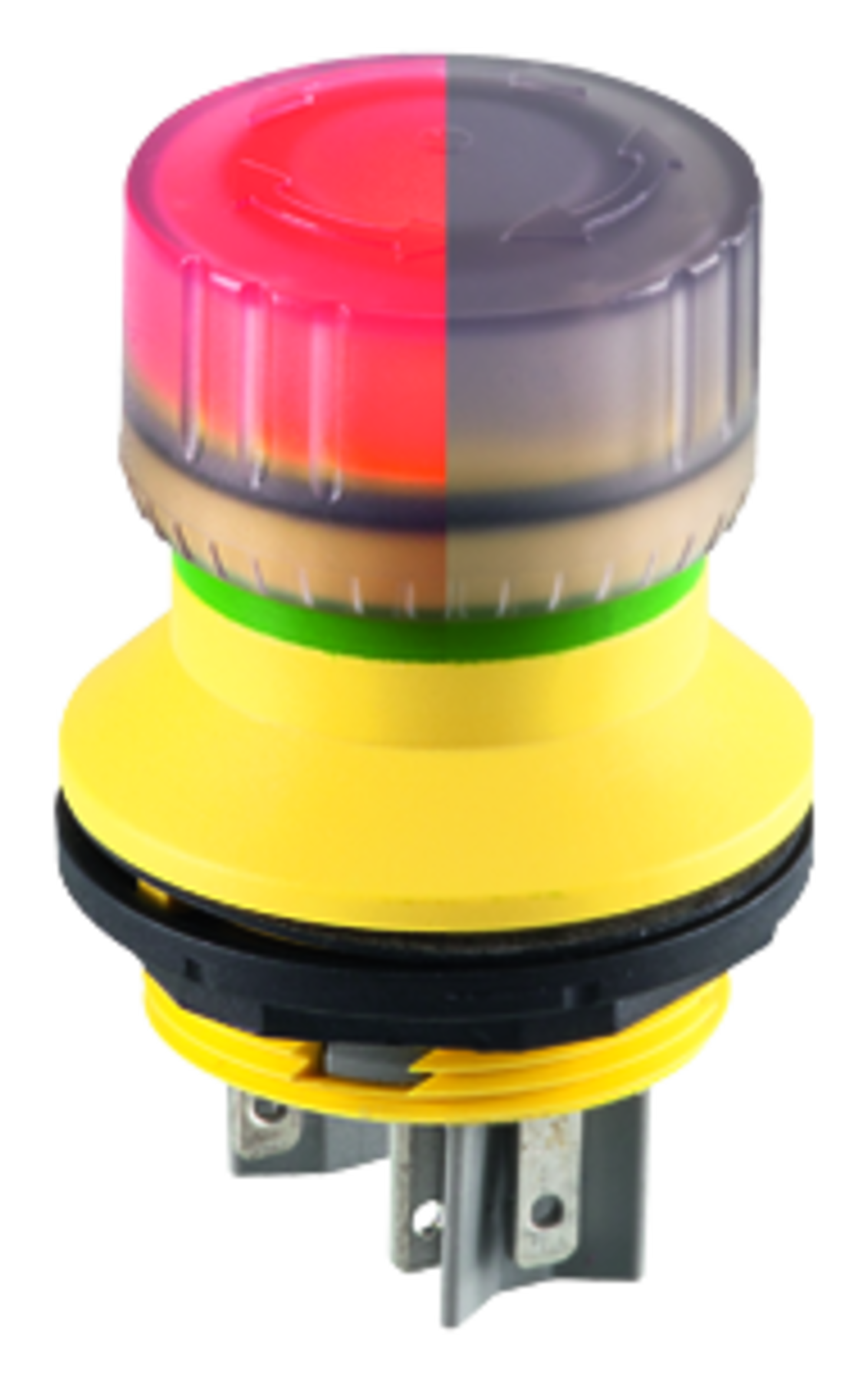

FRVKDOO_R0 - Active illuminated emergency-stop with status indication active (illuminated) / inactive (non-illuminated)
Series
SHORTRON®

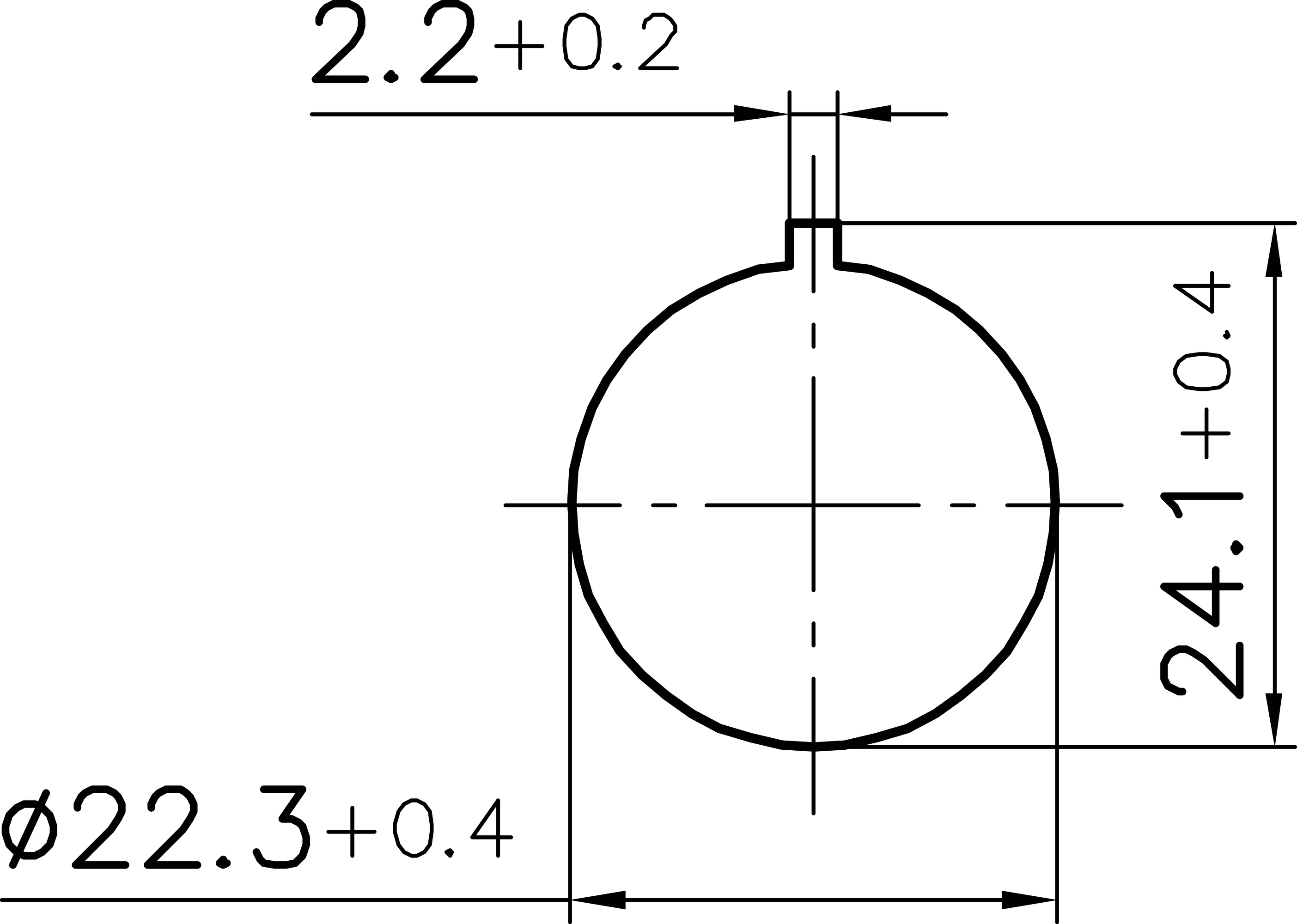

Mounting aperture
Ø 22.3 mm
Contact type
2NC
Connection
Faston terminals
Illumination
Yes
Front bezel colour
Yellow
Colour actuator
red/grey
Shape
round
Degree of protection front
IP67, IP65
Operating temperature
-25°C ... 70°C
Storage temperature
-40°C ... 80°C
Mechanical life
50,000 switching cycles
Electrical life
50,000 switching cycles at rated voltage

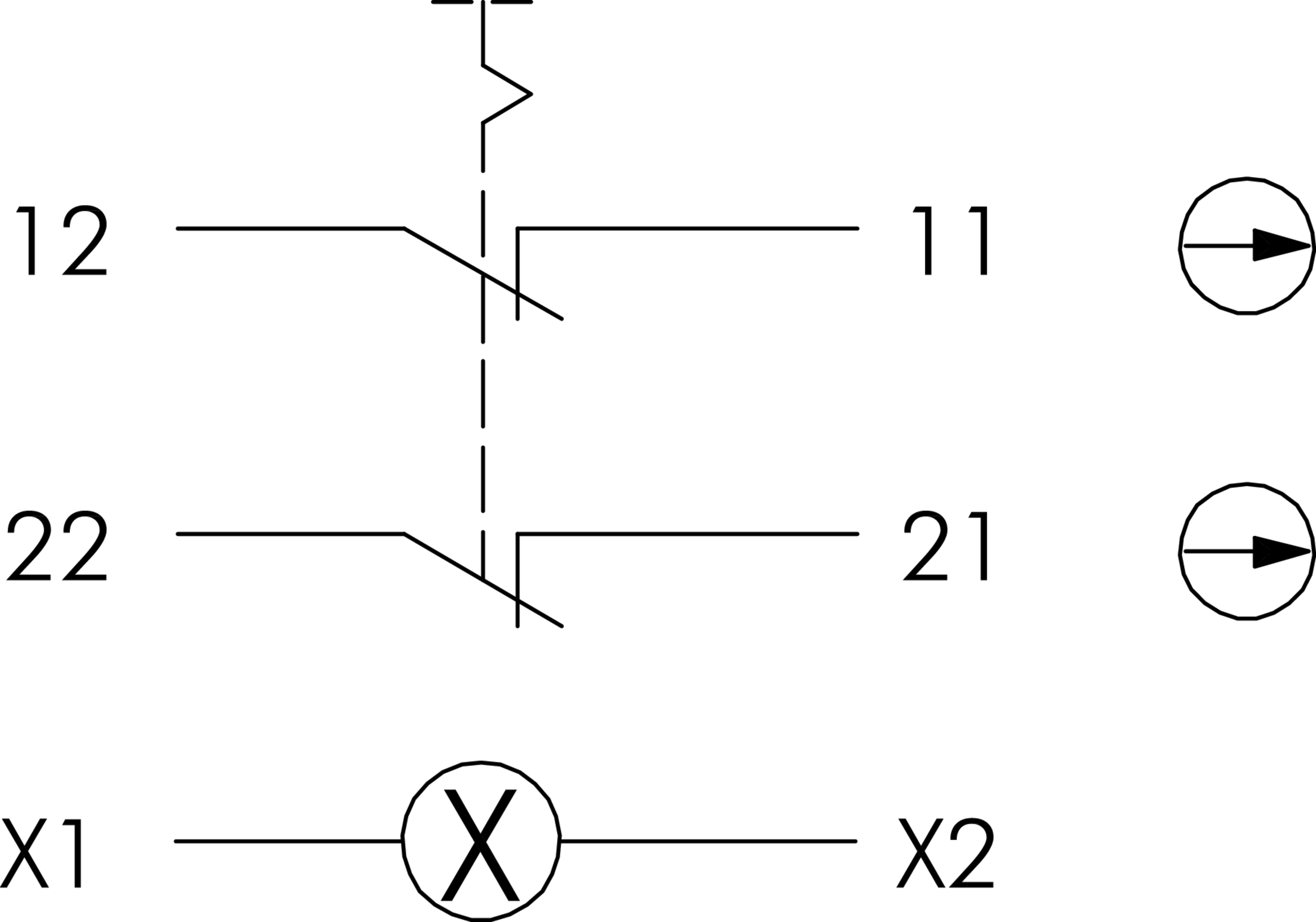

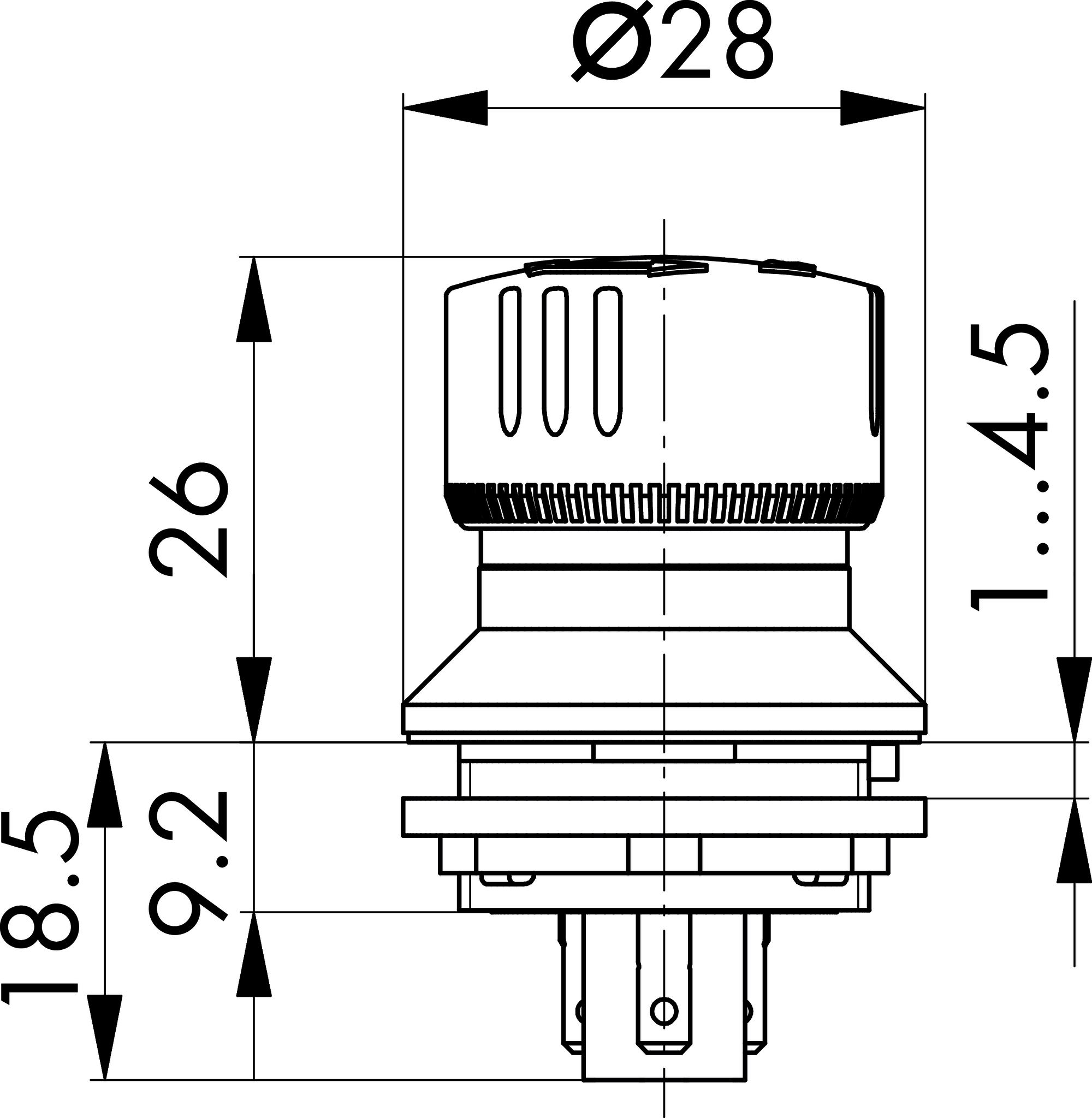

Technical sketches
Operating_Instructions_Emergency_stop_FRVKD.pdf
