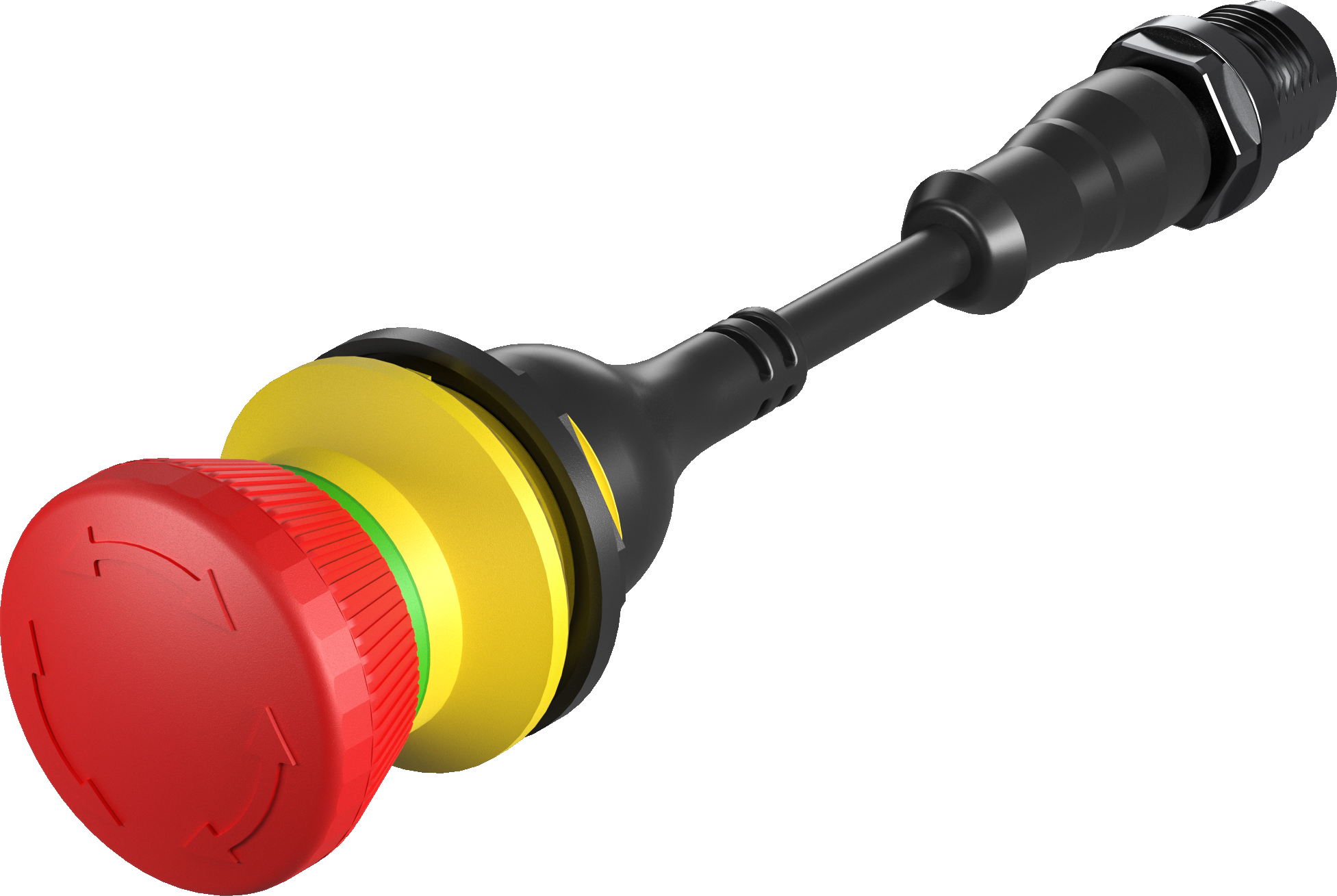

FRVKOO_M001 - Emergency-stop with 4-pole M12 connector
Operating Temperature
-25 ... 70°C
Approbations
TÜV_Süd , cURus , CE , UKCA
Connection Type
M12 plugs
Protection Class Front
IP67 , IP65
Storage Temperature
-40 ... 80°C
Release
Twist to release left/right
Contact Type
2NC
Rated Operating Voltage
35V DC IEC/EN 60947-5-1
35V AC IEC/EN 60947-5-1
35V AC IEC/EN 60947-5-1
Electrical Life
50.000 switching cycles at rated load
50.000 switching cycles
50.000 switching cycles
Anti Block Collar
No
Series
SHORTRON®-M12
Shape
round
Mechanical Life
50.000 switching cycles

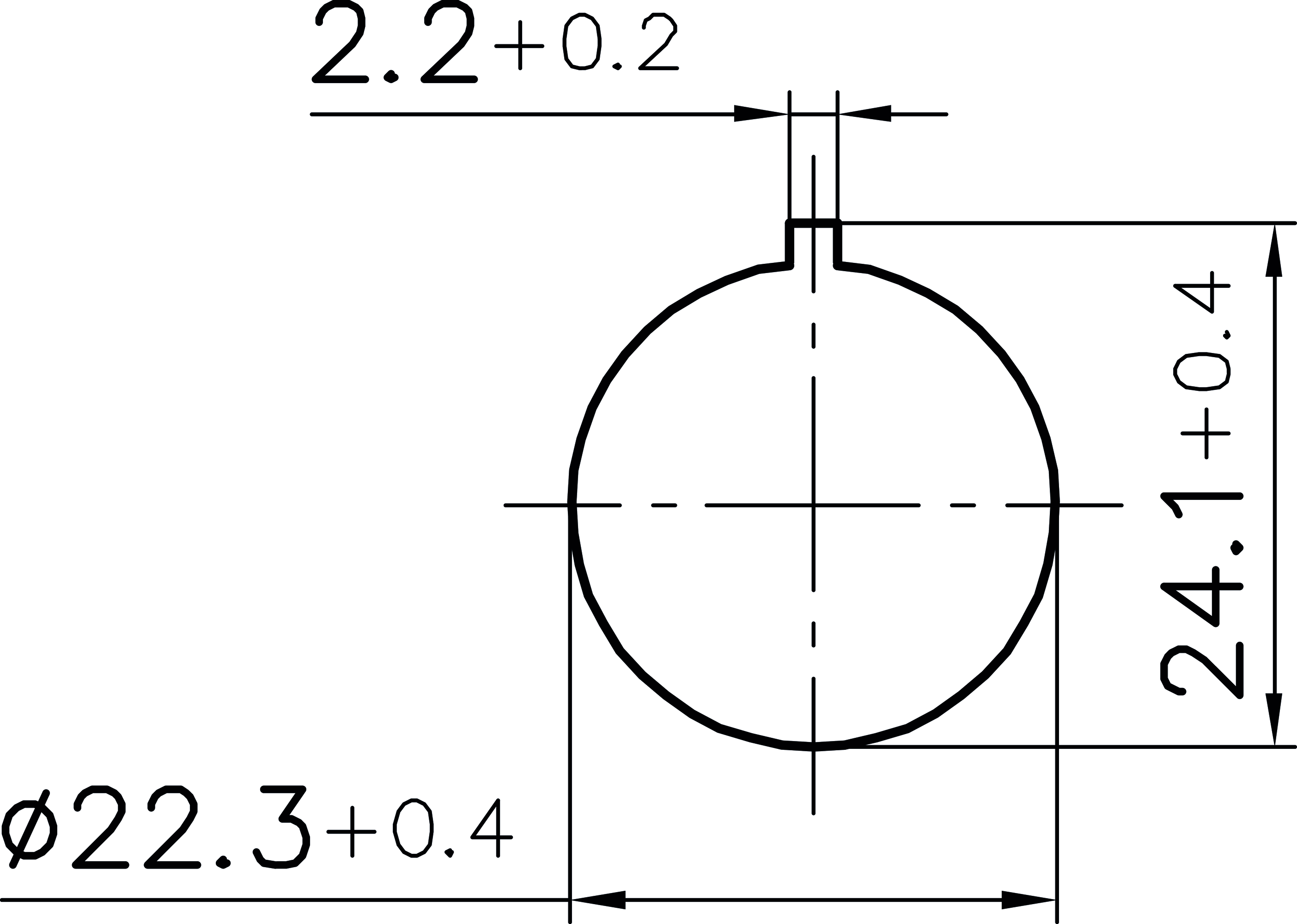

Mounting Aperture
Ø 22,3mm
Front Bezel Color
yellow
Illumination
No

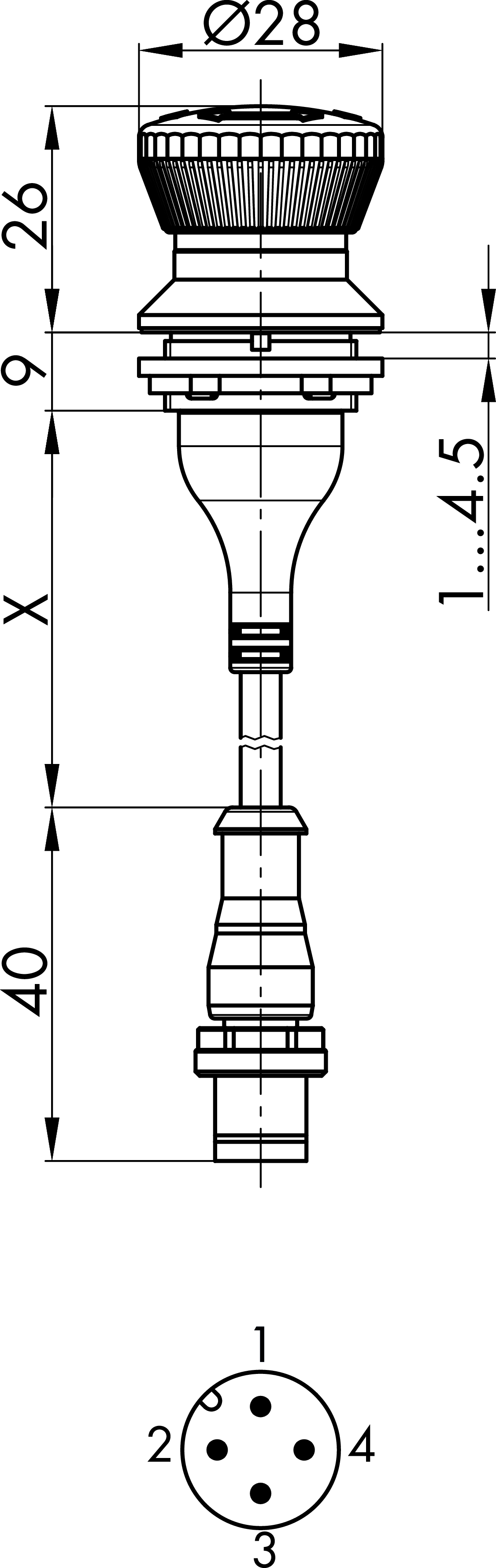

Technical sketches
Operating_Manual_Estop_General_EN.pdf
