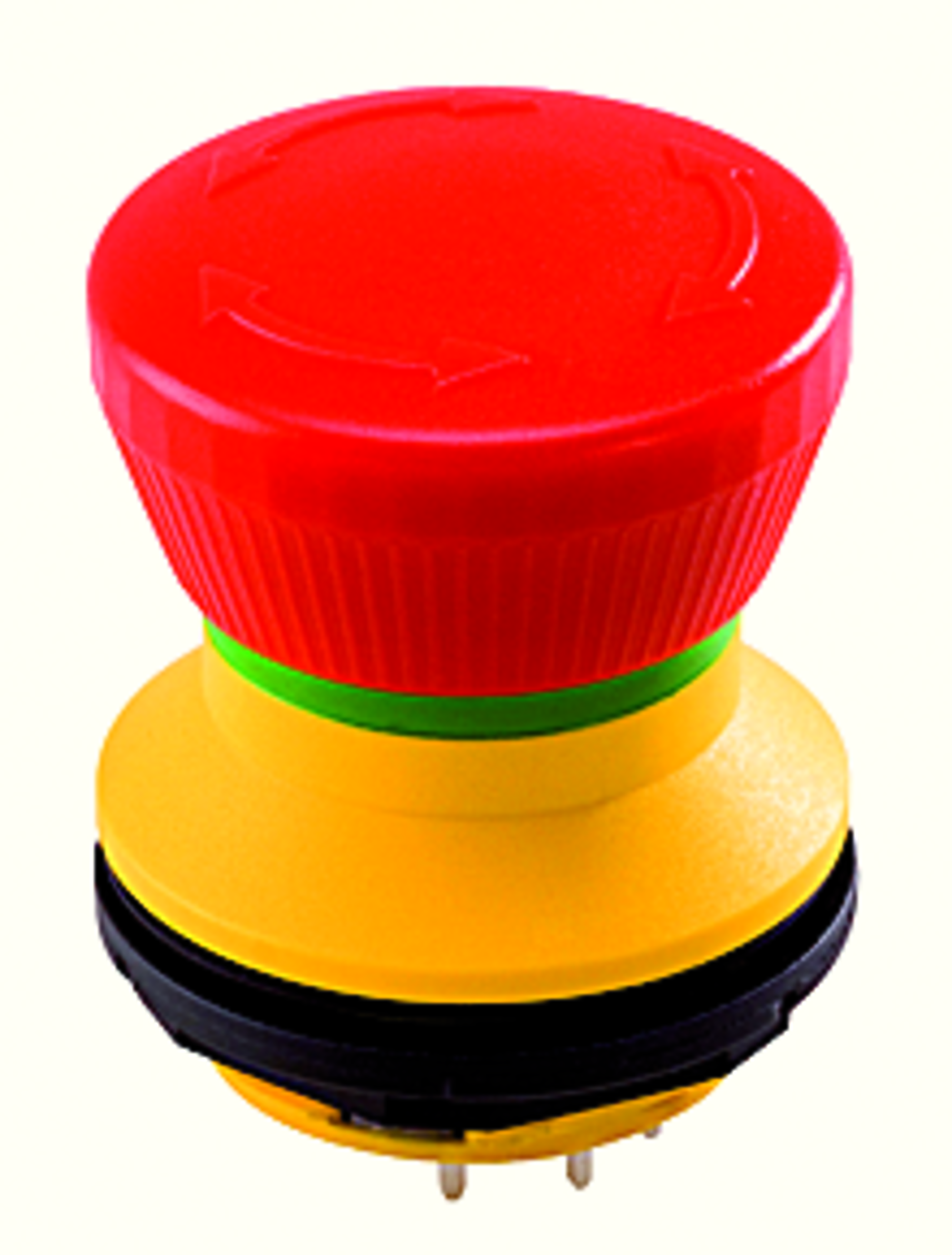

FRVKOOIP - Emergency-stop 2NC+1NO
Operating Temperature
-25 ... 70°C
Approbations
TÜV_Süd , CCC , cURus , CE , UKCA
Rated Operating Voltage
24V DC IEC/EN 60947-5-1
250V DC IEC/EN 60947-5-1
60V DC IEC/EN 60947-5-1
120V AC IEC/EN 60947-5-1
125V DC IEC/EN 60947-5-1
240V AC IEC/EN 60947-5-1
250V DC IEC/EN 60947-5-1
60V DC IEC/EN 60947-5-1
120V AC IEC/EN 60947-5-1
125V DC IEC/EN 60947-5-1
240V AC IEC/EN 60947-5-1
Connection Type
PCB-mount terminal
Protection Class Front
IP67 , IP65
Storage Temperature
-40 ... 80°C
Release
Twist to release left/right
Electrical Life
50.000 switching cycles at rated load
50.000 switching cycles
50.000 switching cycles
Anti Block Collar
No
Series
SHORTRON®
Shape
round

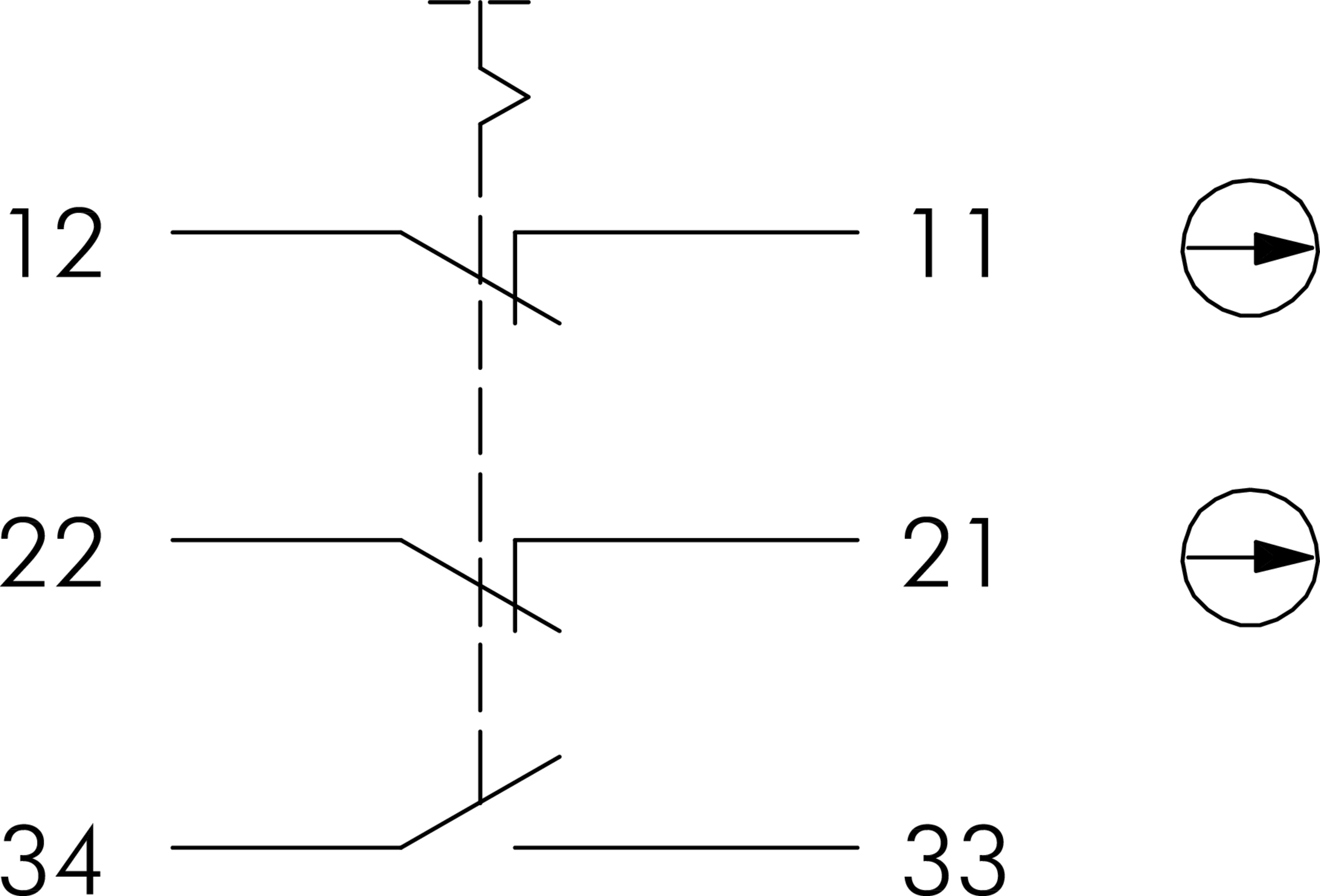

Contact Type
2NC + 1NO
Mechanical Life
50.000 switching cycles

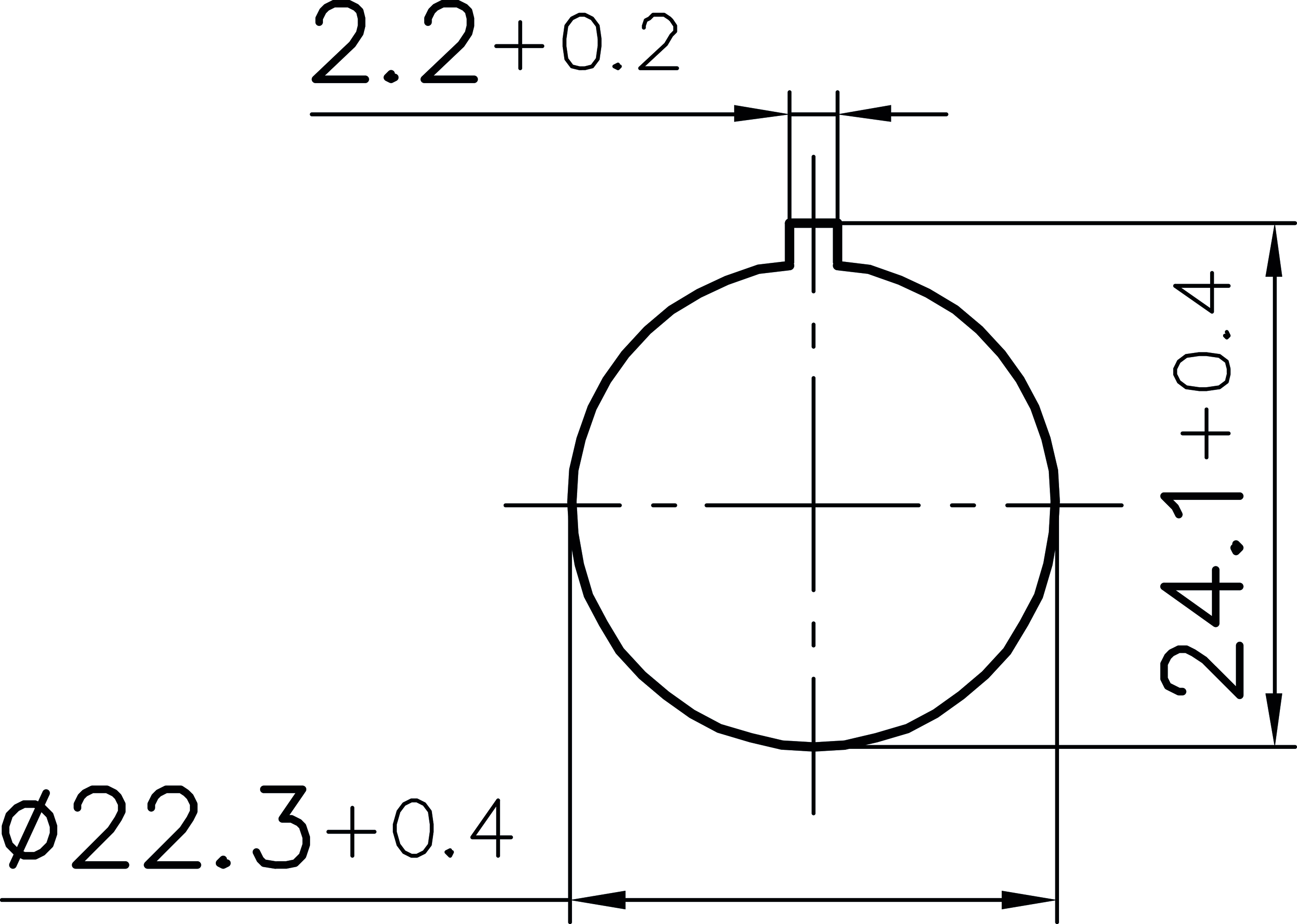

Mounting Aperture
Ø 22,3mm
Front Bezel Color
yellow
Illumination
No

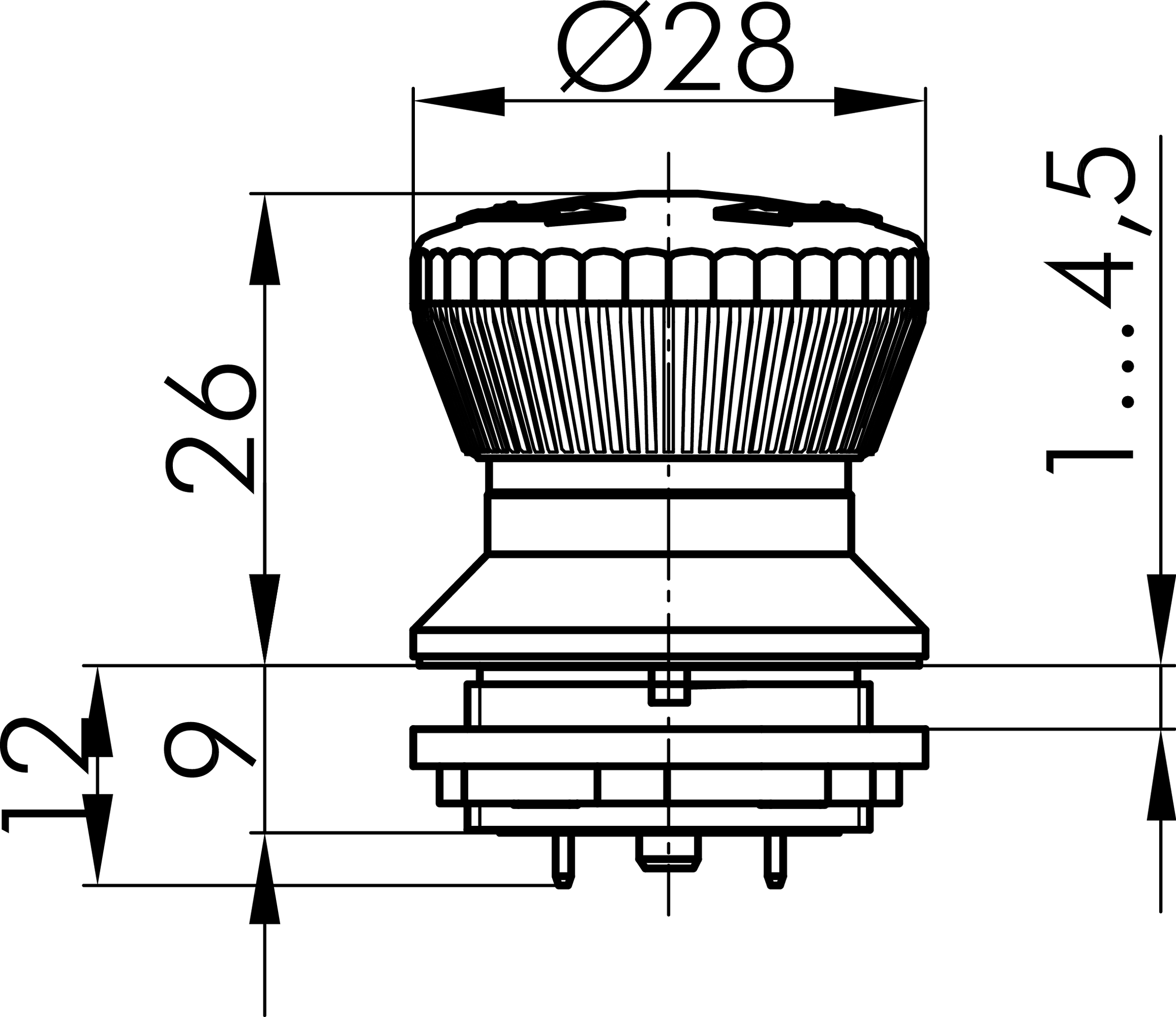

Technical sketches

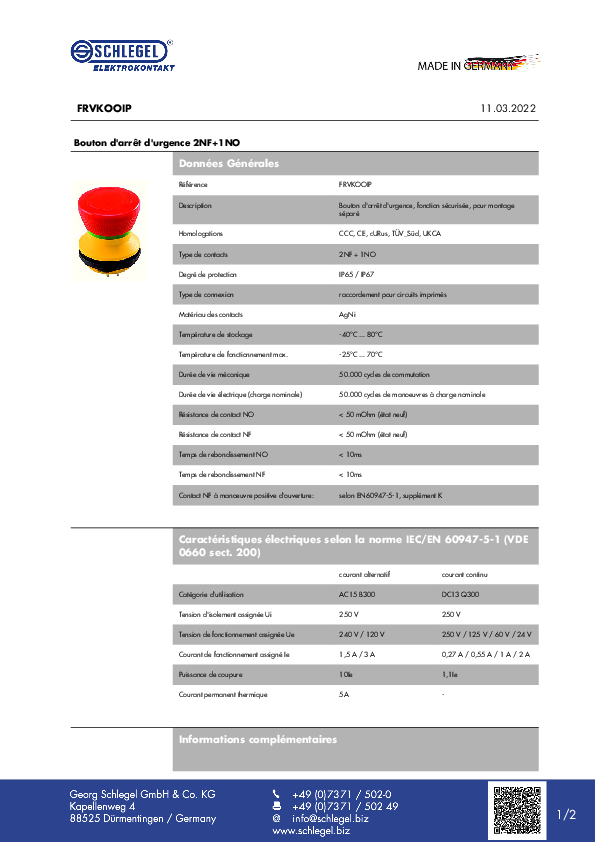

Datasheet_FRVKOOIP
