IRF4

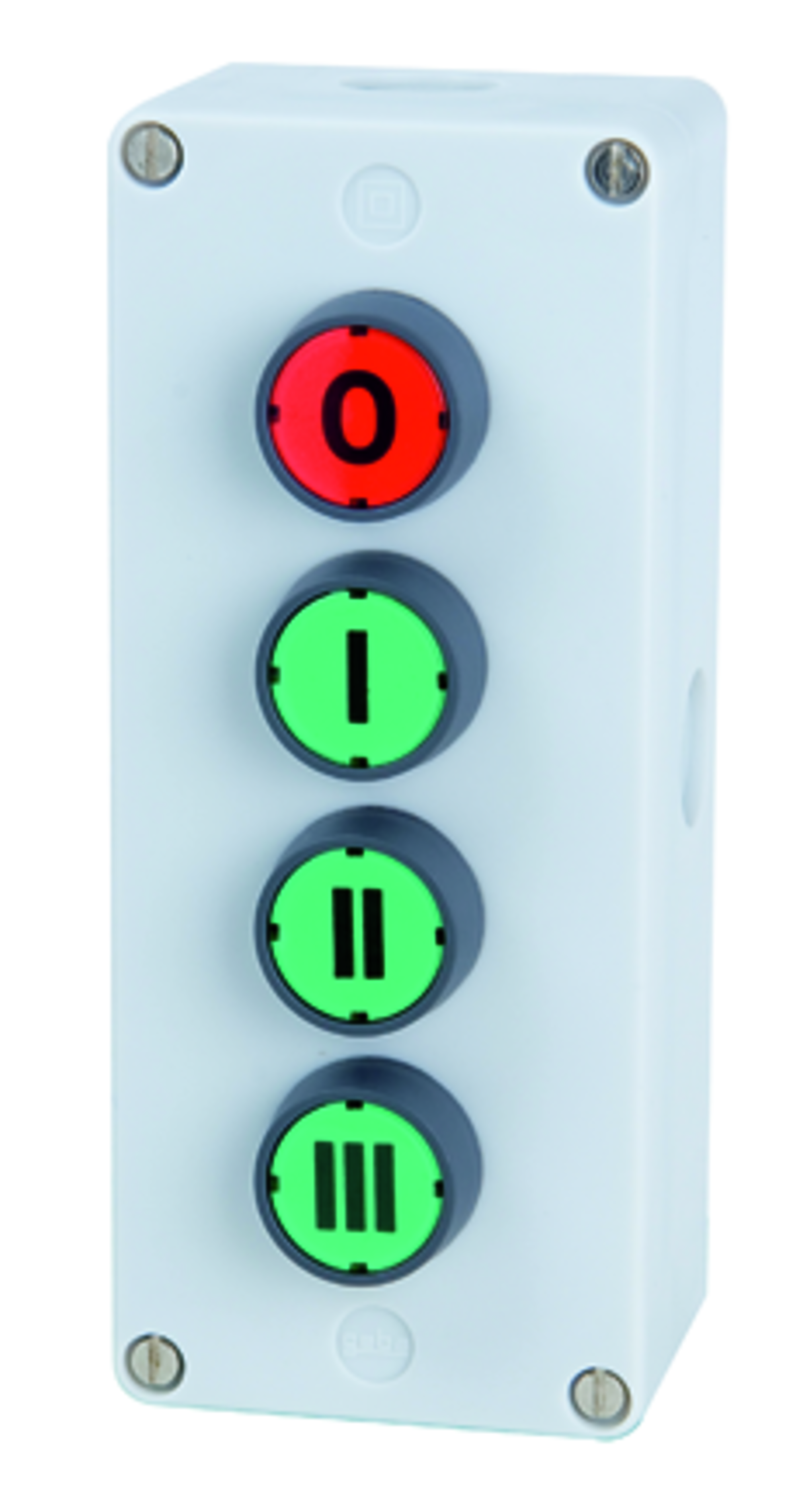

Equipped insulated plastic enclosure with 4 pushbuttons
Electrical life
250.000 switching cycles
500.000 switching cycles
1.000.000 switching cycles
500.000 switching cycles
1.000.000 switching cycles
Mechanical life
1.000.000 switching cycles
Positions
4
Switching function
Momentary function
Protection class
II (protective insulation)
Degree of protection front
IP65
Operating temperature
-40 ... 60°C
Colour enclosure
light-grey

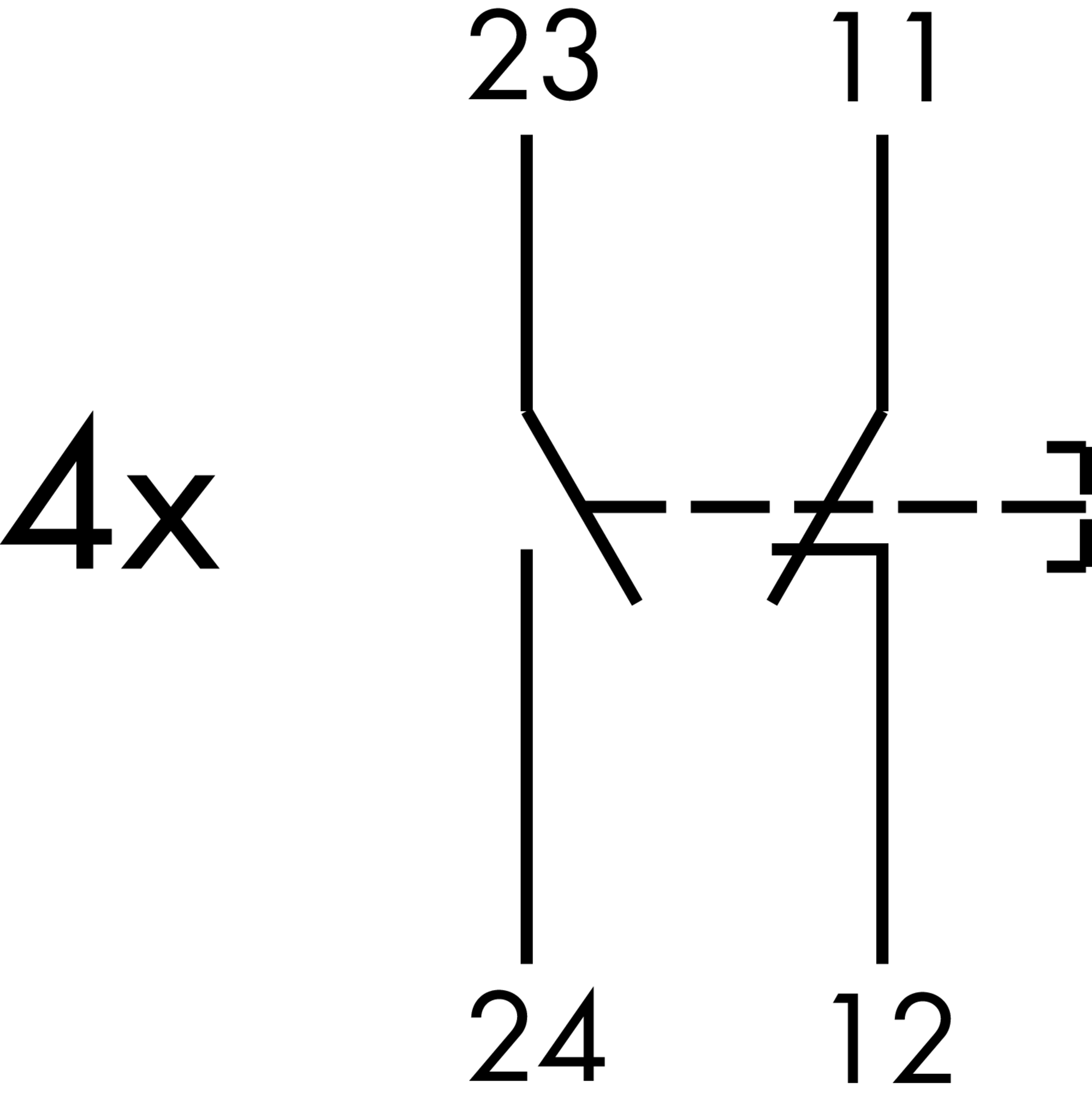

Contact type
1NC + 1NO
Series
IRF
Storage temperature
-40 ... 70°C
Rated insulation voltage IEC/EN 60947-5-1
400 V AC
400 V DC
400 V DC
Material
PA6
Approvals
CE , UKCA
Operating travel
6mm
Illumination
No
Rated operating voltage
250 V AC
400 V AC
250 V DC
24 V DC
125 V DC
60 V DC
400 V DC
400 V AC
250 V DC
24 V DC
125 V DC
60 V DC
400 V DC
Rated operating current
5 A AC
3 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
0.12 A DC
3 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
0.12 A DC

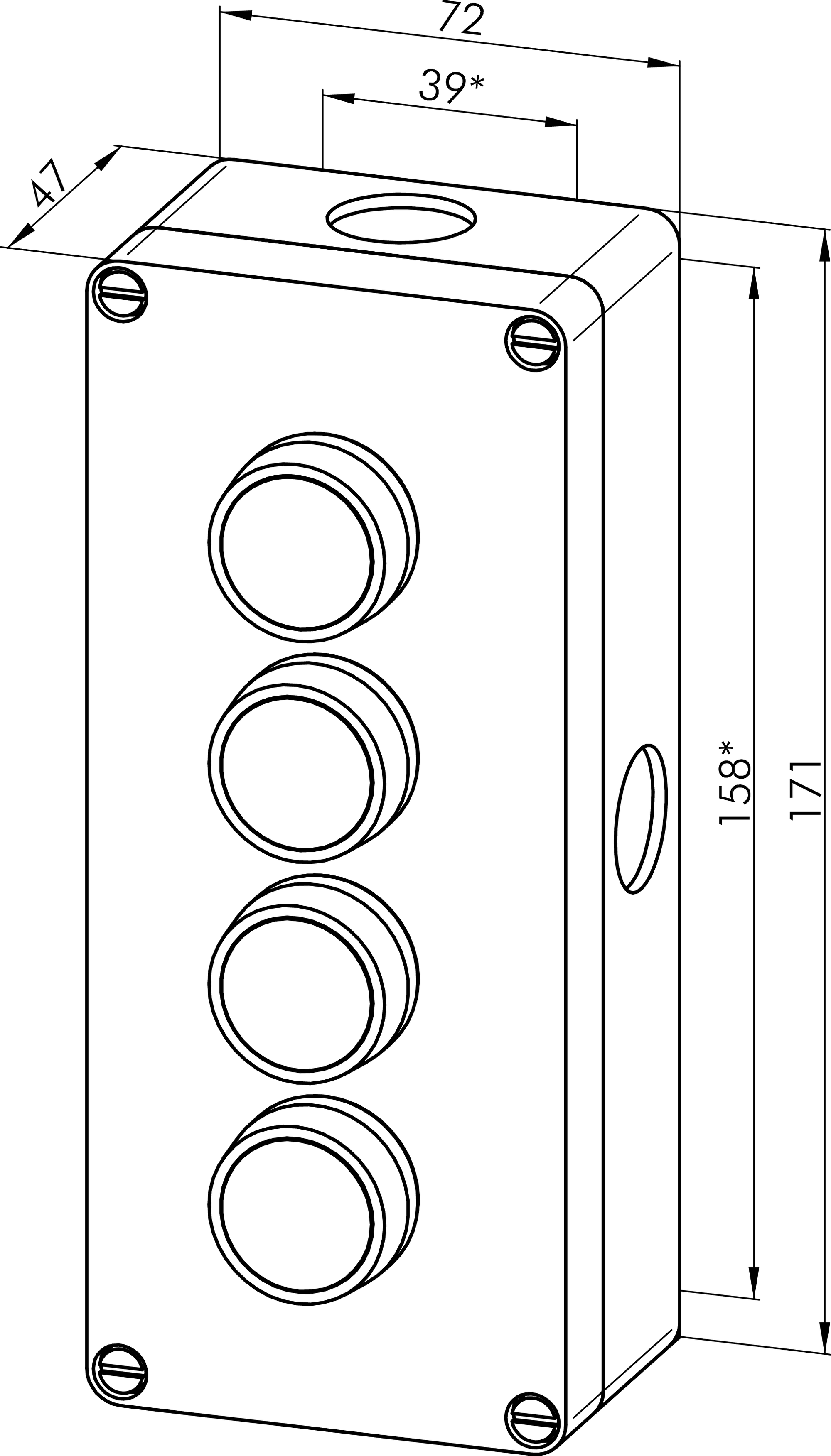

Technical sketches
Downloads

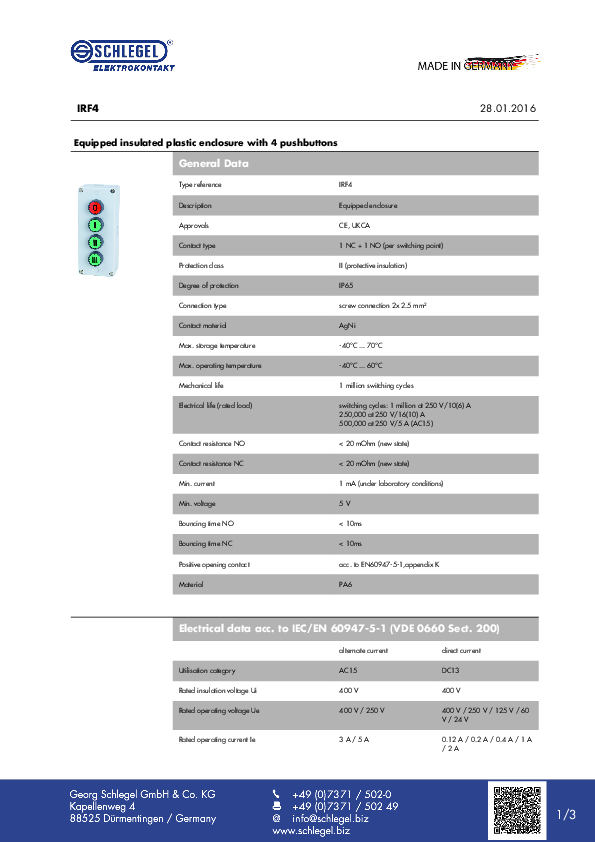

Datasheet_IRF4
