KRVK4OP -
Colour actuator
red
Operating temperature
-25 ... 70°C
Approvals
TÜV_Süd , cURus , CE , UKCA
Rated insulation voltage IEC/EN 60947-5-1
250 V DC
250 V AC
250 V AC
Storage temperature
-40 ... 80°C
Mounting aperture
Ø 30.5 mm
Release
Twist to release left/right
Switching function
Maintained function
Degree of protection front
IP65
Contact type
4NC
Anti-lock collar
no
Series
KOMBITAST®-R-JUWEL
Shape
round
Electrical life
50,000 switching cycles
Mechanical life
50,000 switching cycles
Front bezel colour
yellow
Illumination
no
Rated operating voltage
250 V DC
24 V DC
125 V DC
240 V AC
60 V DC
120 V AC
24 V DC
125 V DC
240 V AC
60 V DC
120 V AC
Rated operating current
0.55 A DC
0.27 A DC
1.5 A AC
3 A AC
2 A DC
1 A DC
0.27 A DC
1.5 A AC
3 A AC
2 A DC
1 A DC

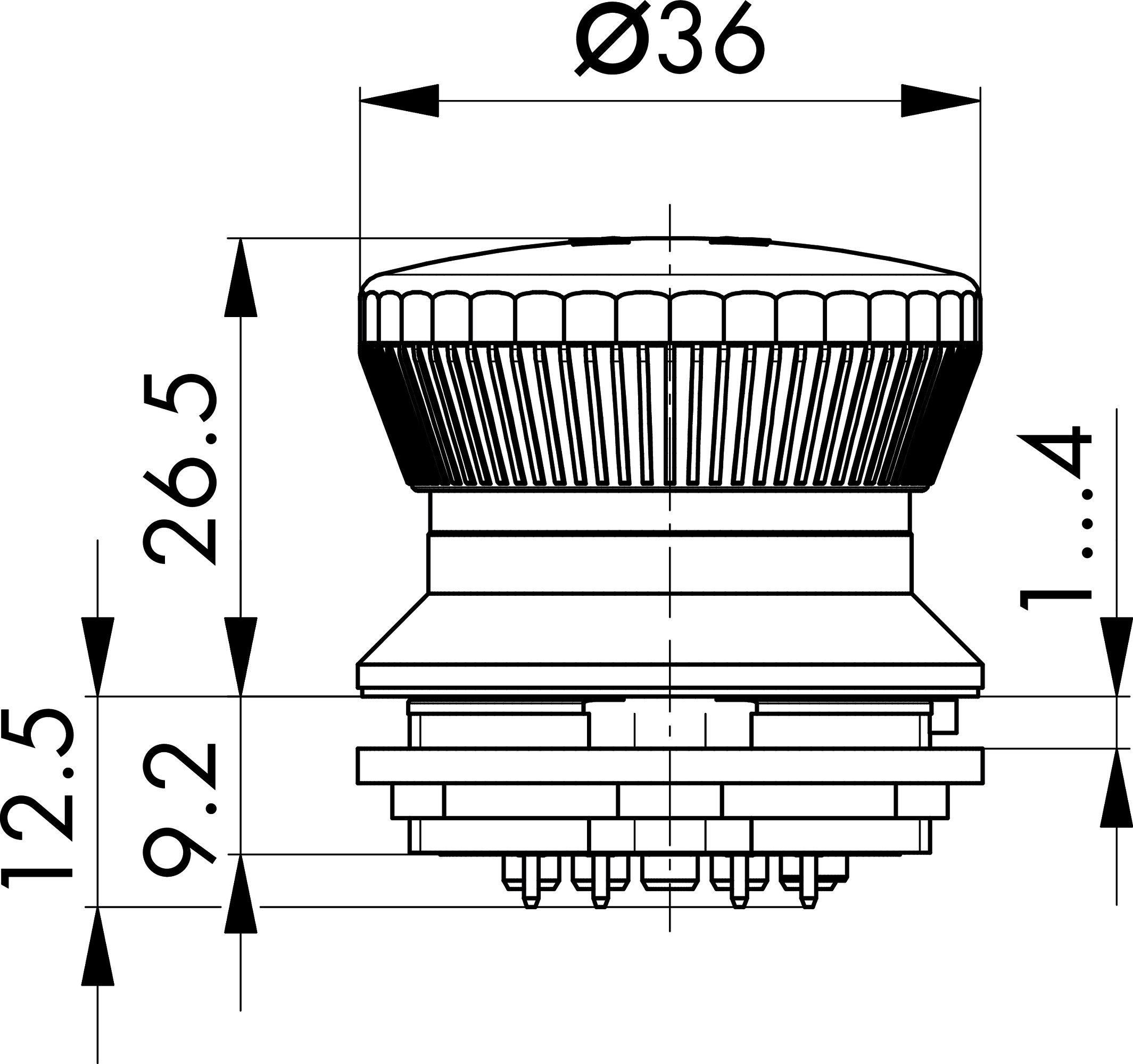

Technical sketches
Downloads
Datasheet_KRVK4OP
