KRVKOOI_C112 - Emergency-stop with 5-pole M12 connector
Operating Temperature
-25 ... 70°C
Series
KOMBITAST® connect
Connection Type
M12 plugs
Storage Temperature
-40 ... 80°C

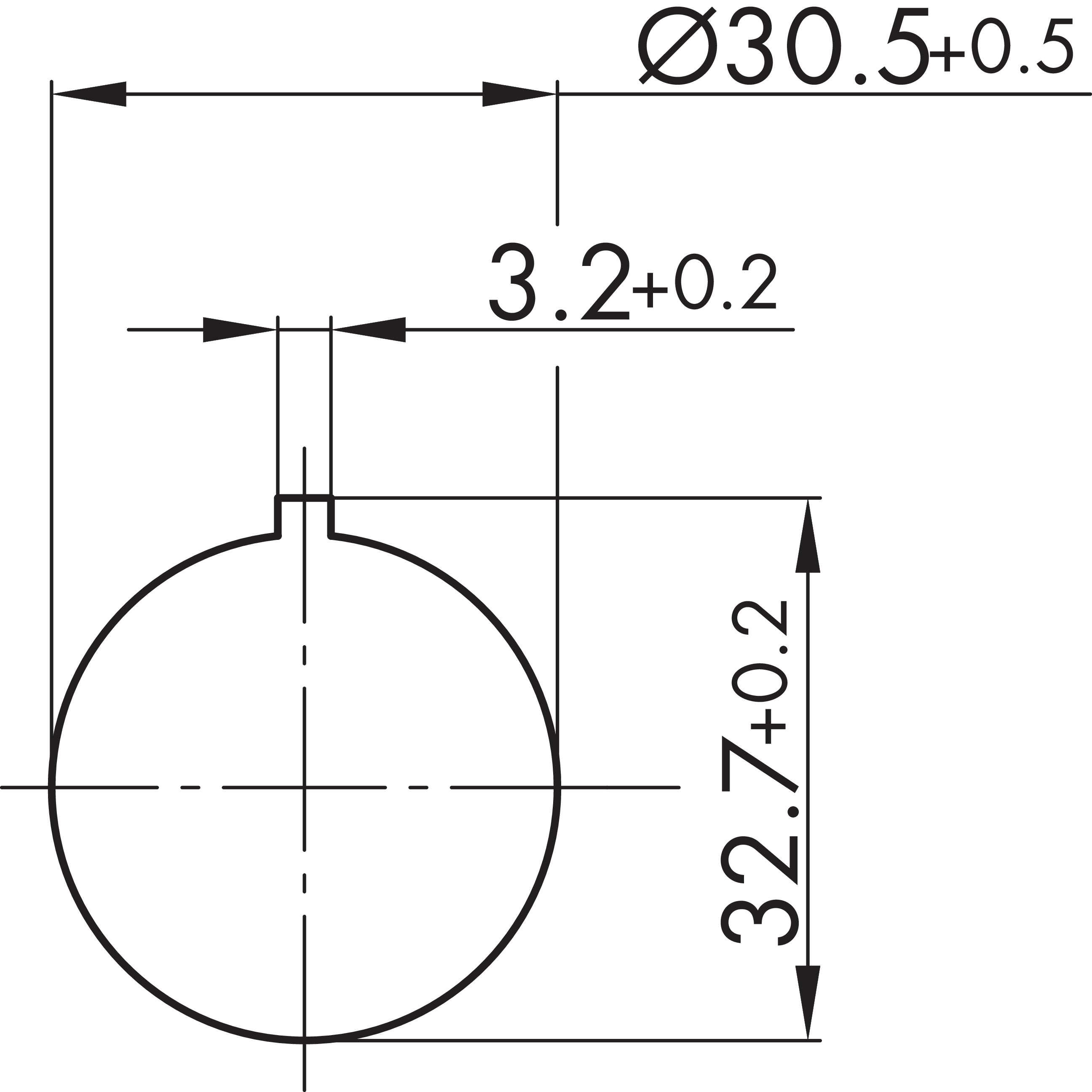

Mounting Aperture
Ø 30,5mm
Release
Twist to release left/right
Class of Protection
II (protective insulation)
Protection Class Front
IP65
Rated Operating Voltage
35V DC IEC/EN 60947-5-1
35V AC IEC/EN 60947-5-1
35V AC IEC/EN 60947-5-1
Electrical Life
50.000 switching cycles at rated load
50.000 switching cycles
50.000 switching cycles
Anti Block Collar
No
Approbations
cURus , CE , UKCA
Shape
round
Contact Type

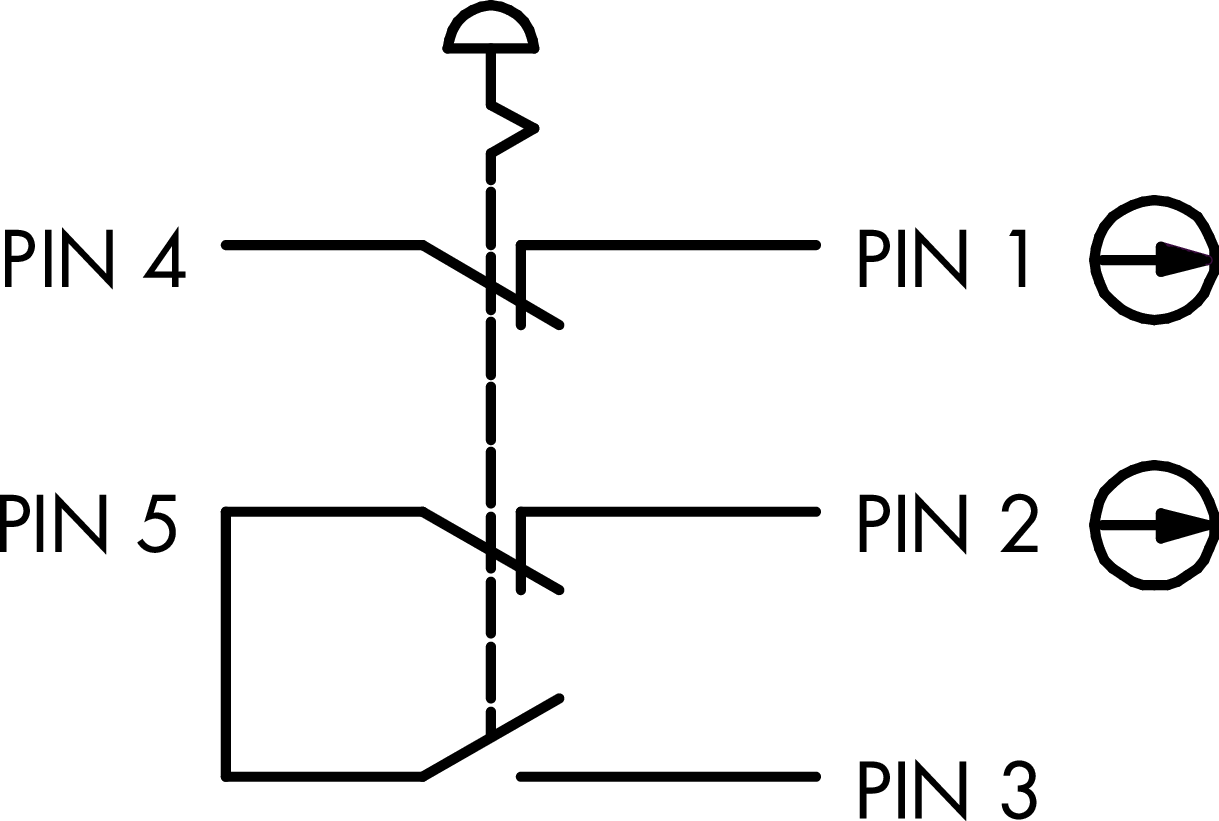

2NC + 1NO
Mechanical Life
50.000 switching cycles
Front Bezel Color
yellow
Illumination
No

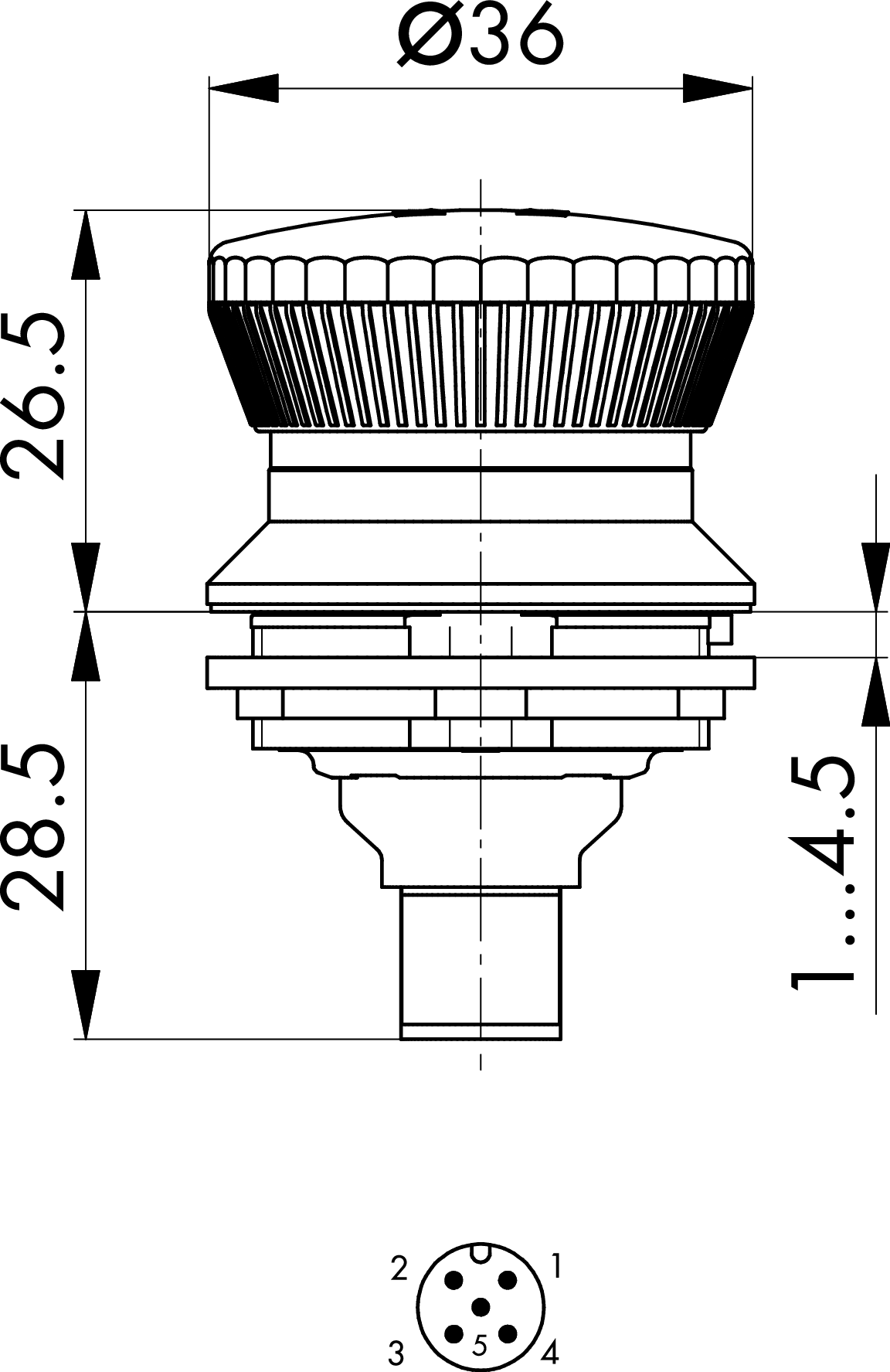

Technical sketches
Downloads

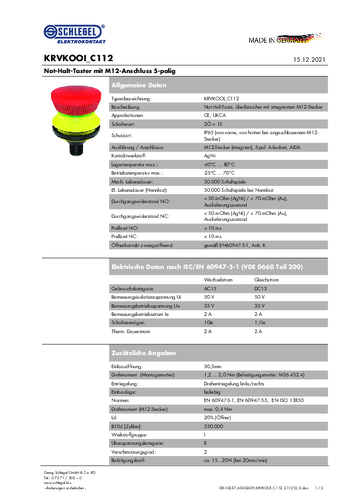

Datasheet_KRVKOOI_C112
