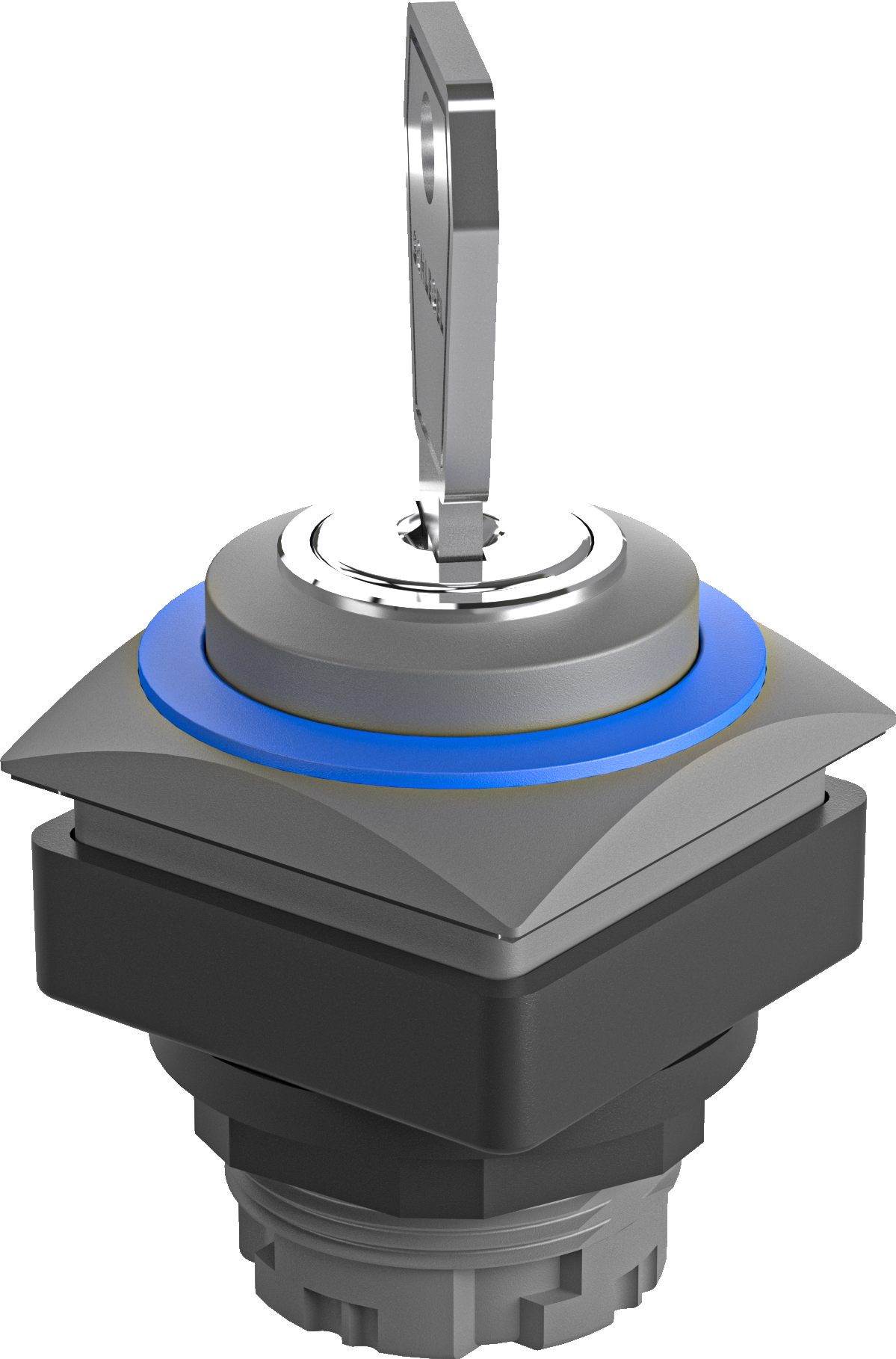

QRJSSA17EBL - Key actuator, maintained
Key switch with two switching positions and latching switching function. Switch position 1 is at -45° and switch position 2 at 45°. The key can be removed to switch position 1.
Includes 2 keys. Different keying possible on request.
Series
QUARTEX®-R-JUWEL

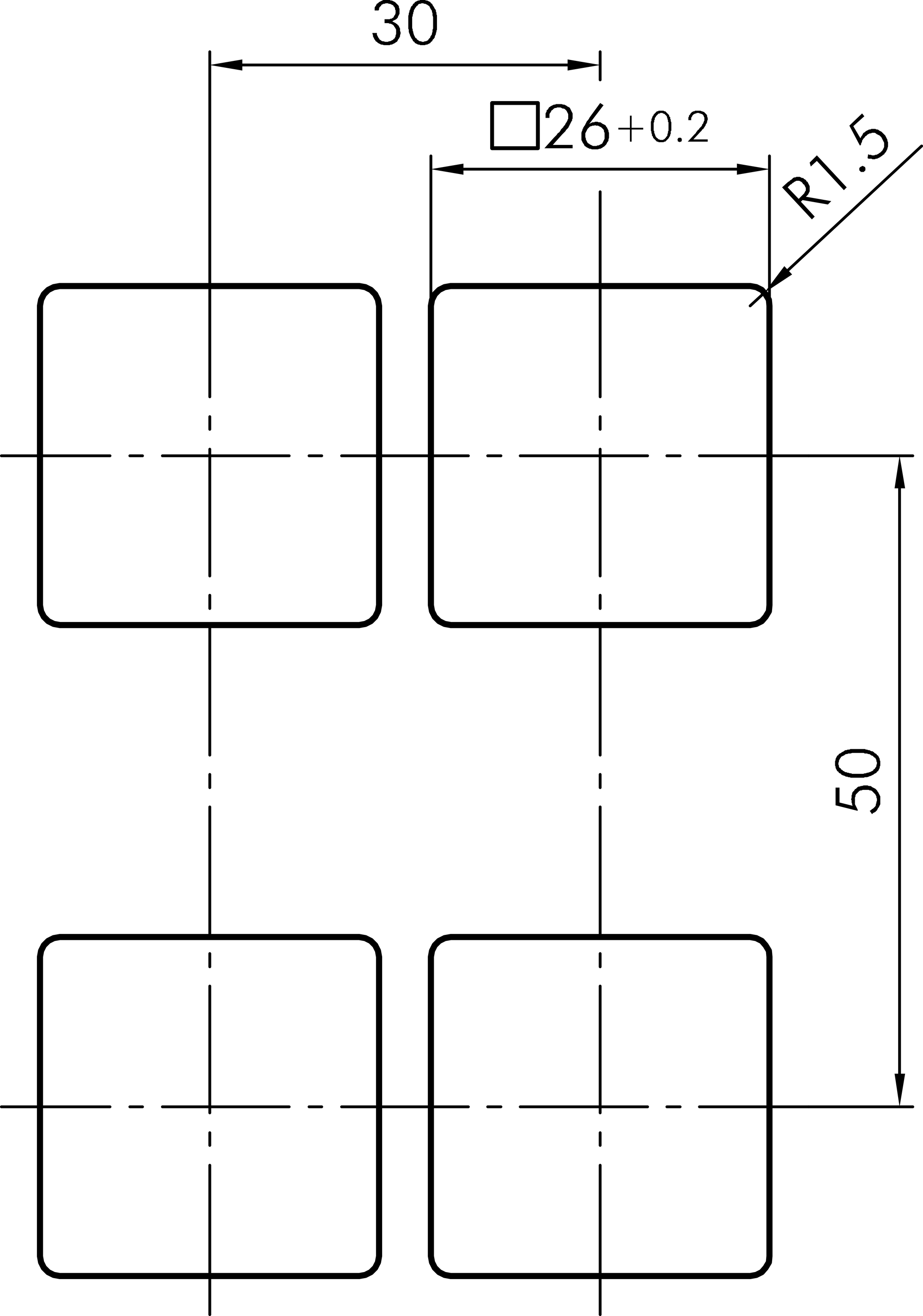

Mounting aperture
26 x 26 mm
Switching function
Latching function

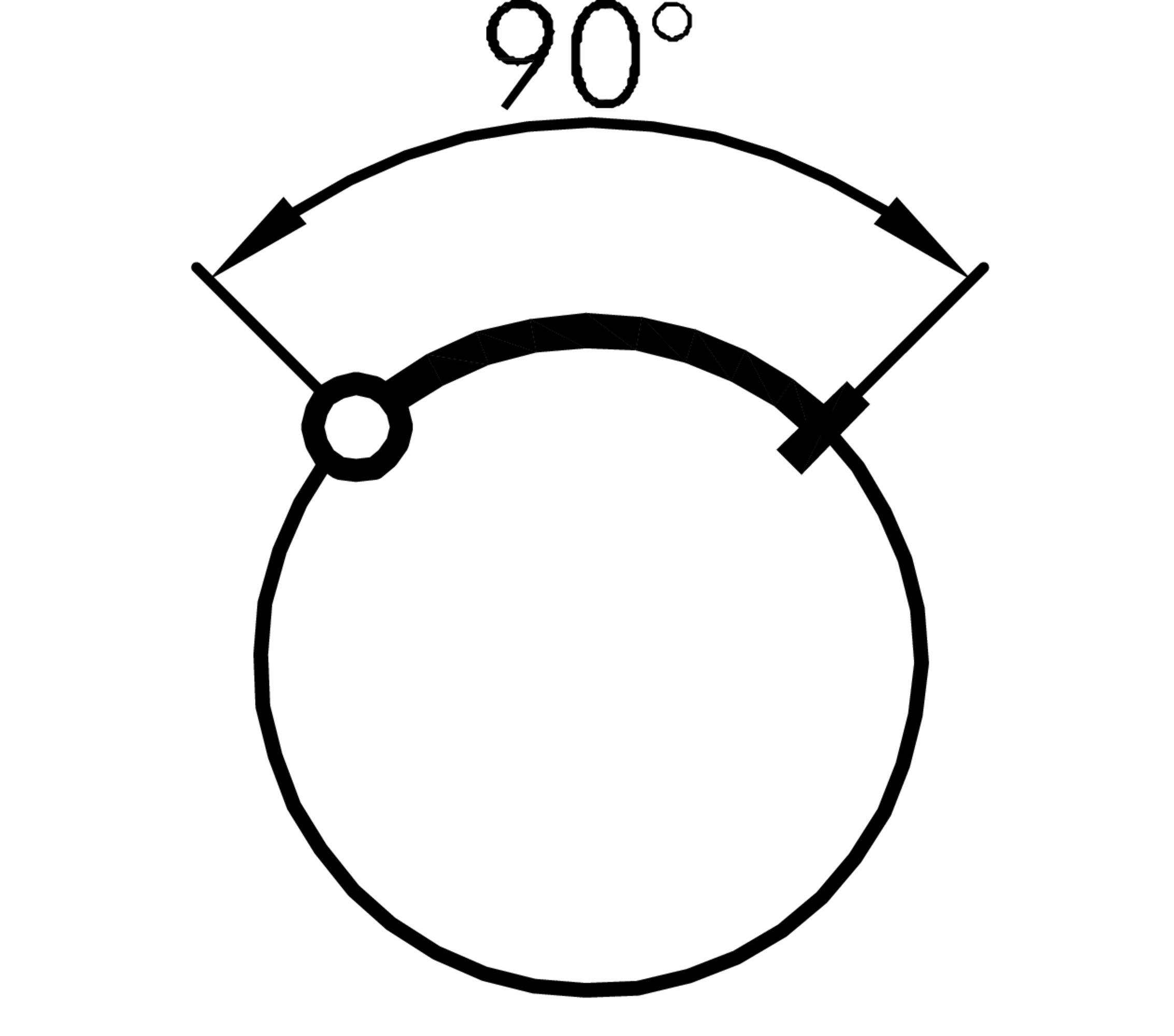

Switching position
-45° key removable
45° maintained
45° maintained
Front bezel colour
Charcoal
Shape
Square
Degree of protection front
IP65

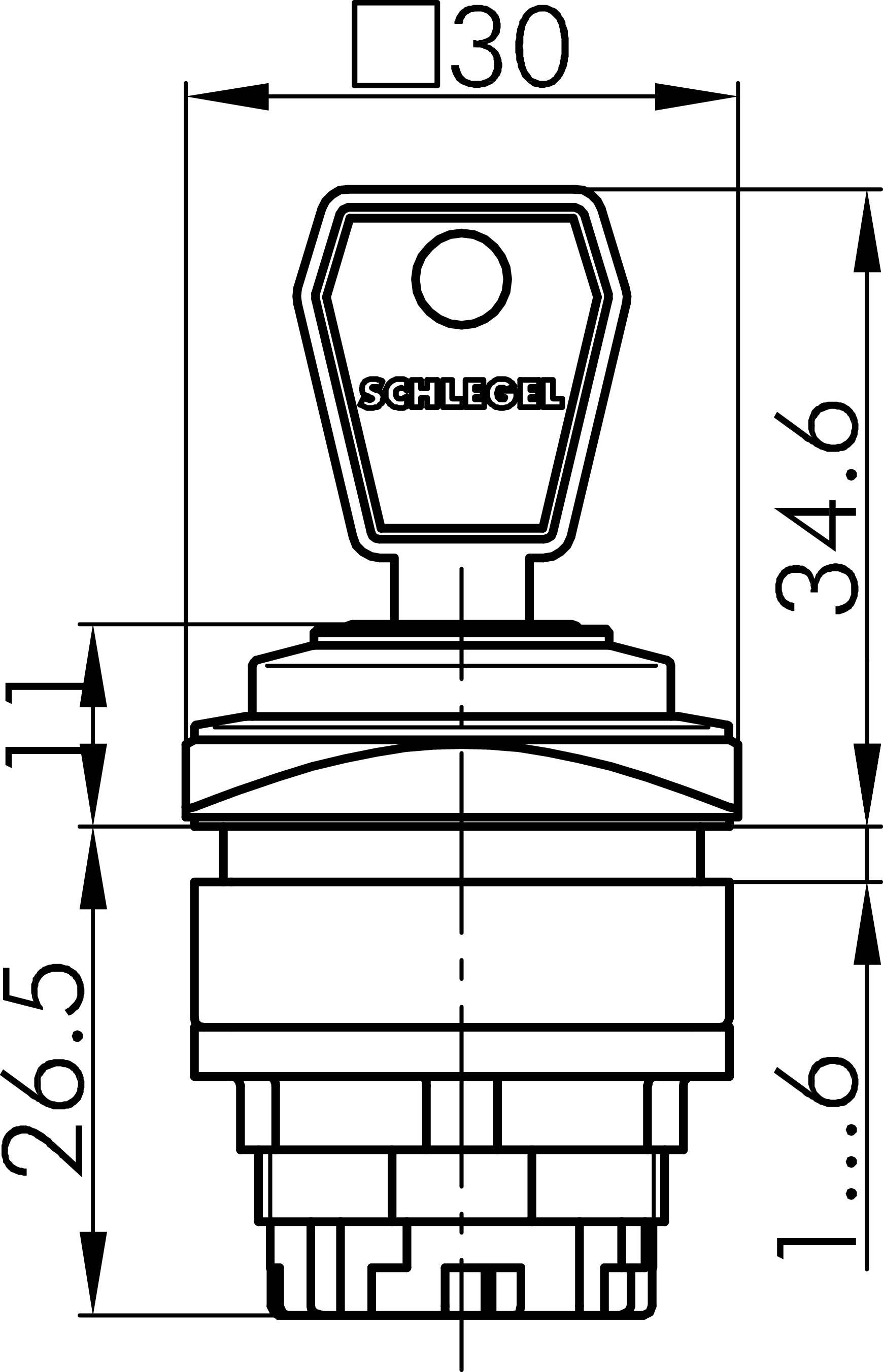

Technical sketches
