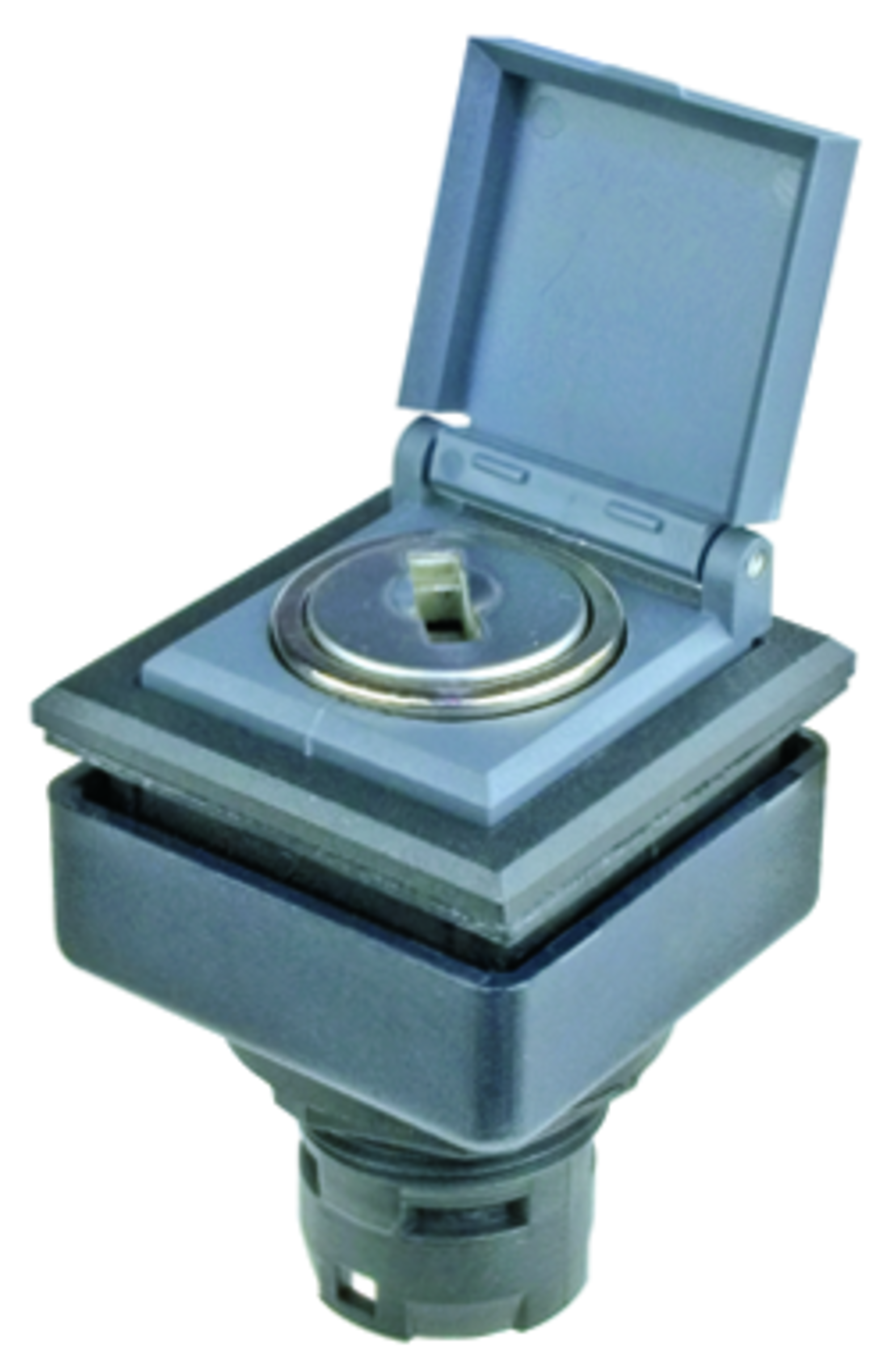

QXJSSKA17E - Key actuator with protection cap, maintained

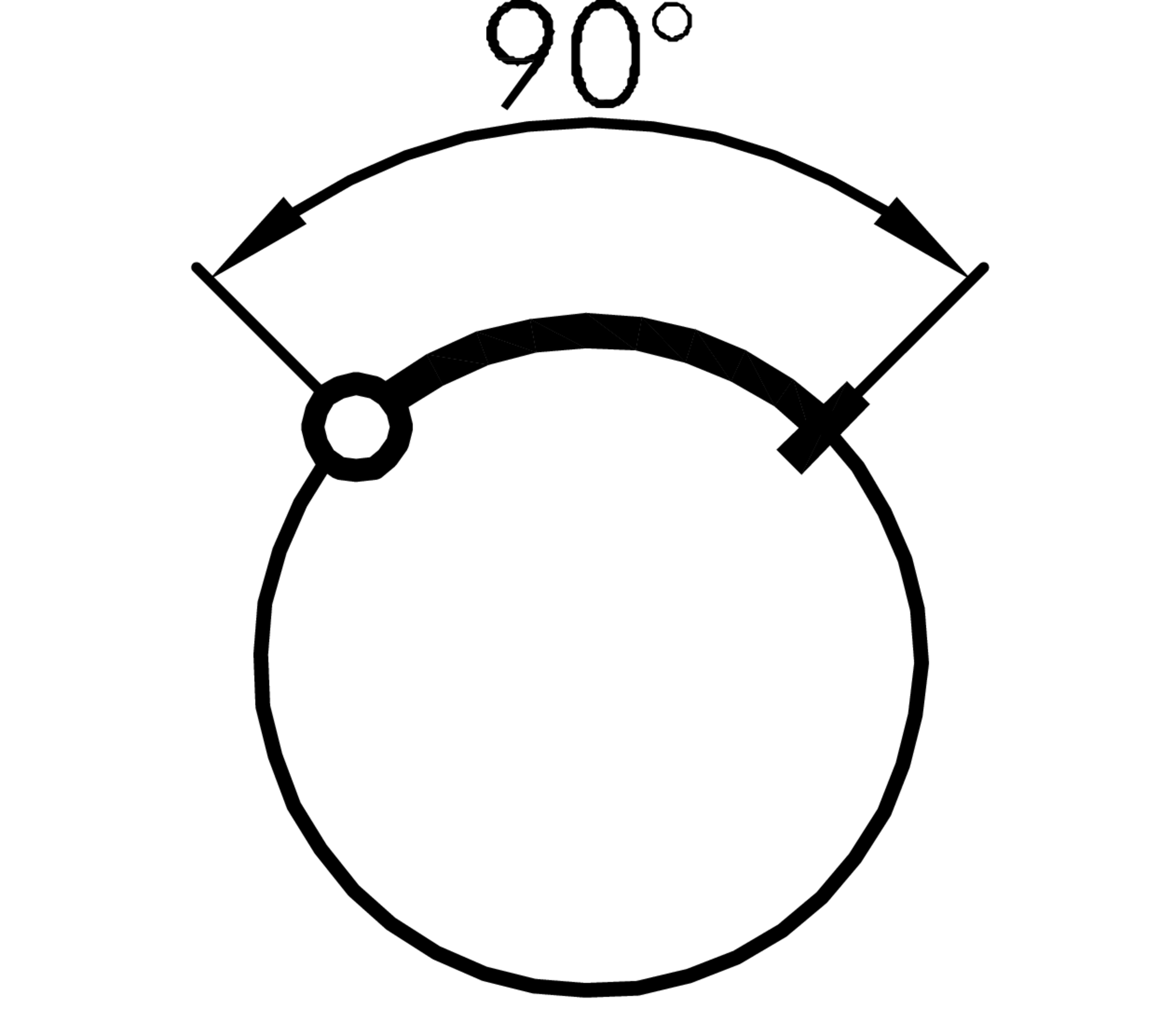

Key switch with two switching positions and latching switching function. Switch position 1 is at -45° and switch position 2 at 45°. The key can be removed to switch position 1.
Includes 2 keys. Different keying possible on request.
Series
QUARTRON-JUWEL®

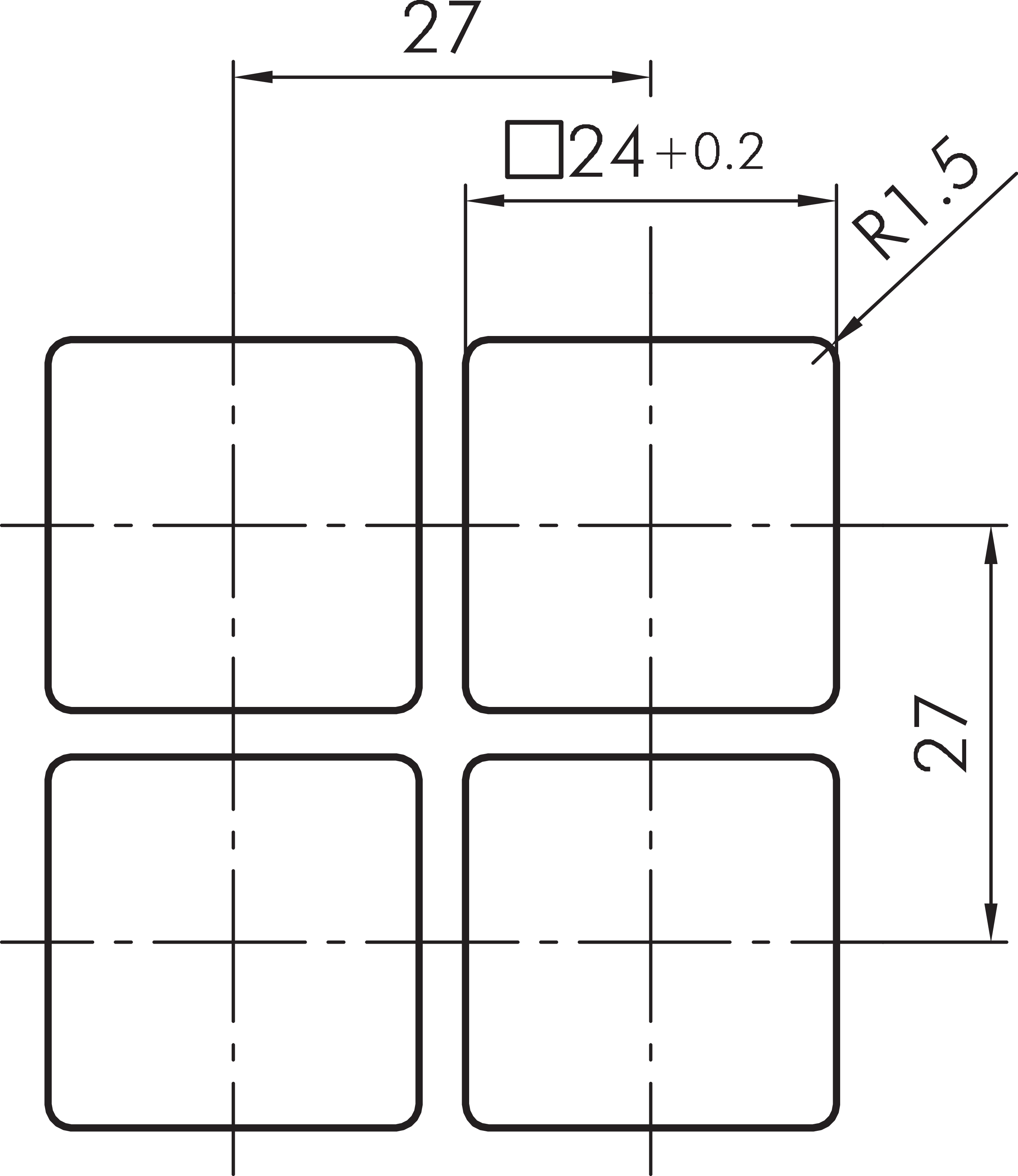

Mounting aperture
24 x 24 mm
Switching function
Latching function
Switching position
-45° key removable
45° maintained
45° maintained
Illumination
No
Front bezel colour
black
Shape
Square
Degree of protection front
IP65
Operating temperature
-25°C ... 70°C
Approvals
CCC, CE, UKCA
Protection class
II (protective insulation)

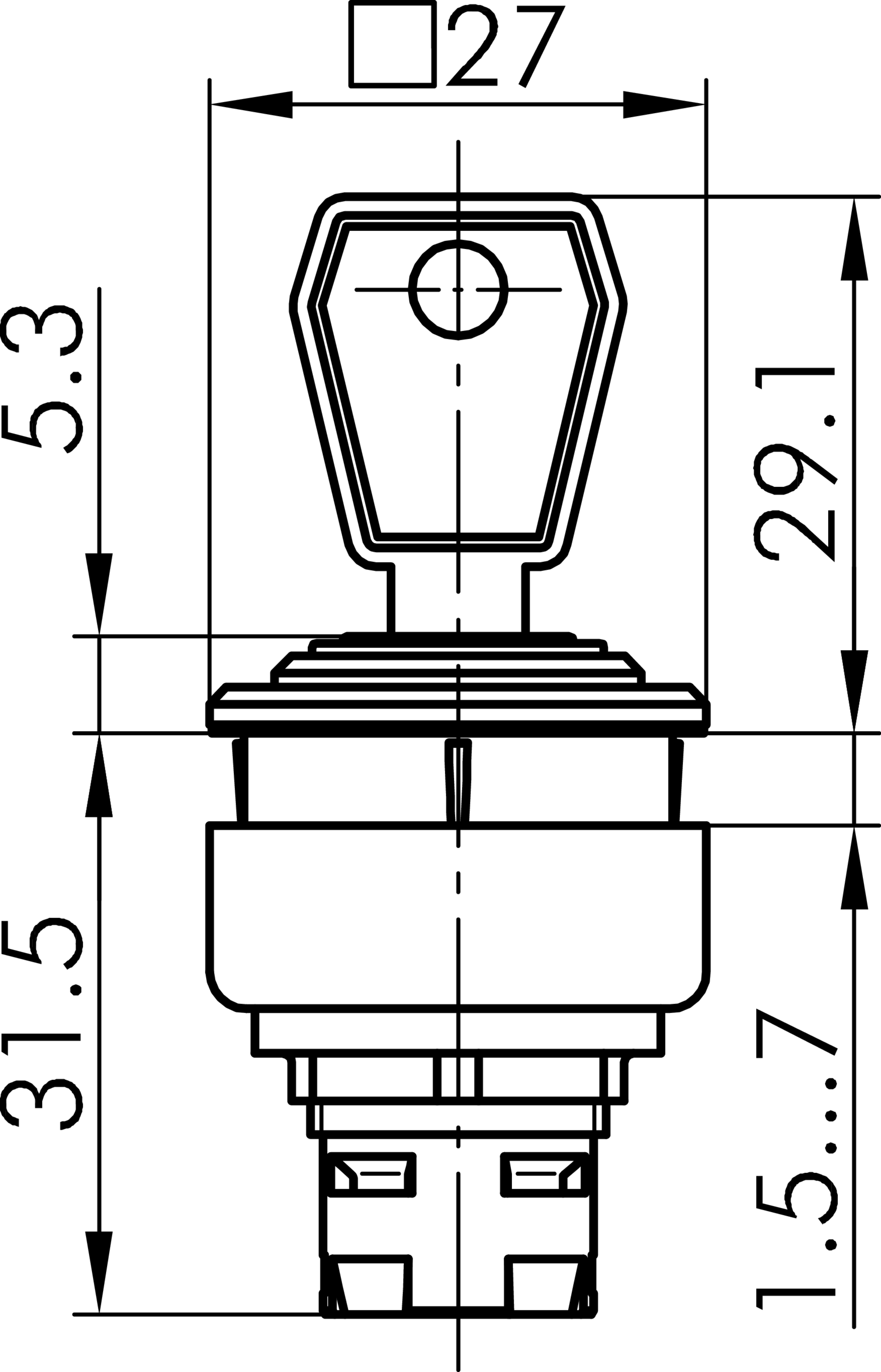

Technical sketches
