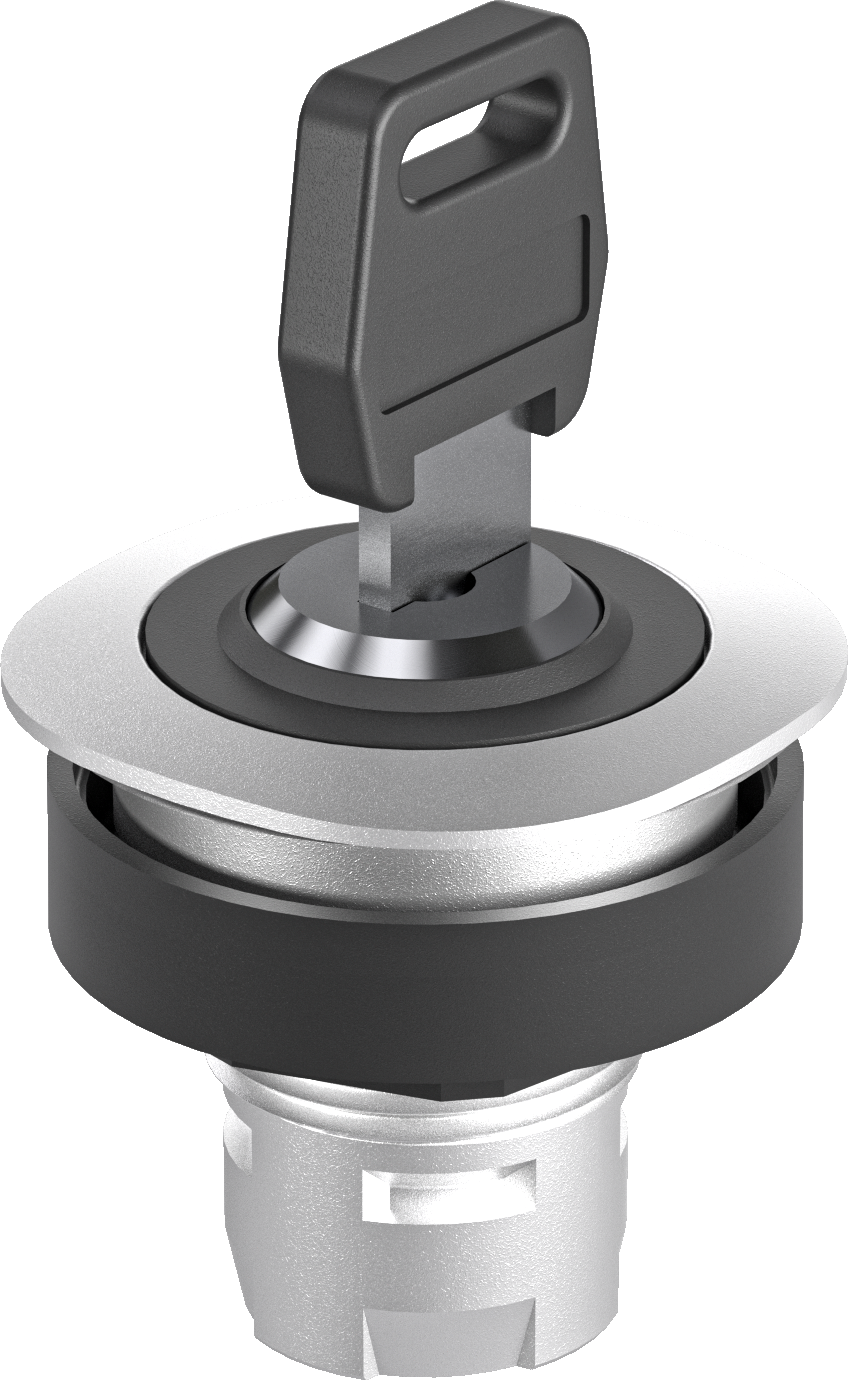

RQJSSA14 - Key actuator, maintained

Key switch with two switching positions and latching switching function. Switch position 1 is at 0° and switch position 2 at 90°. The key can only be removed to switch position 1.

Includes 2 keys. Different keying possible on request.

Series

RONTRON-Q-JUWEL

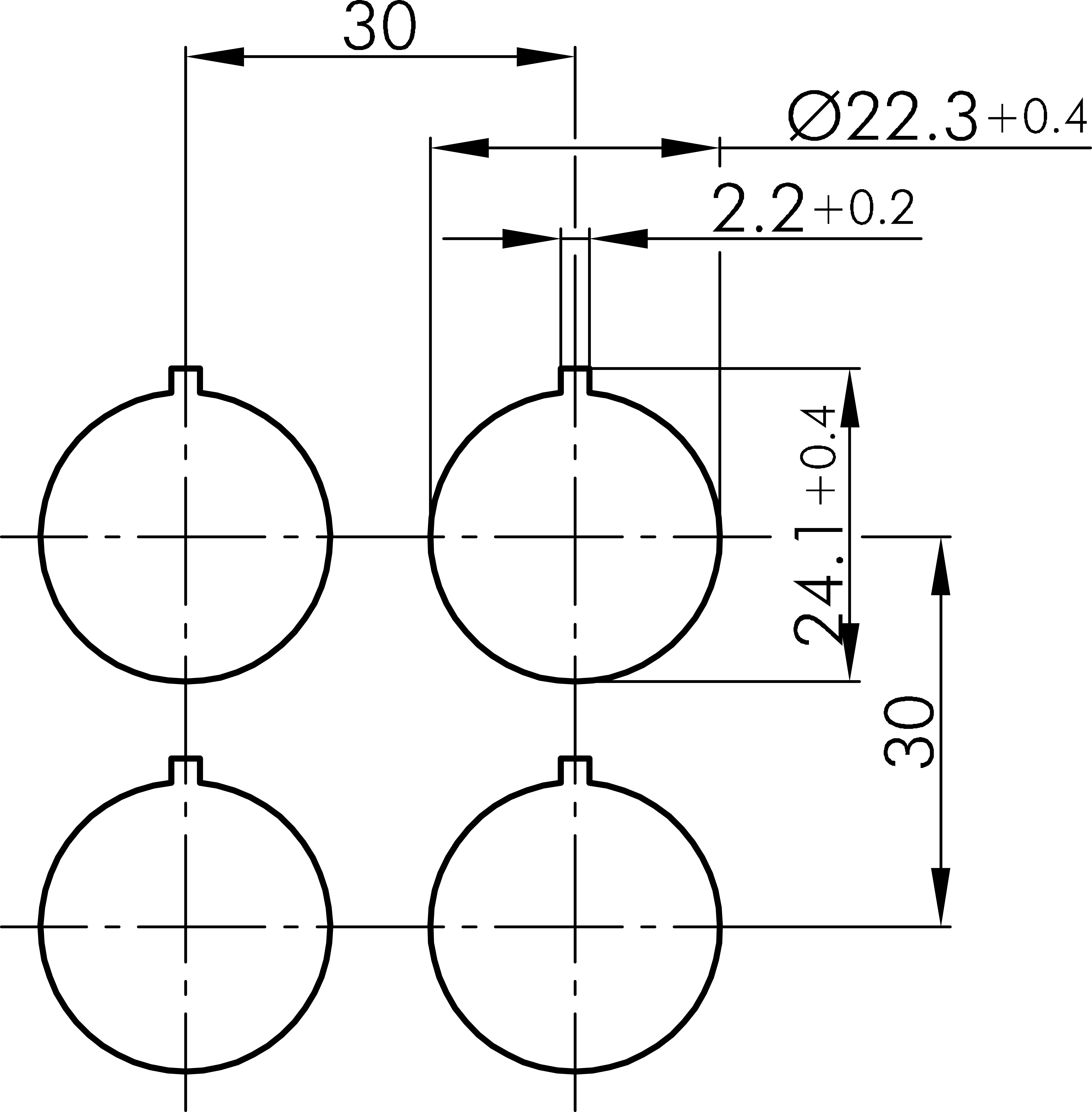

Mounting aperture

Ø 22.3 mm

Switching function

Latching function

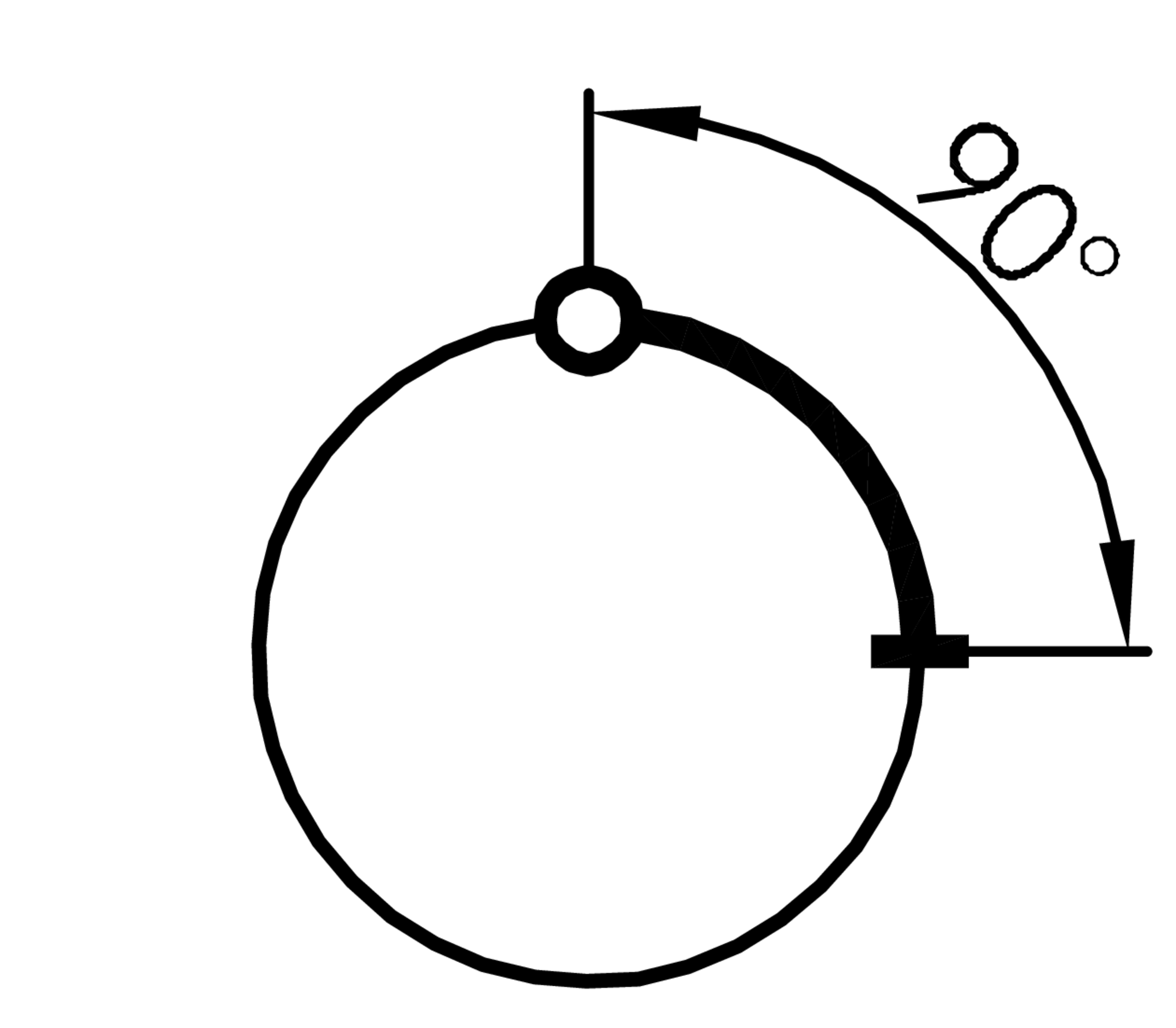

Switching position

0° key removable
90° maintained

Front bezel colour

Silver-coloured

Shape

Rounded square

Degree of protection front

IP65

Operating temperature

-25°C ... 70°C

Approvals

cULus , cCSAus , CCC, CE, UKCA

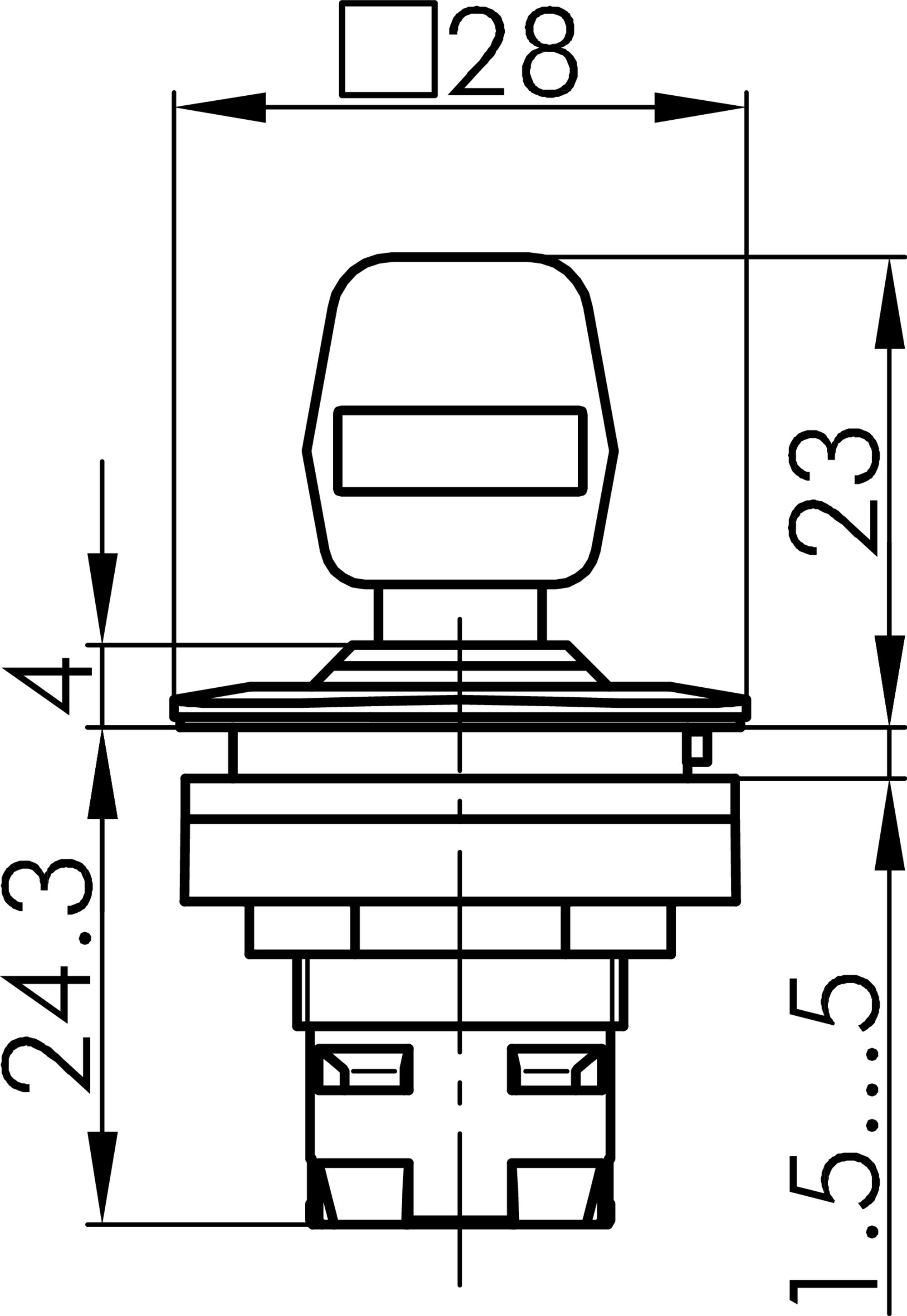

Technical sketches

Awards

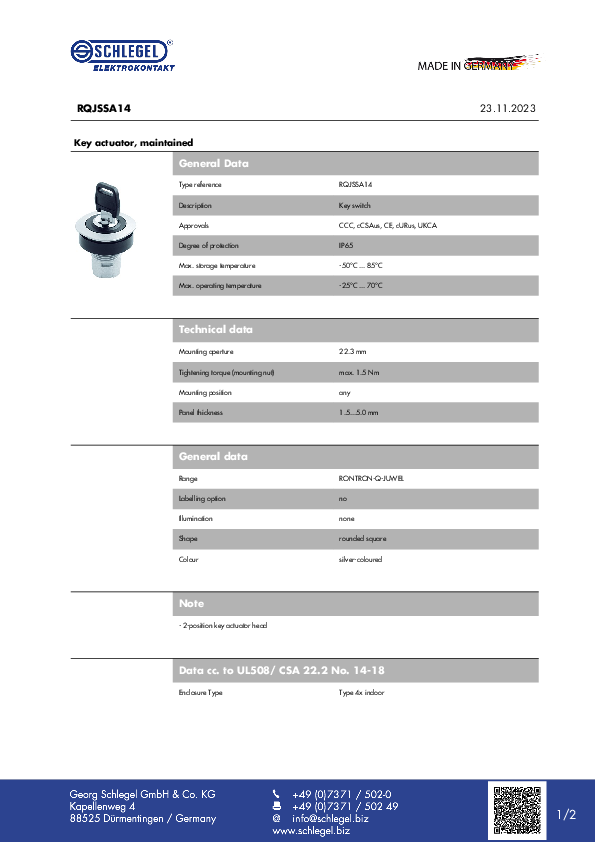

Documents
