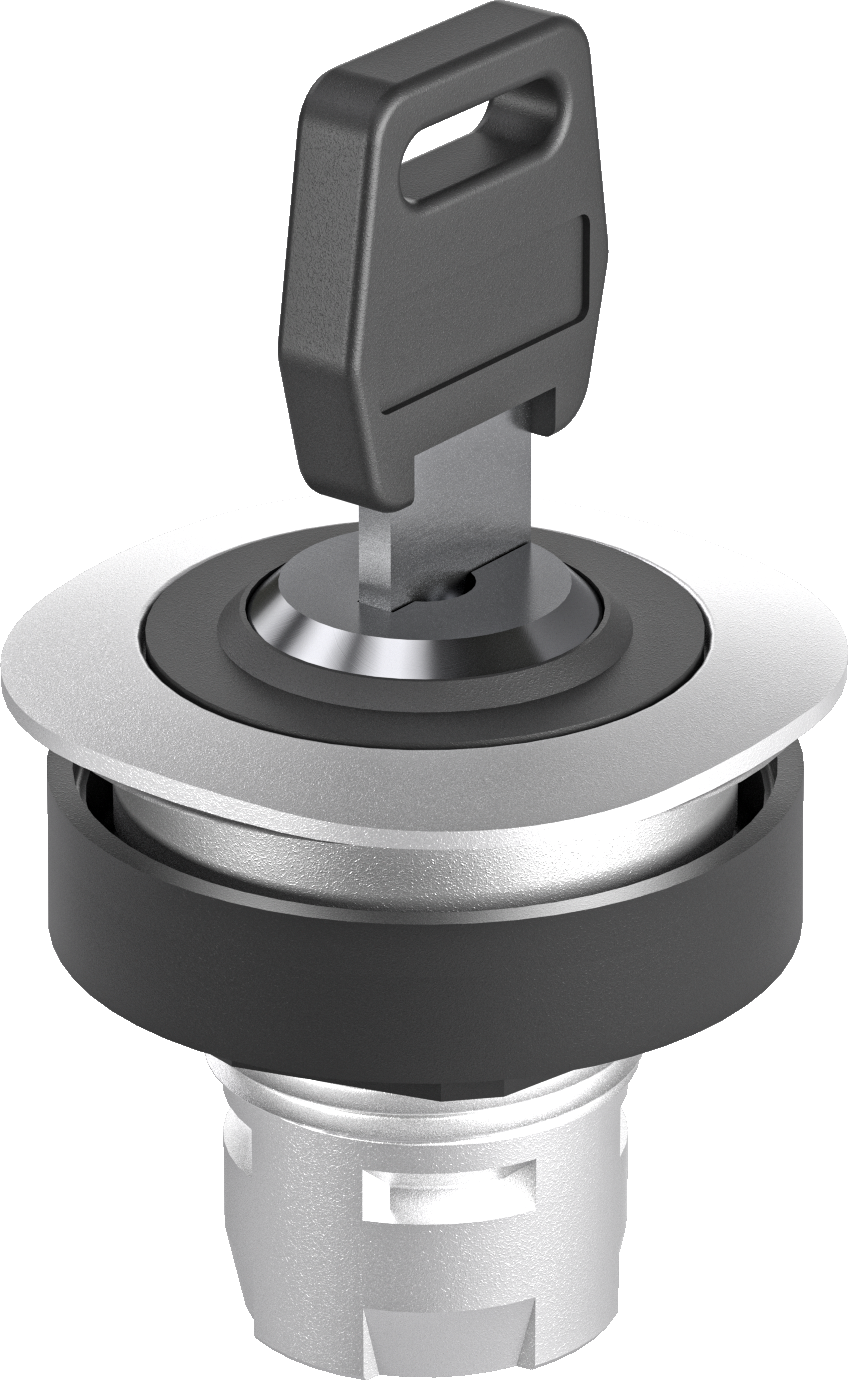

RQJSSA31 - Key actuator, maintained (3 different keys)
Key switch with three switching positions and latching switching function. Switch position 1 is at 0°, switch position 2 at -90° and switch position 3 at 90°. The key can only be removed at switch position 1. There is a separate key for each shift position (left/right, left or right).
Series
RONTRON-Q-JUWEL
Mounting aperture
Ø 22.3 mm
Switching function
Latching function
Switching position
-90° maintained
0° key removable
90° maintained
0° key removable
90° maintained
Front bezel colour
Silver-coloured
Shape
Rounded square
Degree of protection front
IP65
Operating temperature
-25°C ... 70°C
Approvals
cULus , cCSAus , CCC, CE, UKCA

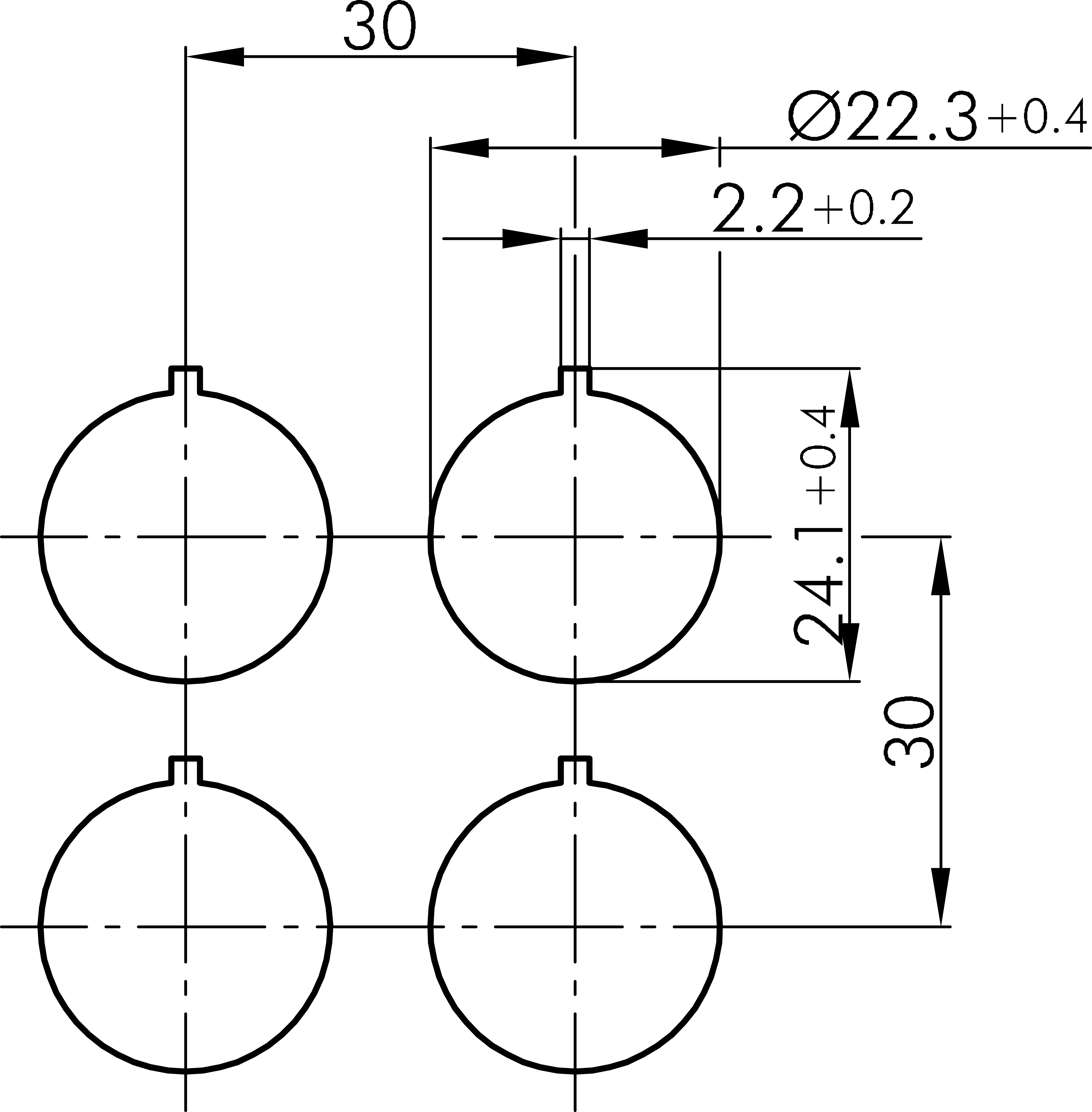

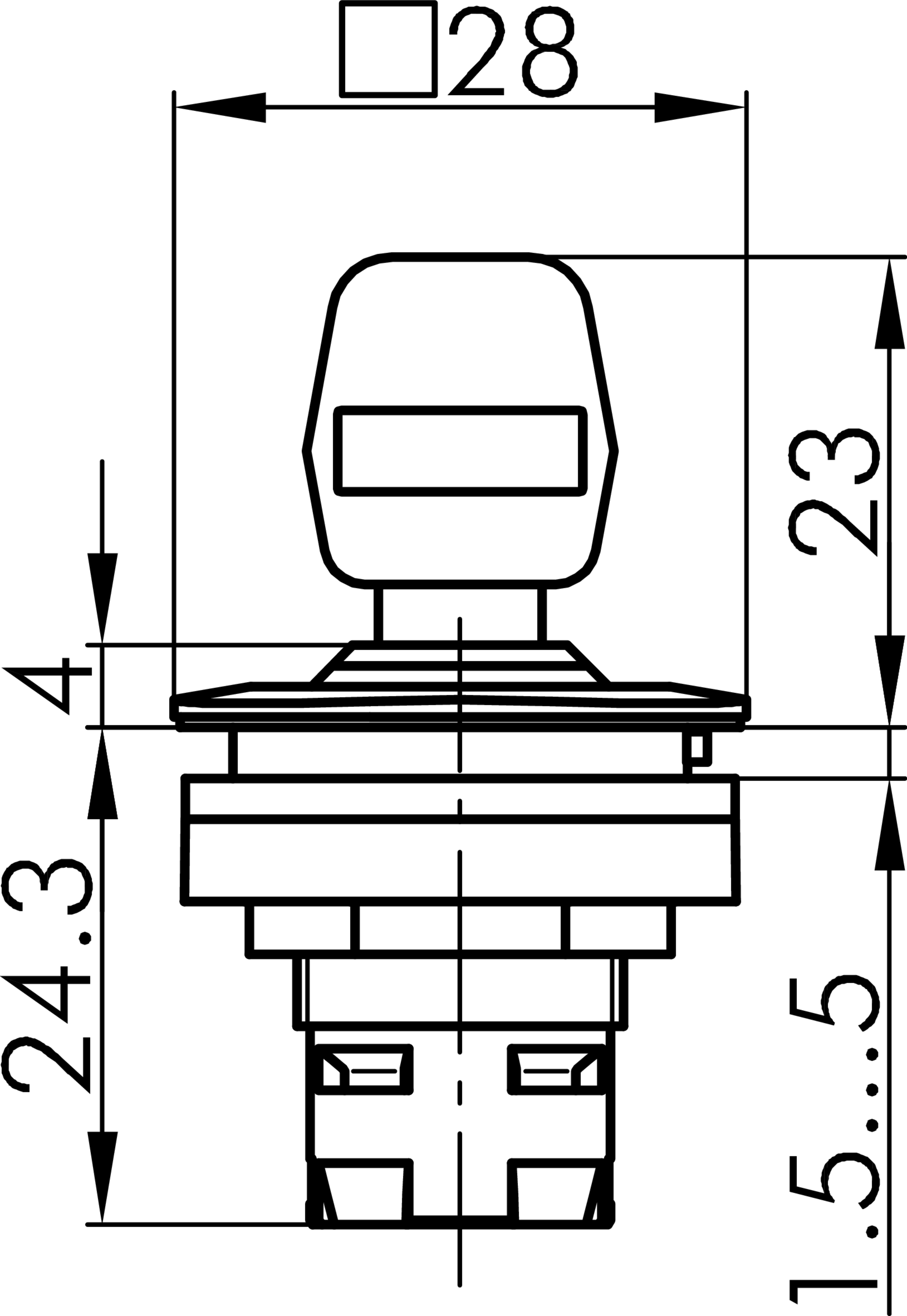

Technical sketches
