RRJSSA16 - Key actuator, maintained
Key switch with two switching positions and latching switching function. Switch position 1 is at 0° zero position and switch position 2 at 90°. The key can be removed to switch position 2.
Includes 2 keys. Different keying possible on request.
Series
Rontron-R-Juwel

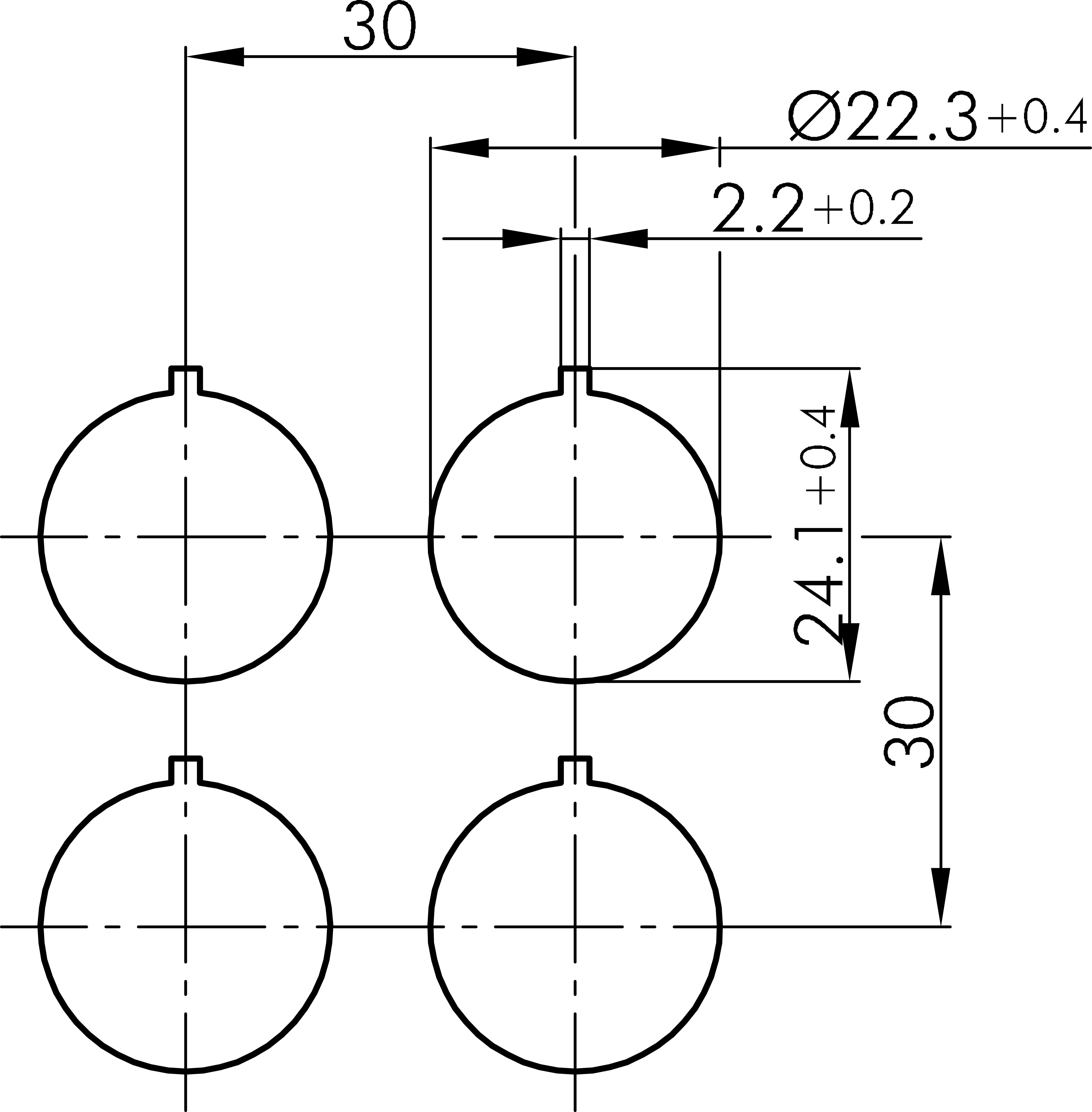

Mounting aperture
Ø 22.3 mm
Switching function
Latching function

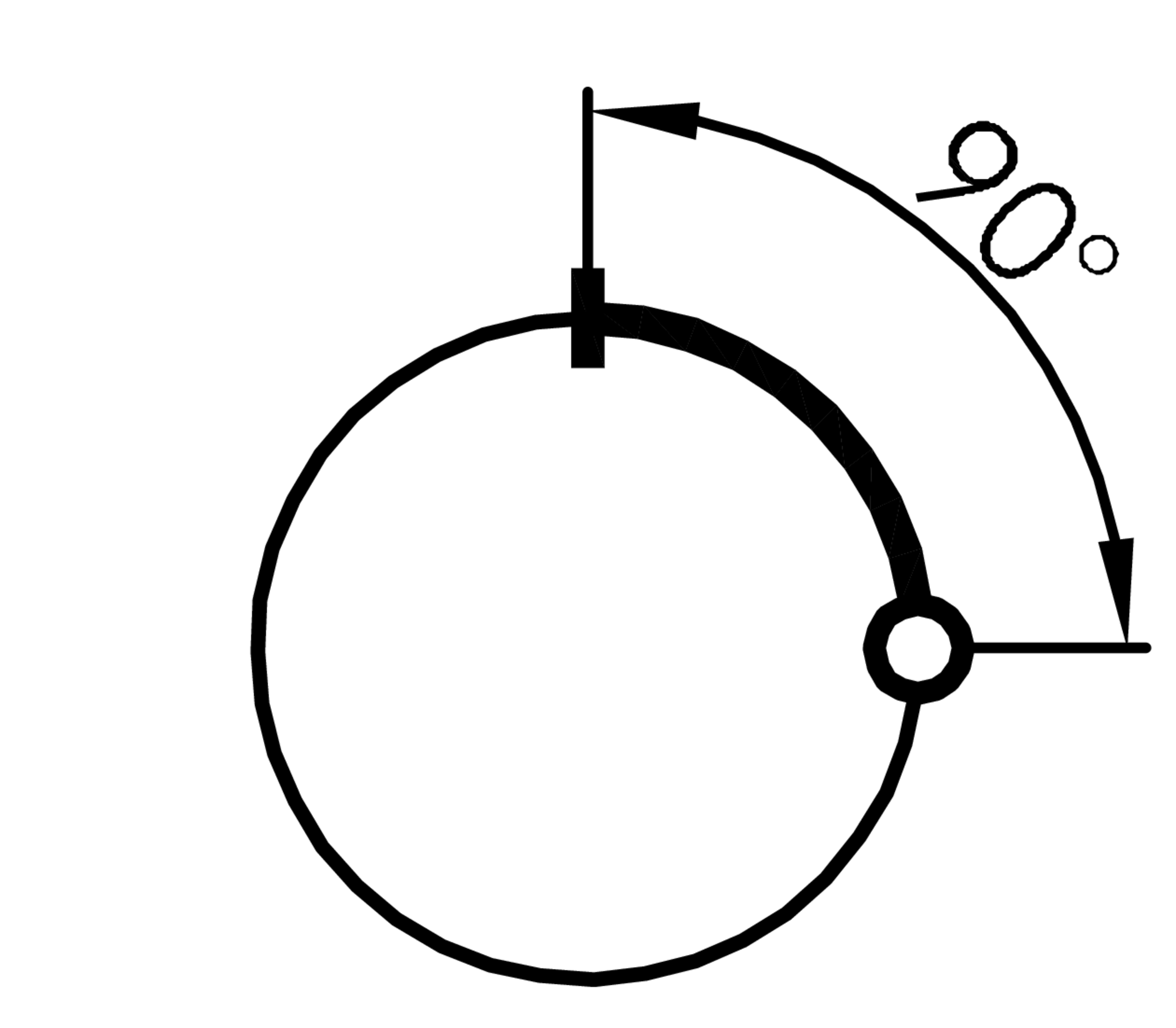

Switching position
0° zero position
90° maintained, key removable
90° maintained, key removable
Front bezel colour
Silver-coloured
Shape
round
Degree of protection front
IP65
Operating temperature
-25°C ... 70°C
Approvals
CCC, cURus , CE, UKCA

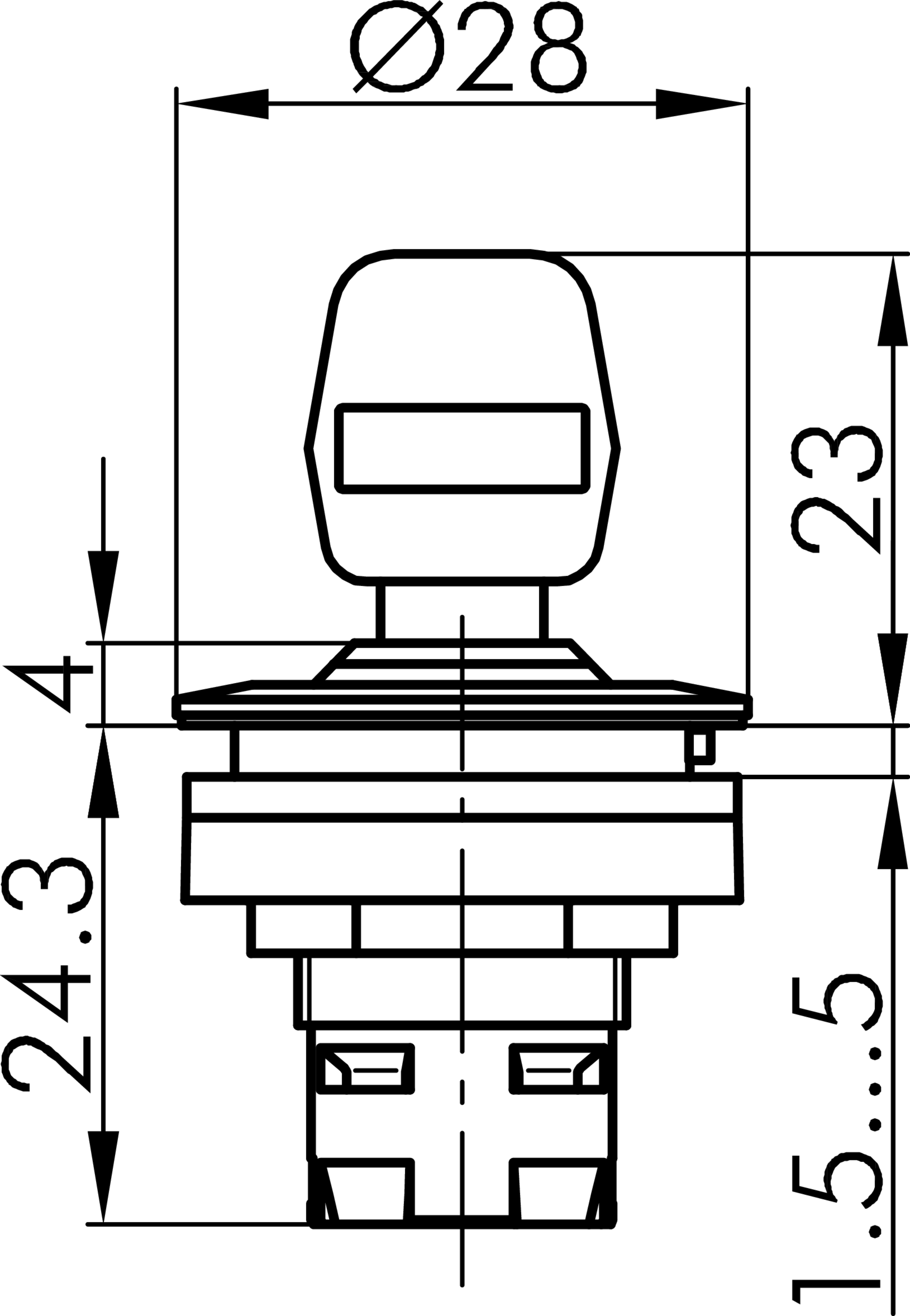

Technical sketches
