RVASSA13E_BL - Key actuator, maintained

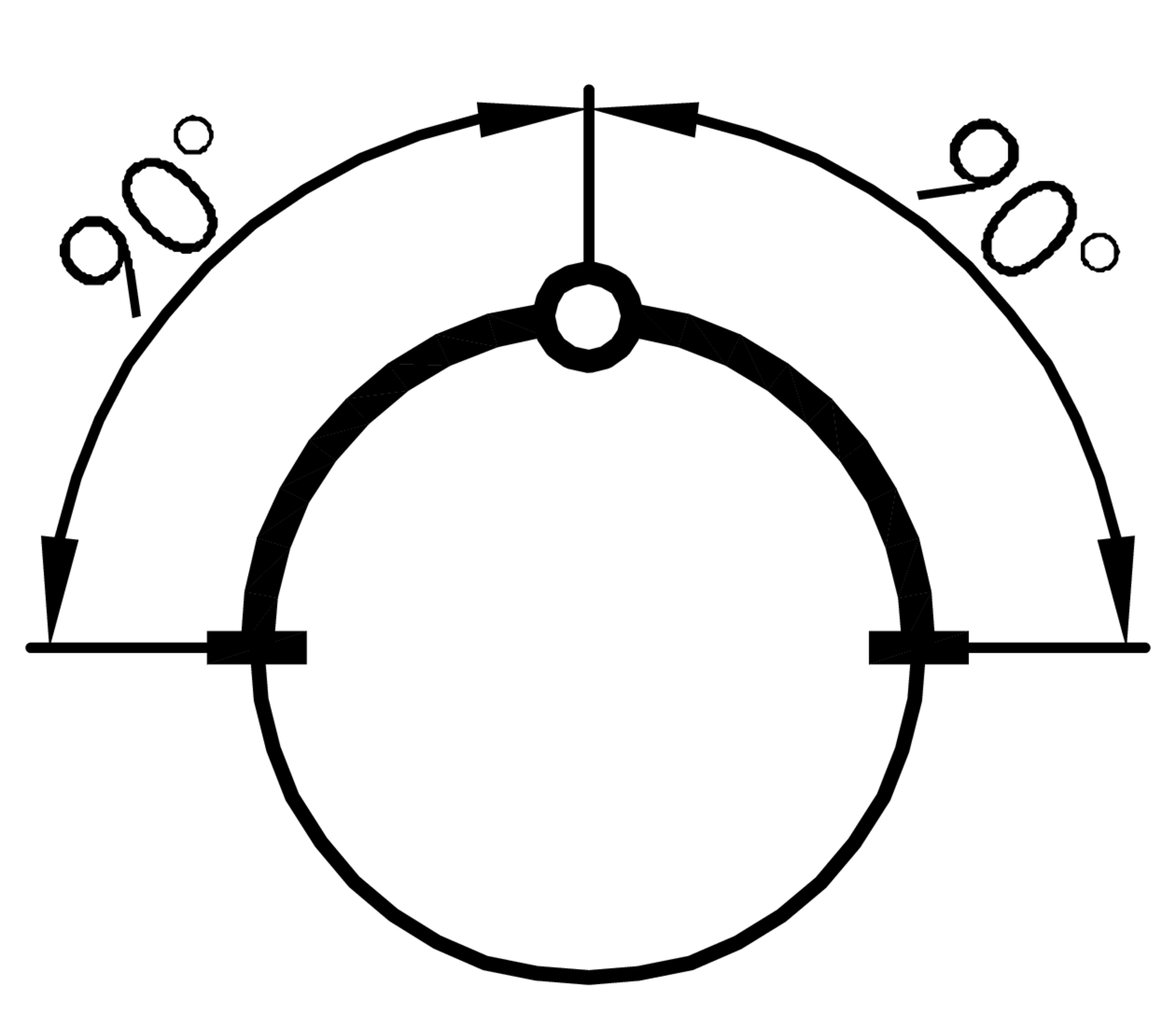

Key switch with three switching positions and latching switching function. Switch position 1 is at 0°, switch position 2 at -90° and switch position 3 at 90°. The key can only be removed to switch position 1.
Includes 2 keys. Different keying possible on request.
Series
RVA
Mounting aperture
Ø 22.3 mm
Switching function
Latching function
Switching position
-90° maintained
0° key removable
90° maintained
0° key removable
90° maintained
Front bezel colour
Stainless steel
Colour actuator
Stainless steel
Shape
round
Degree of protection front
IP65
Operating temperature
-25°C ... 70°C
Approvals
CE, UKCA

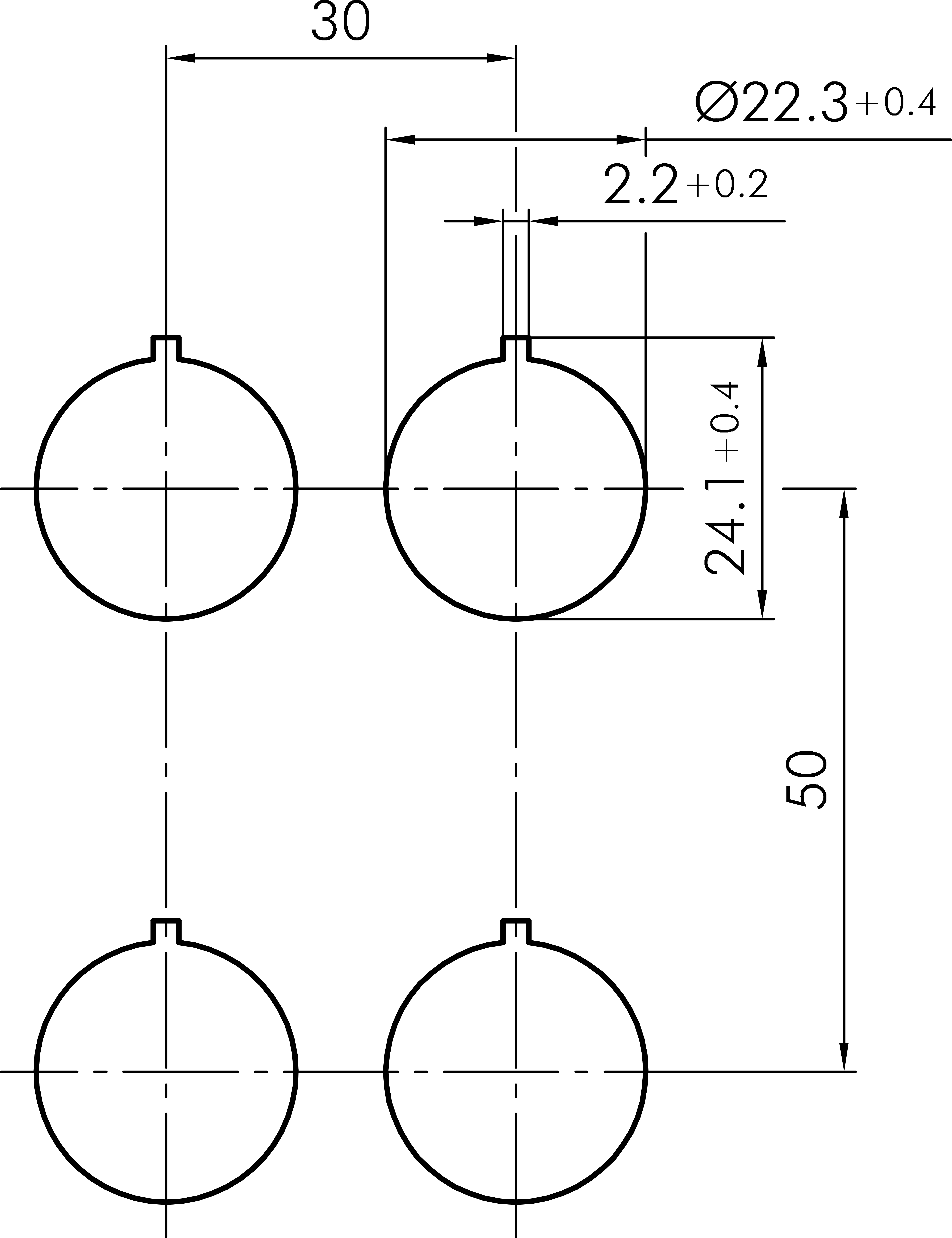

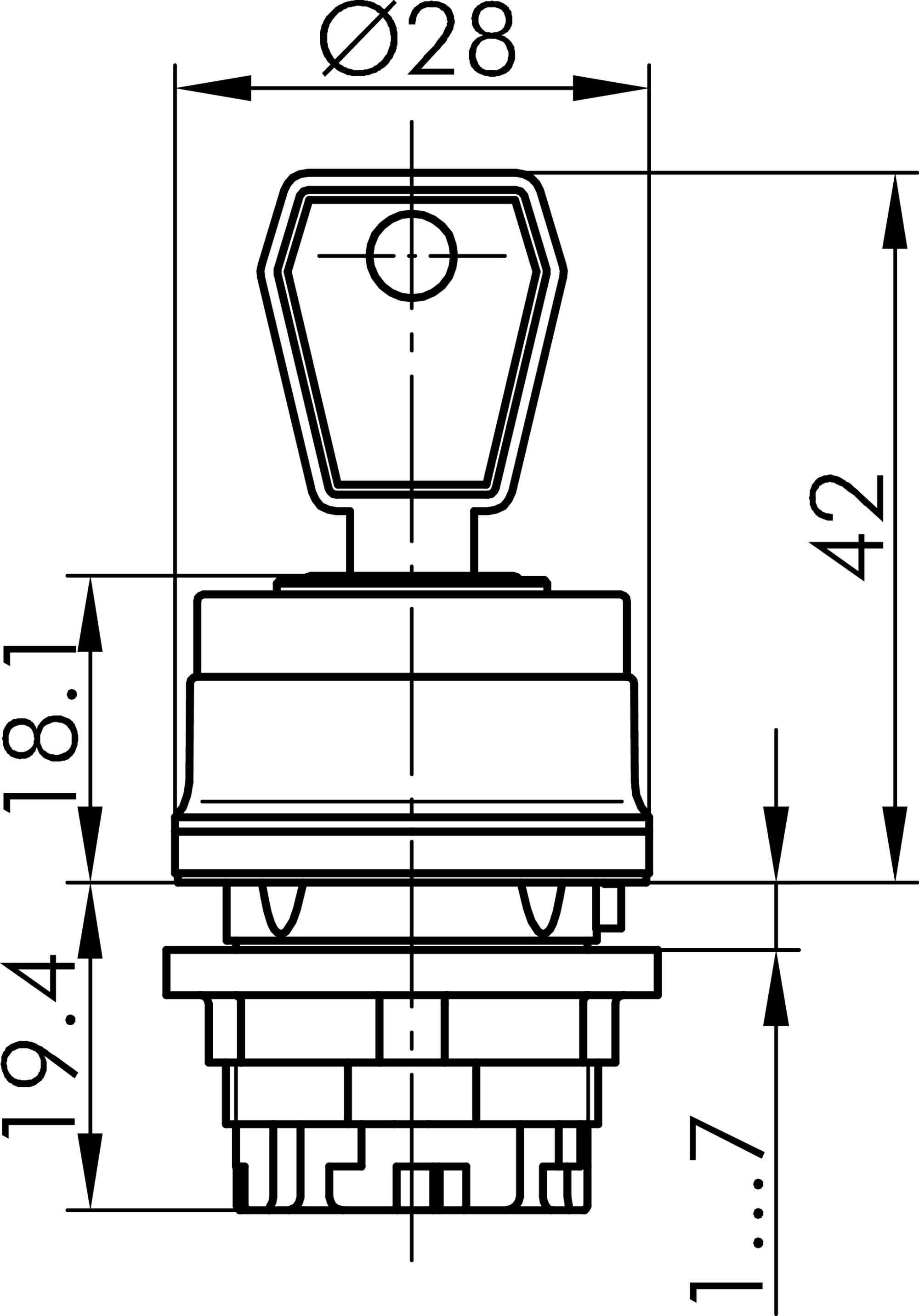

Technical sketches
