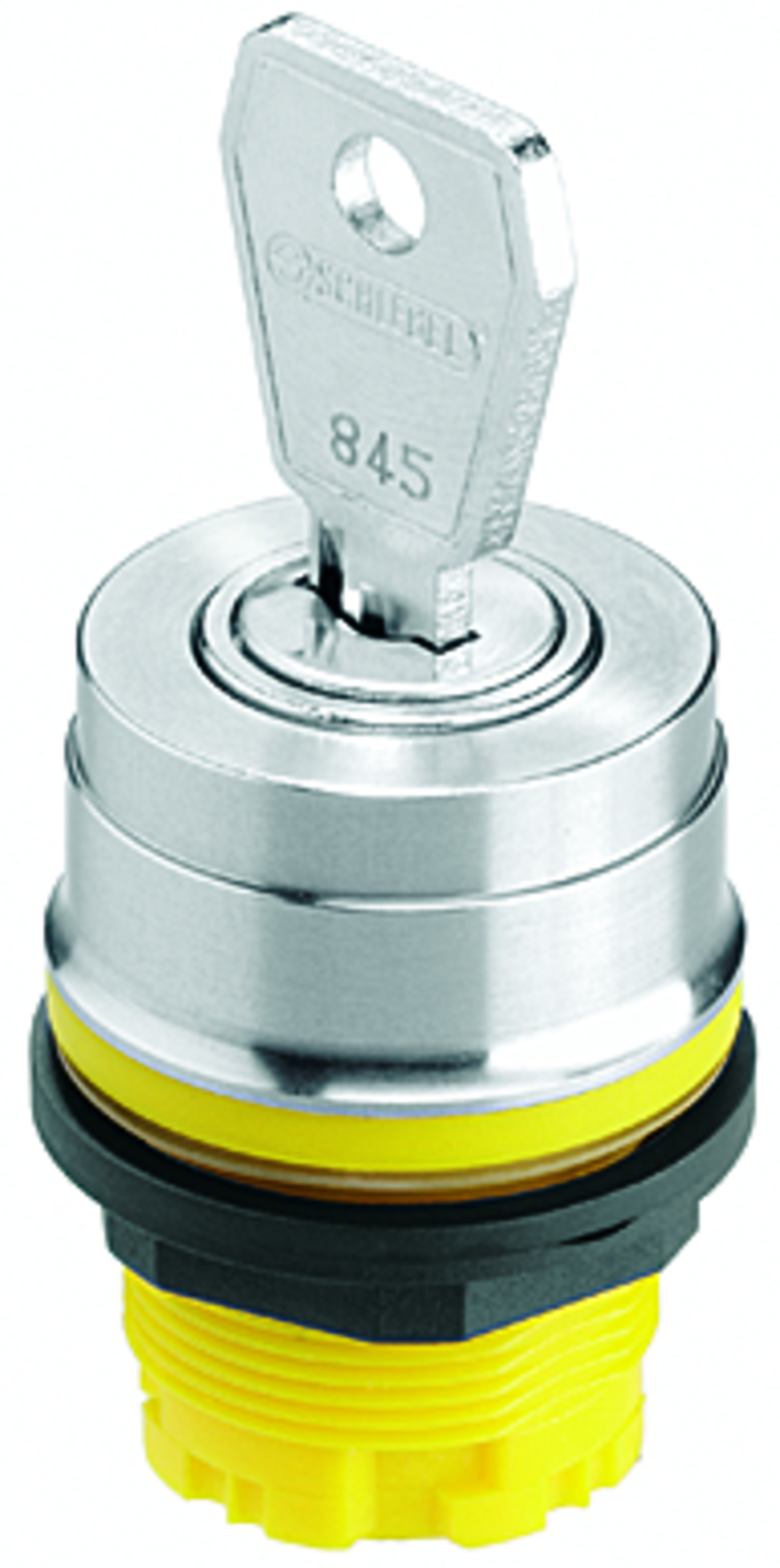

RVASSA18E_DG - Key actuator, maintained
Key switch with two switching positions and latching switching function. Switch position 1 is at -45° and switch position 2 at 45°. The key can be removed at both switch positions.
Includes 2 keys. Different keying possible on request.
Series
RVA

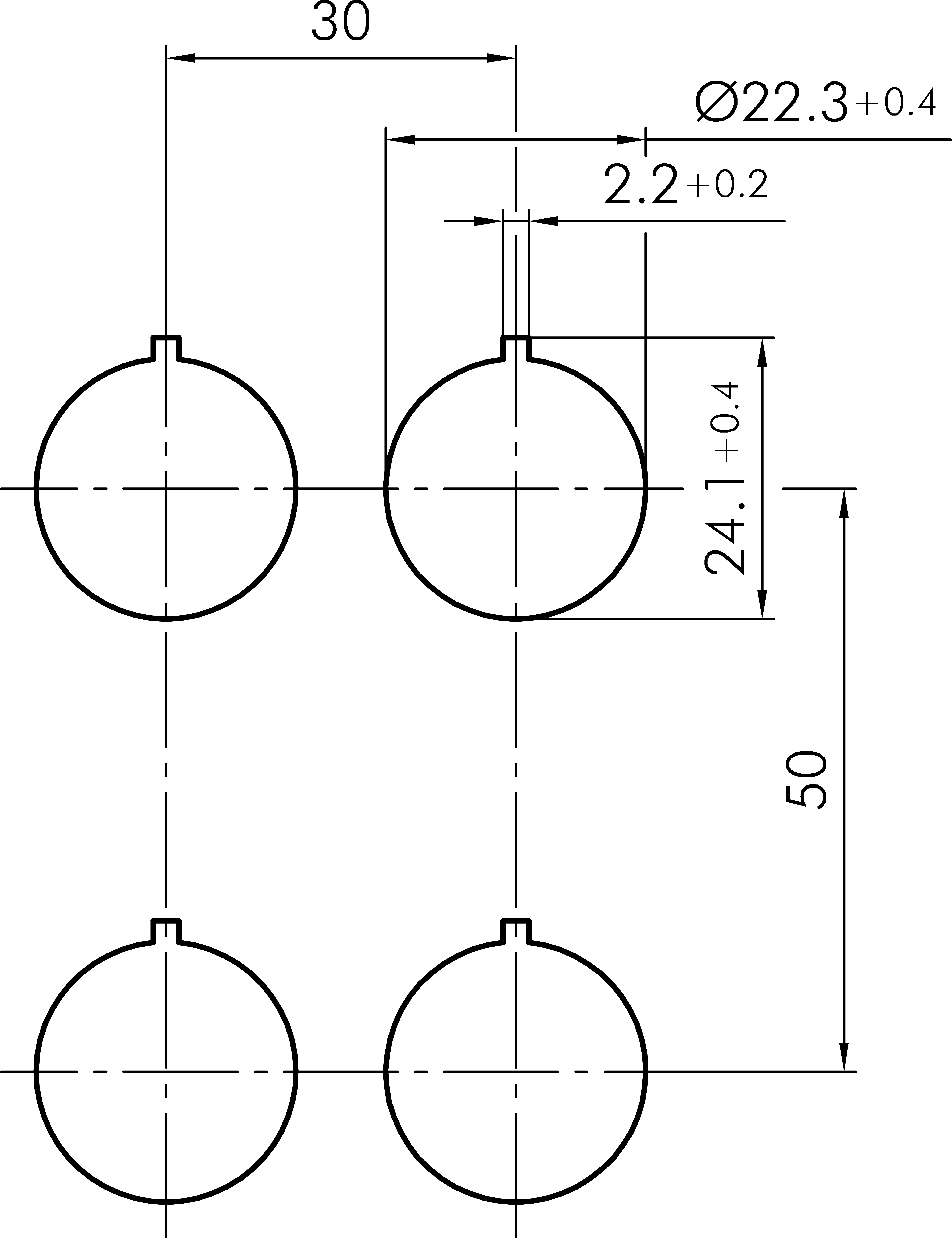

Mounting aperture
Ø 22.3 mm
Switching function
Latching function
Switching position
-45° key removable
45° maintained, key removable
45° maintained, key removable
Front bezel colour
Stainless steel
Colour actuator
Stainless steel
Shape
round
Degree of protection front
IP65
Operating temperature
-25°C ... 70°C
Approvals
CE, UKCA

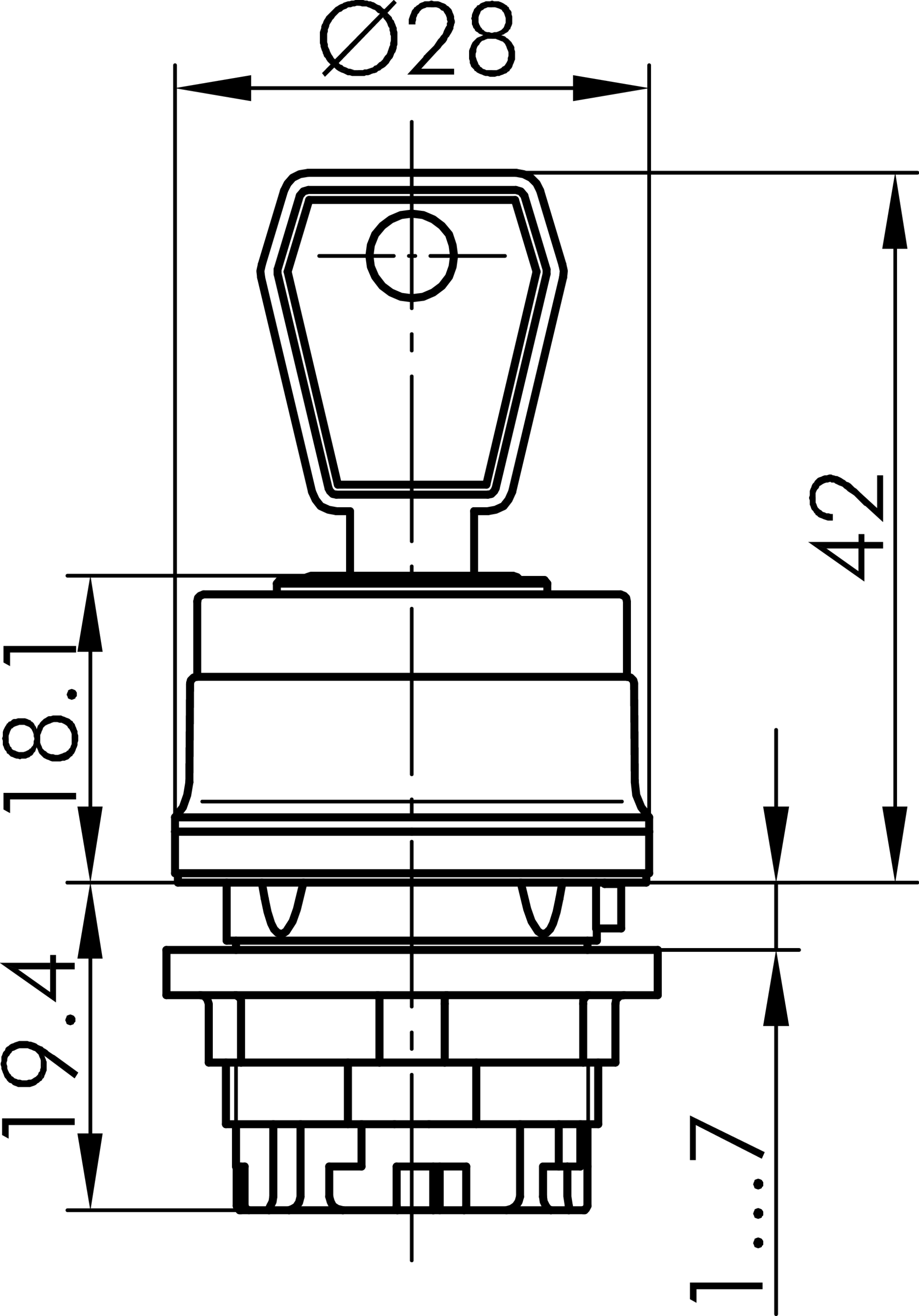

Technical sketches
