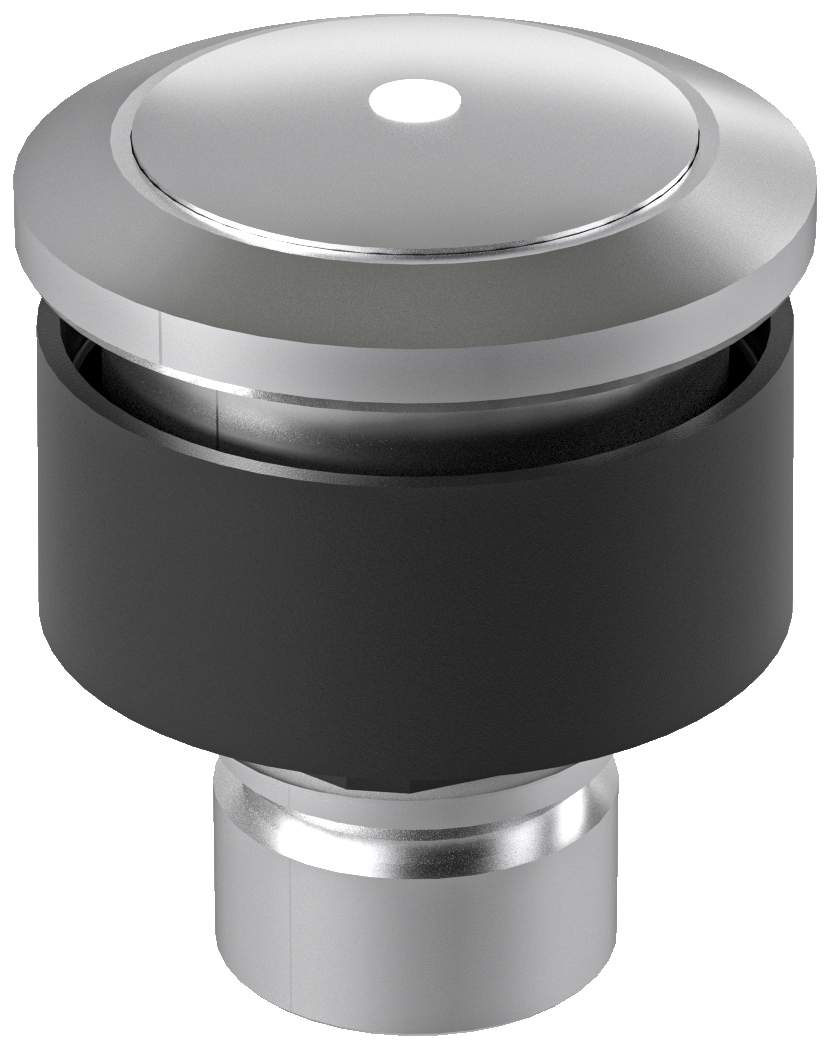

RXJUH - Vandal-proof short-stroke push-button round
Robust short-stroke pushbutton made of anodized aluminium for use in environments where vandalism may occur. The push-button has a high degree of protection, is durable and can be illuminated.
Series
RX-JUWEL

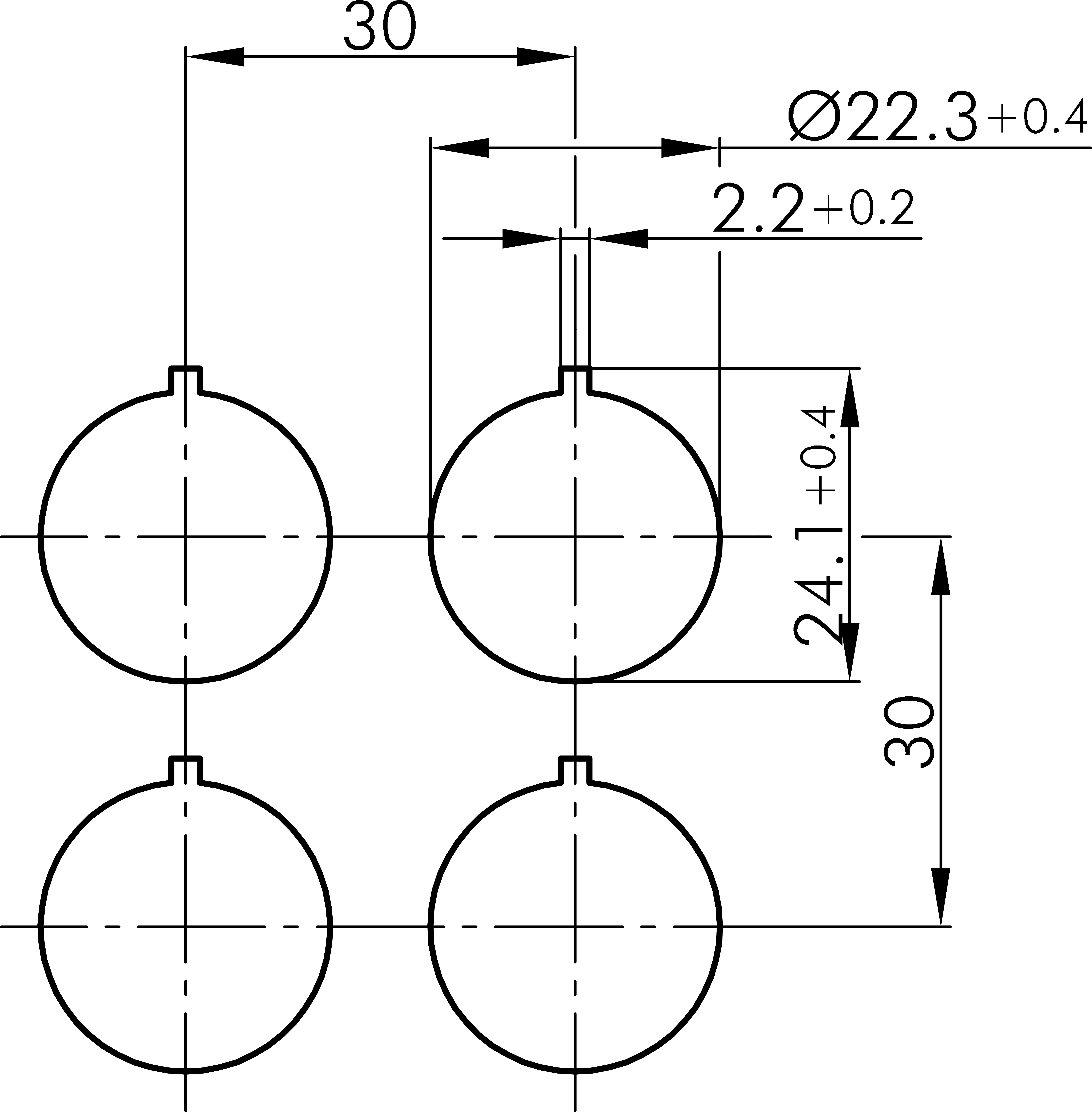

Mounting aperture
Ø 22.3 mm
Illumination
Yes
Front bezel colour
Silver-coloured
Colour actuator
Silver-coloured
Shape
round
Degree of protection front
IP65
Operating temperature
-25°C ... 70°C
Mechanical life
1,000,000 switching cycles
Approvals
CE, UKCA
Protection class
II (protective insulation)

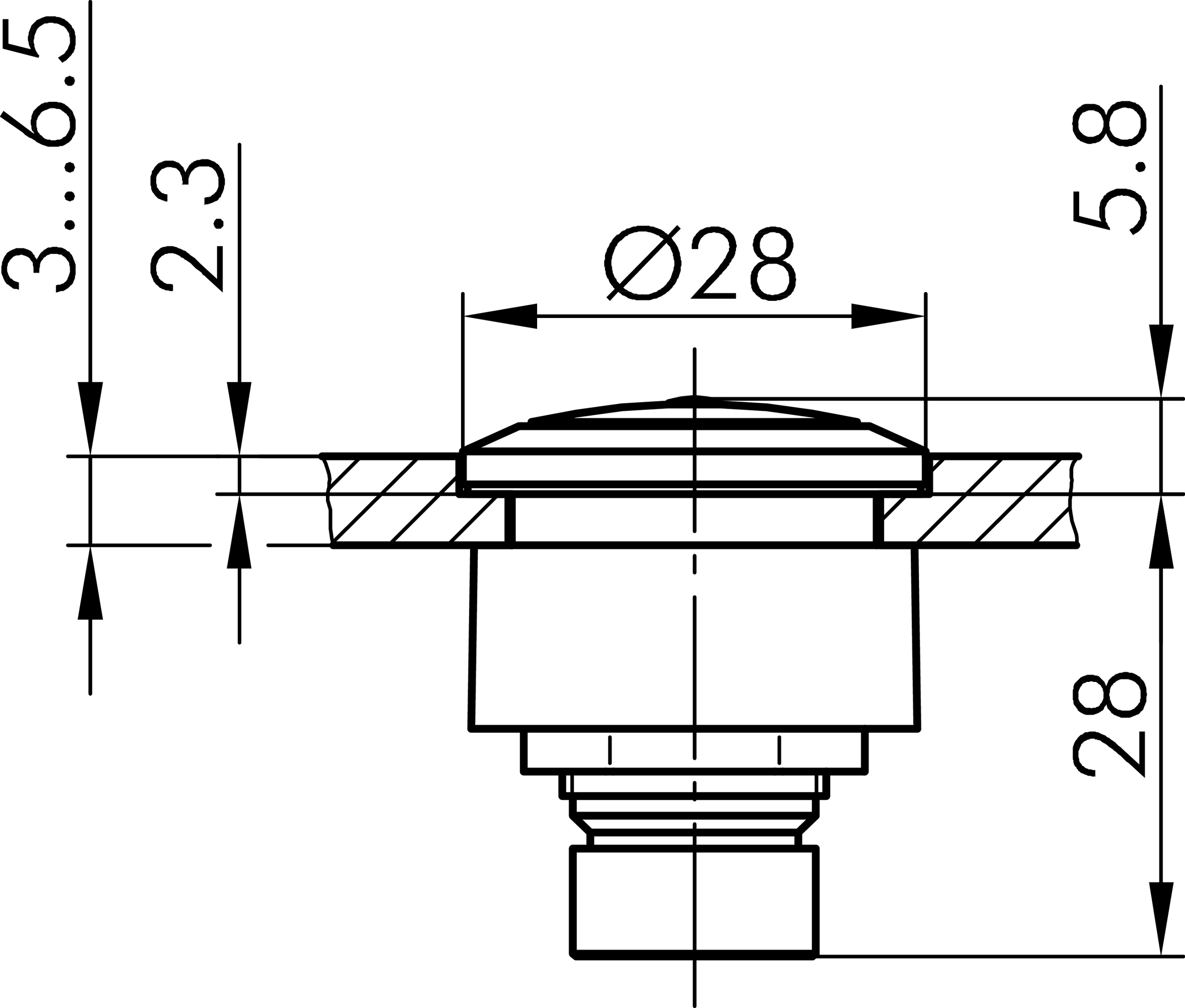

Technical sketches

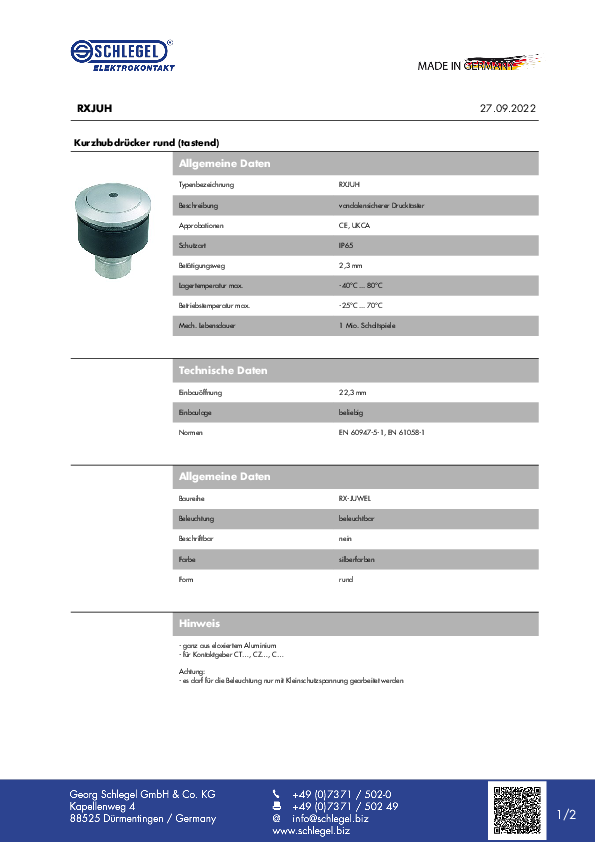

Documents
