SSSA13 - Key switch maintained

Key switch with three switching positions and latching switching function. Switch position 1 is at 0°, switch position 2 at -90° and switch position 3 at 90°. The key can only be removed to switch position 1.

Includes 2 keys. Different keying possible on request.

Series

SHORTRON® base-plate mounting

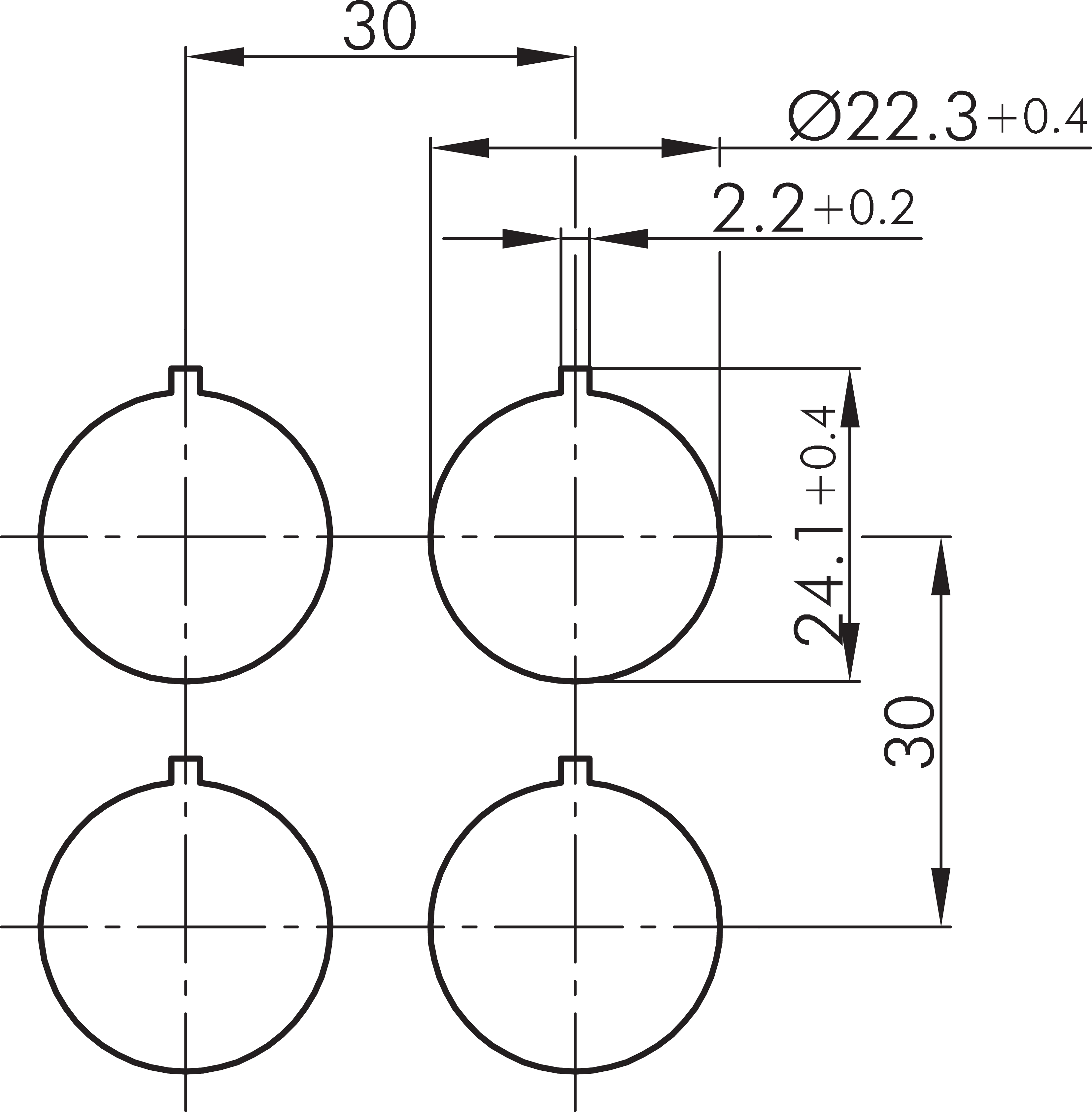

Mounting aperture

Ø 22.3 mm

Switching function

Latching function

Switching position

-90° maintained
0° key removable
90° maintained

Front bezel colour

Silver-coloured

Shape

round

Degree of protection front

IP65

Operating temperature

-25°C ... 70°C

Mechanical life

30,000 switching cycles

Approvals

DNV, VDE , CCC, cURus , ENEC10 , CE, UKCA

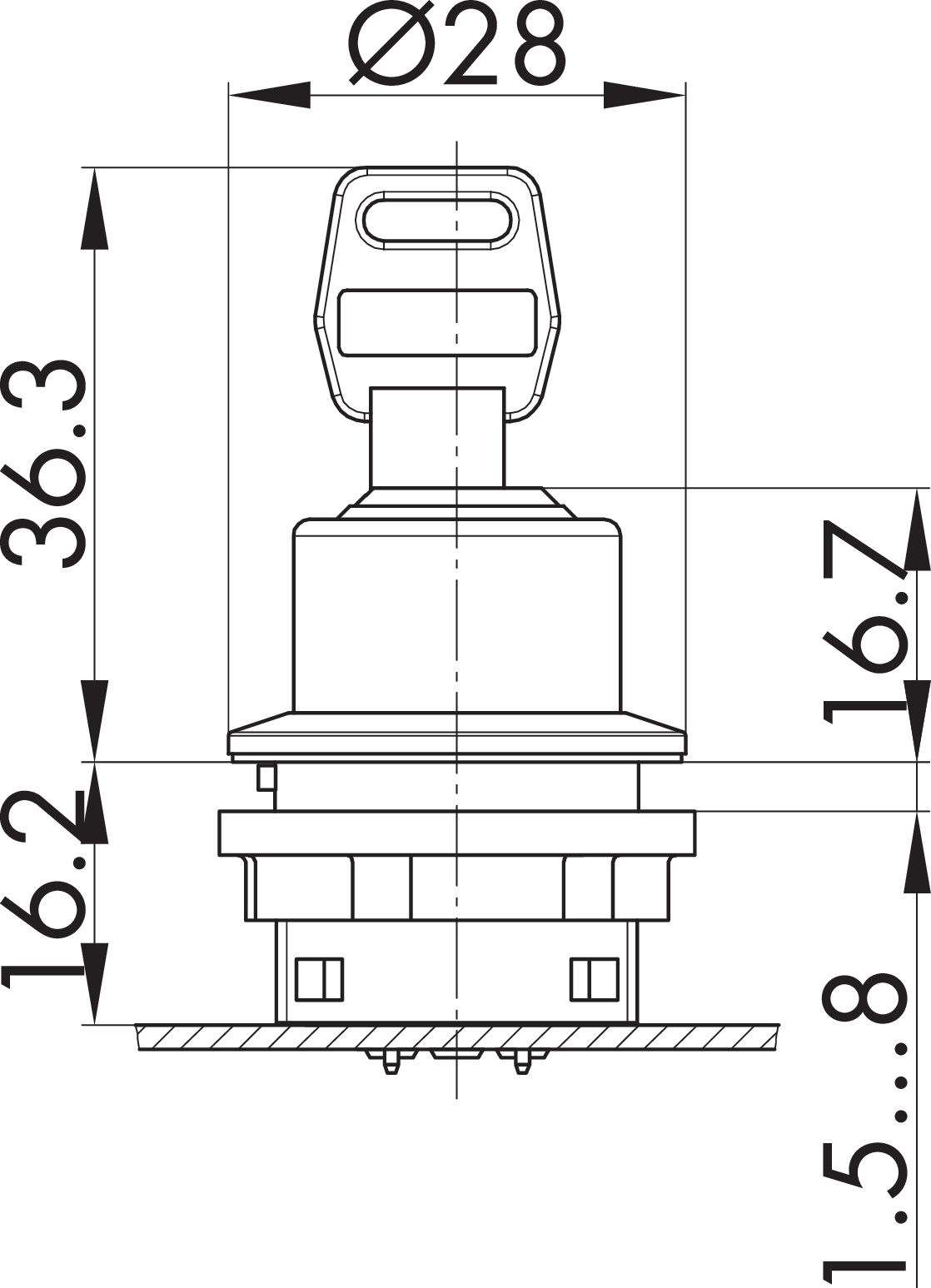

Technical sketches
