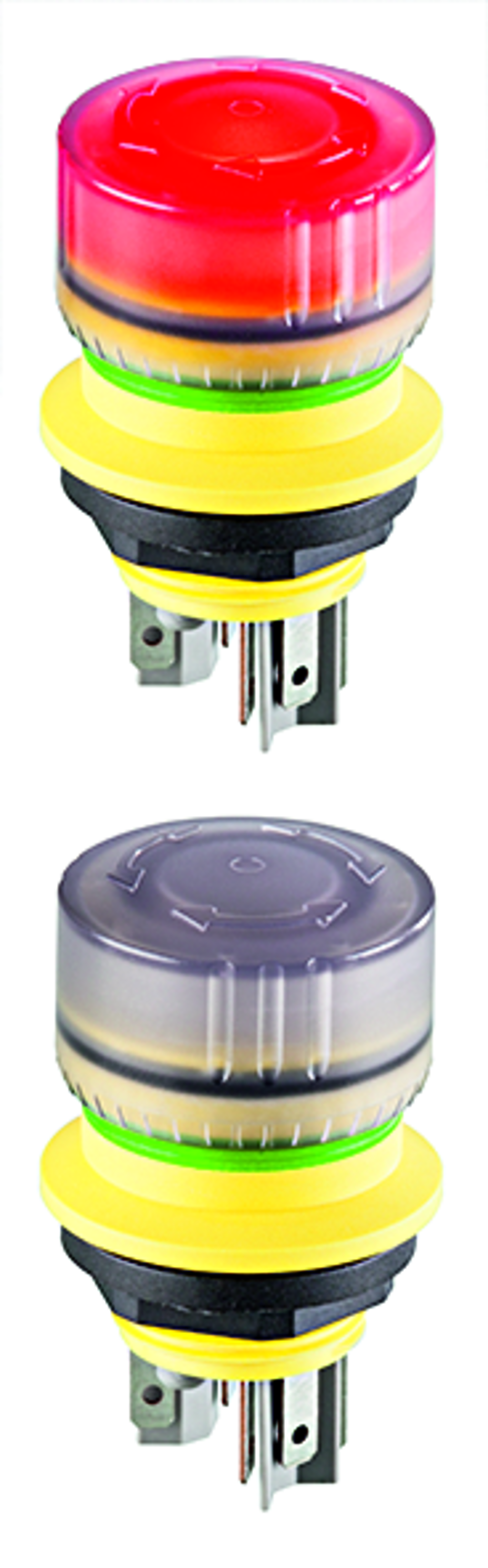

YVDOO_R0 - Active illuminated emergency-stop with status indication active (illuminated) / inactive (non-illuminated)

Series

MYnitron®

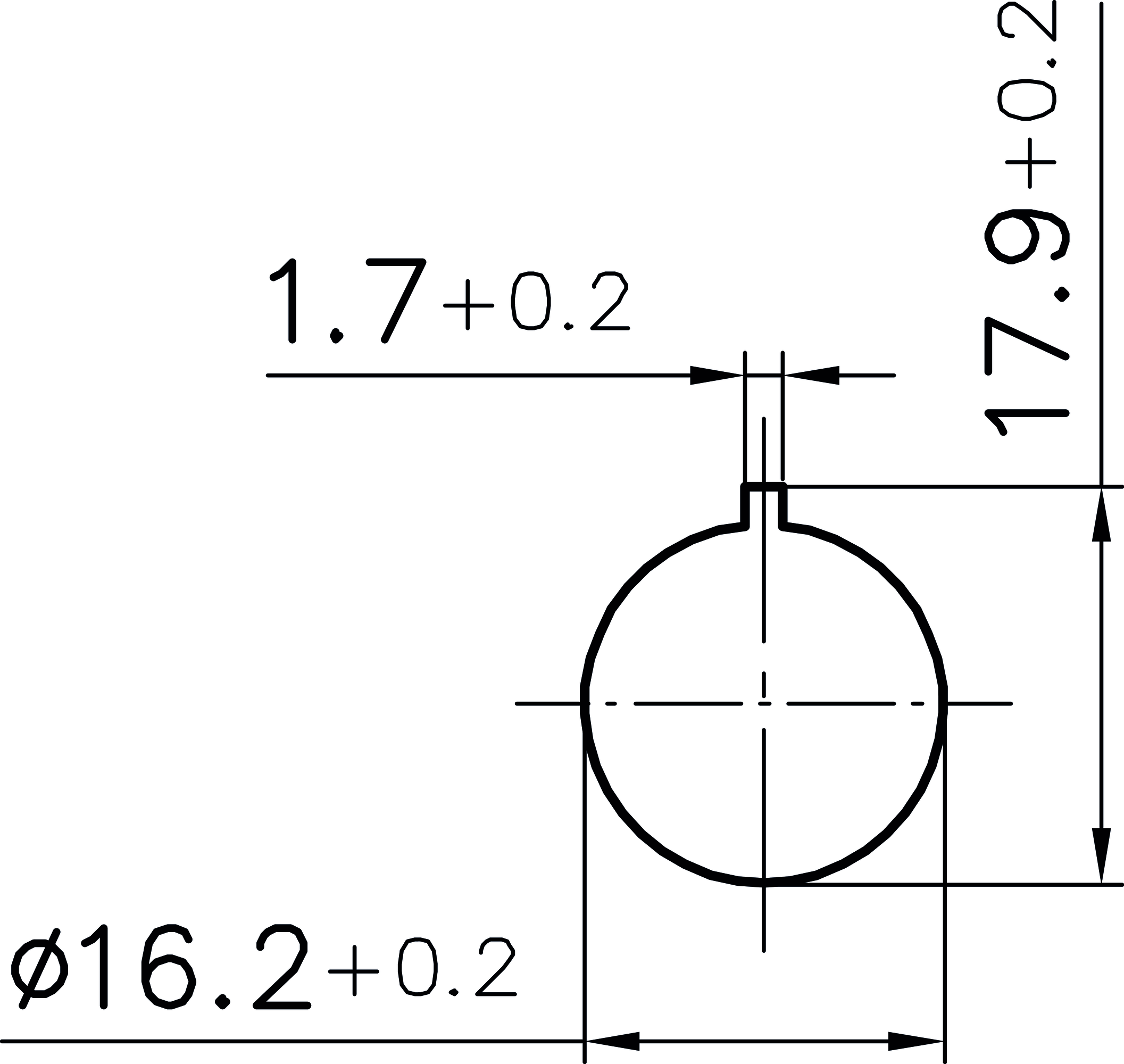

Mounting aperture

Ø 16.2 mm

Connection

Faston terminals

Illumination

Yes

Illuminant

LED integrated, without series resistor, with protection diode in series

Front bezel colour

Yellow

Colour actuator

red/grey

Shape

round

Degree of protection front

IP67, IP65

Operating temperature

-25°C ... 55°C

Storage temperature

-40°C ... 80°C

Rated operating voltage

35 V AC
35 V DC

Rated operating current

5 A AC
2 A DC

Rated insulation voltage IEC/EN 60947-5-1

250 V AC
250 V DC

Mechanical life

30,000 switching cycles

Electrical life

30,000 switching cycles at rated voltage

Approvals

TÜV_Süd , cURus , CE, UKCA

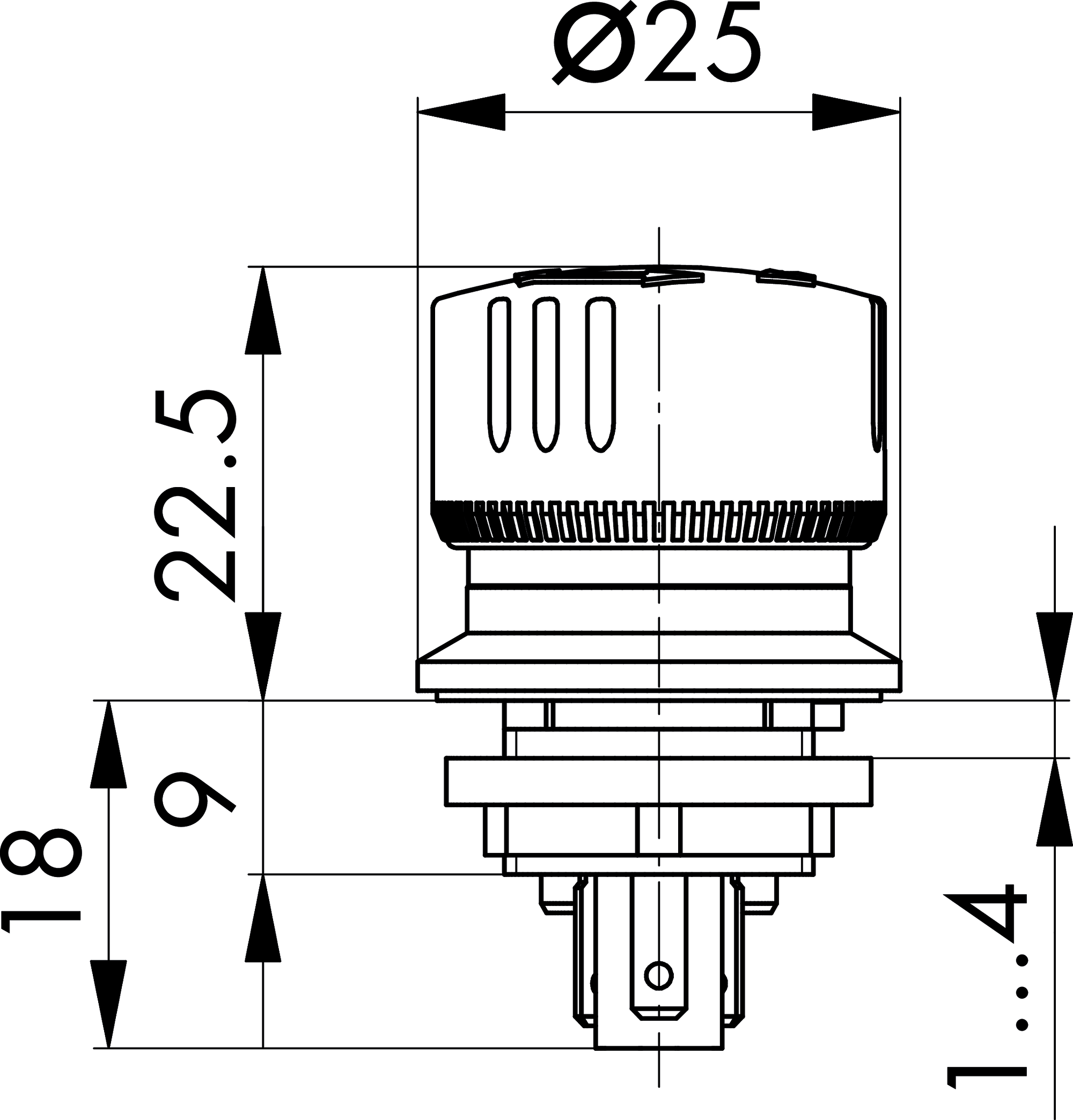

Technical sketches
