YVLO - Illuminated emergency-stop - 1NC
Series
mYnitron®
Contact type
1NC
Front bezel colour
yellow
Colour actuator
red
Shape
round
Approvals
TÜV_Süd , cURus , CE , UKCA
Degree of protection front
IP69K , IP67 , IP65
Illumination
yes

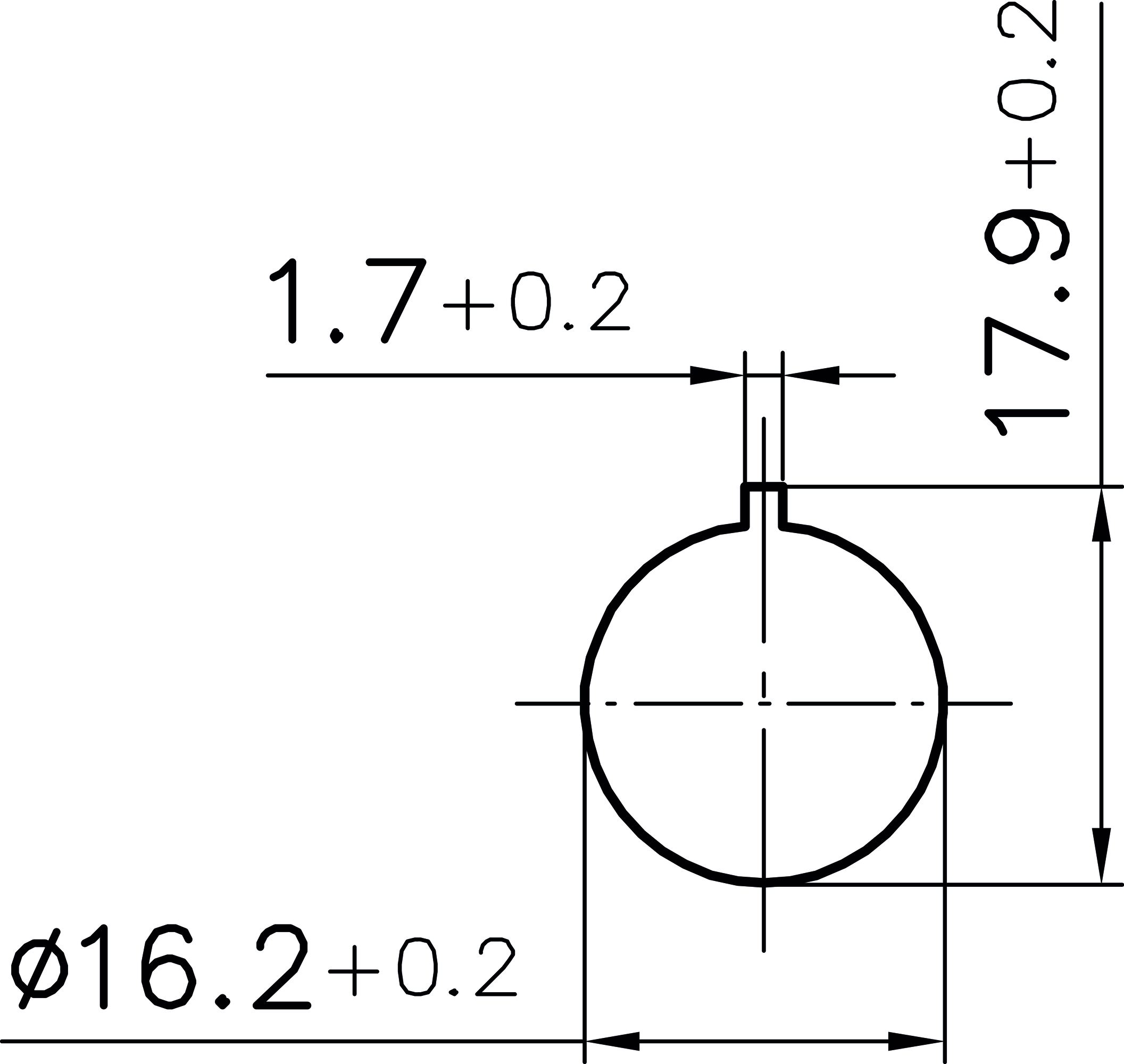

Mounting aperture
Ø 16.2 mm
Connection
Flachstecker
Illuminant
LED integrated
Electrical life
50,000 switching cycles at rated load
Mechanical life
50,000 switching cycles
Operating temperature
-25°C ... 70°C
Storage temperature
-40°C ... 80°C
Rated operating voltage
35 V DC
35 V AC
35 V AC
Rated insulation voltage IEC/EN 60947-5-1
250 V DC
250 V AC
250 V AC
Rated operating current
5 A AC
2 A DC
2 A DC

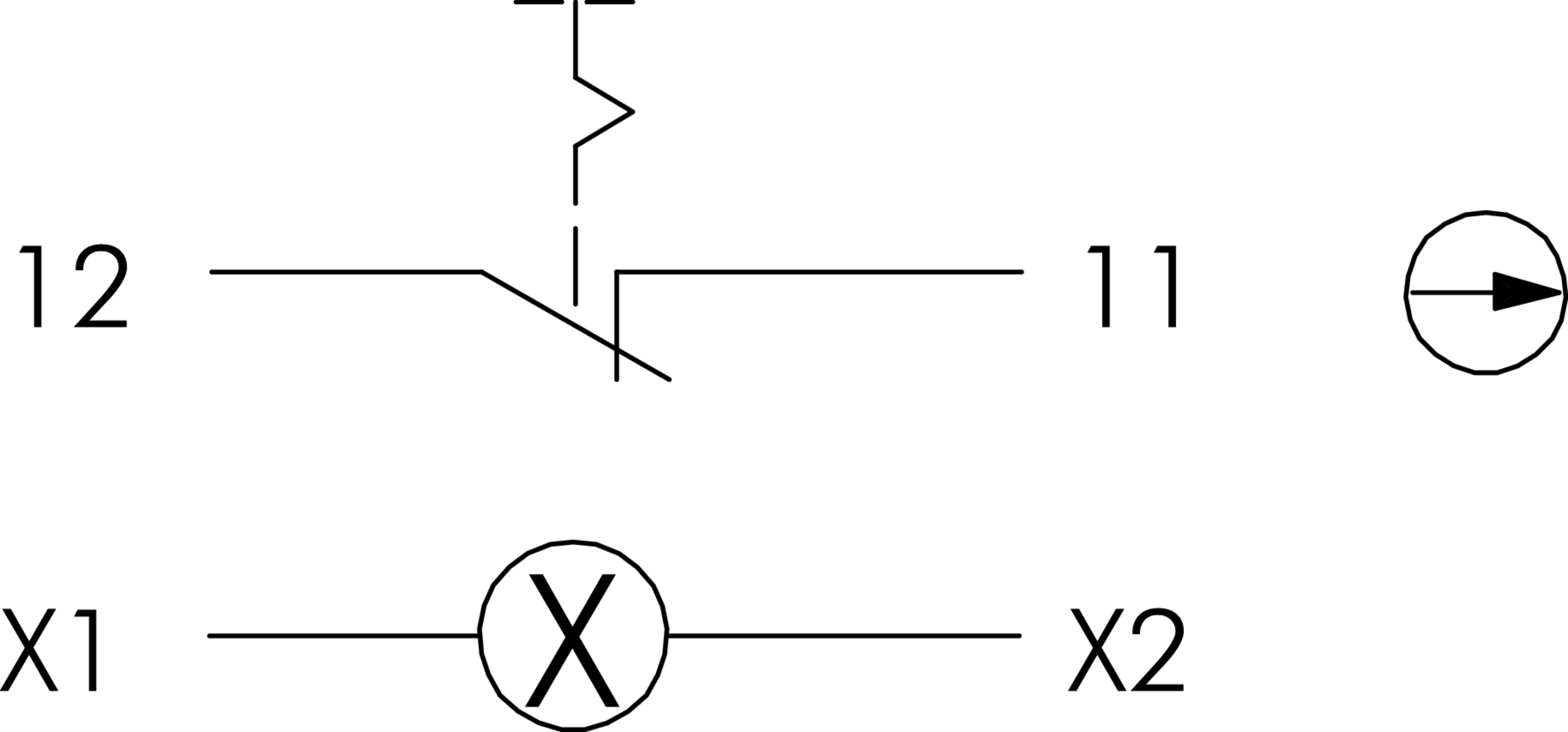

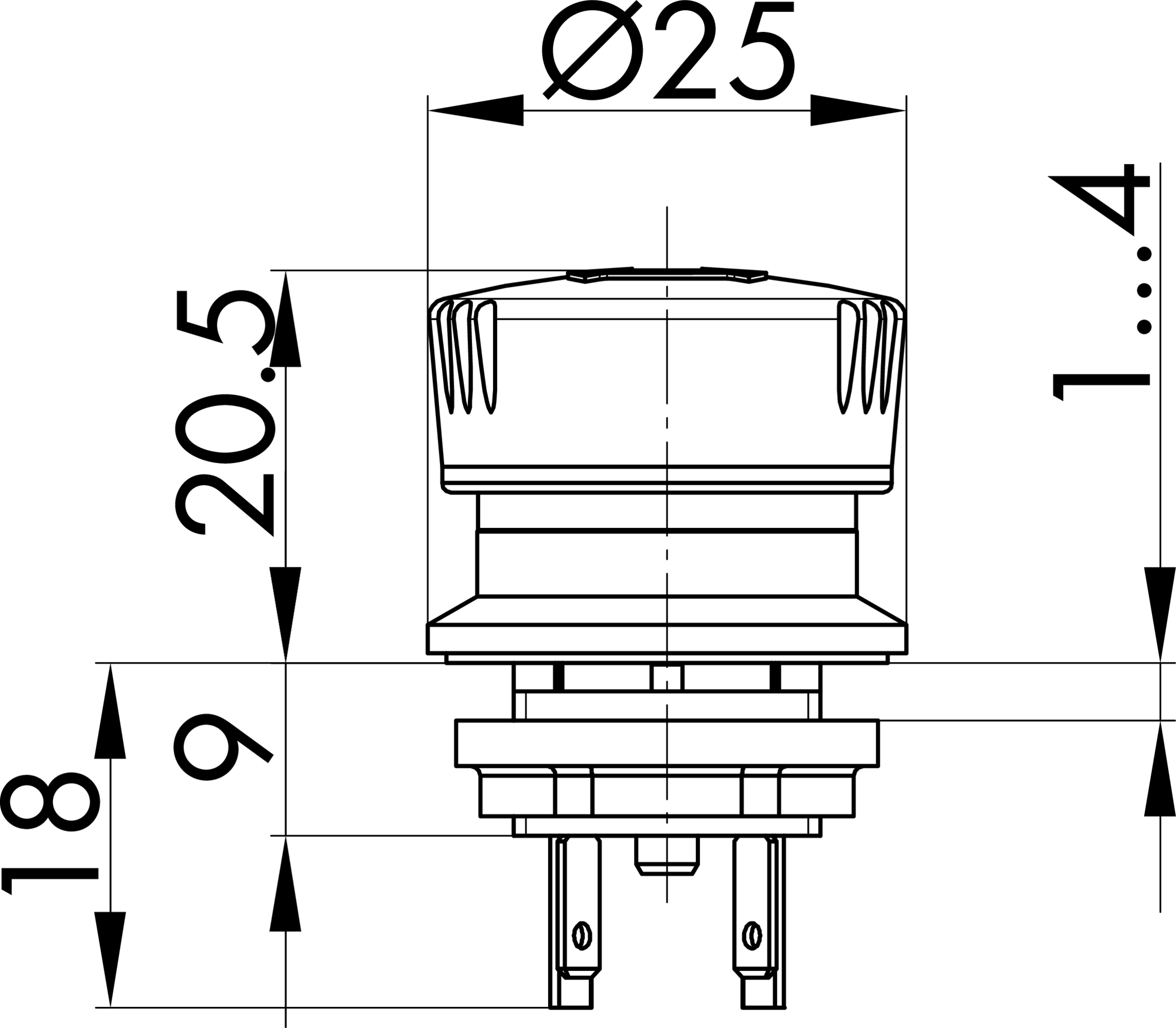

Technical sketches
Awards

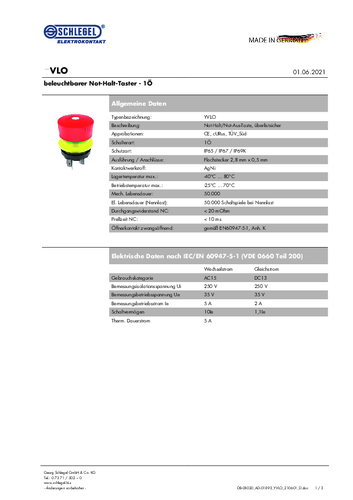

Datasheet_YVLO
