AF2 - Contact block, maintained

Series

Contactor A...

Contact type

2NC + 2NO

Switching function

Maintained

Connection

Faston terminals

Illumination

Degree of protection front

IP00

Operating temperature

-30°C ... 70°C

Rated operating voltage

240 V AC
24 V DC
60 V DC
125 V DC
250 V DC

Rated operating current

3 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC

Mechanical life

1,000,000 switching cycles

Electrical life

1,000,000 switching cycles

Approvals

DNVGL , VDE , UR , CCC, CSA , ENEC10 , CE, UKCA

Protection class

II (protective insulation)

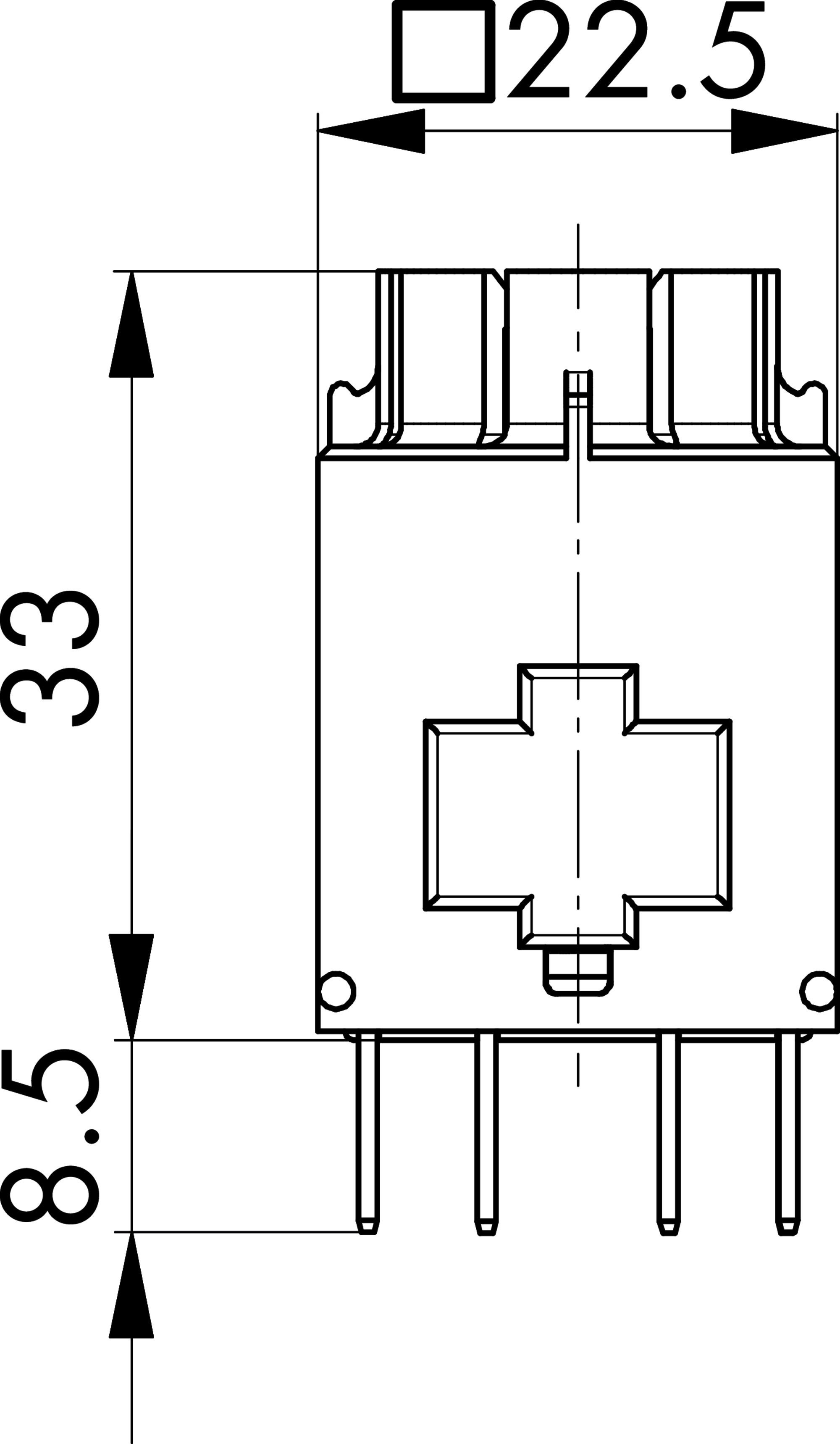

Technical sketches

Downloads
