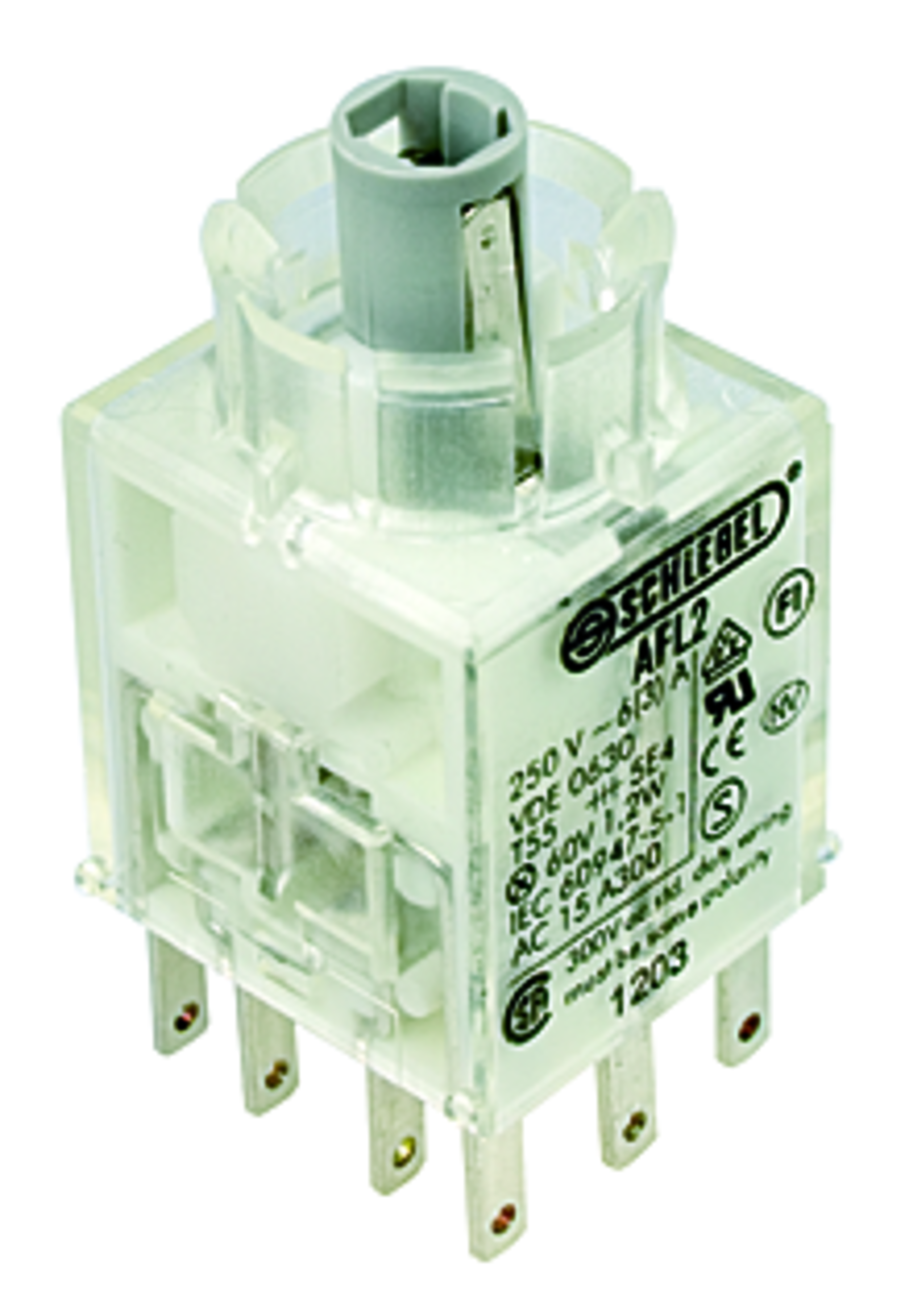

AFL2 - Illuminated contact block, maintained
Robust contact element for high voltages and currents.
Series
Contact blocks A...

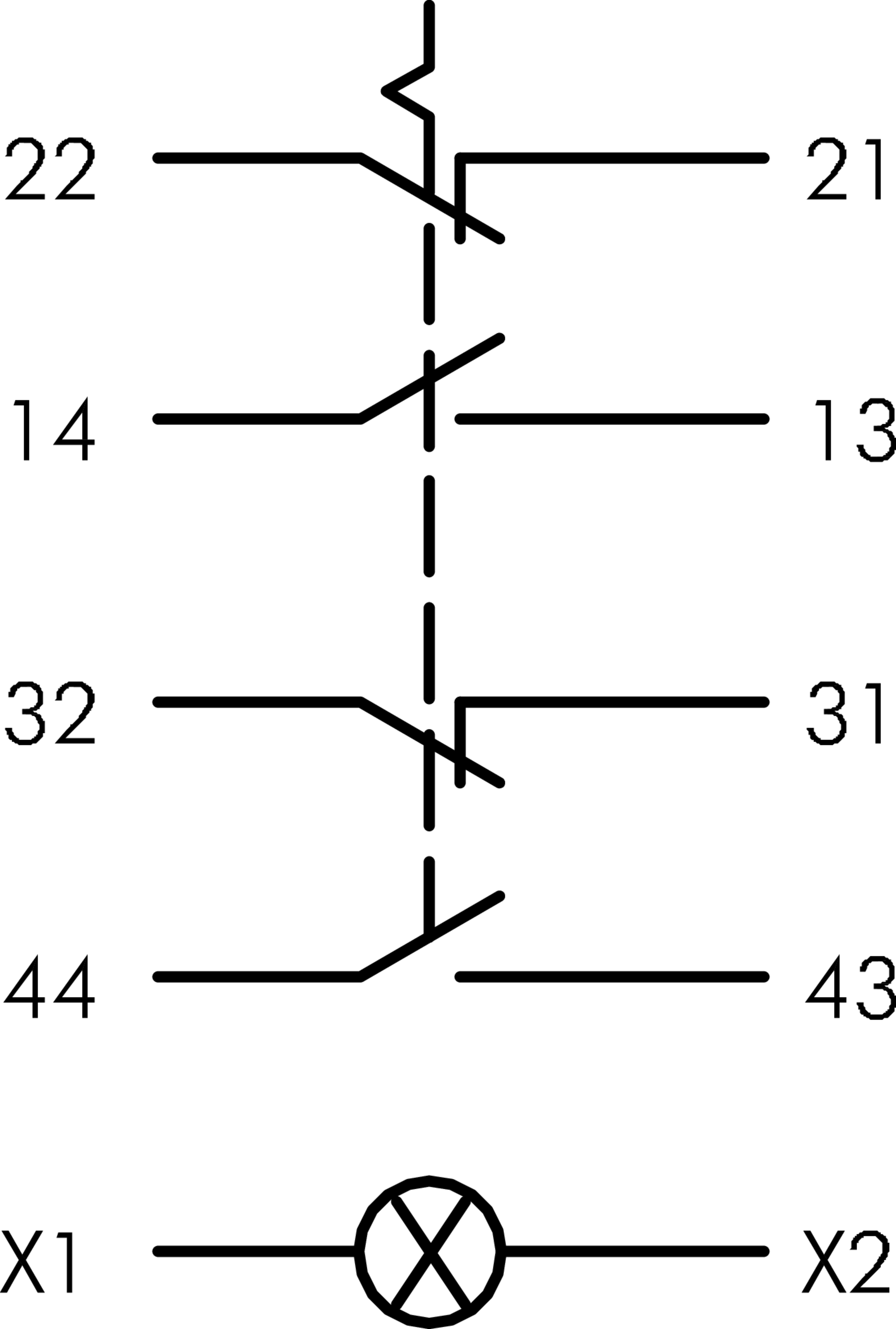

Contact type
2NC + 2NO

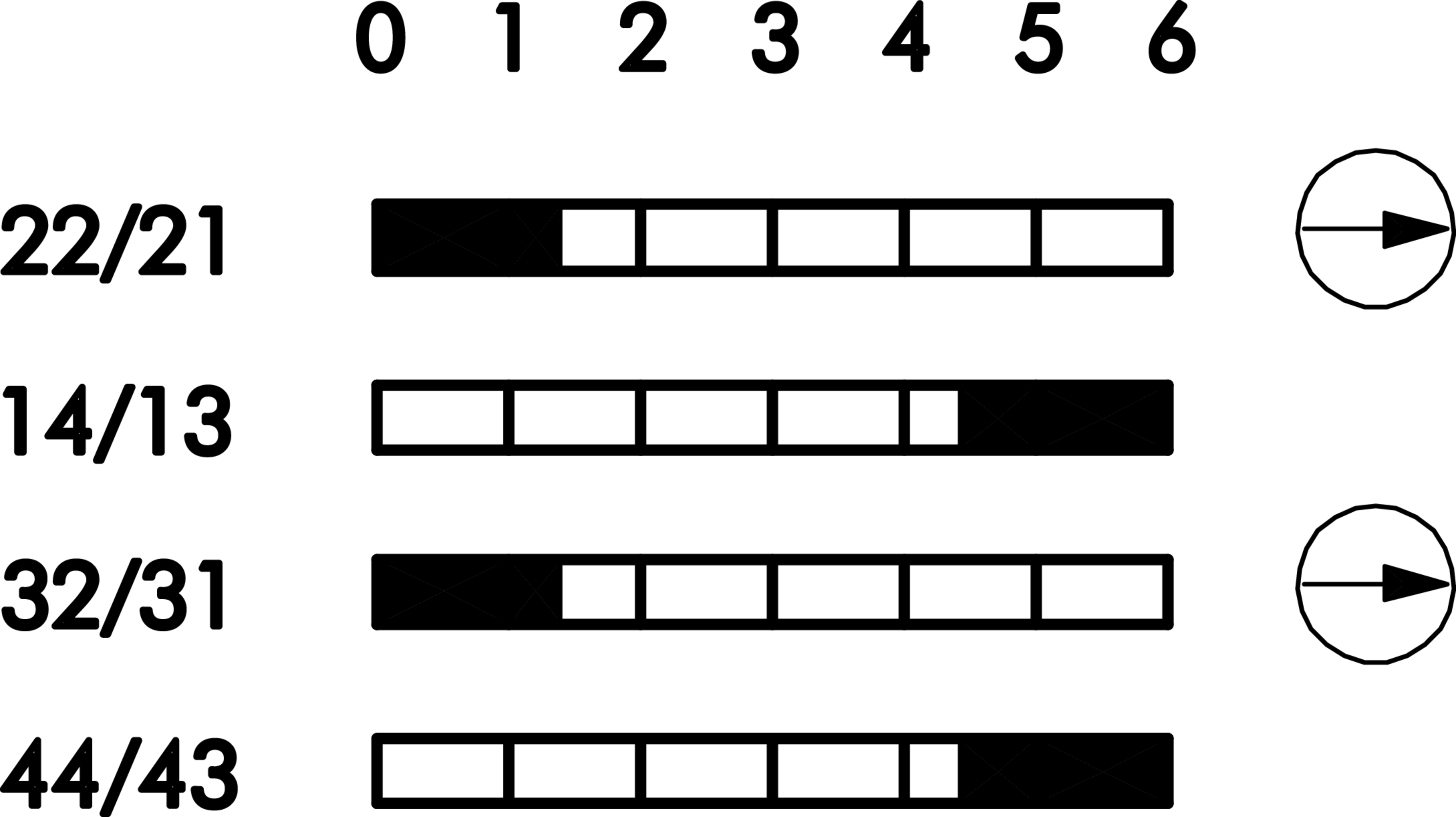

Switching function
Latching function
Illumination
Yes
Illuminant
T5,5K Lamp socket
Colour housing/enclosure
transparent
Degree of protection front
IP00
Operating temperature
-30°C ... 70°C ohne Beleuchtung
-30°C ... 65°C bei LED-Beleuchtung
-30°C ... 55°C bei Glühlampenbeleuchtung
-30°C ... 65°C bei LED-Beleuchtung
-30°C ... 55°C bei Glühlampenbeleuchtung
Rated operating voltage
240 V AC
24 V DC
60 V DC
125 V DC
250 V DC
24 V DC
60 V DC
125 V DC
250 V DC
Rated operating current
3 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
Mechanical life
1,000,000 switching cycles
Electrical life
1,000,000 switching cycles
Approvals
DNV, VDE , UR , CCC, CSA , ENEC10 , CE, UKCA

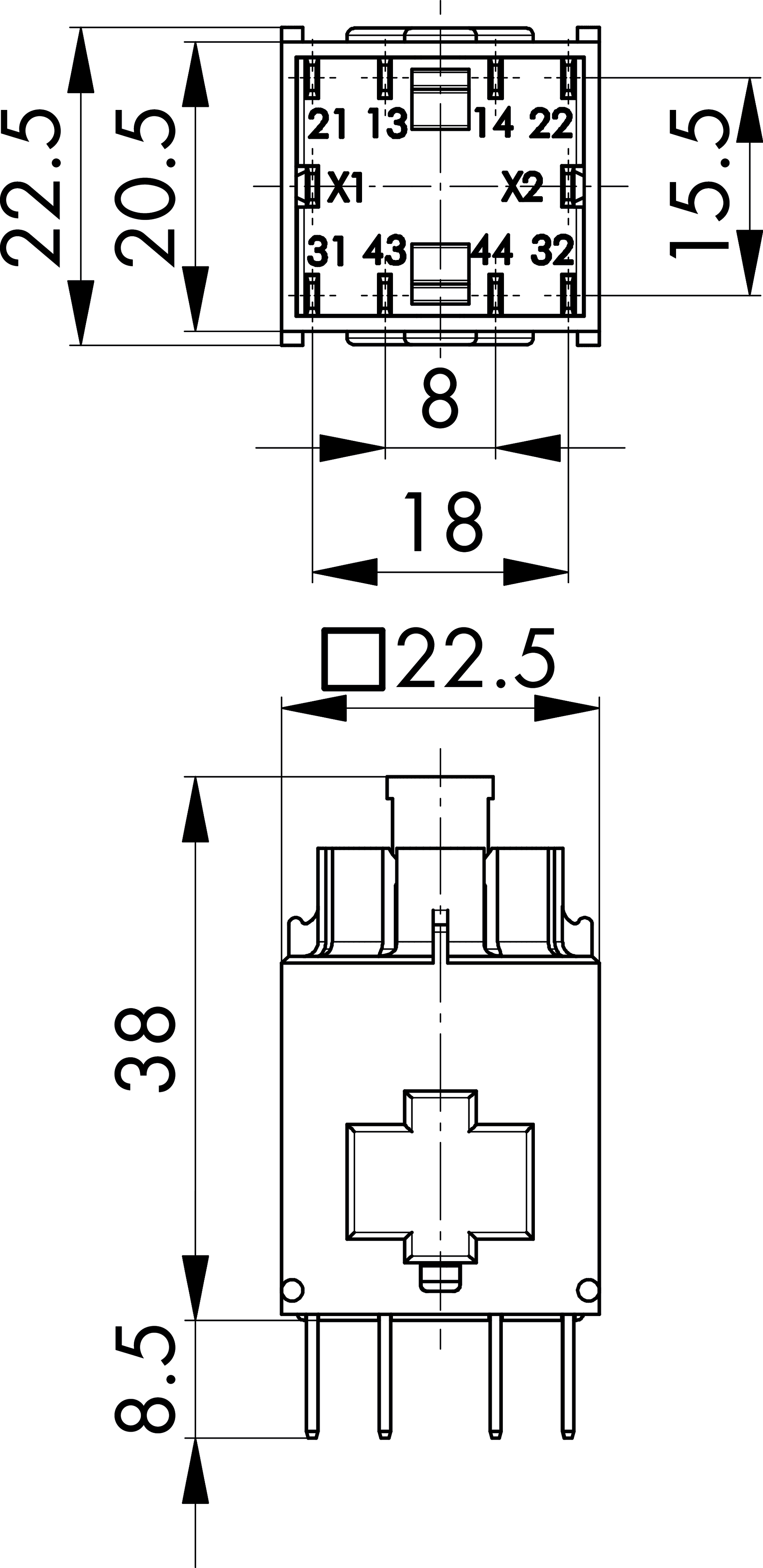

Technical sketches
