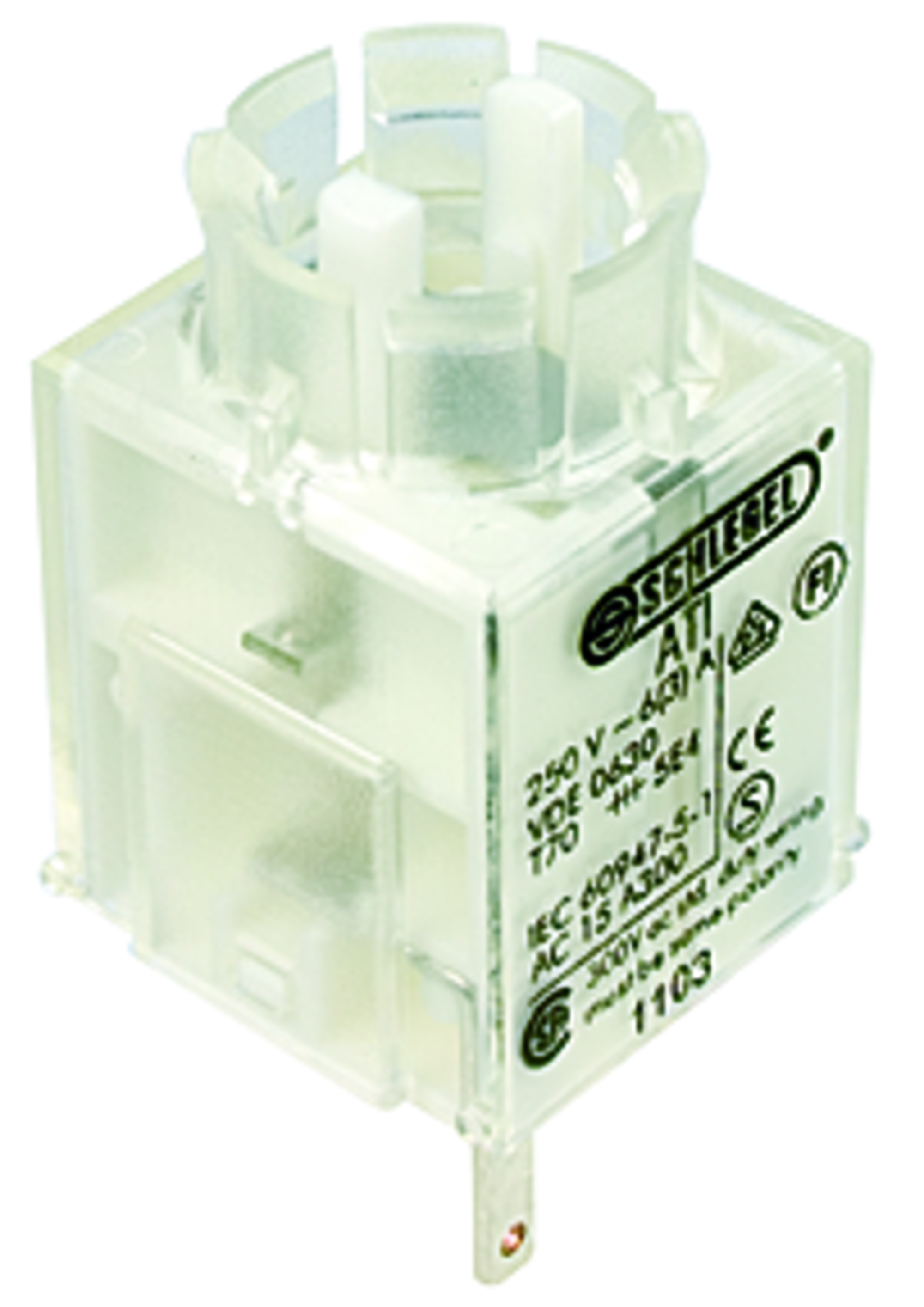

ATI - Contact block, momentary
Robust contact element for high voltages and currents.
Series
Contact blocks A...
Contact type
1NO
Switching function
Momentary function
Colour housing/enclosure
transparent
Degree of protection front
IP00
Operating temperature
-30°C ... 70°C
Rated operating voltage
240 V AC
24 V DC
60 V DC
125 V DC
250 V DC
24 V DC
60 V DC
125 V DC
250 V DC
Rated operating current
3 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
Mechanical life
1,000,000 switching cycles
Electrical life
1,000,000 switching cycles
Approvals
DNV, VDE , cCSAus , CCC, CSA , ENEC10 , CE, UKCA

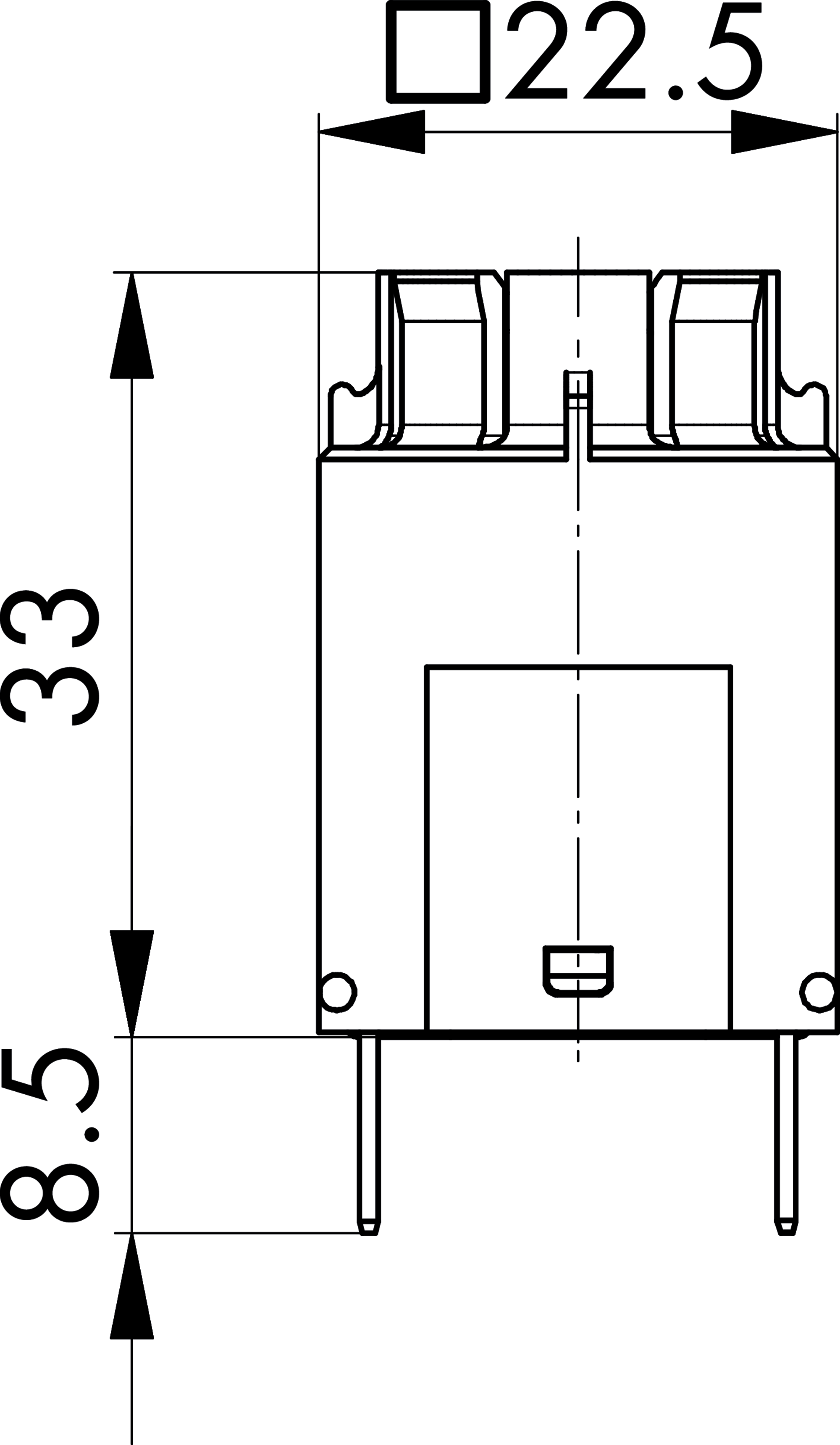

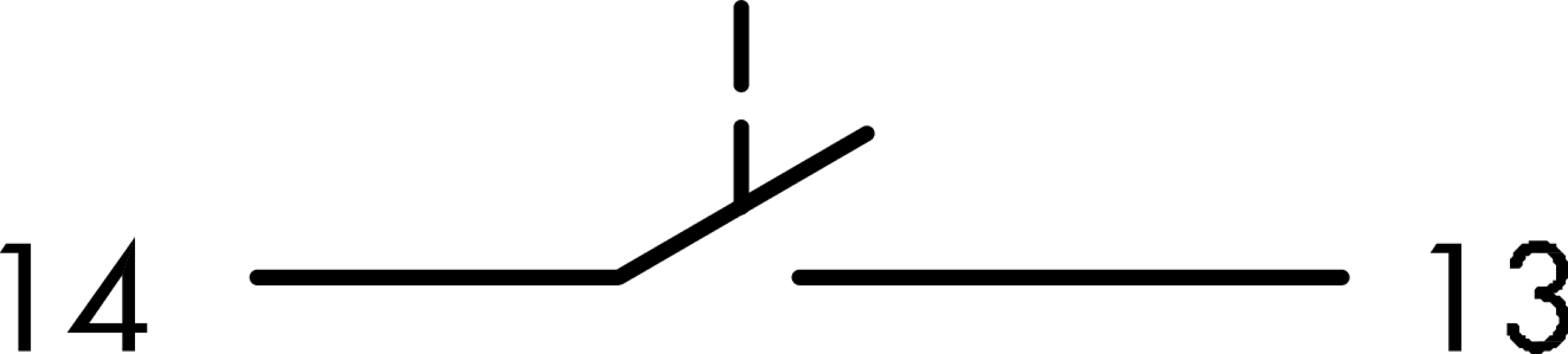

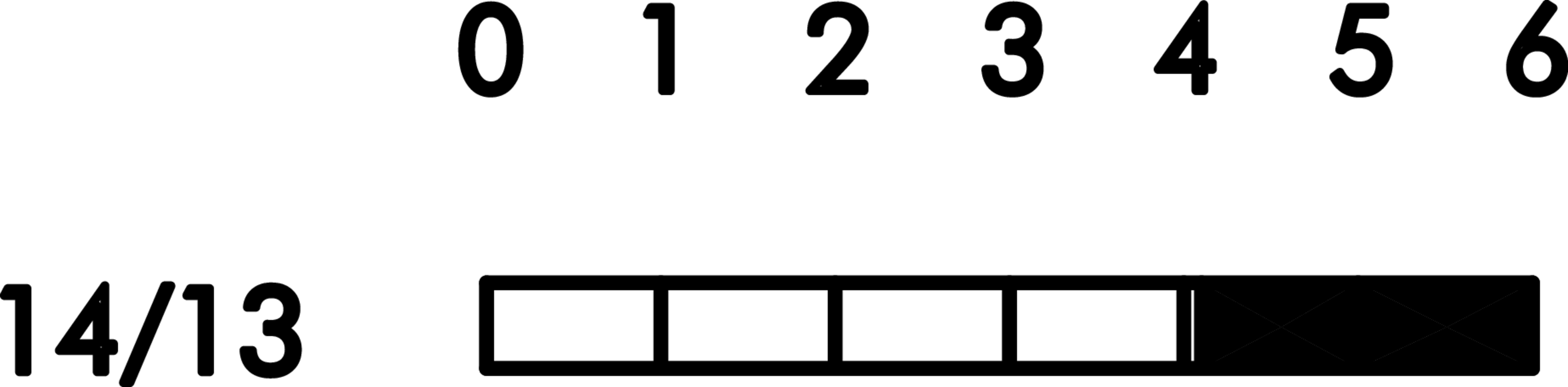

Technical sketches
