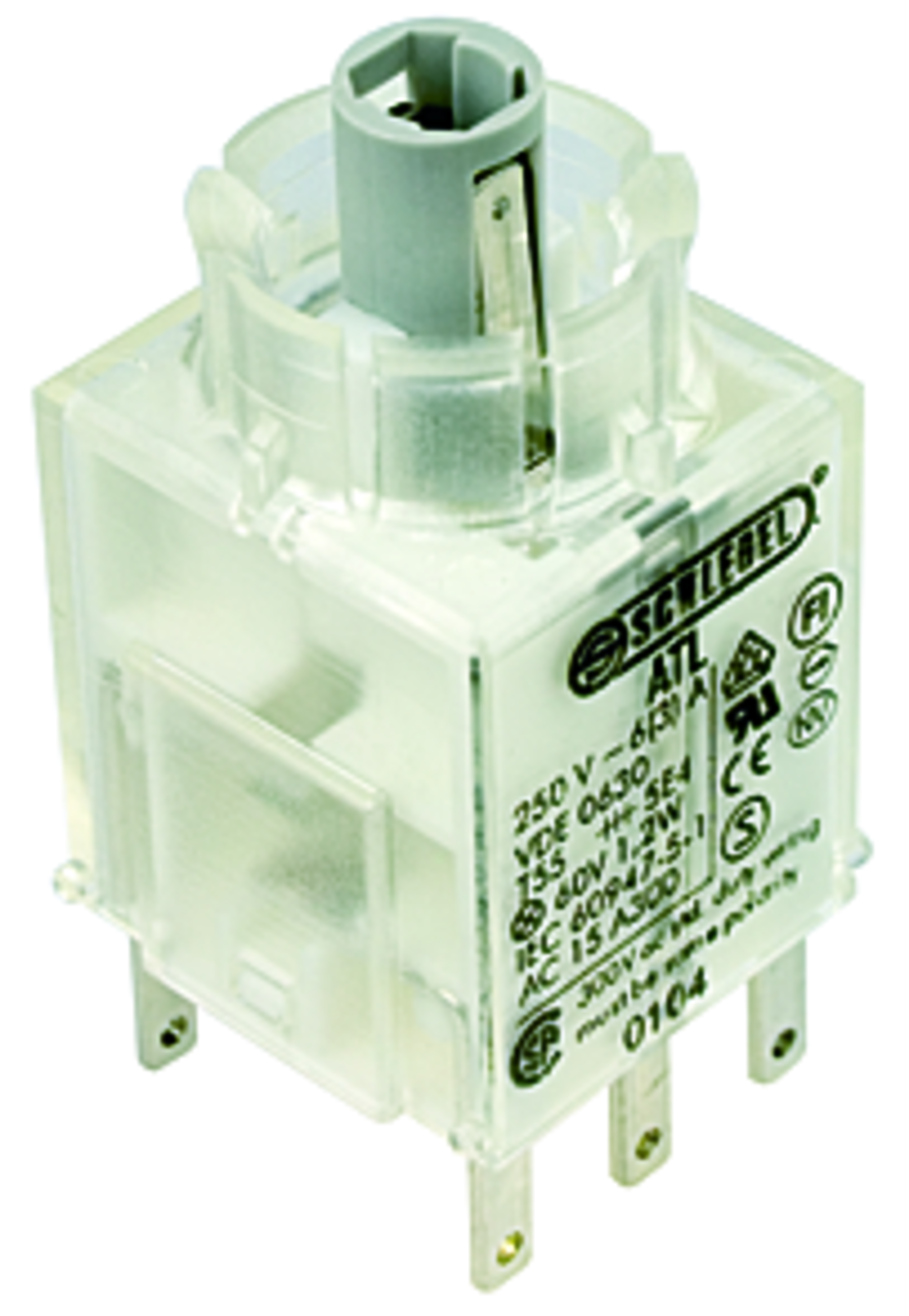

ATL_AU - Illuminated contact block, momentary
Robust contact element with gold contacts.
Series
Contact blocks A...
Contact type
1NC + 1NO
Switching function
Momentary function
Illumination
Yes
Illuminant
T5,5K Lamp socket
Colour housing/enclosure
transparent
Degree of protection front
IP00
Operating temperature
-30°C ... 70°C ohne Beleuchtung
-30°C ... 65°C bei LED-Beleuchtung
-30°C ... 55°C bei Glühlampenbeleuchtung
-30°C ... 65°C bei LED-Beleuchtung
-30°C ... 55°C bei Glühlampenbeleuchtung
Mechanical life
1,000,000 switching cycles
Electrical life
1,000,000 switching cycles
Approvals
TÜV_Süd , VDE , CCC, ENEC10 , CE, UKCA

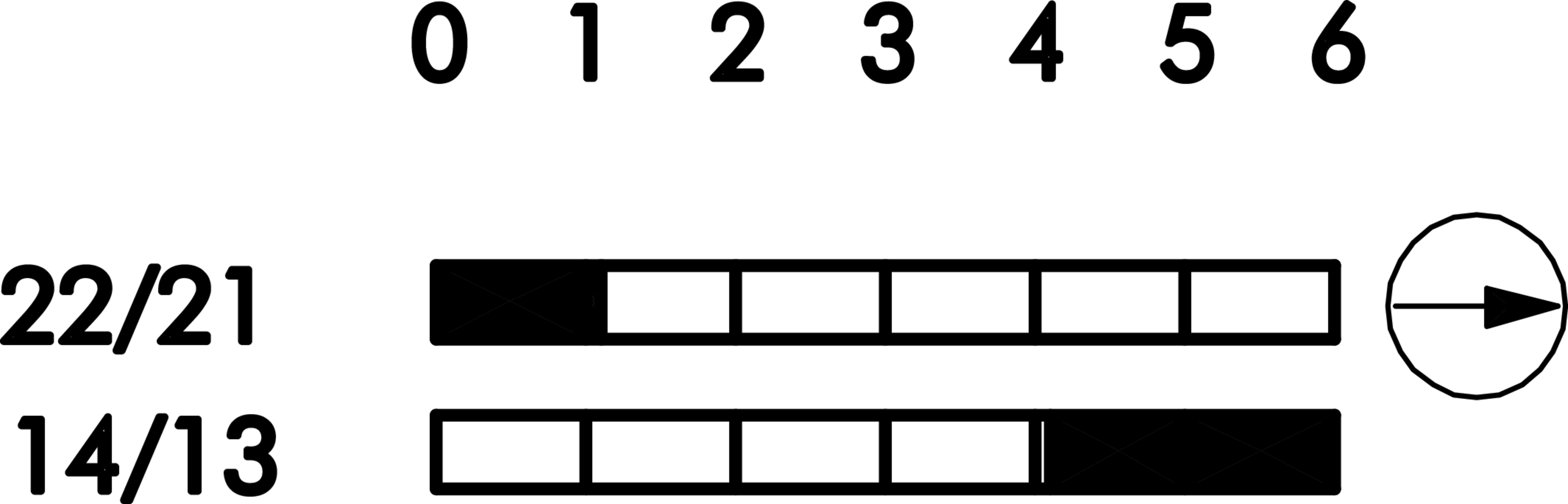

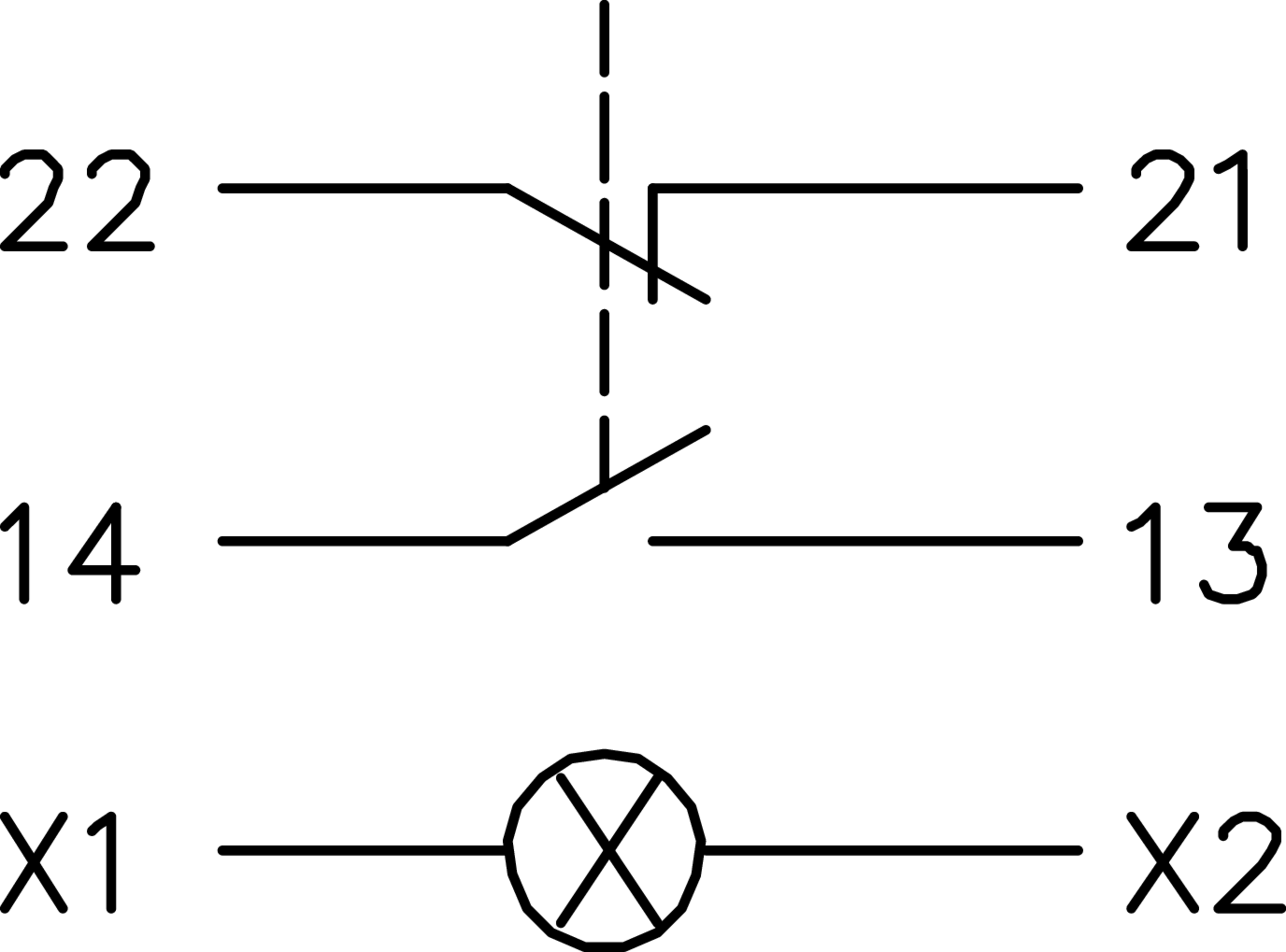

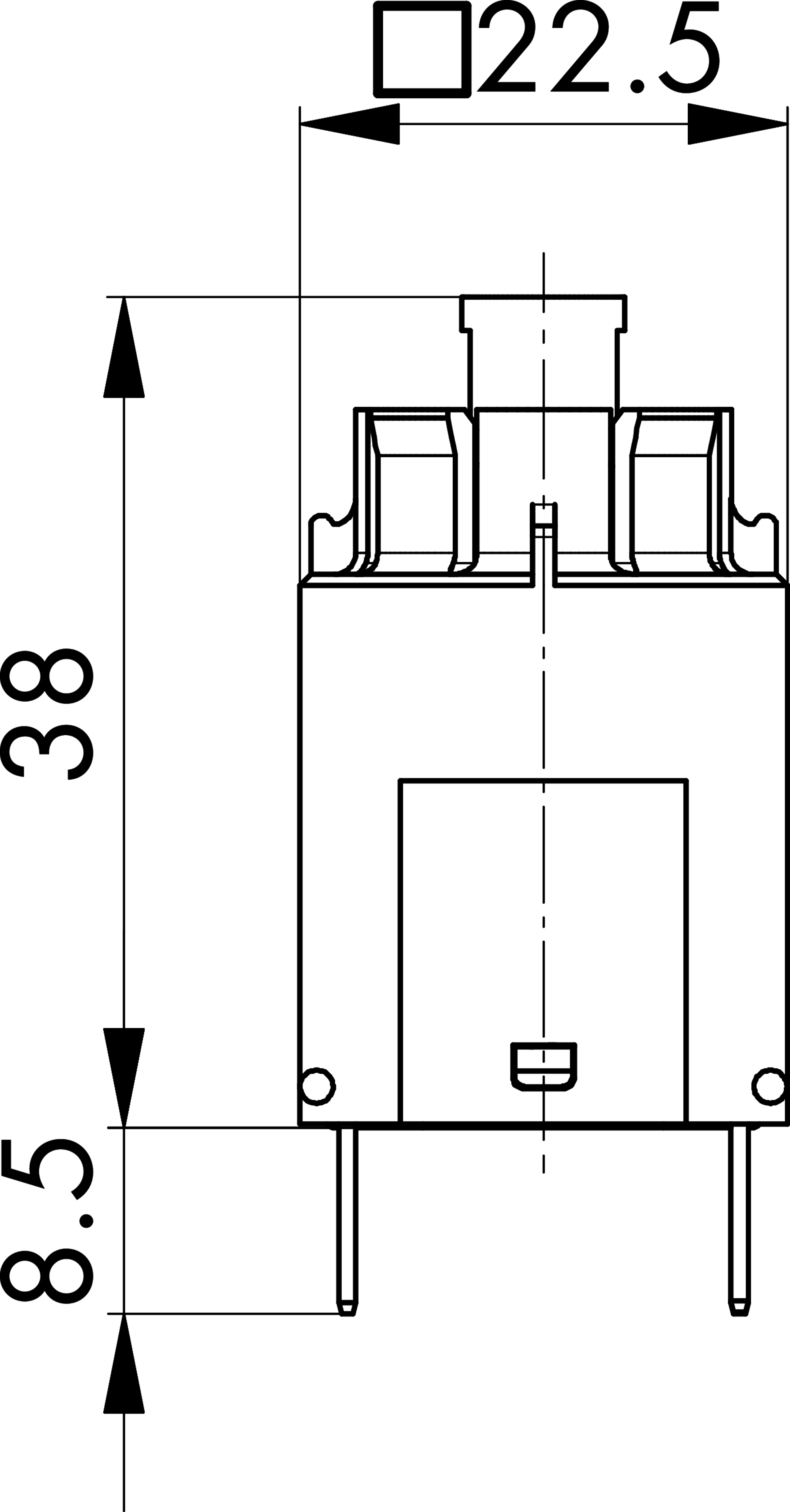

Technical sketches
