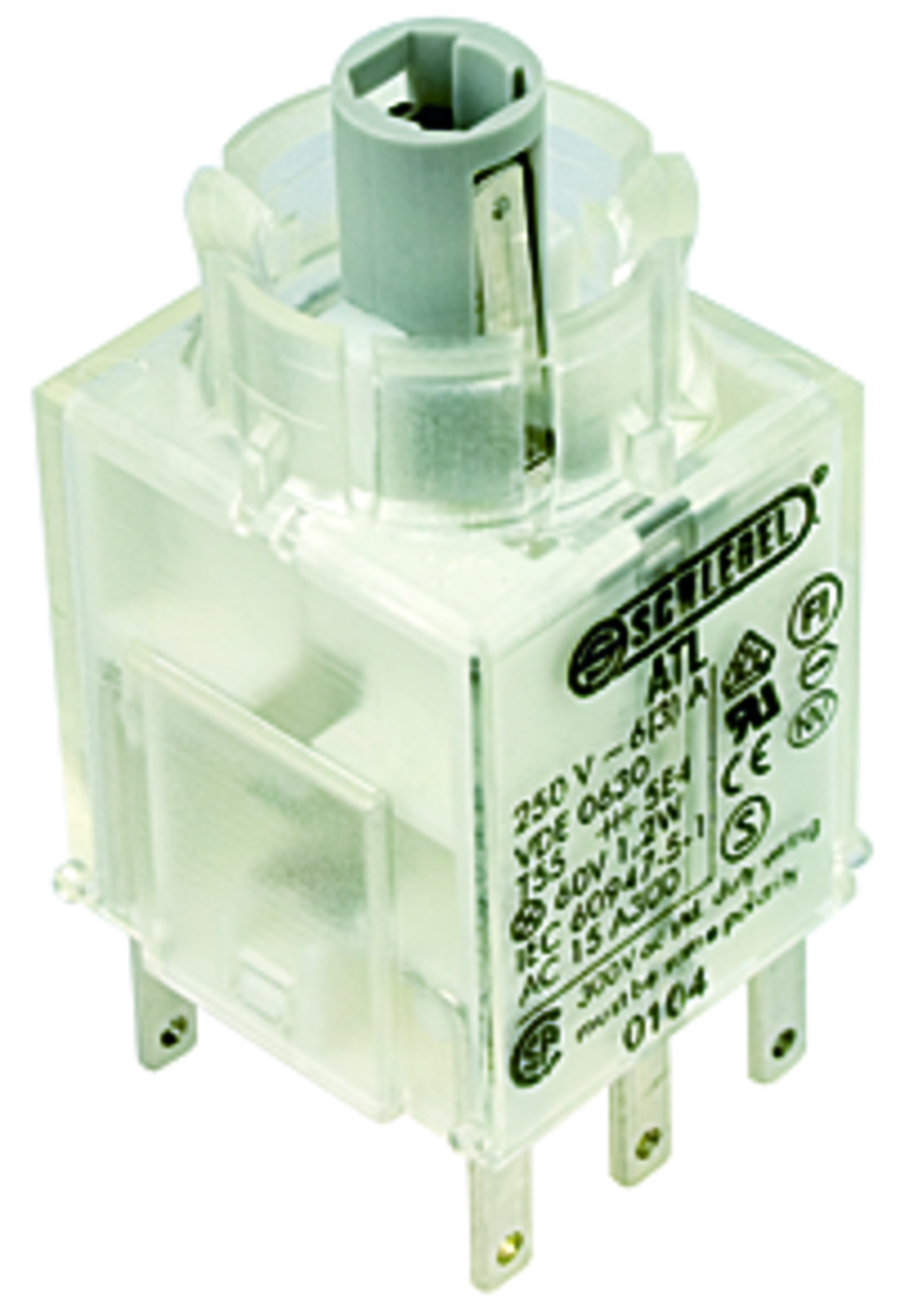

ATL - Illuminated contact block, momentary

Series

Contactor A...

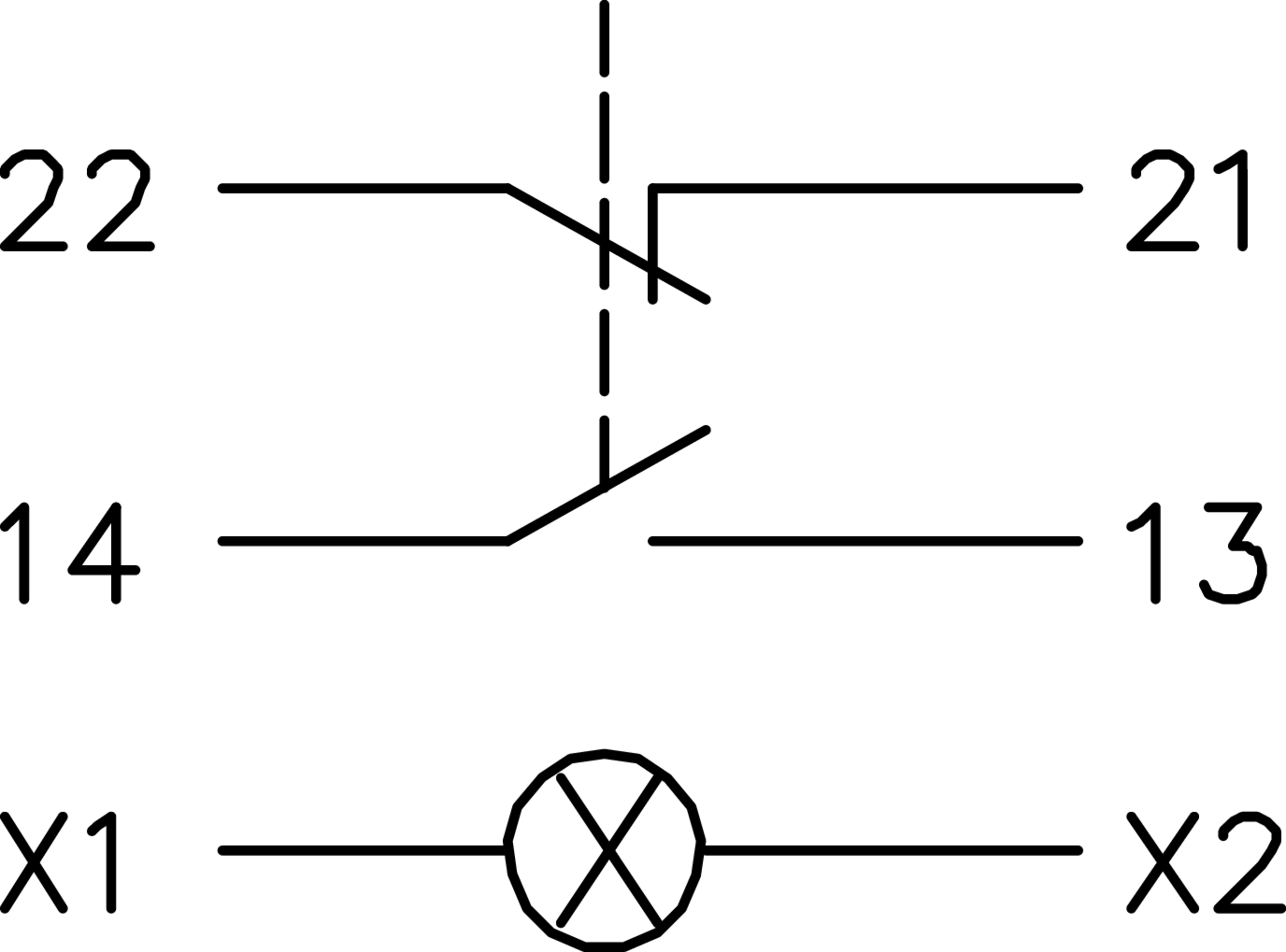

Contact type

1NC + 1NO

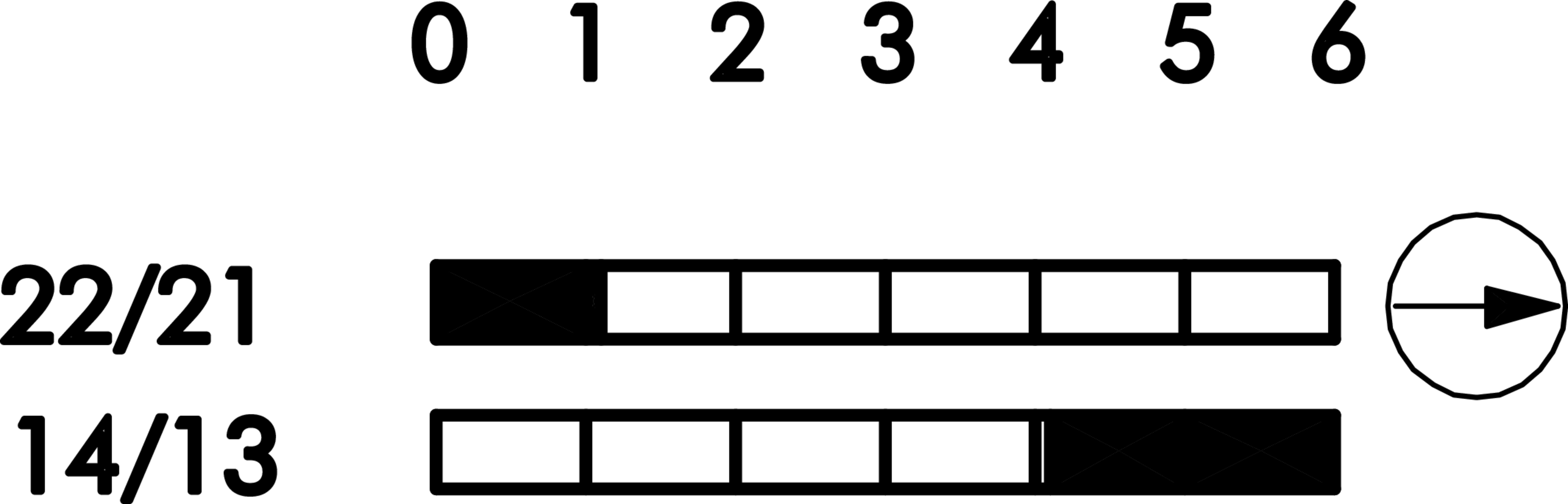

Switching function

Momentary function

Connection

Faston terminals

Illumination

Yes

Illuminant

T5,5K Lamp socket

Degree of protection front

IP00

Operating temperature

-30°C ... 70°C ohne Beleuchtung
-30°C ... 65°C bei LED-Beleuchtung
-30°C ... 55°C bei Glühlampenbeleuchtung

Rated operating voltage

240 V AC
24 V DC
60 V DC
125 V DC
250 V DC

Rated operating current

3 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC

Mechanical life

1,000,000 switching cycles

Electrical life

1,000,000 switching cycles

Approvals

DNVGL , TÜV_Süd , VDE , UR , CCC, CSA , cURus , ENEC10 , CE, UKCA

Protection class

II (protective insulation)

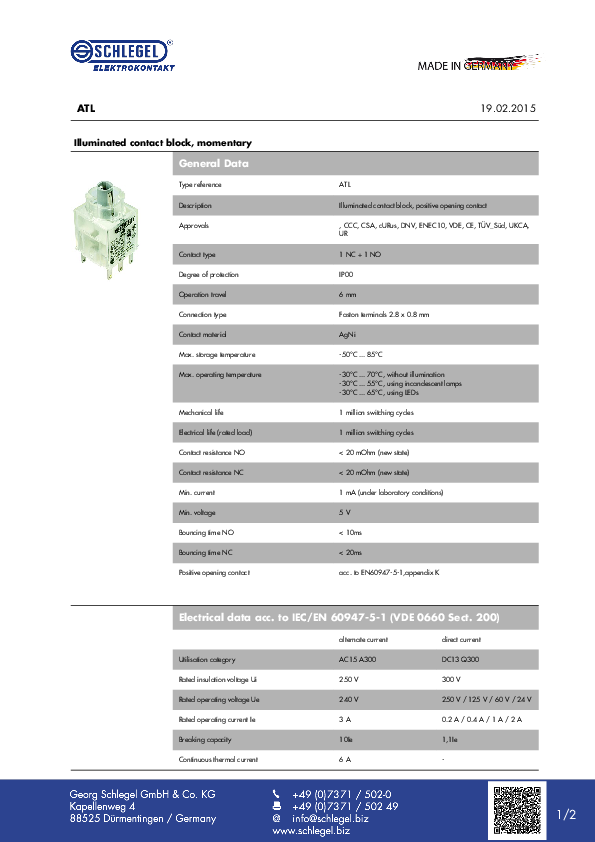

Downloads
