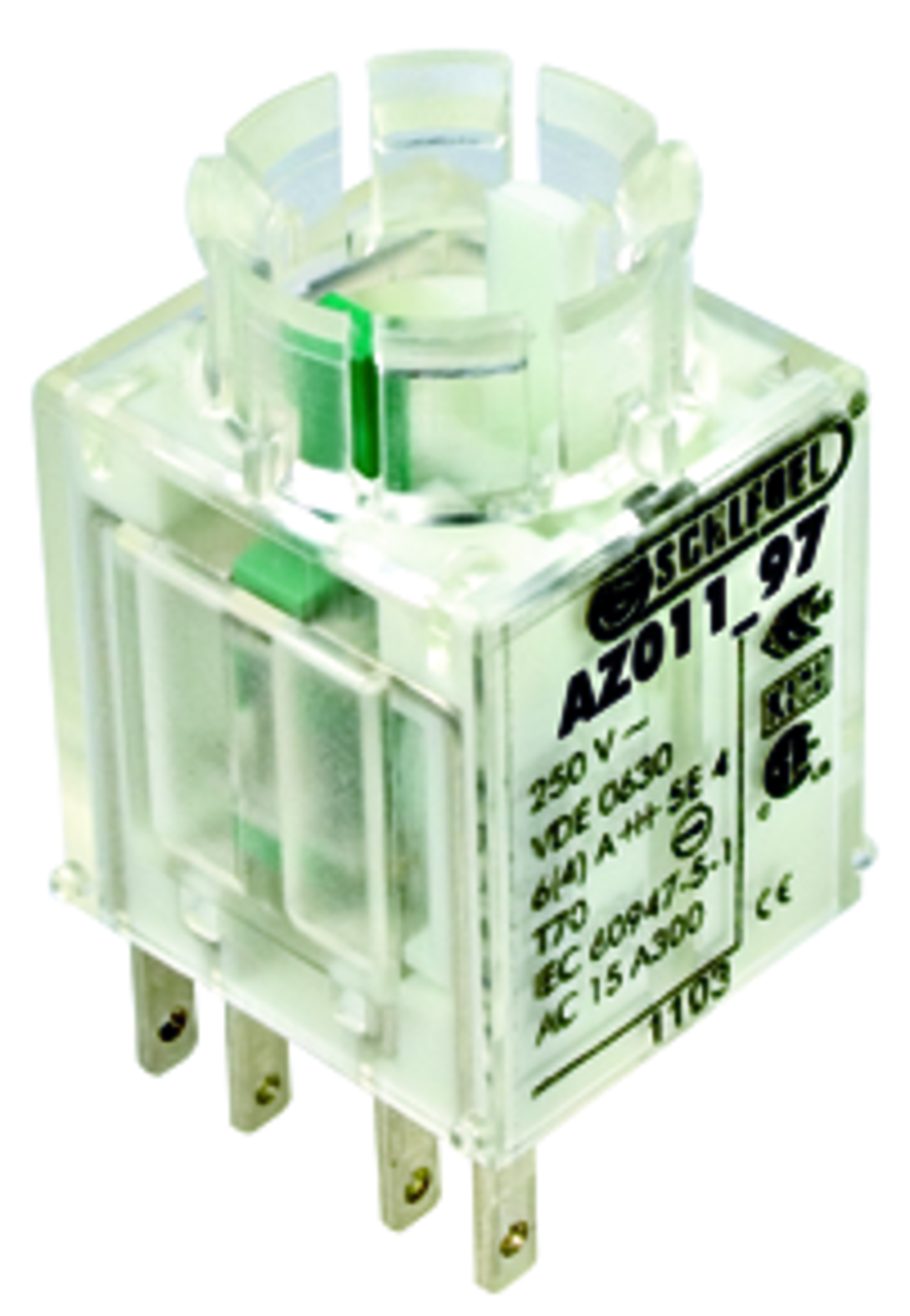

AZ011_97_AU - Two-step contact block, momentary
Series
Contact blocks AZ...
Contact type
1NC + 1NO + 1NO voreilend
Switching function
Momentary function
Connection
Faston terminals
Illumination
No
Degree of protection front
IP00
Operating temperature
-30°C ... 70°C
Mechanical life
1,000,000 switching cycles
Electrical life
1,000,000 switching cycles
Approvals
CCC, CE, UKCA
Protection class
II (protective insulation)

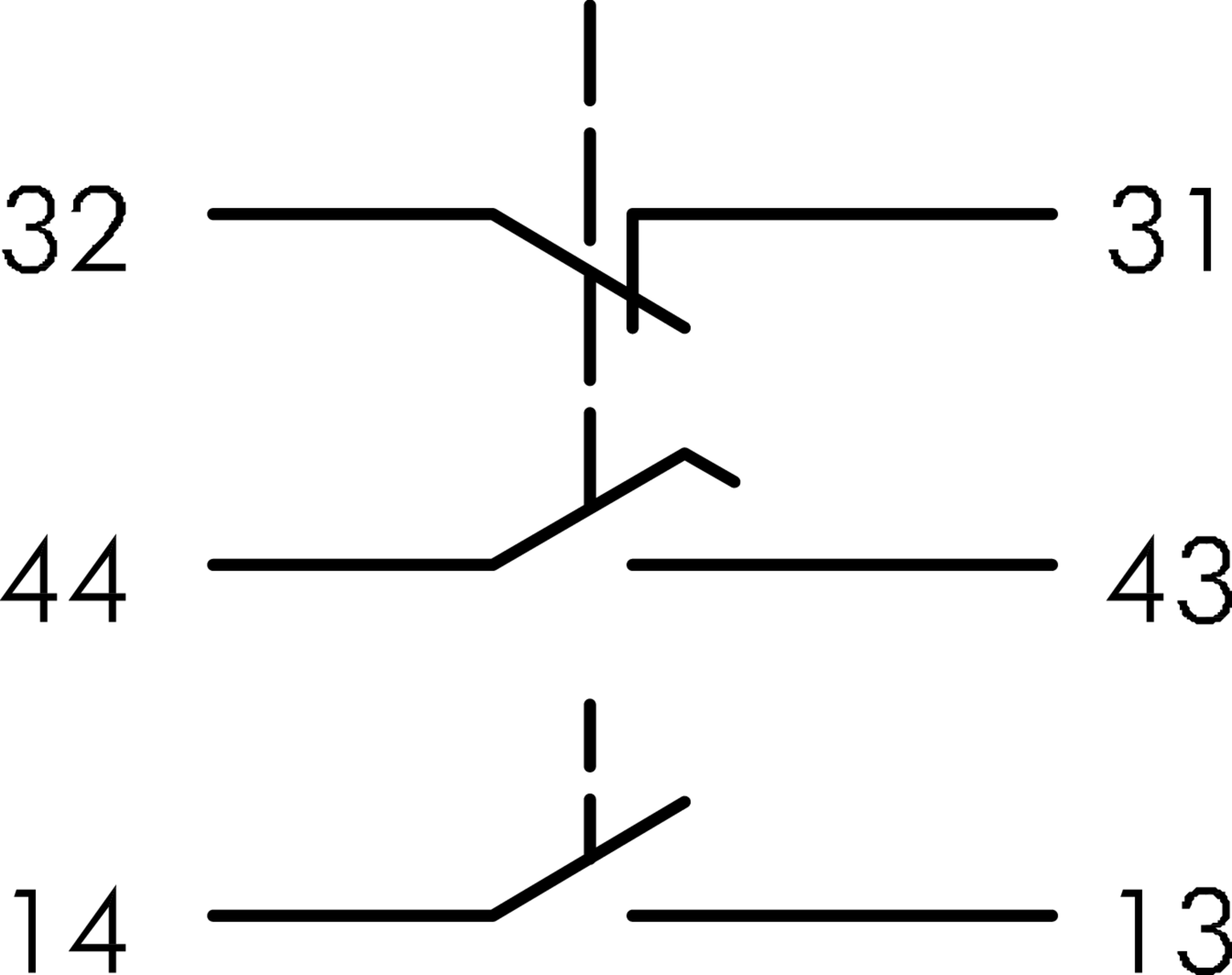

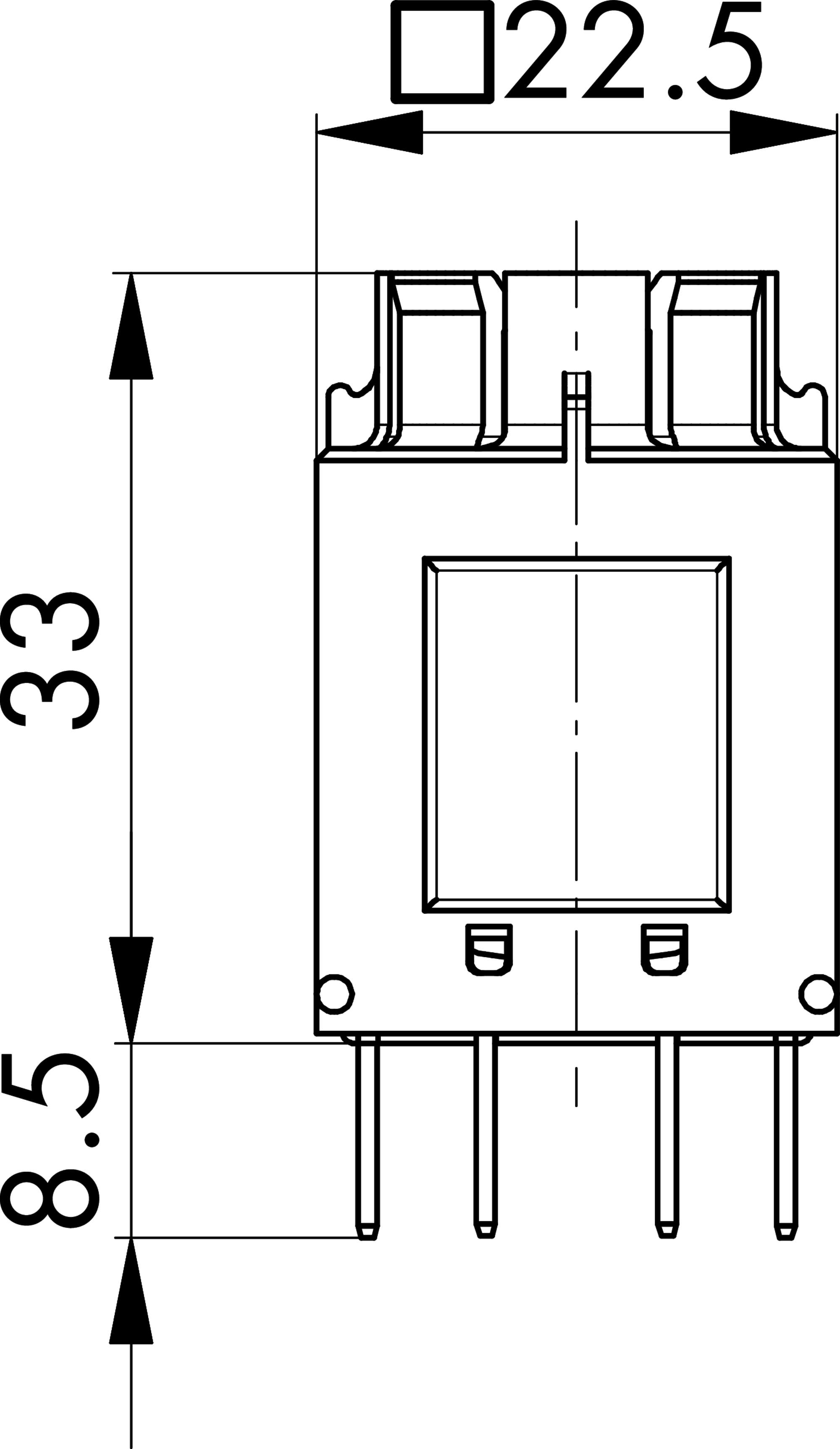

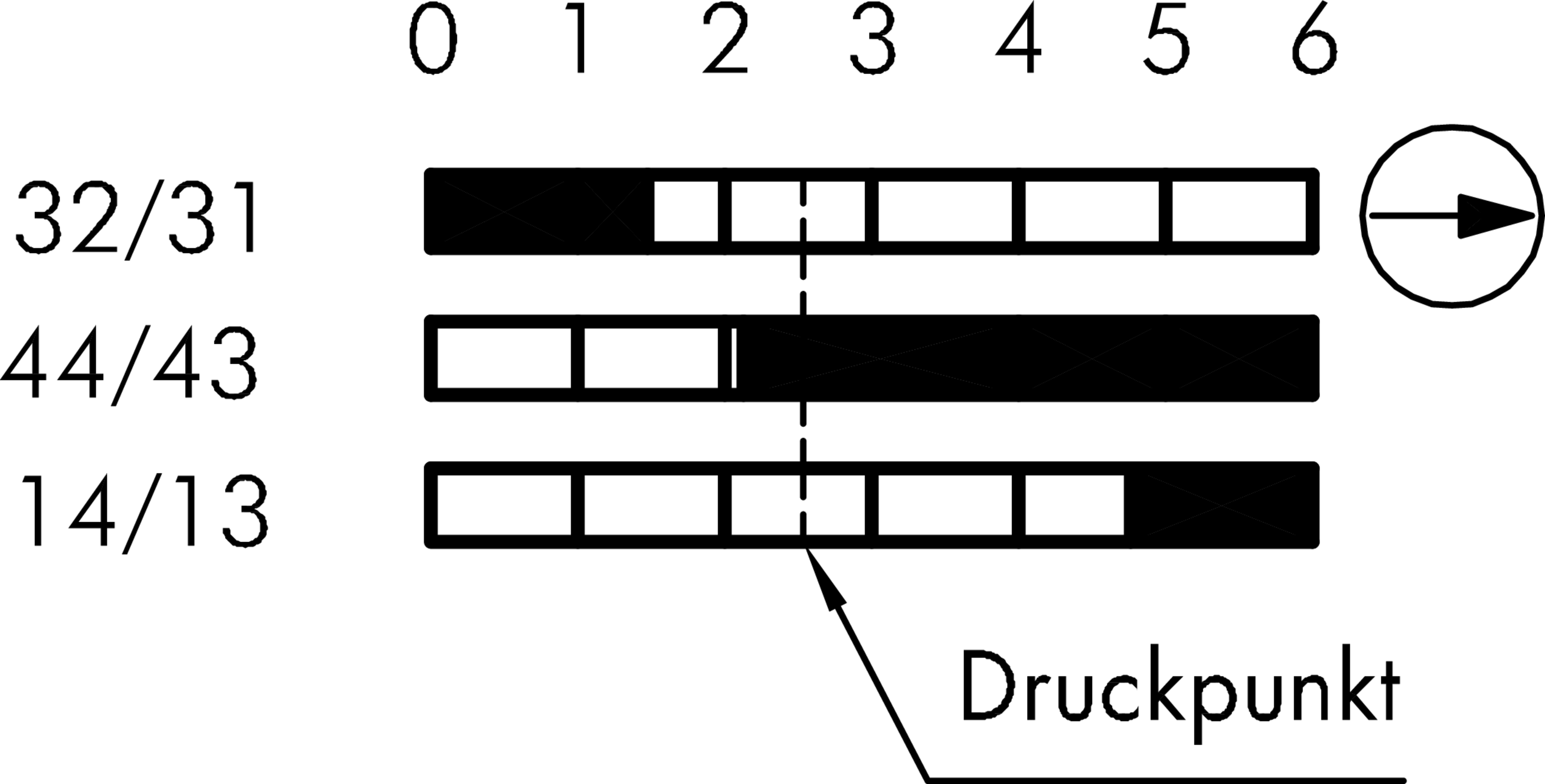

Technical sketches
Downloads

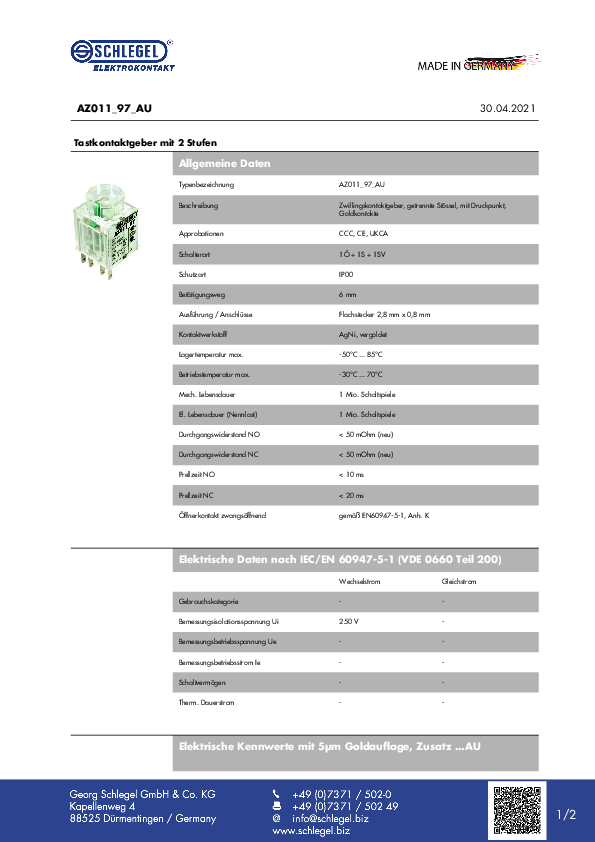

Datasheet_AZ011_97_AU
