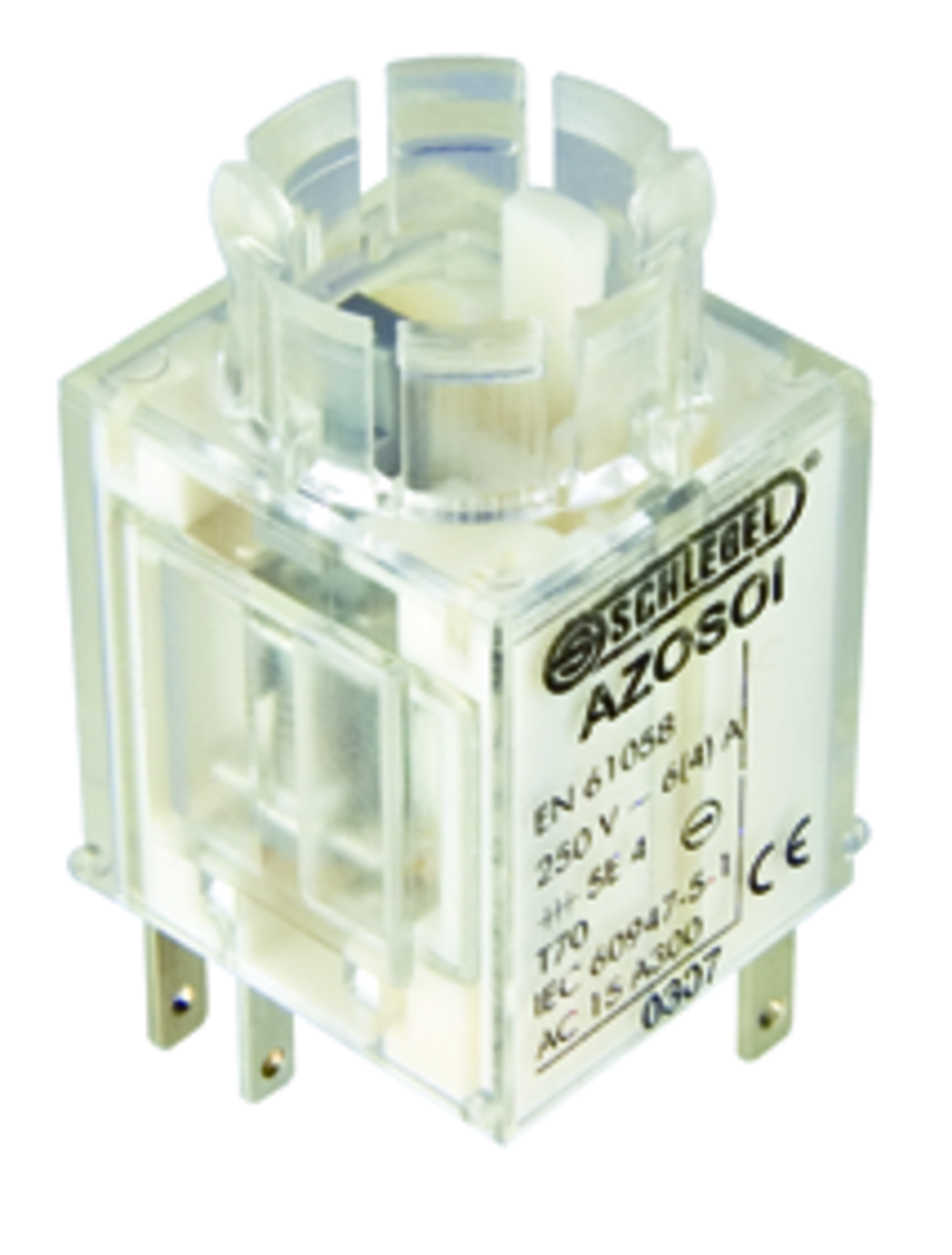

AZOSOI - Momentary contact block for emergency-stops, with failure switch-off *)

Series

Contact blocks AZ...

Contact type

2NC + 1NO

Switching function

Momentary function

Connection

Faston terminals

Illumination

Degree of protection front

IP00

Operating temperature

-30°C ... 70°C

Rated operating voltage

240 V AC
24 V DC
60 V DC
125 V DC
250 V DC

Rated operating current

3 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC

Mechanical life

1,000,000 switching cycles

Electrical life

1,000,000 switching cycles

Approvals

DNVGL , TÜV_Süd , UR , CCC, cURus , ENEC05 , CE, KEMA , UKCA

Protection class

II (protective insulation)
