AZVN
Contact block, momentary
Series
Contact blocks AZ...
Approvals
DNVGL , cCSAus , CCC , ENEC05 , CE , KEMA , UKCA
Mechanical life
1,000,000 switching cycles
Switching function
Momentary function
Rated insulation voltage IEC/EN 60947-5-1
250 V DC
300 V DC
300 V AC
250 V AC
300 V DC
300 V AC
250 V AC
Protection class
II (protective insulation)
Storage temperature
-50 ... 85°C

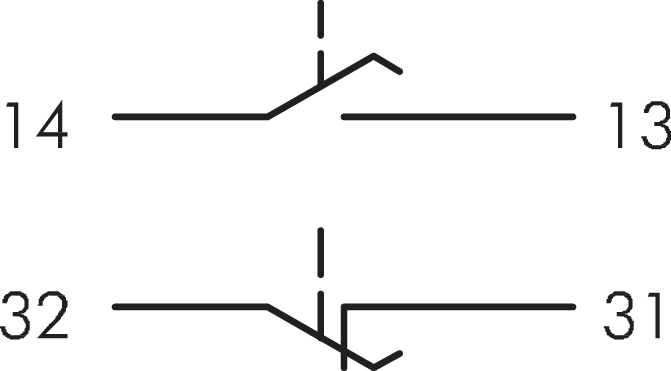

Contact type
1NC + 1NO
Operating temperature
-30 ... 70°C
Degree of protection front
IP00

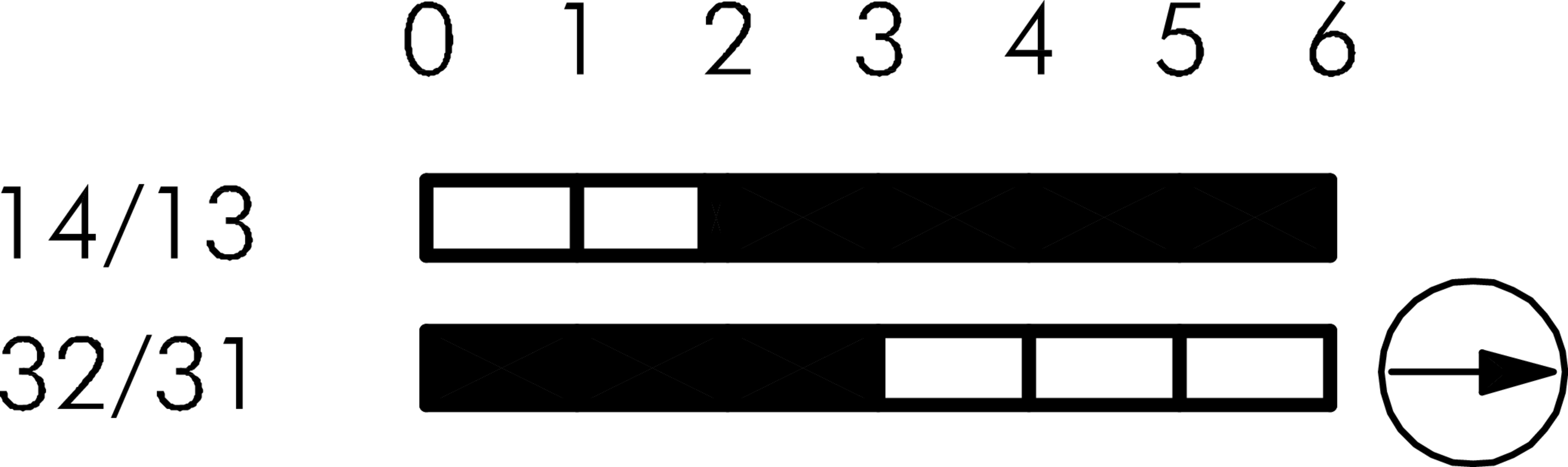

Operating travel
6 mm
Electrical life
1,000,000 switching cycles
Illumination
no
Rated operating current
3 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
Rated operating voltage
250 V DC
24 V DC
125 V DC
240 V AC
60 V DC
24 V DC
125 V DC
240 V AC
60 V DC

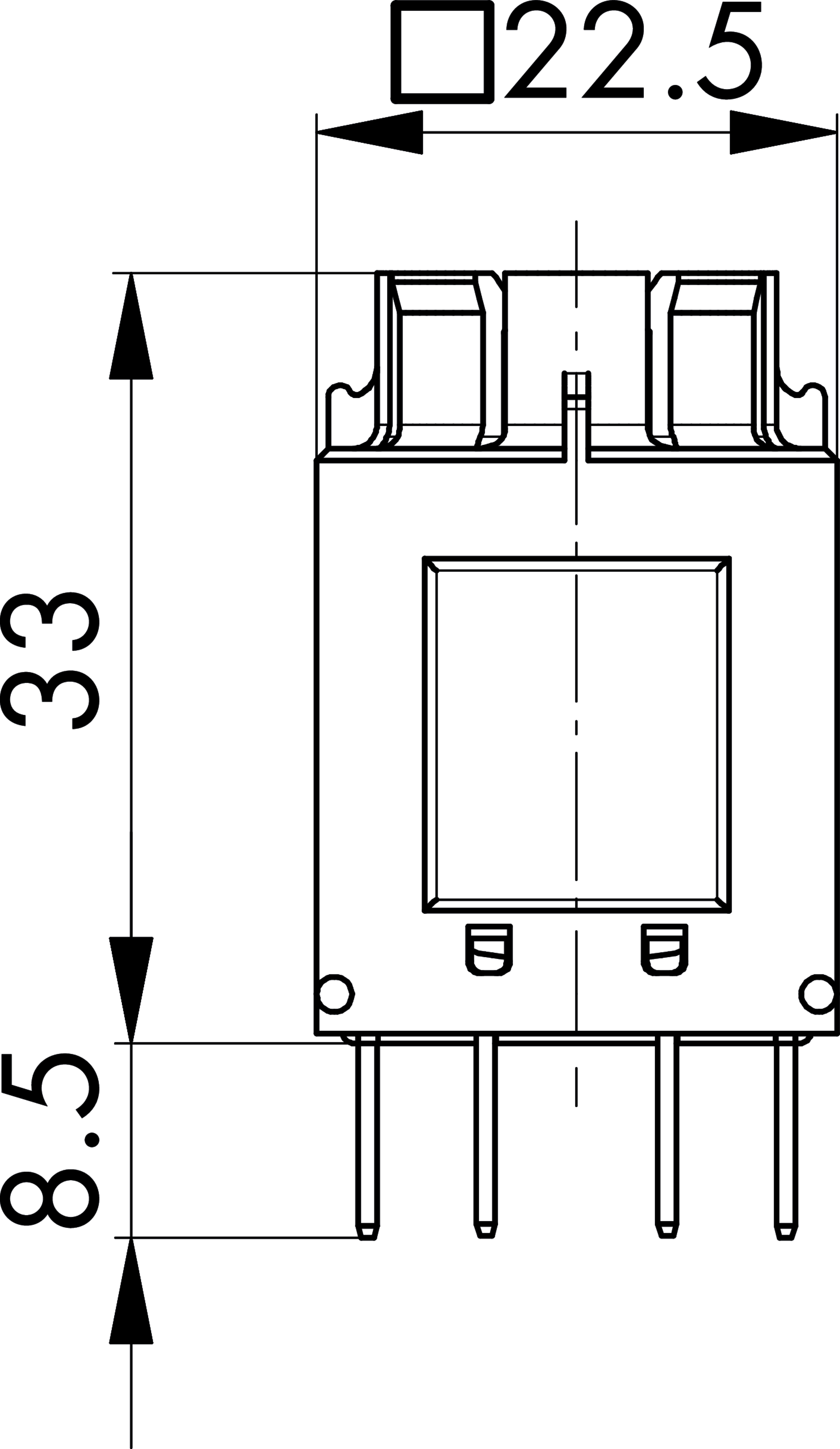

Technical sketches
Downloads

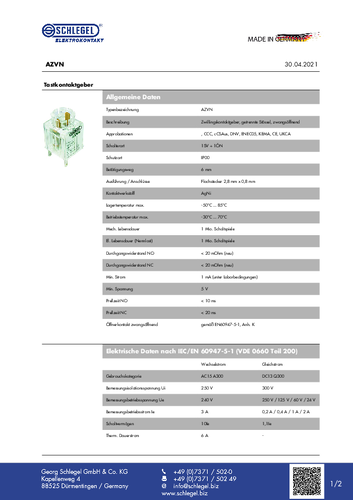

Datasheet_AZVN
