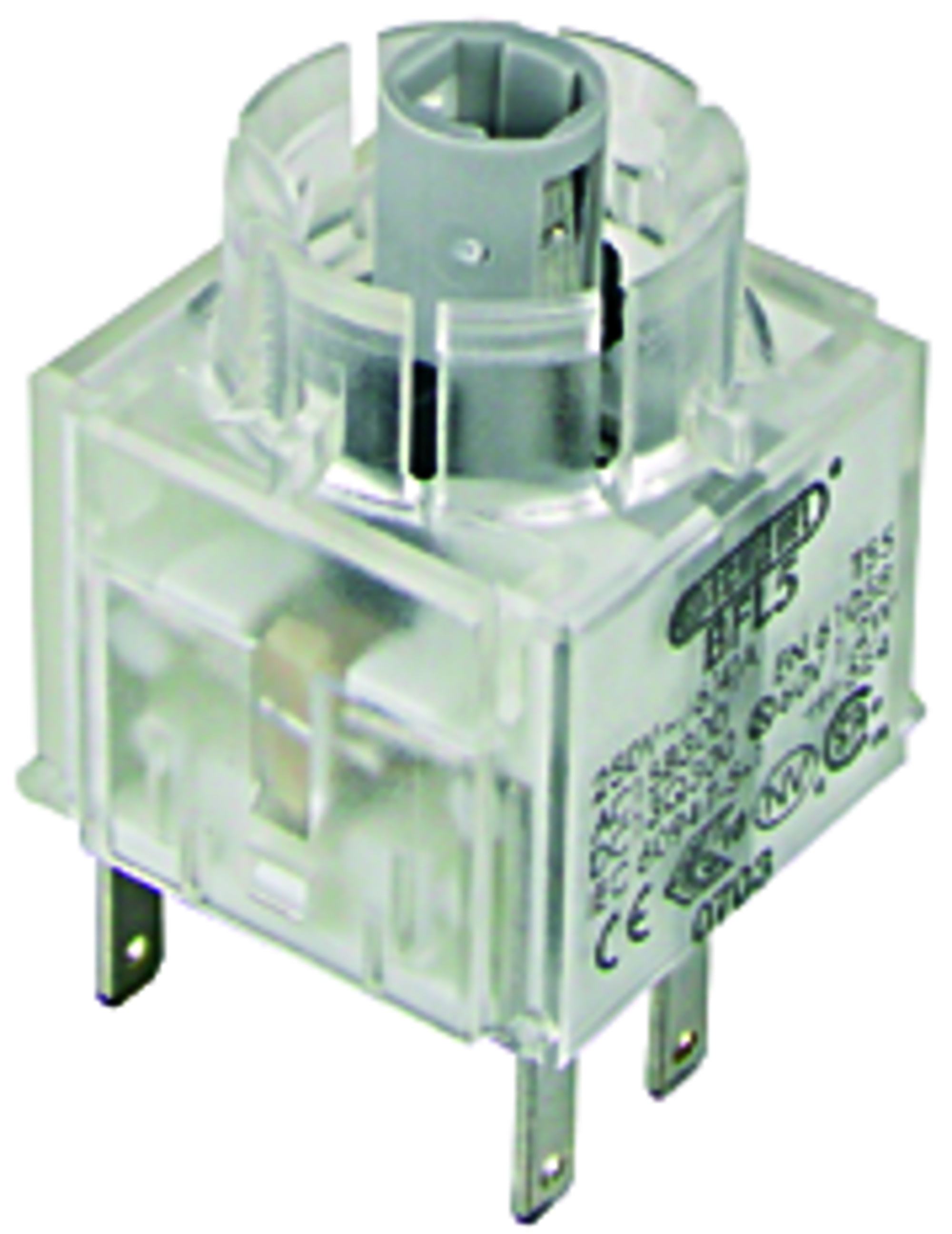

Product images

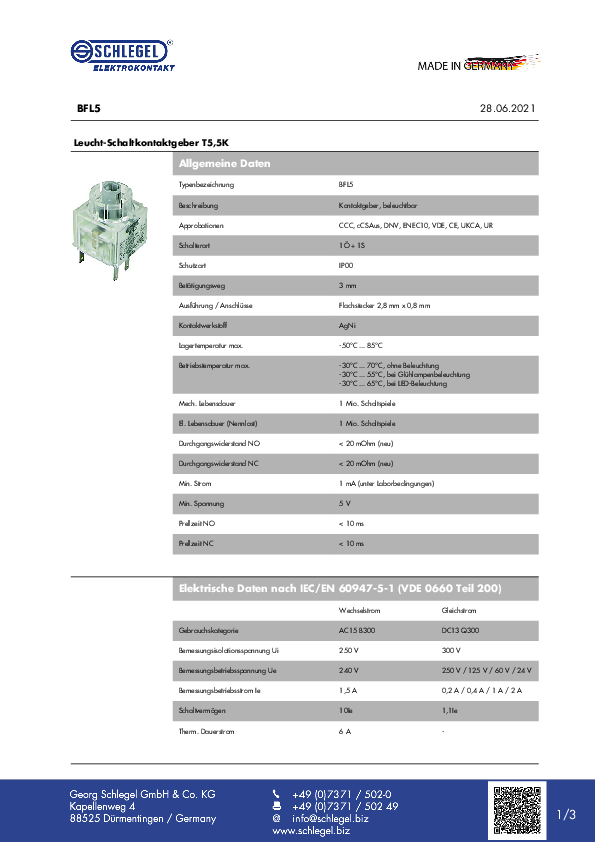

Downloads

BFL5 - Illuminated contact block, maintained, T5,5K

Series

Contact blocks BF...

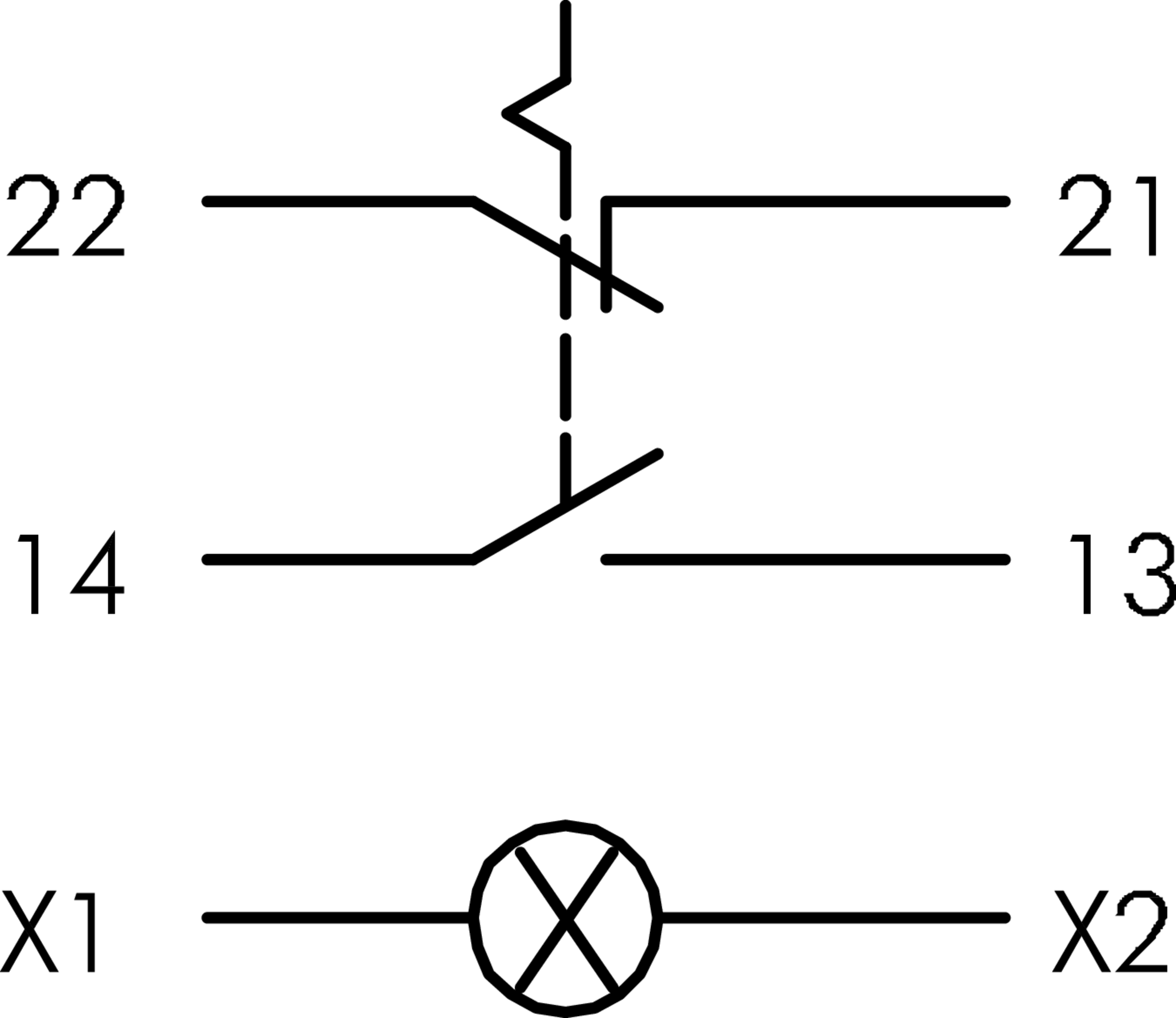

Contact type

1NC + 1NO

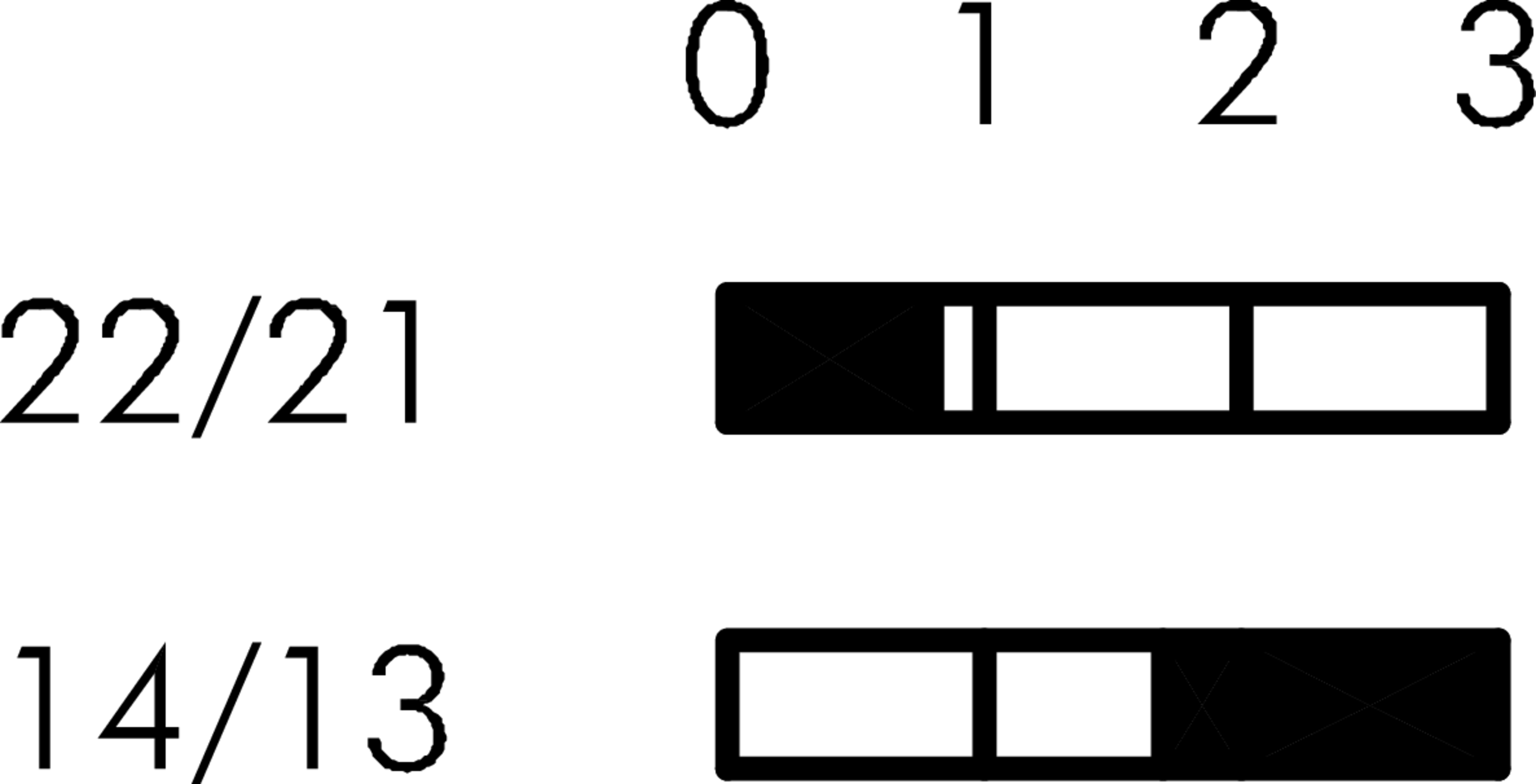

Switching function

Latching function

Connection

Faston terminals

Illumination

Yes

Illuminant

T5,5K Lamp socket

Degree of protection front

IP00

Operating temperature

-30°C ... 70°C ohne Beleuchtung
-30°C ... 65°C bei LED-Beleuchtung
-30°C ... 55°C bei Glühlampenbeleuchtung

Rated operating voltage

240 V AC
24 V DC
60 V DC
125 V DC
250 V DC

Rated operating current

1.5 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC

Mechanical life

1,000,000 switching cycles

Electrical life

1,000,000 switching cycles

Approvals

DNVGL , VDE , UR , cCSAus , CCC, ENEC10 , CE, UKCA

Protection class

II (protective insulation)

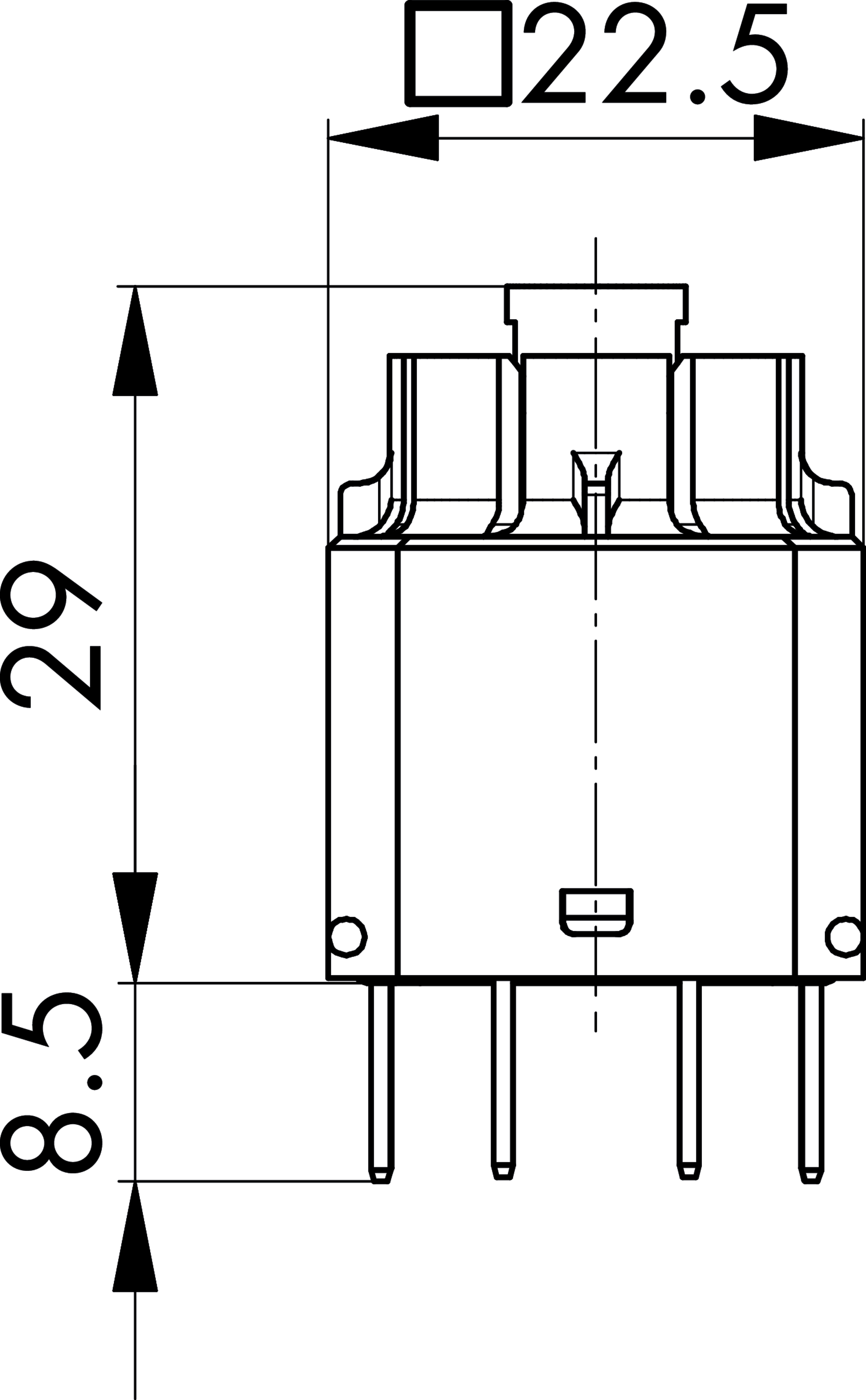

Technical sketches
