BFLIK - Illuminated contact block, maintained, W2x4,6d
Series
Contact blocks BF...K
Contact type
2NO
Switching function
Latching function
Connection
Screw connection
Illumination
Yes
Illuminant
W2x4,6d Lamp socket
Degree of protection front
IP20
Operating temperature
-30°C ... 70°C ohne Beleuchtung
-30°C ... 65°C bei LED-Beleuchtung
-30°C ... 55°C bei Glühlampenbeleuchtung
-30°C ... 65°C bei LED-Beleuchtung
-30°C ... 55°C bei Glühlampenbeleuchtung
Rated operating voltage
240 V AC
24 V DC
60 V DC
125 V DC
250 V DC
24 V DC
60 V DC
125 V DC
250 V DC
Rated operating current
1.5 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
Mechanical life
1,000,000 switching cycles
Electrical life
1,000,000 switching cycles
Approvals
DNVGL , VDE , cCSAus , CCC, ENEC10 , CE, UKCA
Protection class
II (protective insulation)

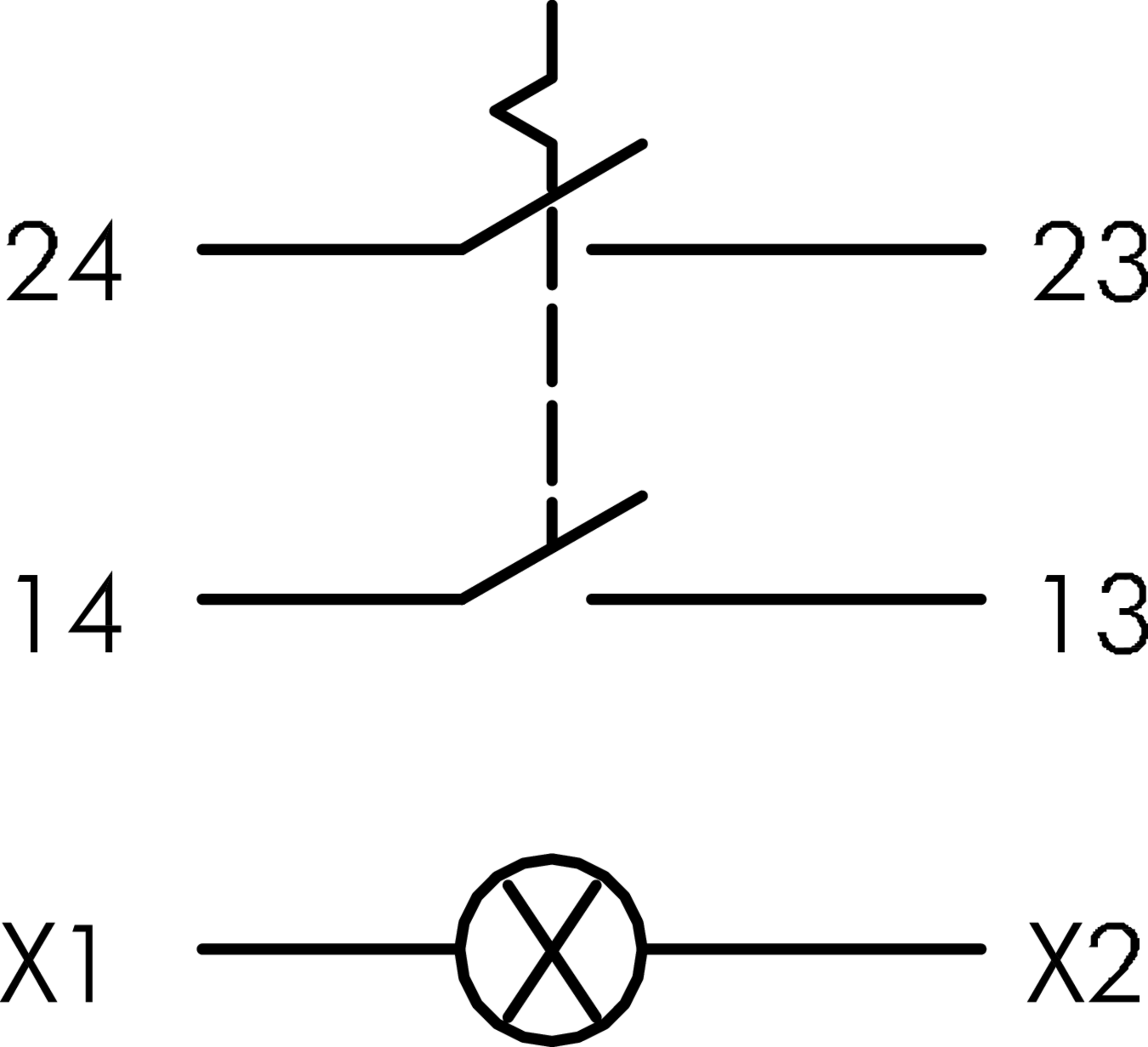

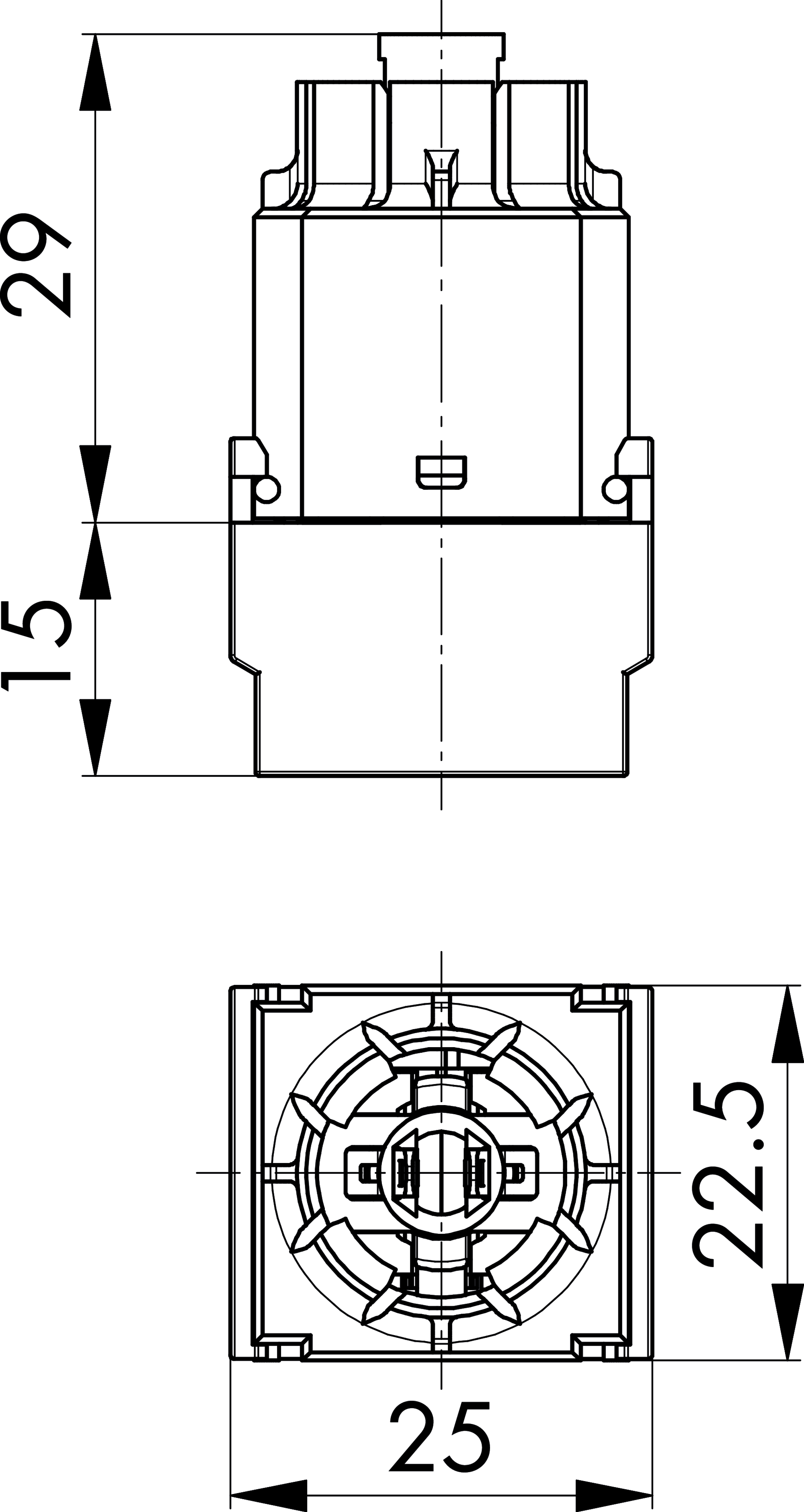

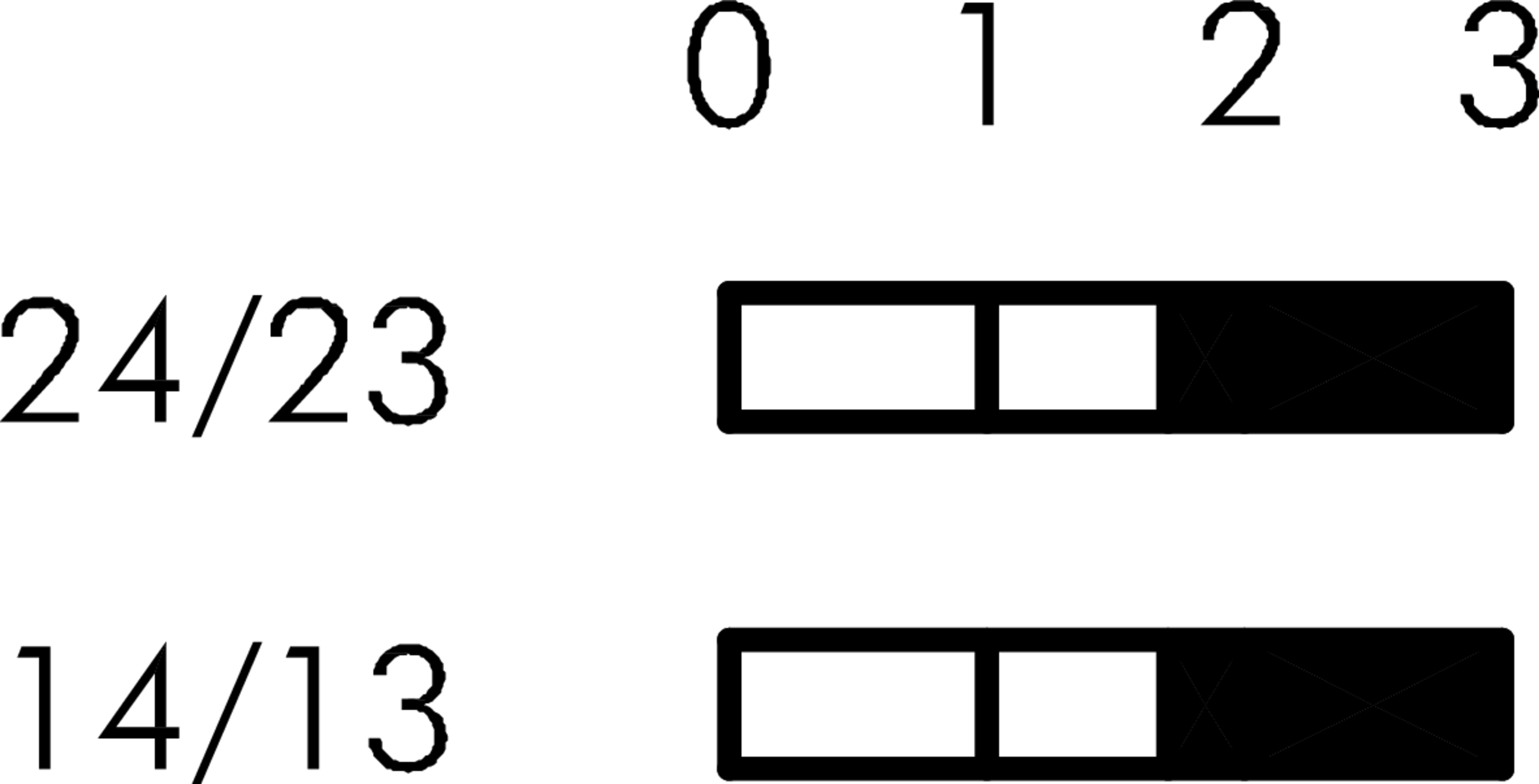

Technical sketches
