BFLK - Illuminated contact block, maintained, W2x4,6d
Approvals
DNVGL , VDE , cCSAus , CCC , ENEC10 , CE , UKCA
Mechanical life
1,000,000 switching cycles
Rated insulation voltage IEC/EN 60947-5-1
250 V DC
300 V DC
300 V AC
250 V AC
300 V DC
300 V AC
250 V AC
Protection class
II (protective insulation)
Storage temperature
-50 ... 85°C
Switching function
Maintained function
Contact type
1NC + 1NO
Operating temperature
-30 ... 70°C without illumination
-30 ... 65°C with LED illumination
-30 ... 55°C with incandescent lamp illumination
-30 ... 65°C with LED illumination
-30 ... 55°C with incandescent lamp illumination
Illumination
yes
Operating travel
3 mm
Degree of protection front
IP20
Series
Contact blocks BT/BF...K
Electrical life
1,000,000 switching cycles
Rated operating current
1.5 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
Rated operating voltage
250 V DC
24 V DC
125 V DC
240 V AC
60 V DC
24 V DC
125 V DC
240 V AC
60 V DC

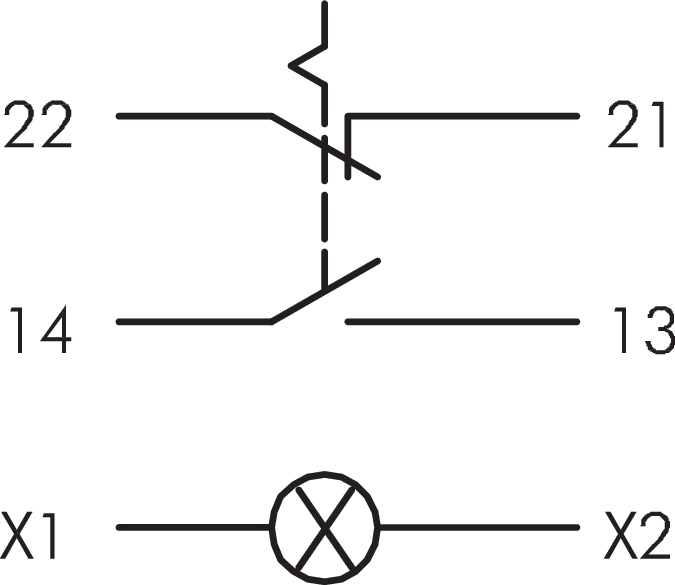

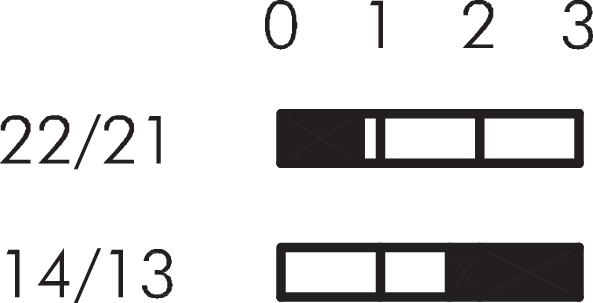

Technical sketches

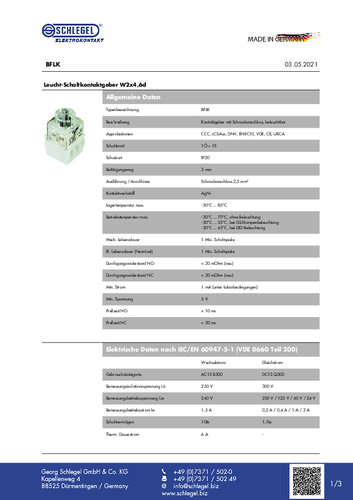

Downloads
Actuation-ReleaseProcessBF.pdf
