BZI - Contact block, momentary

Series
Contact blocks BZ...
Contact type
1NO
Switching function
Momentary function
Connection
Faston terminals
Illumination
No
Degree of protection front
IP00
Operating temperature
-30°C ... 70°C
Storage temperature
-50°C ... 85°C
Rated operating voltage
240 V AC
24 V DC
60 V DC
125 V DC
250 V DC
Rated operating current
1.5 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
Rated insulation voltage IEC/EN 60947-5-1
250 V AC
300 V AC
250 V DC
300 V DC
Mechanical life
1,000,000 switching cycles
Electrical life
1,000,000 switching cycles at rated voltage
Approvals
DNVGL , VDE , UR , cCSAus , CCC, ENEC10 , CE, UKCA
Protection class
II (protective insulation)
Technical sketches

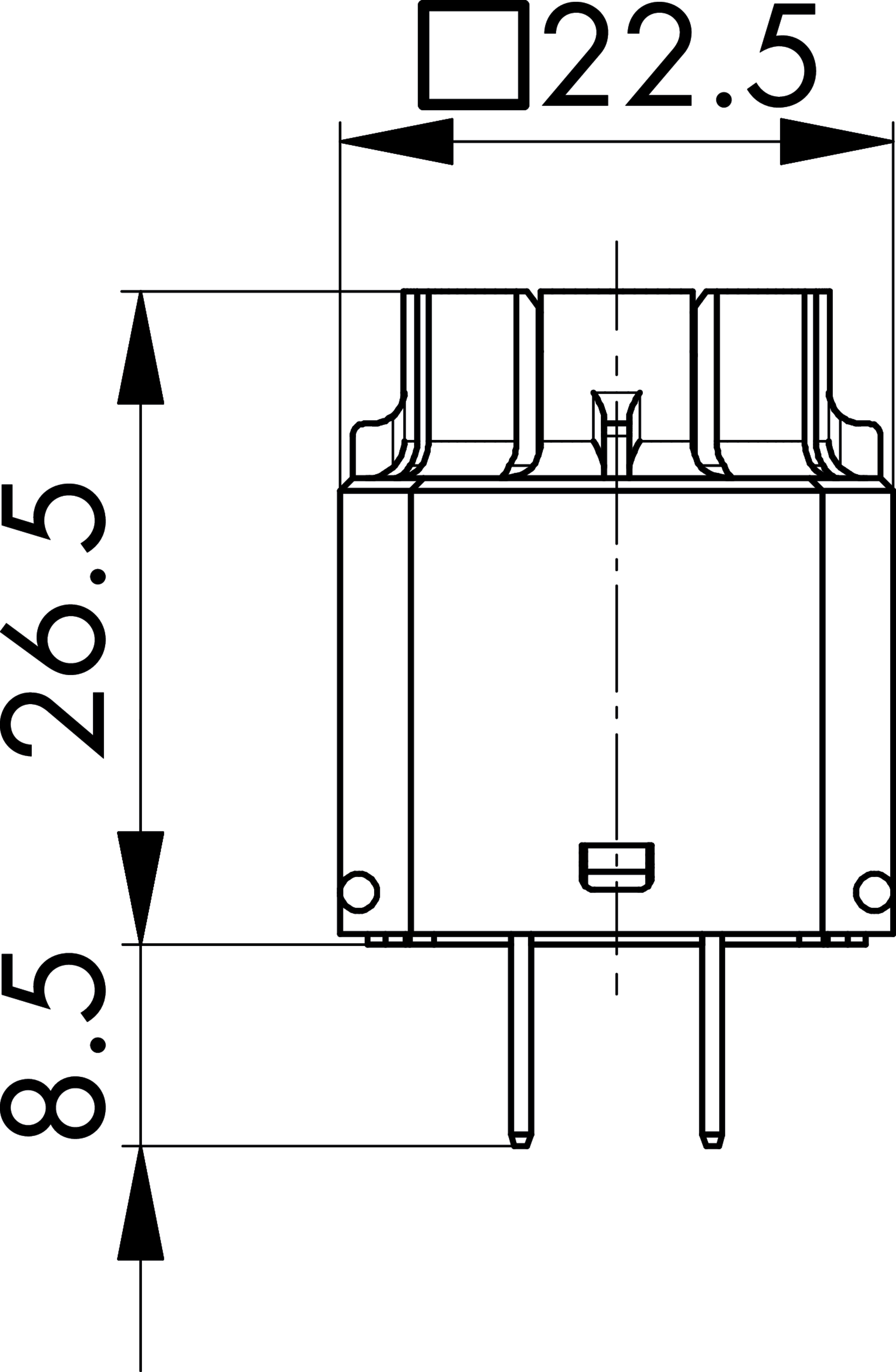

Maßskizze BZI

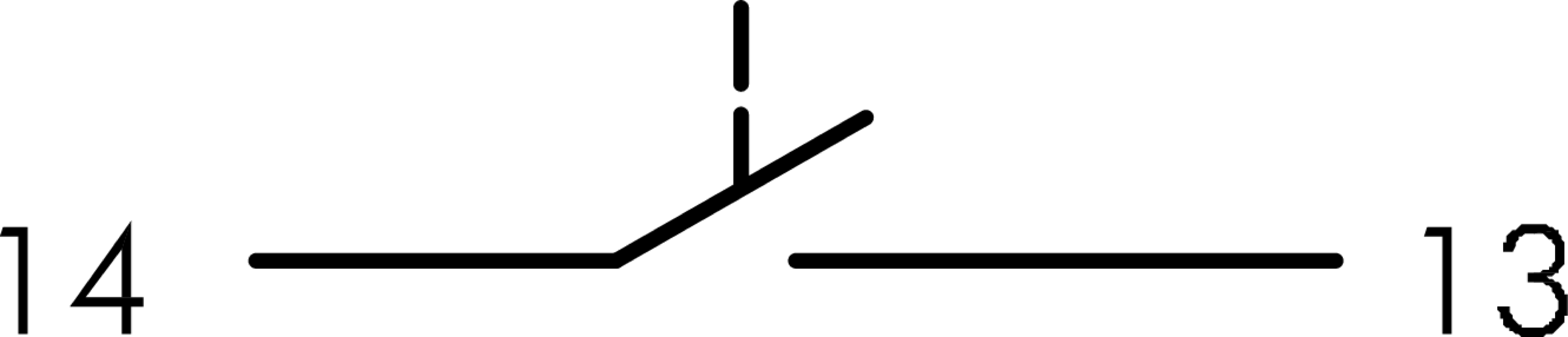

Schaltbild BZI

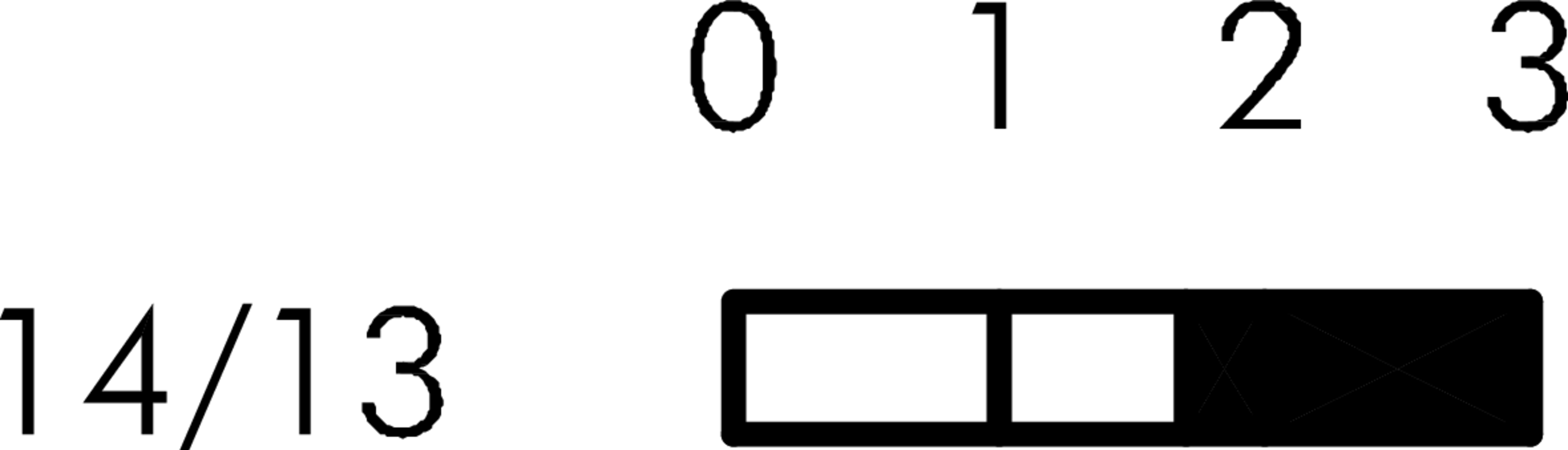

Schaltwegediagramm BZI

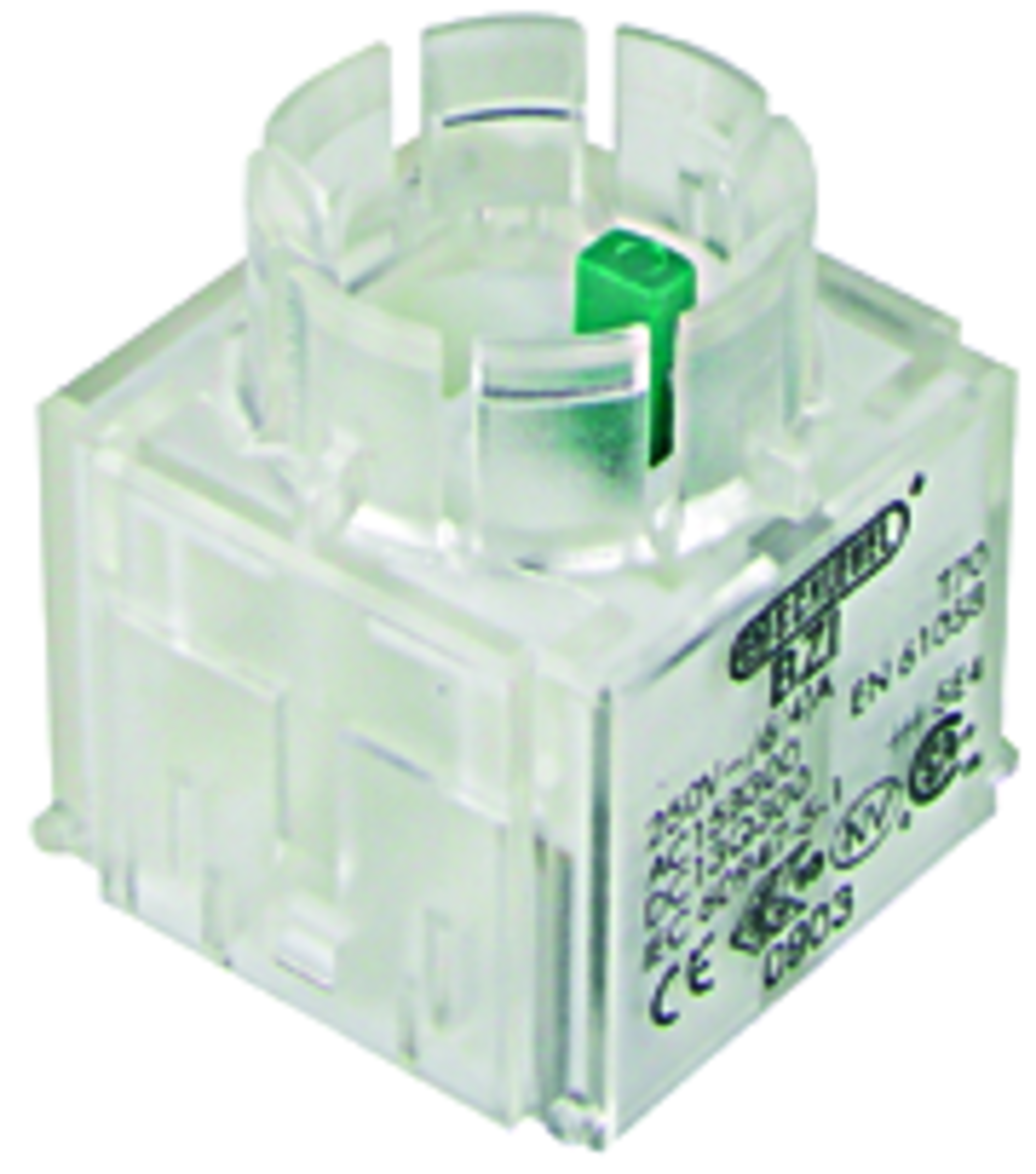

Produktbild BZI
