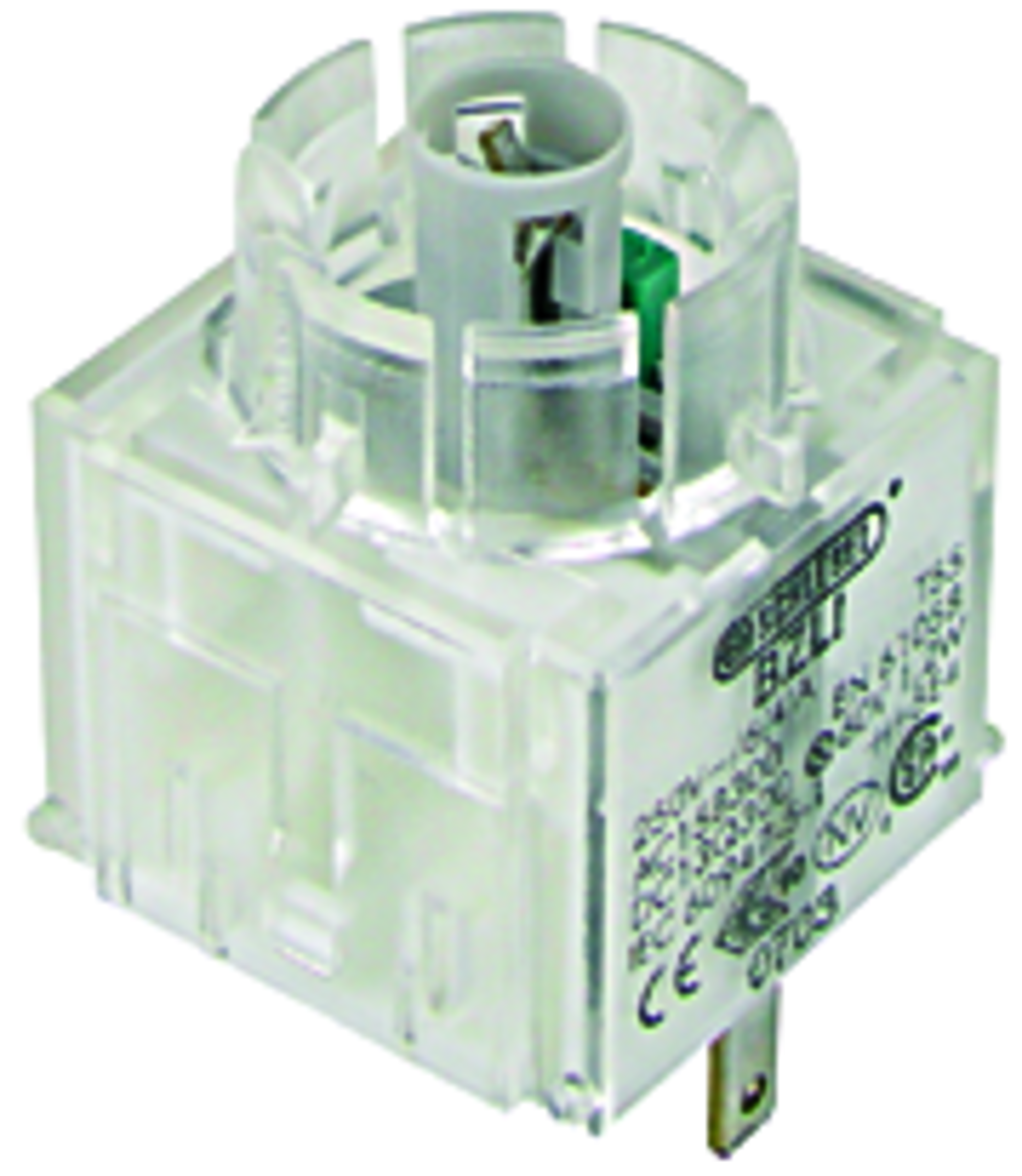

BZLI_AU - Illuminated contact block, momentary, W2x4,6d

Series

Contact blocks BZ...

Approvals

DNVGL , VDE , cCSAus , CCC , ENEC10 , CE , UKCA

Mechanical life

1,000,000 switching cycles

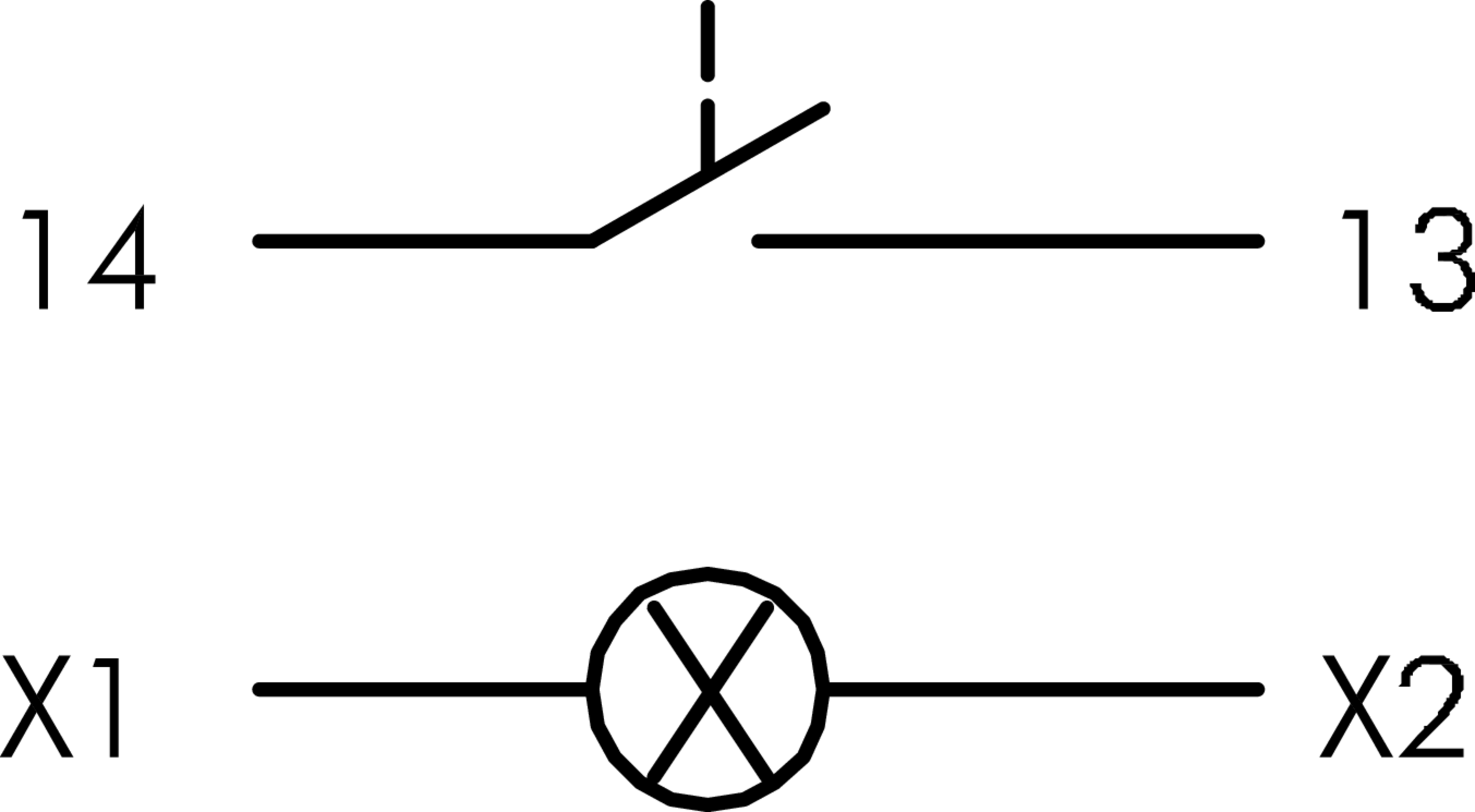

Contact type

1NO

Switching function

Momentary function

Rated insulation voltage IEC/EN 60947-5-1

250 V DC
250 V AC

Protection class

II (protective insulation)

Storage temperature

-50 ... 85°C

Operating temperature

-30 ... 70°C without illumination
-30 ... 65°C with LED illumination
-30 ... 55°C with incandescent lamp illumination

Illumination

yes

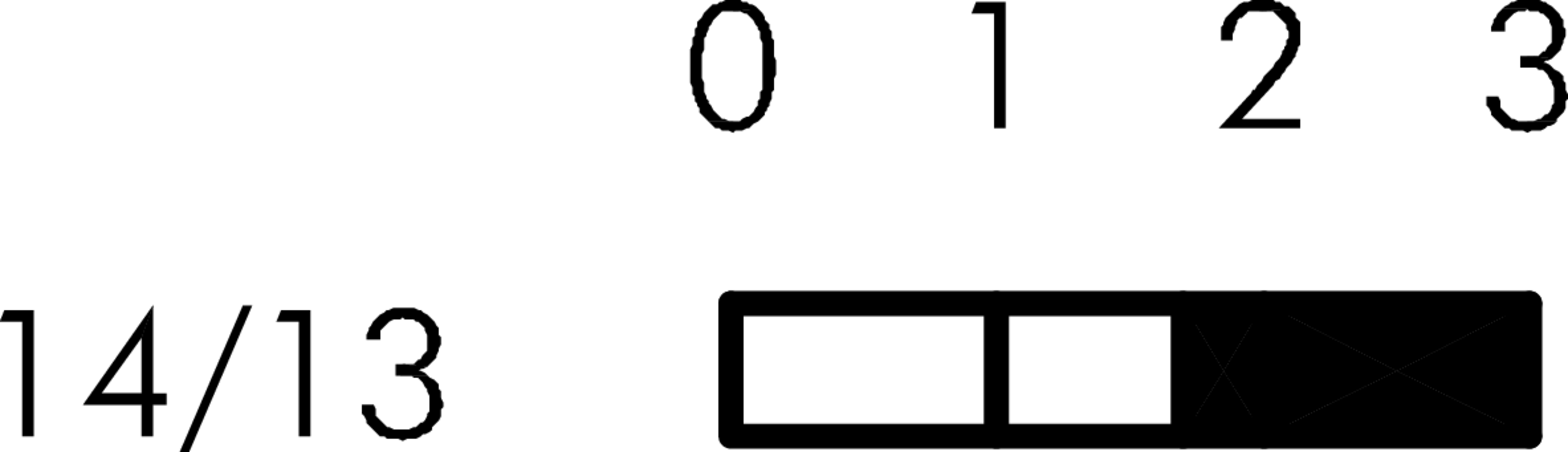

Operating travel

3 mm

Degree of protection front

IP00

Electrical life

1,000,000 switching cycles

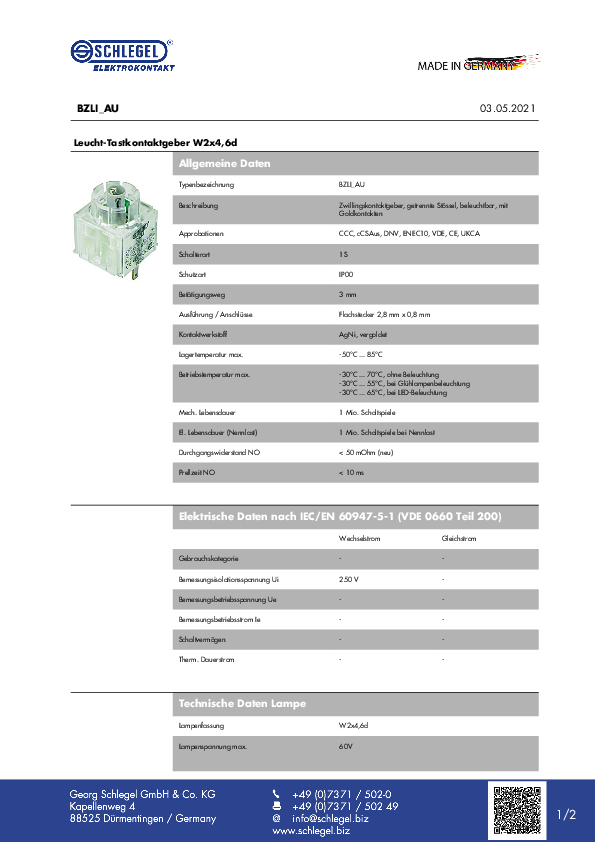

Downloads
