BZLI - Illuminated contact block, momentary, W2x4,6d
Series
contact blocks BZ...
Contact type
1NO
Switching function
momentary function
Connection
Faston terminals
Illumination
Yes
Illuminant
W2x4,6d Lamp socket
Degree of protection front
IP00
Operating temperature
-30°C ... 70°C without illumination
-30°C ... 65°C for LED illumination
-30°C ... 55°C for incandescent lighting
-30°C ... 65°C for LED illumination
-30°C ... 55°C for incandescent lighting
Rated operating voltage
240 V AC
24 V DC
60 V DC
125 V DC
250 V DC
24 V DC
60 V DC
125 V DC
250 V DC
Rated operating current
1.5 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
Mechanical life
1,000,000 switching cycles
Electrical life
1,000,000 switching cycles at rated voltage
Approvals
DNVGL , VDE , UR , cCSAus , CCC, ENEC10 , CE, UKCA
Protection class
II (protective insulation)

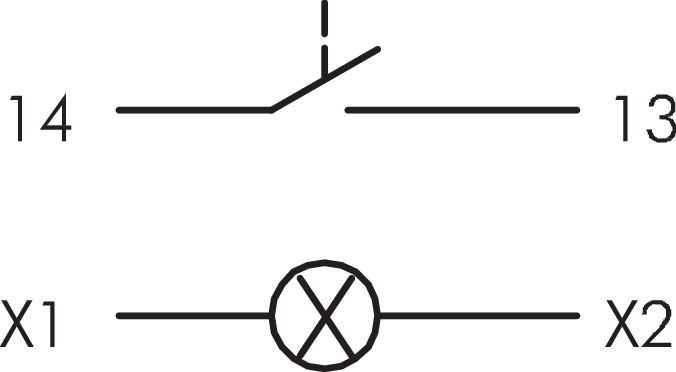

Technical sketches
