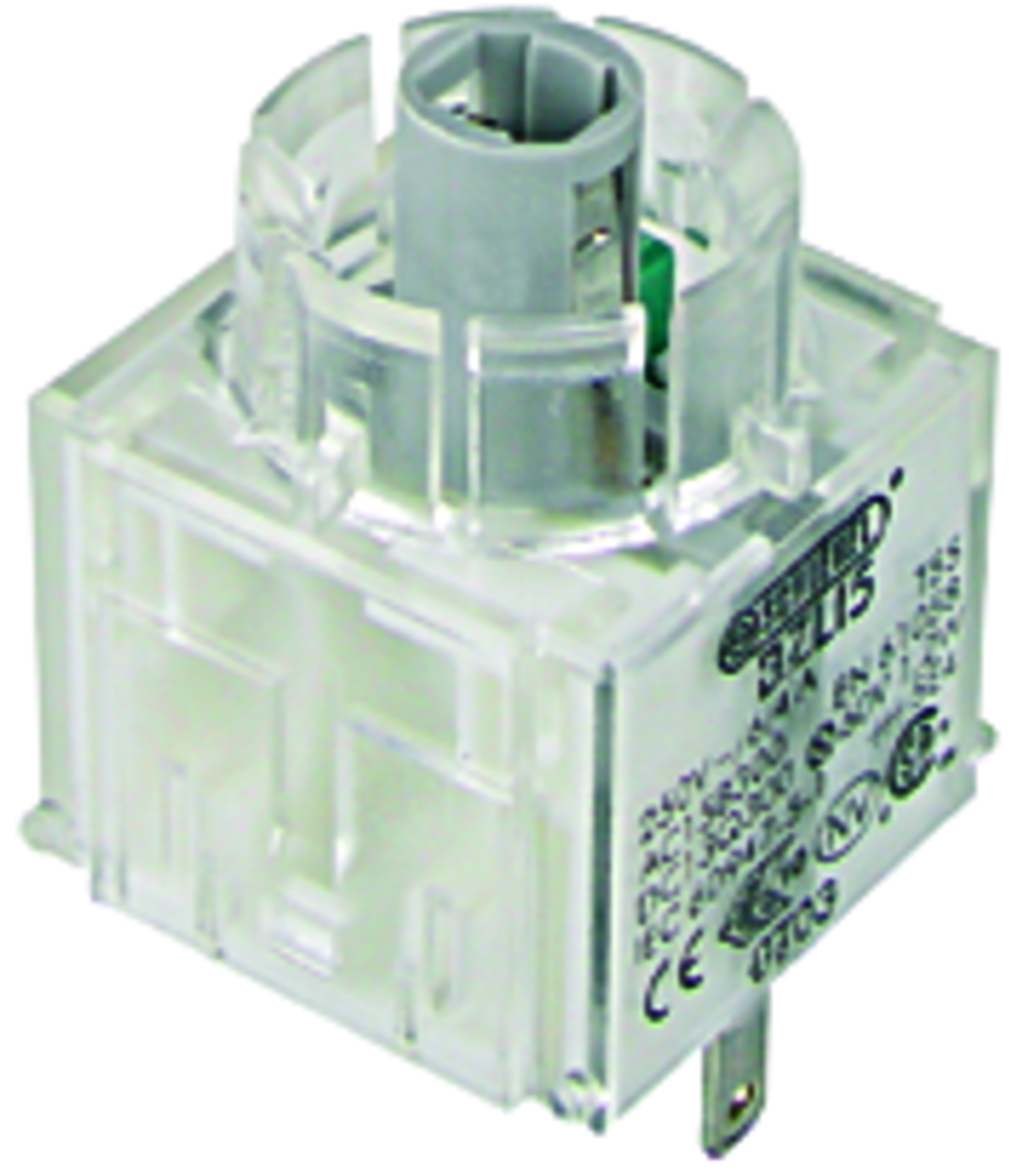

BZLI5 - Illuminated contact block, momentary, T5,5K

Series

Contact blocks BZ...

Approvals

DNVGL , VDE , UR , cCSAus , CCC , ENEC10 , CE , UKCA

Operating temperature

-30°C ... 70°C ohne Beleuchtung
-30°C ... 55°C bei Glühlampenbeleuchtung
-30°C ... 65°C bei LED-Beleuchtung

Mechanical life

1,000,000 switching cycles

Contact type

1NO

Switching function

Momentary function

Rated insulation voltage IEC/EN 60947-5-1

250 V DC
300 V DC
300 V AC
250 V AC

Protection class

II (protective insulation)

Illumination

yes

Electrical life

1,000,000 switching cycles at rated load

Illuminant

T5,5 lamp socket

Connection

Flachstecker

Storage temperature

-50°C ... 85°C

Degree of protection front

IP00

Rated operating current

1.5 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC

Rated operating voltage

250 V DC
24 V DC
125 V DC
240 V AC
60 V DC

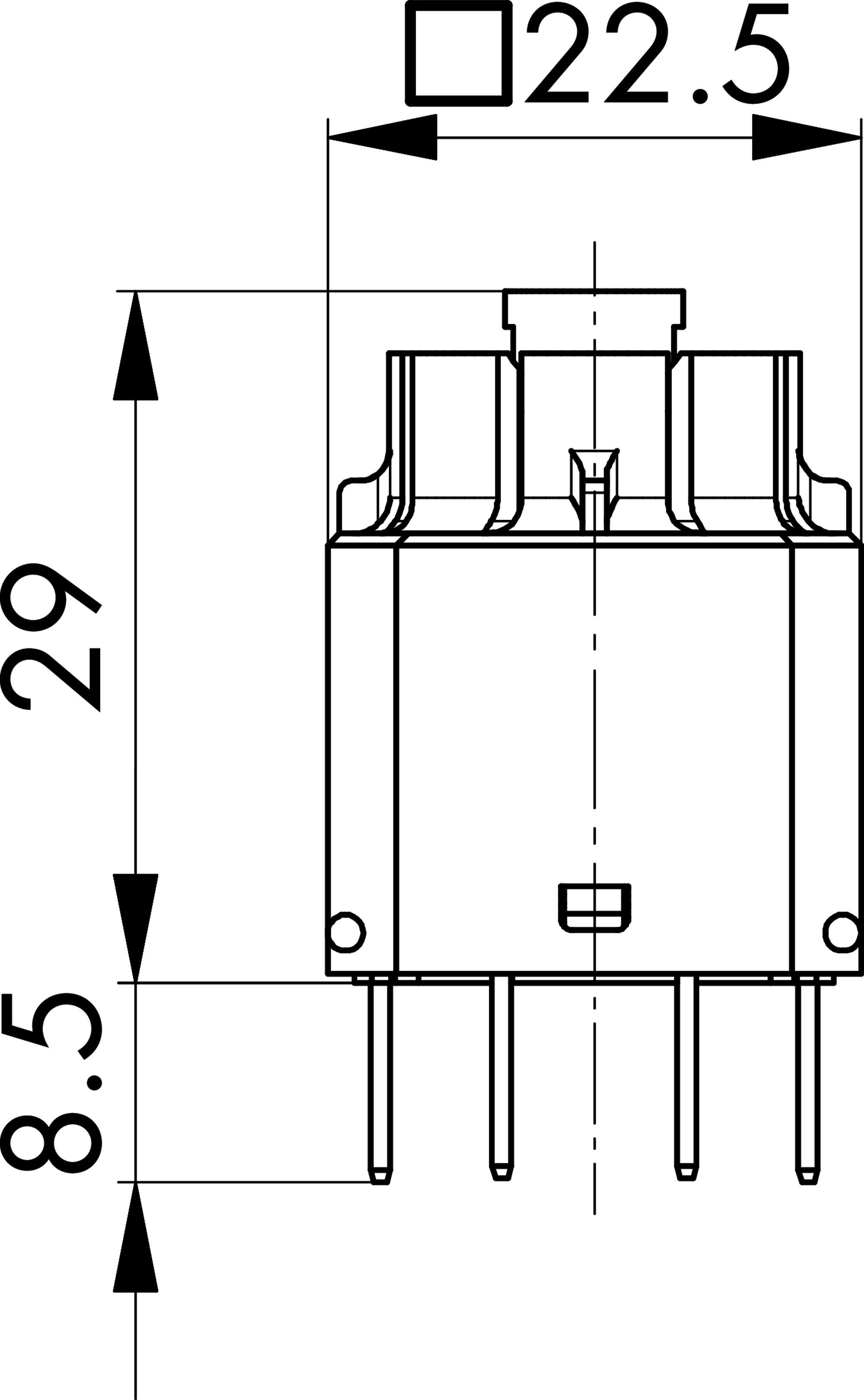

Technical sketches
