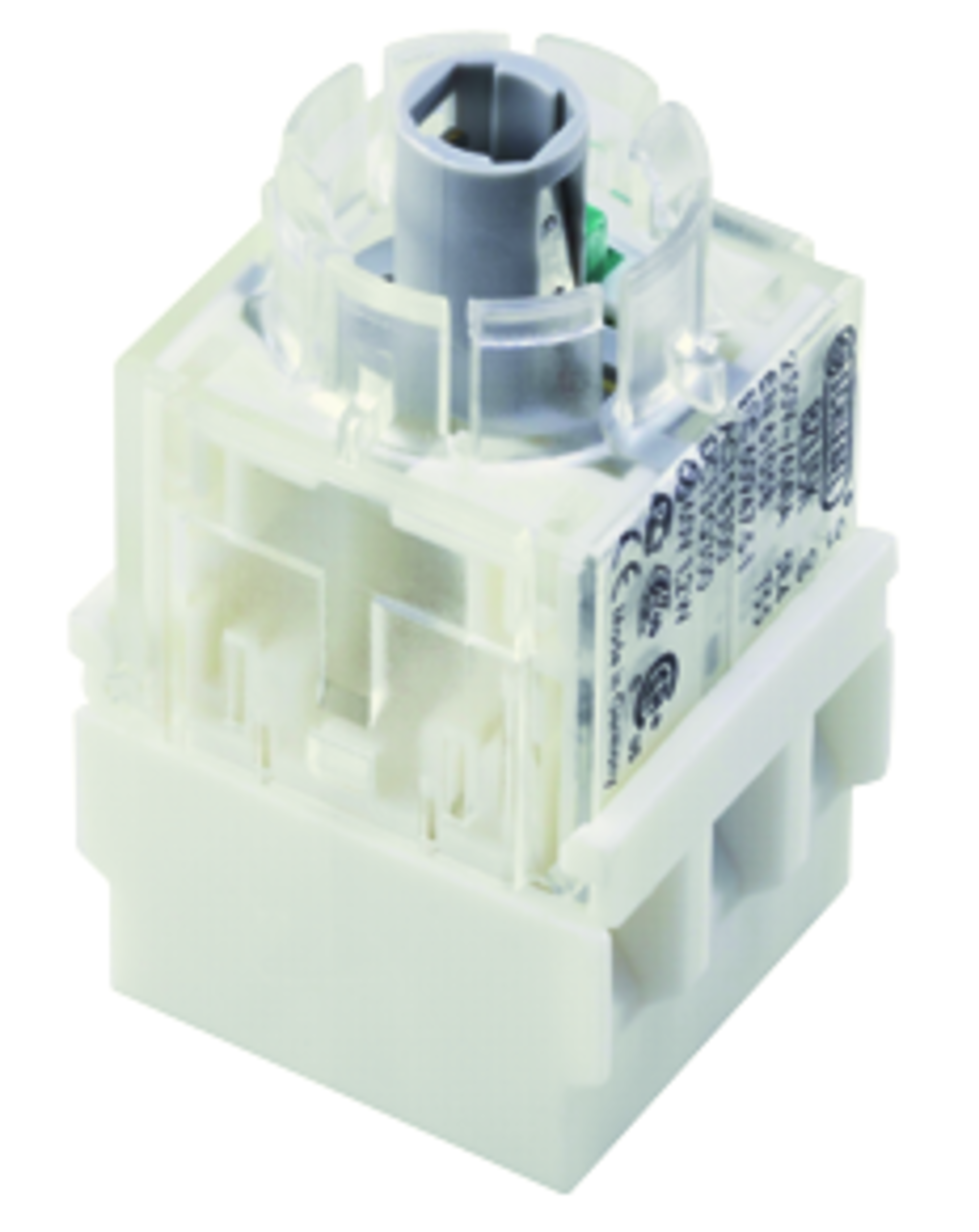

BZLI5K_AU - Illuminated contact block, momentary, T5,5K

Series

Contact blocks BZ...K

Contact type

1NO

Switching function

Momentary function

Connection

Screw connection

Illumination

Yes

Illuminant

T5,5K Lamp socket

Degree of protection front

IP20

Operating temperature

-30°C ... 70°C ohne Beleuchtung
-30°C ... 65°C bei LED-Beleuchtung
-30°C ... 55°C bei Glühlampenbeleuchtung

Mechanical life

1,000,000 switching cycles

Electrical life

1,000,000 switching cycles

Approvals

DNVGL , VDE , cCSAus , CCC, ENEC10 , CE, UKCA

Protection class

II (protective insulation)

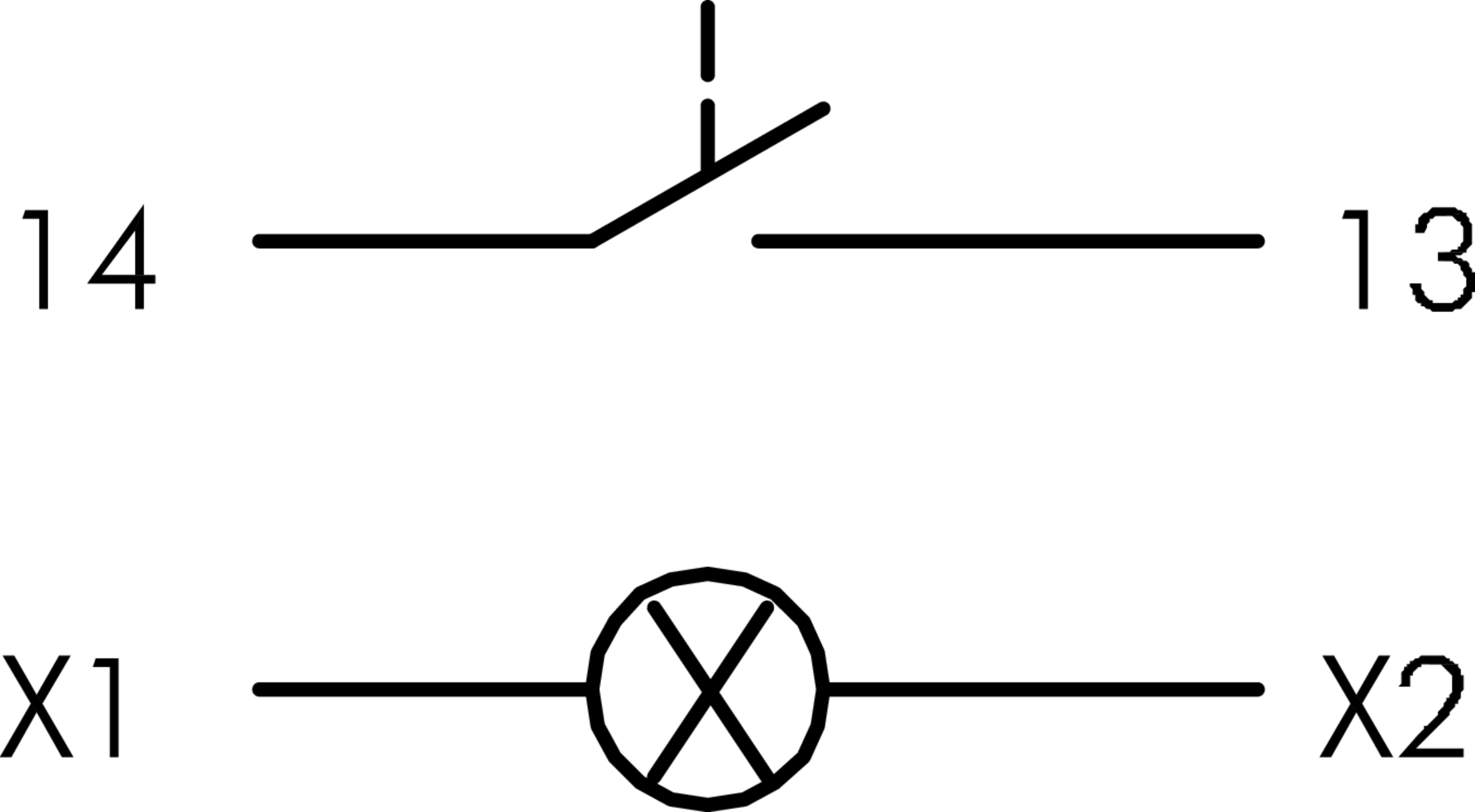

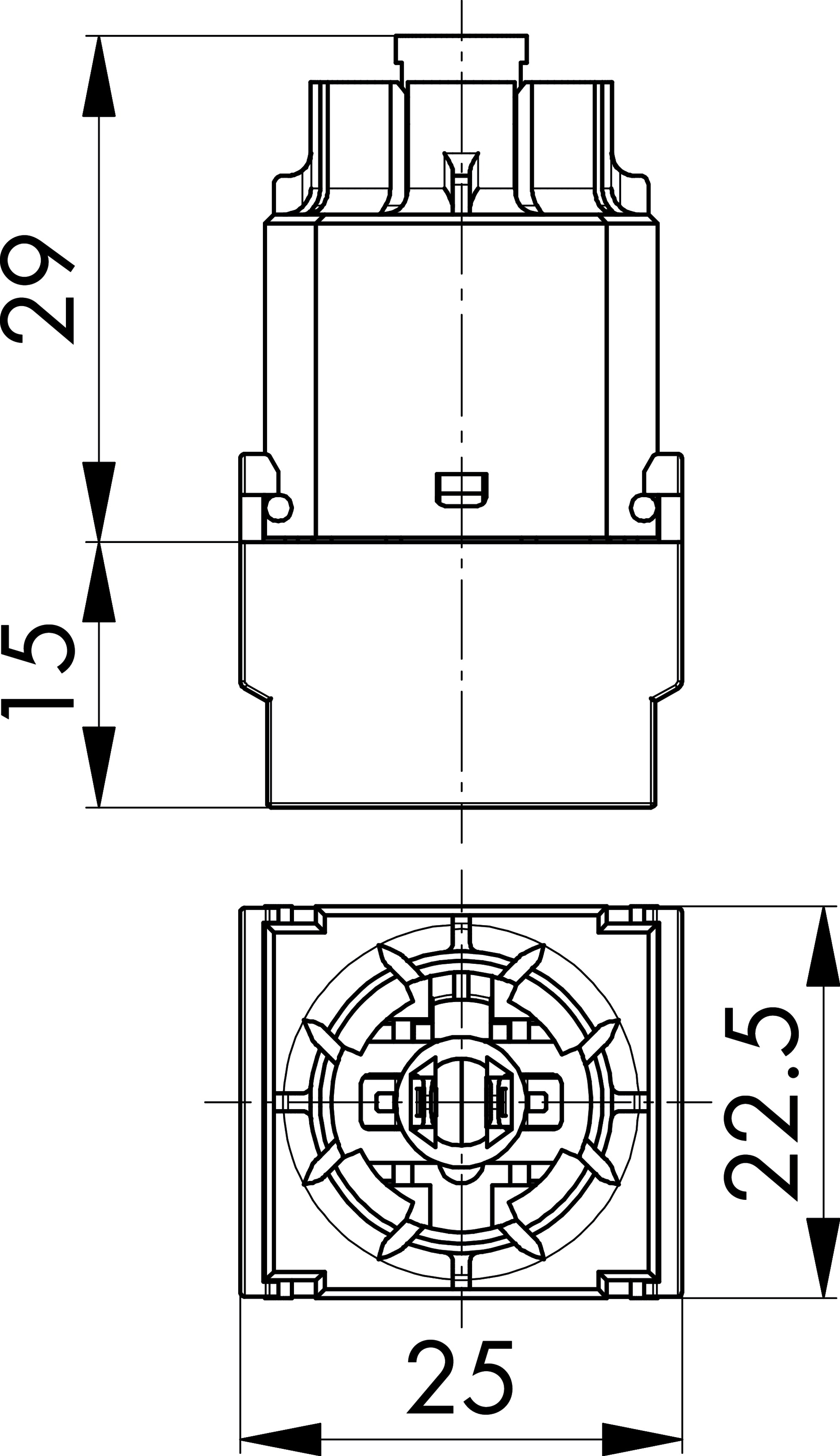

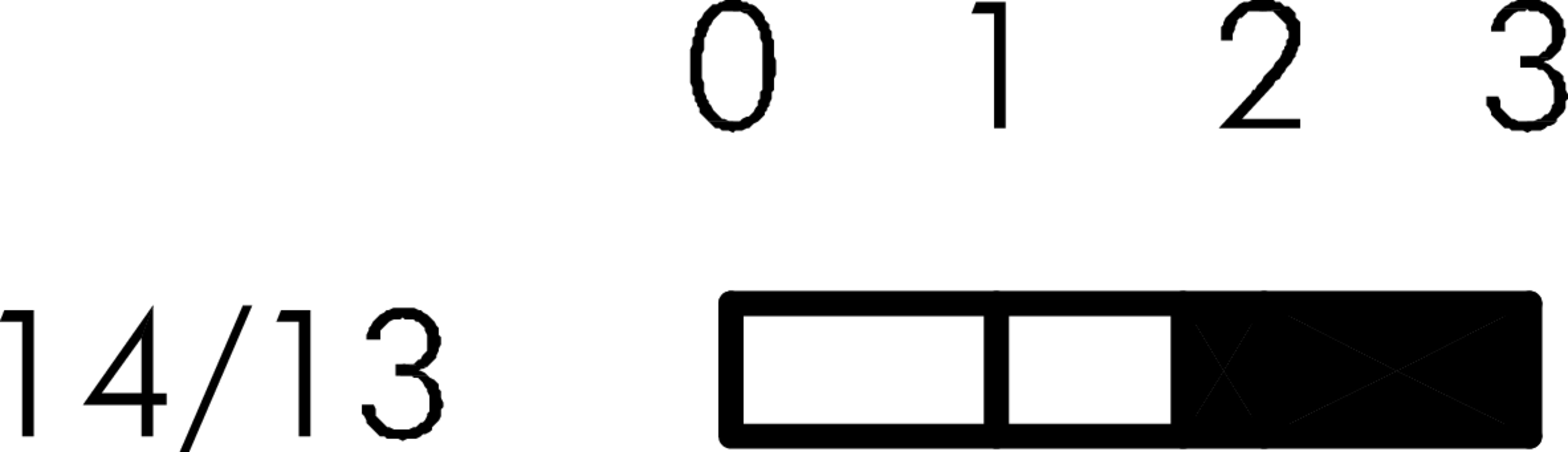

Technical sketches

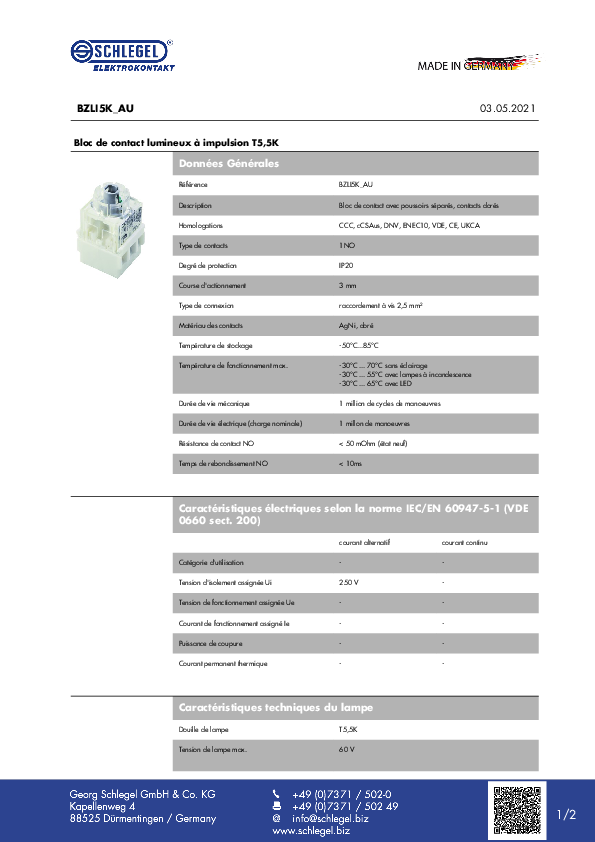

Downloads
