BZLII - Illuminated contact block, momentary
The BZLII illuminated momentary-contact block has two NO contacts and a W2x4.6d socket for the illuminant. The flat plug connection and a switching capacity of up to 250V make it suitable for a wide range of applications.
Series
Contact blocks BZ...
Contact type
2NO
Switching function
Momentary function
Connection
Faston terminals
Illumination
Yes
Illuminant
W2x4,6d Lamp socket
Degree of protection front
IP00
Operating temperature
-30°C ... 70°C ohne Beleuchtung
-30°C ... 65°C bei LED-Beleuchtung
-30°C ... 55°C bei Glühlampenbeleuchtung
-30°C ... 65°C bei LED-Beleuchtung
-30°C ... 55°C bei Glühlampenbeleuchtung
Rated operating voltage
240 V AC
24 V DC
60 V DC
125 V DC
250 V DC
24 V DC
60 V DC
125 V DC
250 V DC
Rated operating current
1.5 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
Mechanical life
1,000,000 switching cycles
Electrical life
1,000,000 switching cycles at rated voltage
Approvals
DNVGL , VDE , UR , cCSAus , CCC, ENEC10 , CE, UKCA
Protection class
II (protective insulation)

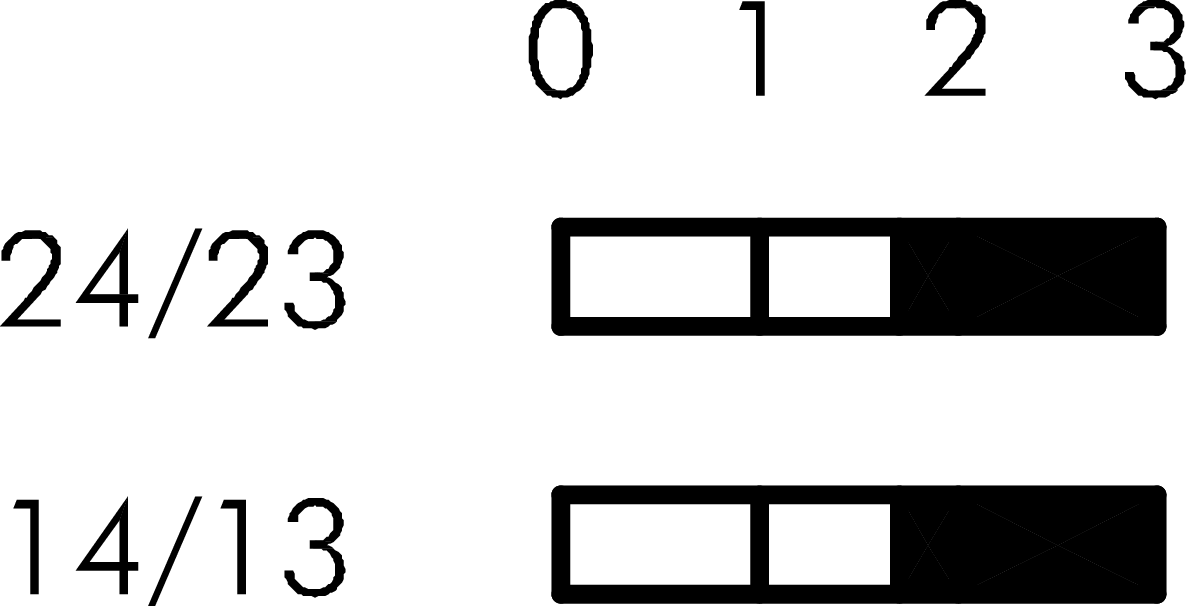

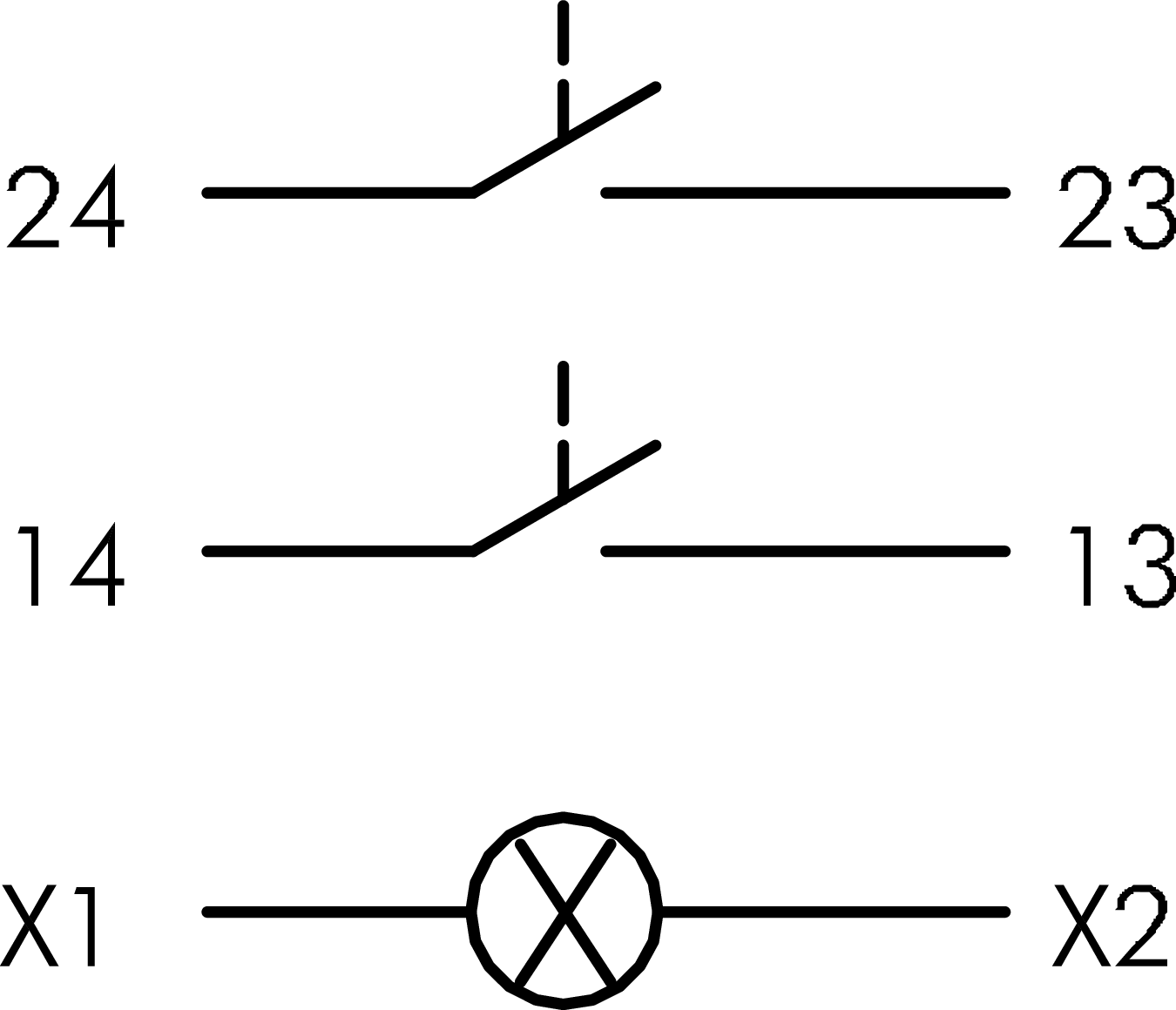

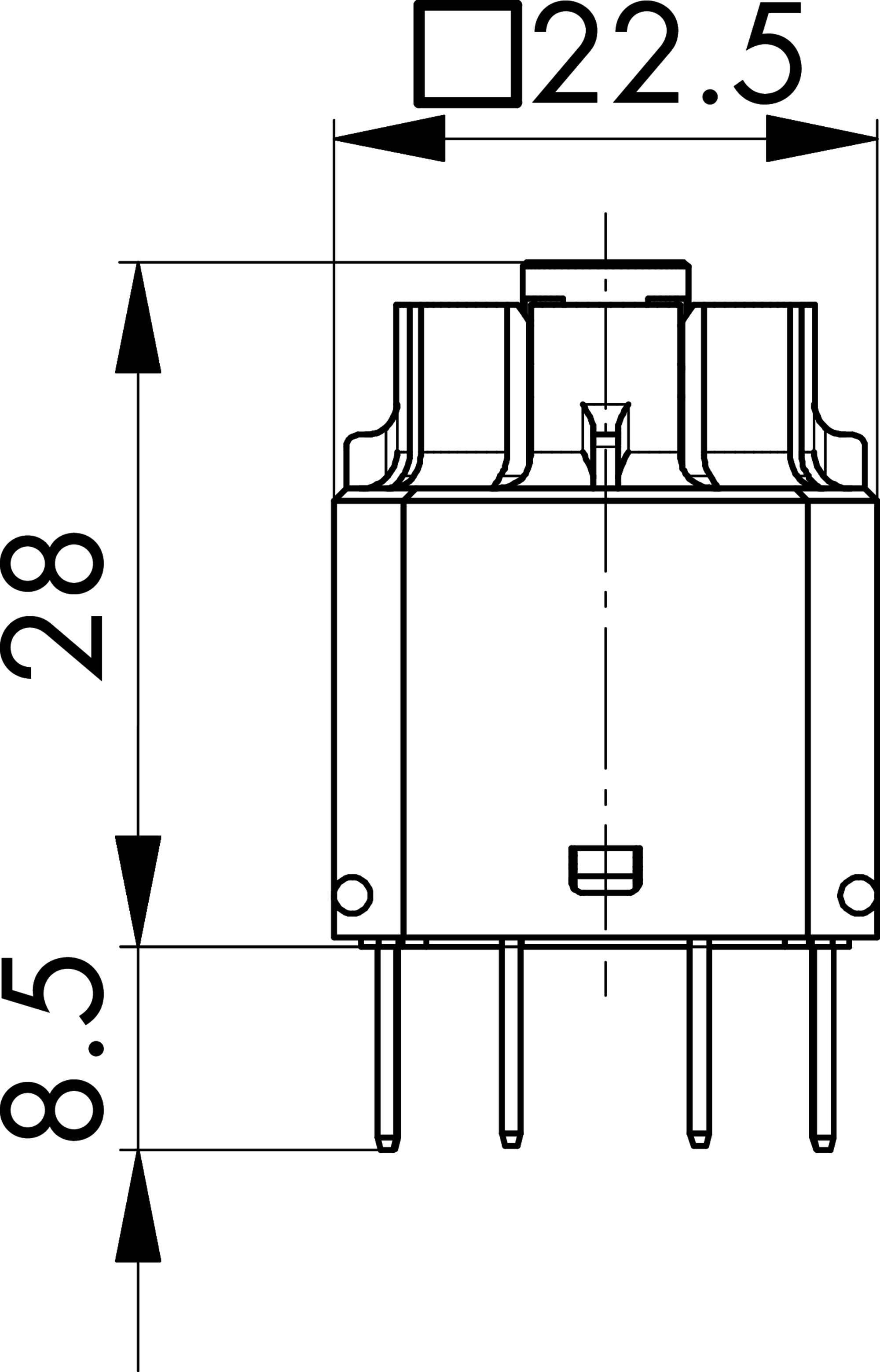

Technical sketches
Downloads

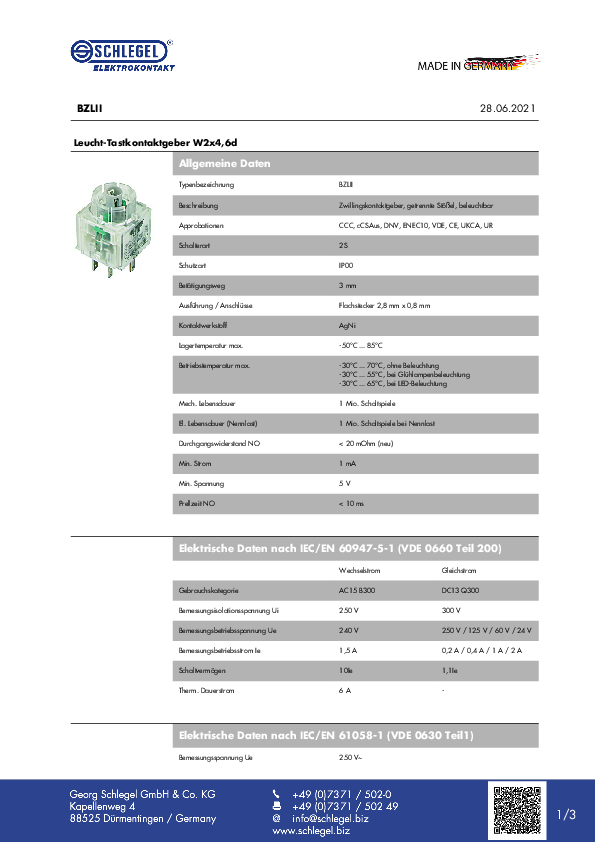

Datasheet_BZLII
