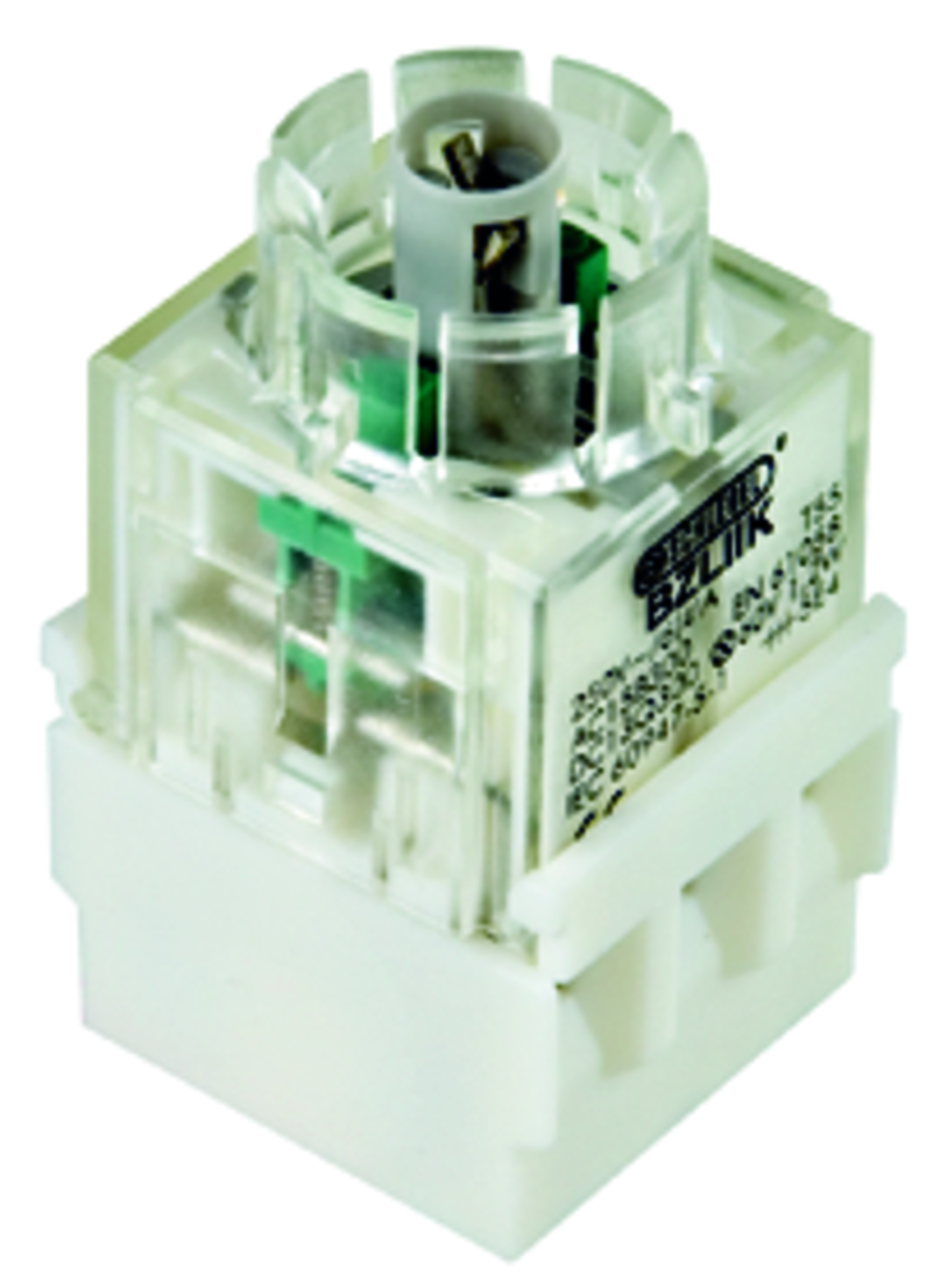

BZLIIK - Illuminated contact block, momentary, W2x4,6d

Series

Contact blocks BZ...K

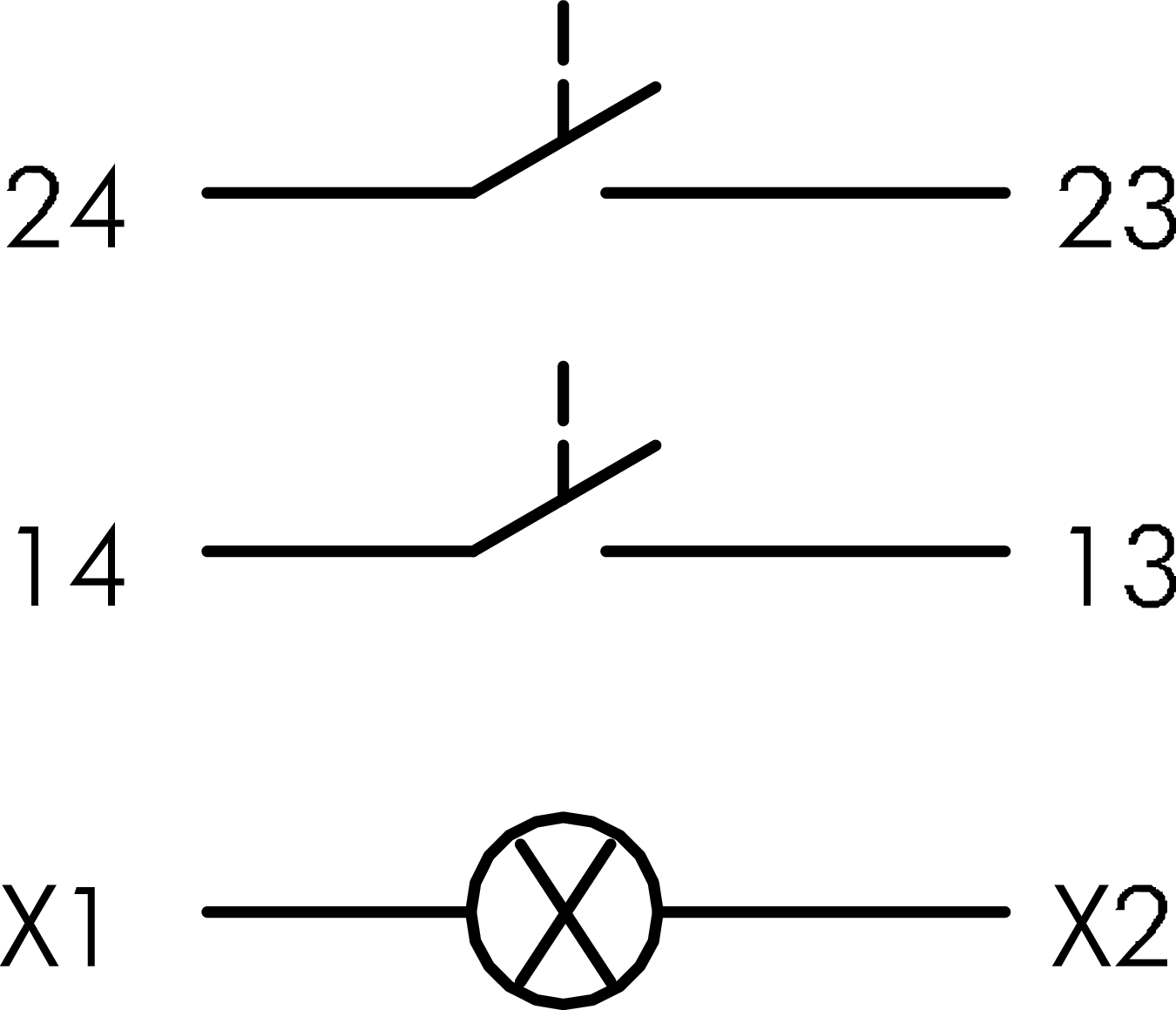

Contact type

2NO

Switching function

Momentary function

Connection

Screw connection

Illumination

Yes

Illuminant

W2x4,6d Lamp socket

Degree of protection front

IP20

Operating temperature

-30°C ... 70°C ohne Beleuchtung
-30°C ... 65°C bei LED-Beleuchtung
-30°C ... 55°C bei Glühlampenbeleuchtung

Rated operating voltage

240 V AC
24 V DC
60 V DC
125 V DC
250 V DC

Rated operating current

1.5 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC

Mechanical life

1,000,000 switching cycles

Electrical life

1,000,000 switching cycles

Approvals

DNVGL , VDE , cCSAus , CCC, ENEC10 , CE, UKCA

Protection class

II (protective insulation)
