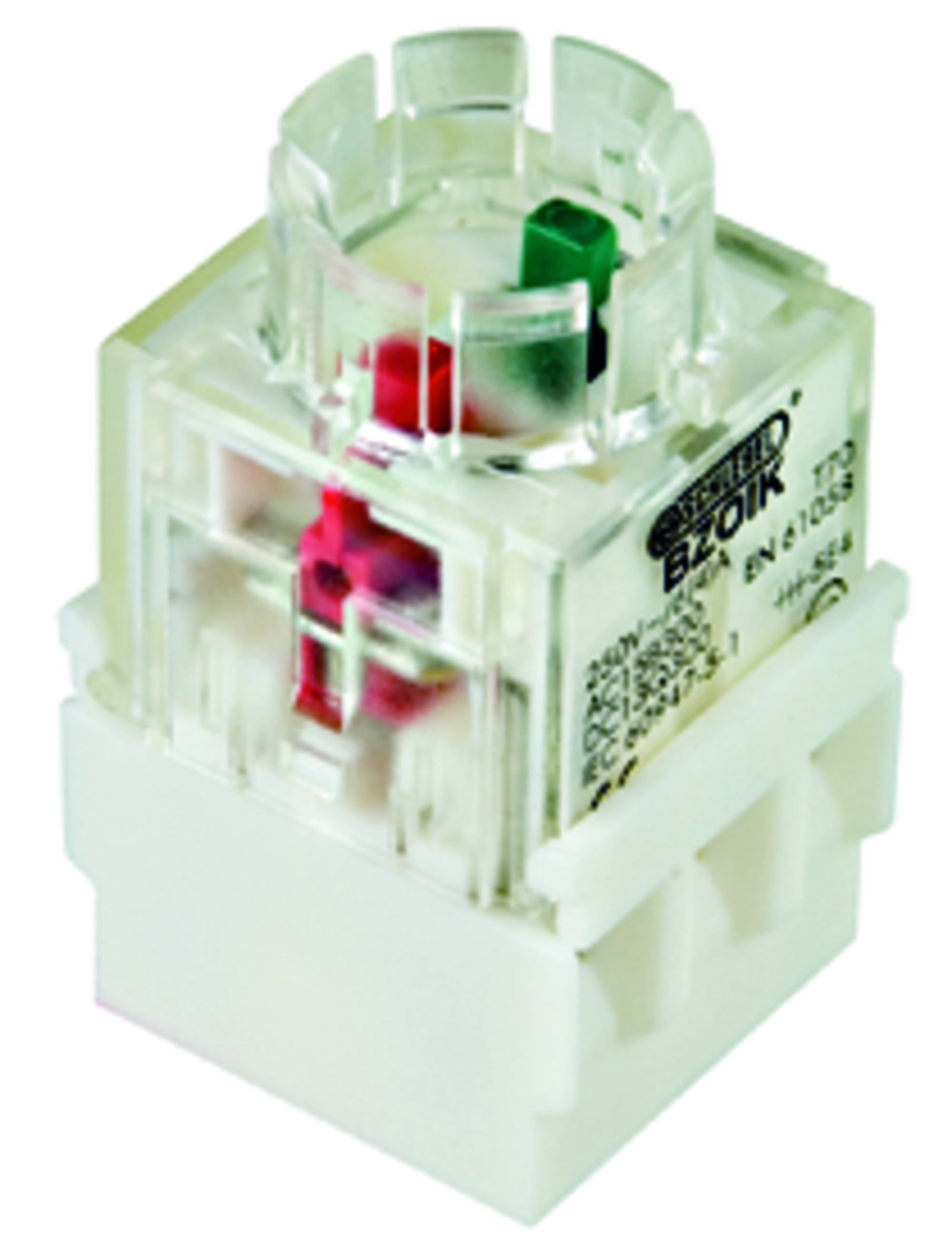

BZOIK - Contact block, momentary

Series

Contact blocks BZ...K

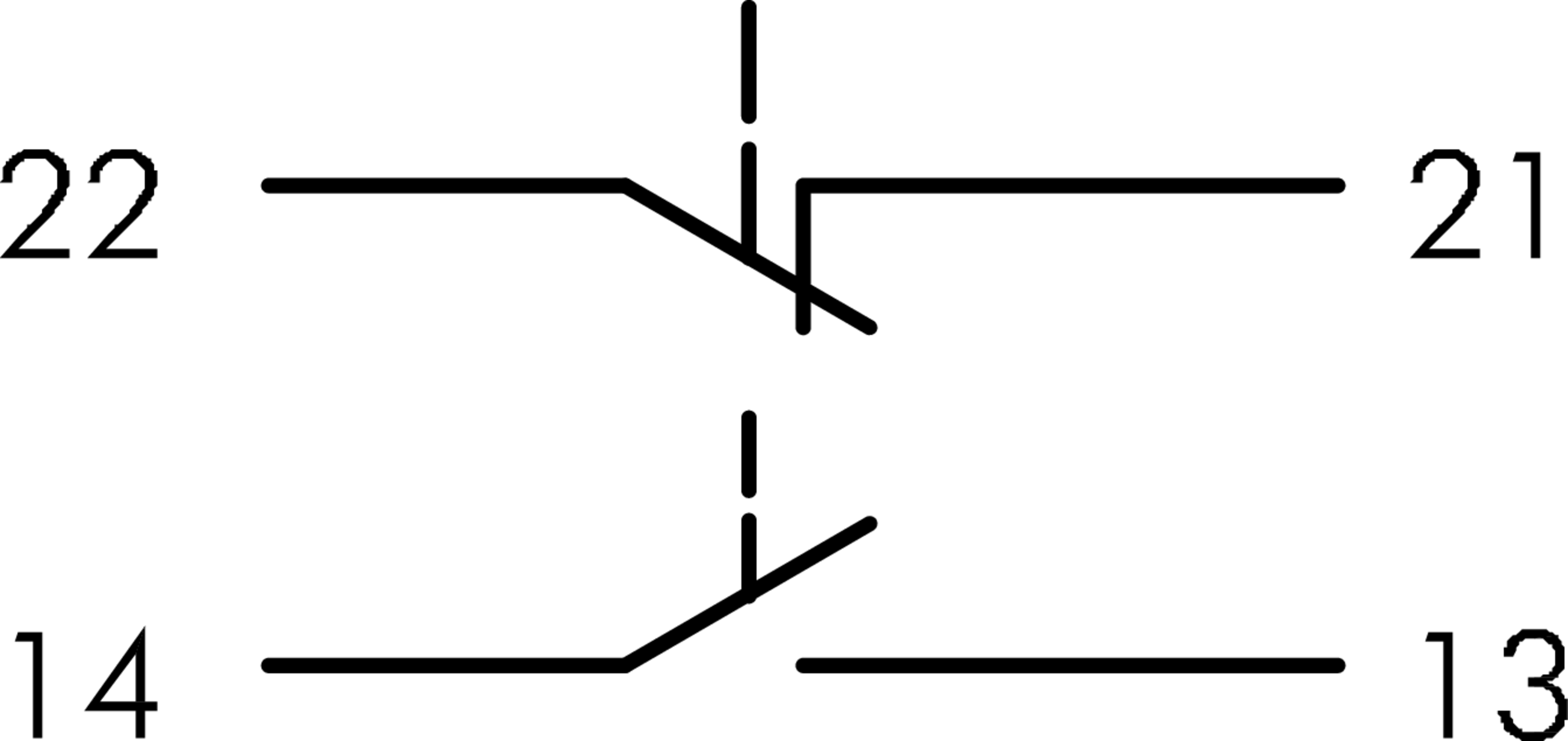

Contact type

1NC + 1NO

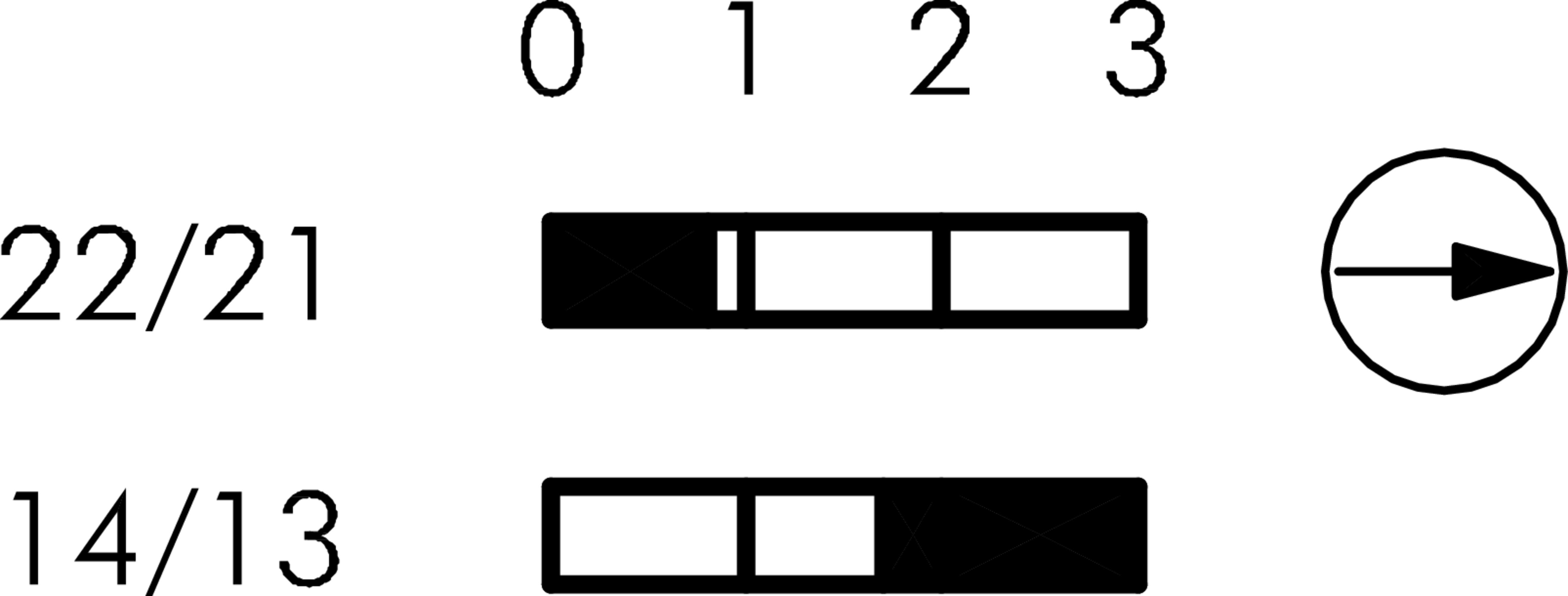

Switching function

Momentary function

Connection

Screw connection

Illumination

Degree of protection front

IP20

Operating temperature

-30°C ... 70°C

Rated operating voltage

120 V AC
240 V AC
24 V DC
60 V DC
125 V DC
250 V DC

Rated operating current

3 A AC
1.5 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC

Mechanical life

1,000,000 switching cycles

Electrical life

1,000,000 switching cycles

Approvals

DNVGL , TÜV_Süd , VDE , cCSAus , CCC, ENEC10 , CE, UKCA

Protection class

II (protective insulation)

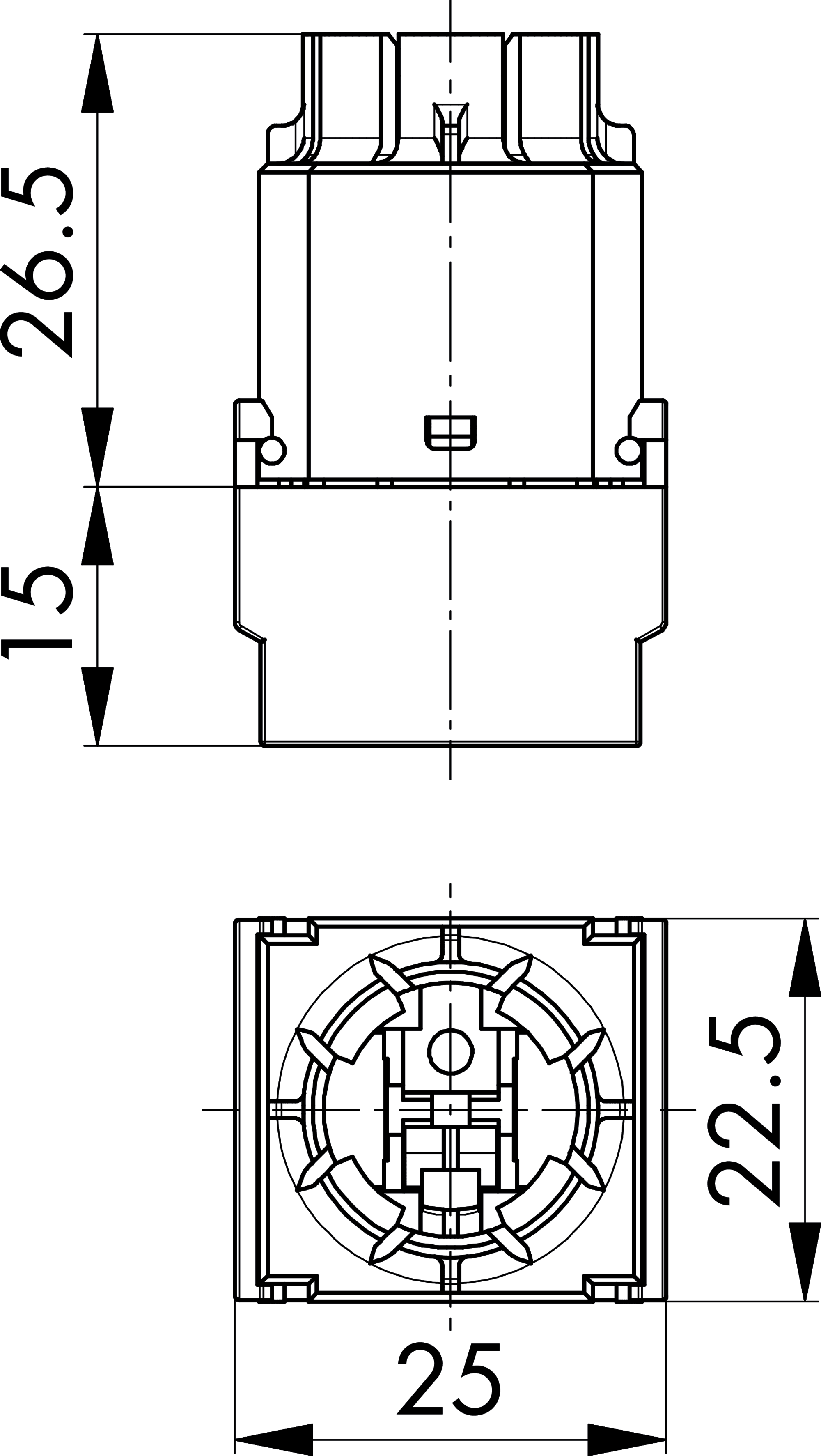

Technical sketches

Downloads
