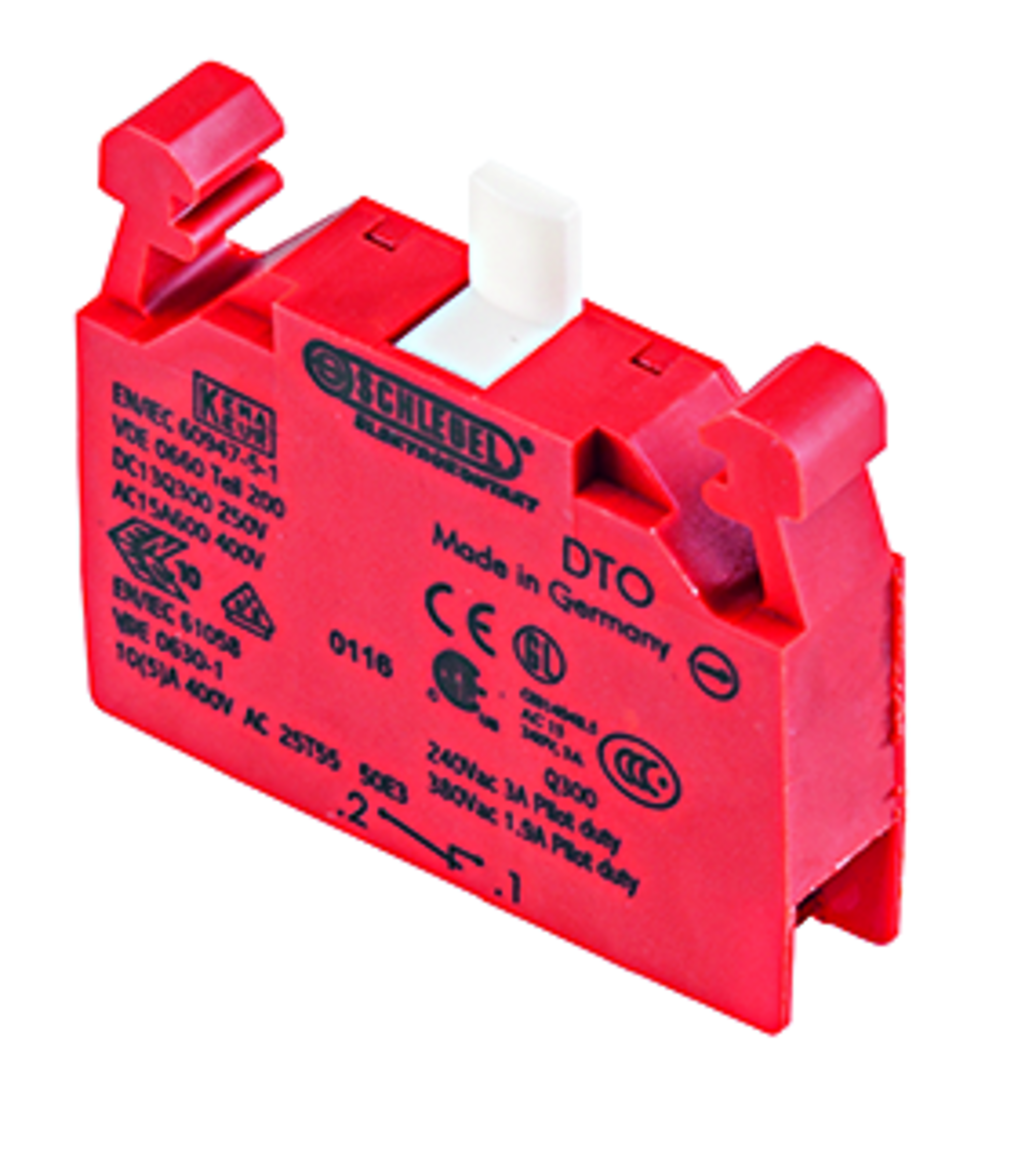

DTO - Modular contact block, momentary

Series

Contact blocks D...

Contact type

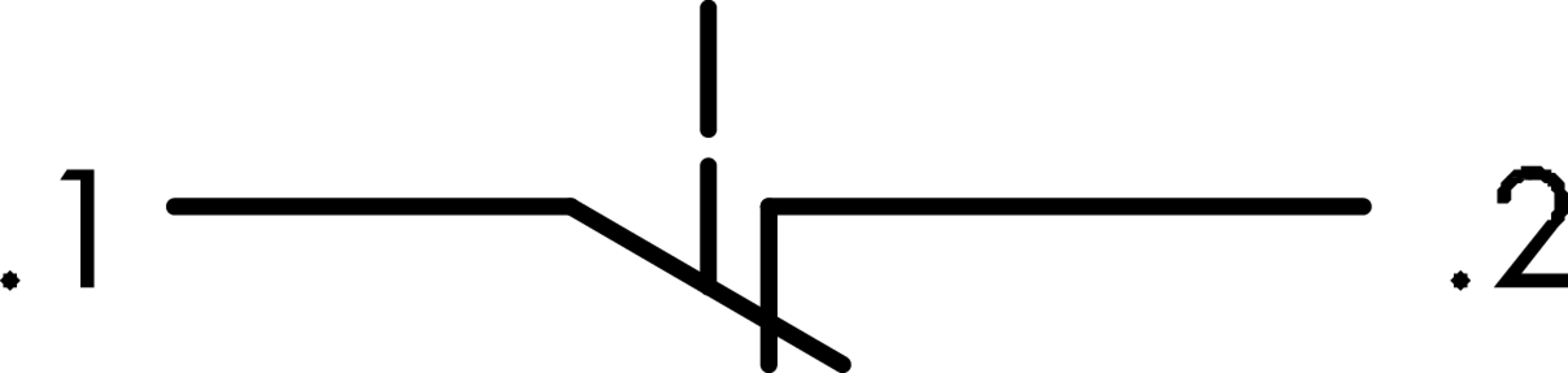

1NC

Switching function

Momentary function

Connection

Federzugklemme

Illumination

Degree of protection front

IP20

Operating temperature

-25°C ... 55°C mit/ohne Beleuchtung

Rated operating voltage

240 V AC
380 V AC
24 V DC
60 V DC
125 V DC
250 V DC

Rated operating current

3 A AC
1.9 A AC
2 A DC
1 A DC
0.55 A DC
0.27 A DC

Mechanical life

1,000,000 switching cycles

Electrical life

50,000 switching cycles at rated voltage

Approvals

DNVGL , TÜV_Süd , VDE , cCSAus , CCC, KEMA KEUR , ENEC10 , CE, UKCA

Protection class

II (protective insulation)

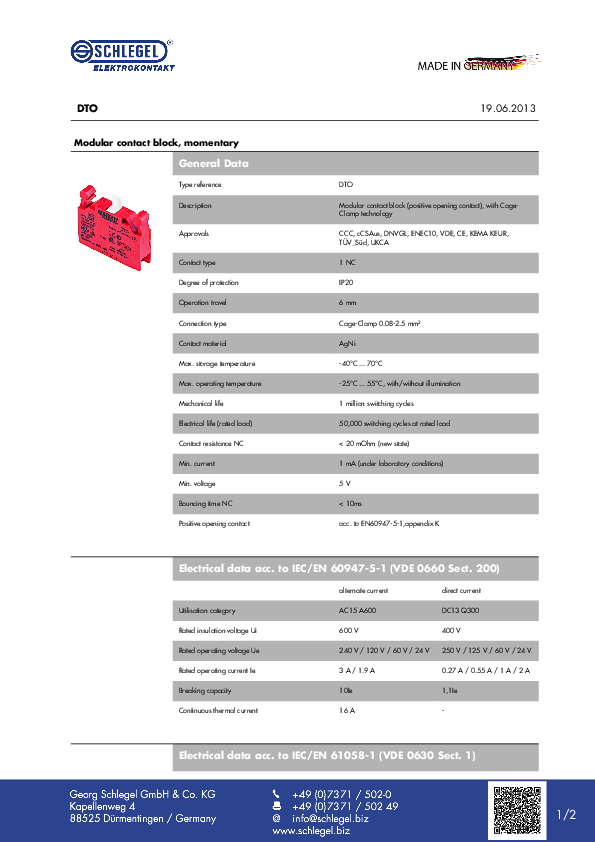

Downloads
