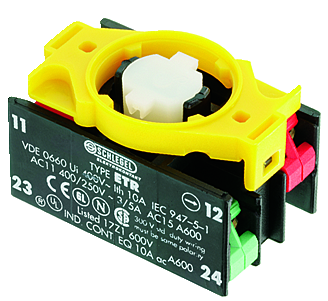

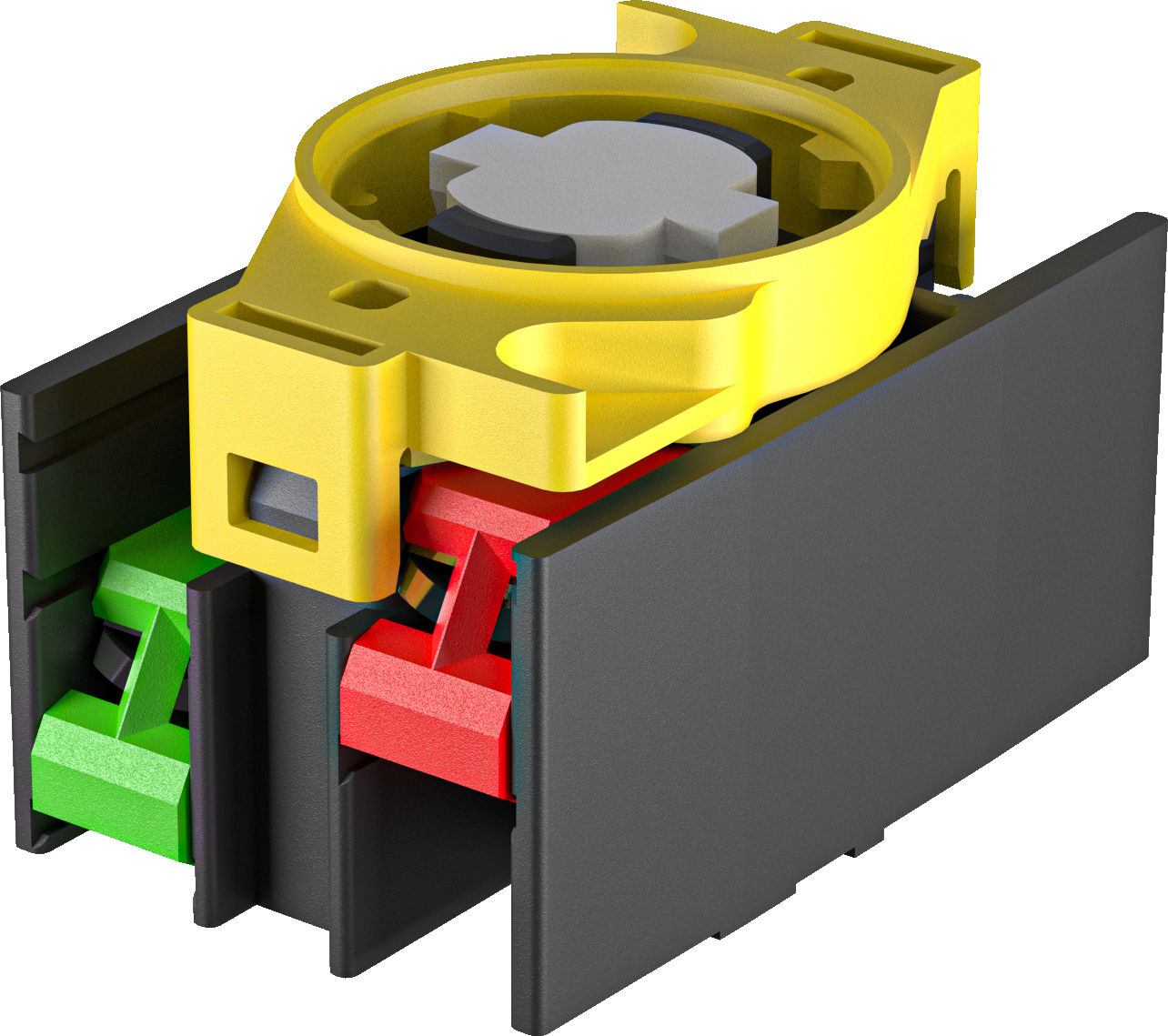

ETR
Contact block, momentary
Electrical life
250,000 switching cycles
500,000 switching cycles
1,000,000 switching cycles
500,000 switching cycles
1,000,000 switching cycles
Approvals
DNVGL , TÜV_Süd , cULus , CCC , CE , UKCA
Colour housing/enclosure
black
Mechanical life
1,000,000 switching cycles
Storage temperature
-50 ... 70°C
Switching function
Momentary function
Protection class
II (protective insulation)
Contact type
1NC + 1NO
Series
Contact blocks E...
Operating temperature
-30 ... 70°C
Rated insulation voltage IEC/EN 60947-5-1
400 V AC
400 V DC
400 V DC
Degree of protection front
IP00
Operating travel
6 mm
Illumination
no
Rated operating voltage
250 V AC
400 V AC
250 V DC
24 V DC
125 V DC
60 V DC
400 V DC
400 V AC
250 V DC
24 V DC
125 V DC
60 V DC
400 V DC
Rated operating current
5 A AC
3 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
0.12 A DC
3 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
0.12 A DC

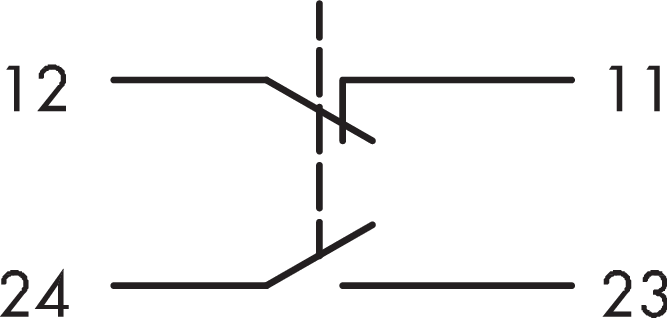

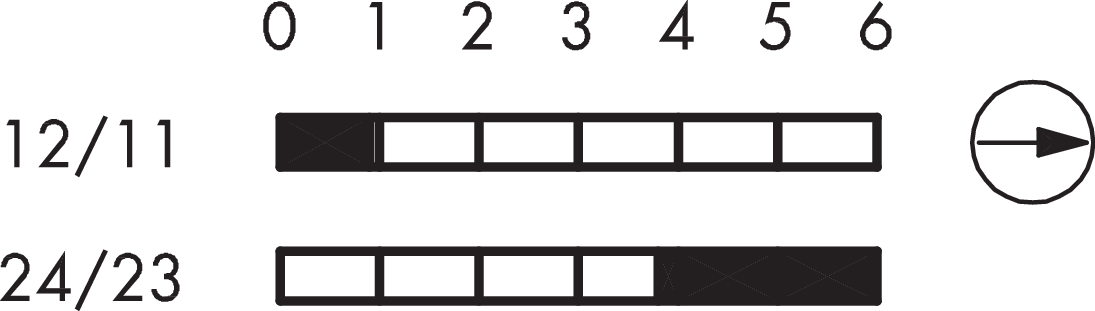

Technical sketches
Downloads

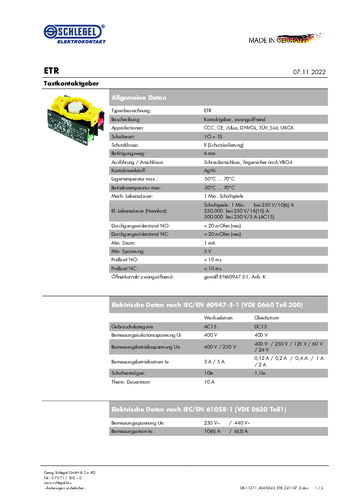

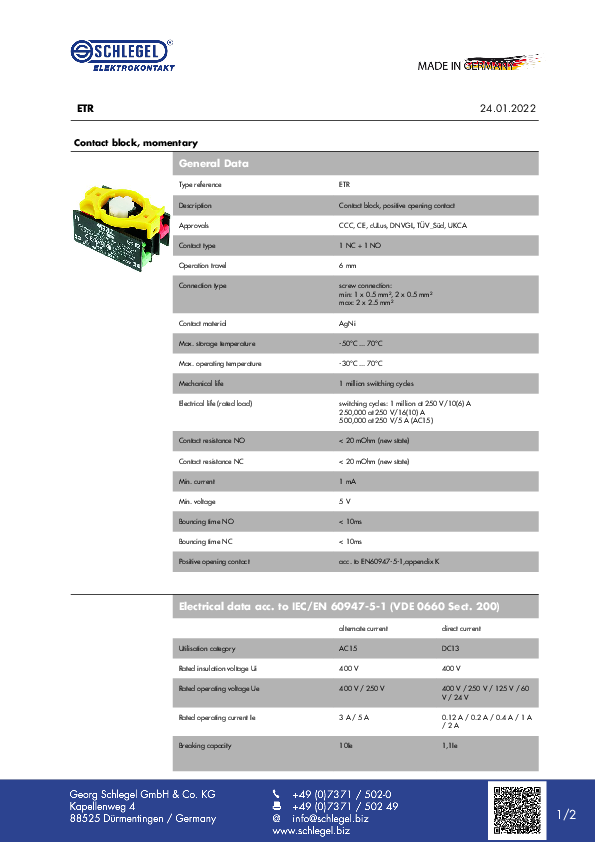

Datasheet_ETR
