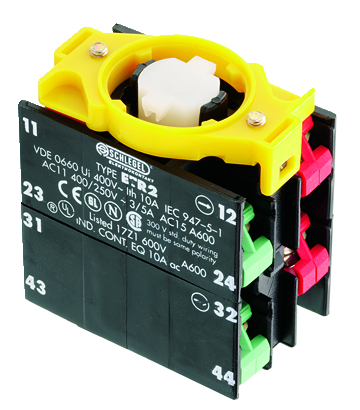

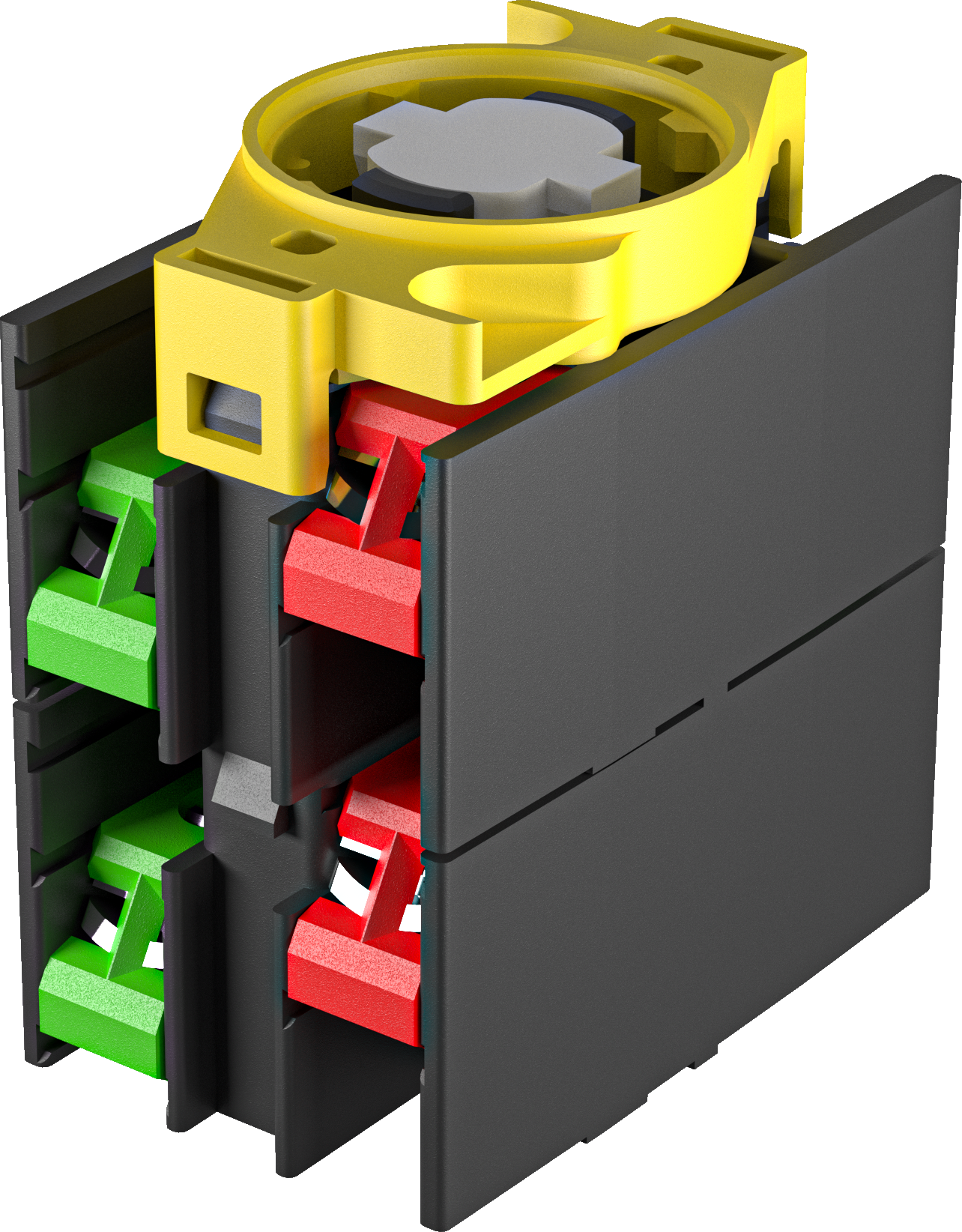

ETR2 - Contact block, momentary

Series

Contact blocks E...

Contact type

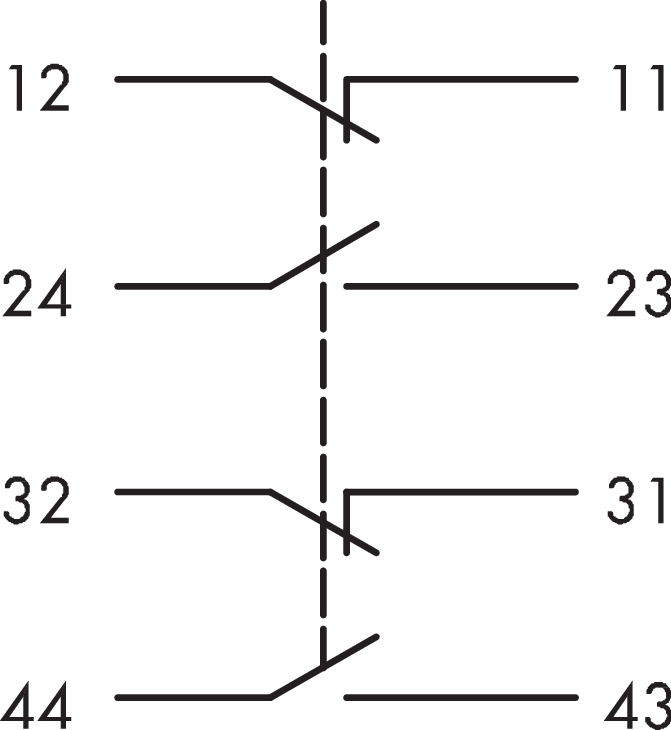

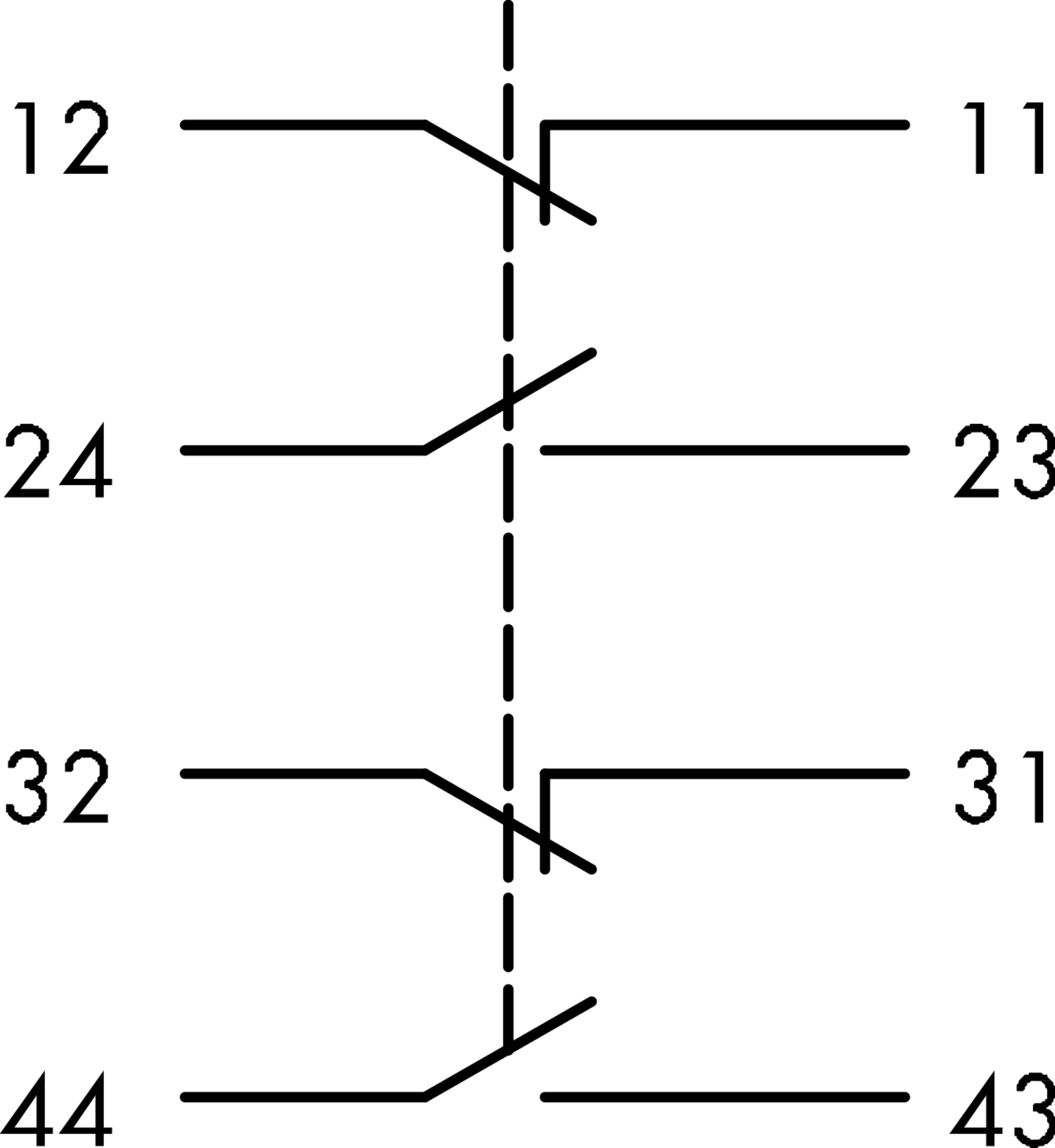

2NC + 2NO

Switching function

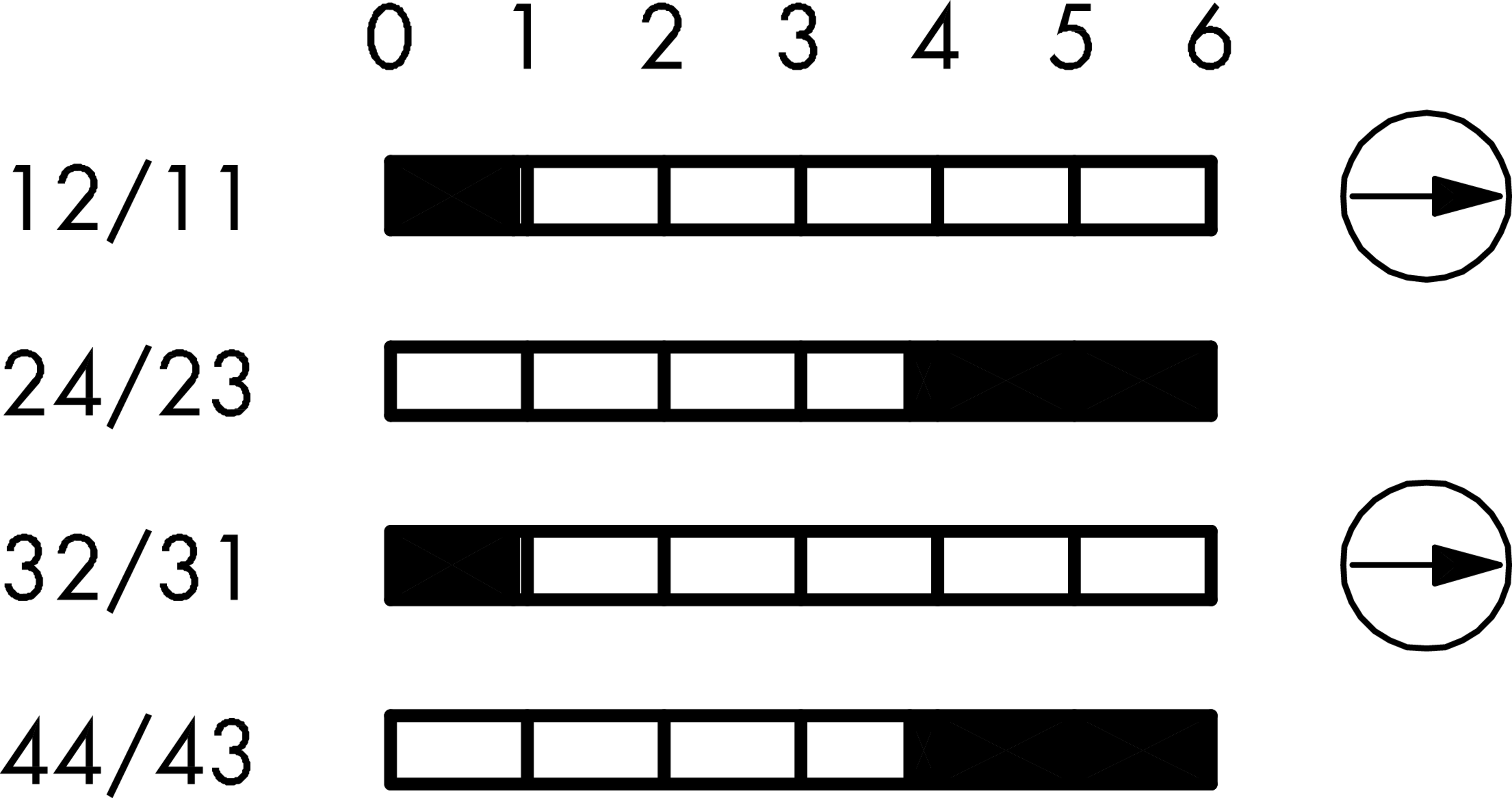

Momentary function

Connection

Screw connection

Illumination

Degree of protection front

IP00

Operating temperature

-30°C ... 70°C

Rated operating voltage

250 V AC
400 V AC
24 V DC
60 V DC
125 V DC
250 V DC
400 V DC

Rated operating current

5 A AC
3 A AC
2 A DC
1 A DC
0.4 A DC
0.2 A DC
0.12 A DC

Mechanical life

1,000,000 switching cycles

Electrical life

250,000 switching cycles at 250 V/16(10) A
1,000,000 switching cycles at 250 V/10(6) A
500,000 switching cycles at V/5 A (AC15)

Approvals

DNVGL , cULus , CCC, CE, UKCA

Protection class

II (protective insulation)

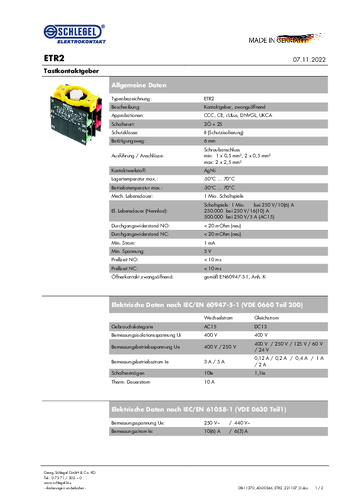

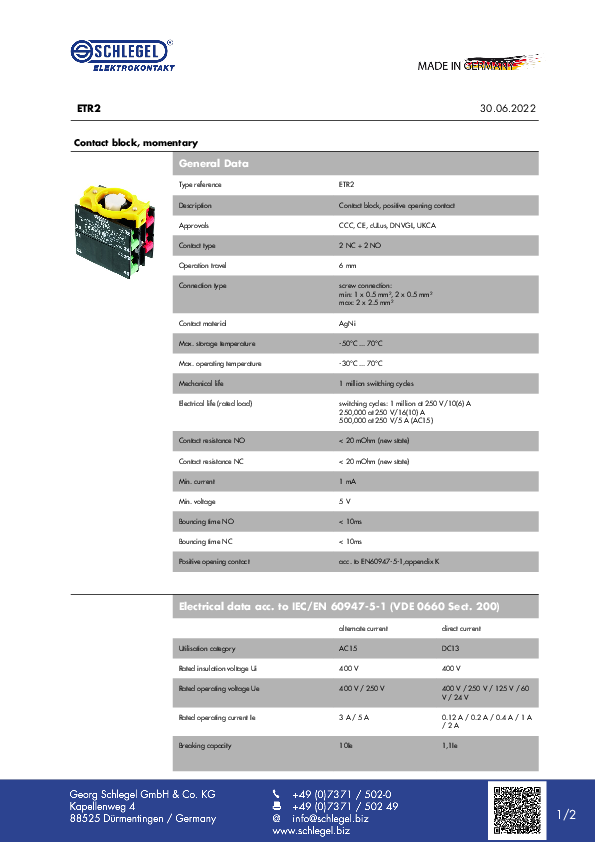

Downloads
