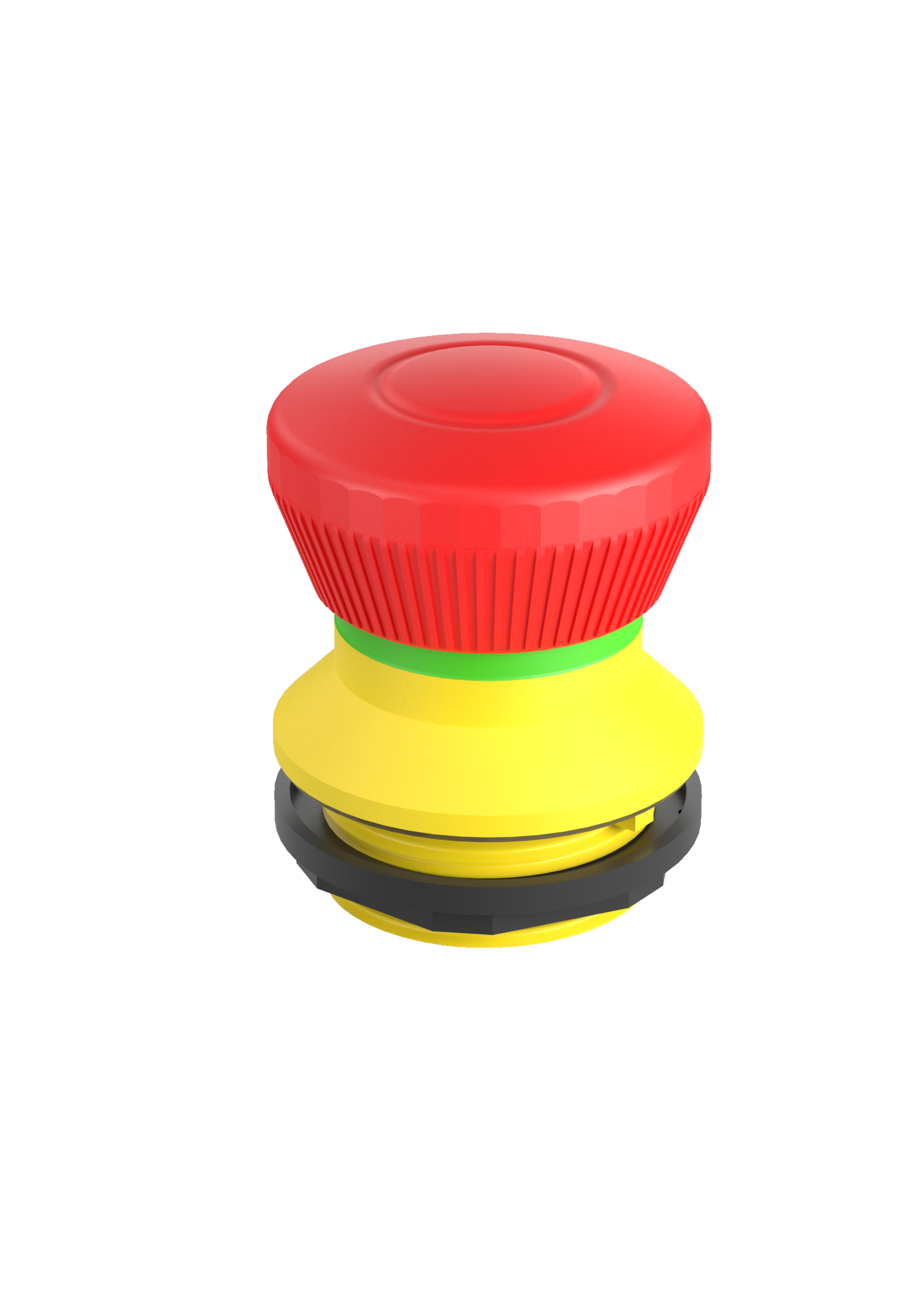

FRPVK - Emergency-stop for mounting depth 9 mm
The FRPVK emergency stop is characterized by its practical pull release and an installation depth of just 9 mm. This round, yellow emergency stop switch is part of the SHORTRON® intermediate construction series and offers a high level of protection with IP65 and IP67 protection ratings. It is ideal for applications with a shallow installation depth. The installation opening is Ø 22.3 mm and it is designed for operating temperatures from -25 to 70°C. The emergency stop impresses with a mechanical service life of 30,000 switching cycles and a visible switching position indicator.
Operating temperature
-25 ... 70°C
Series
Shortron® base-plate mounting
Release
Pull release
Degree of protection front
IP67 , IP65
Storage temperature
-40 ... 80°C
Anti-lock collar
no
Shape
round

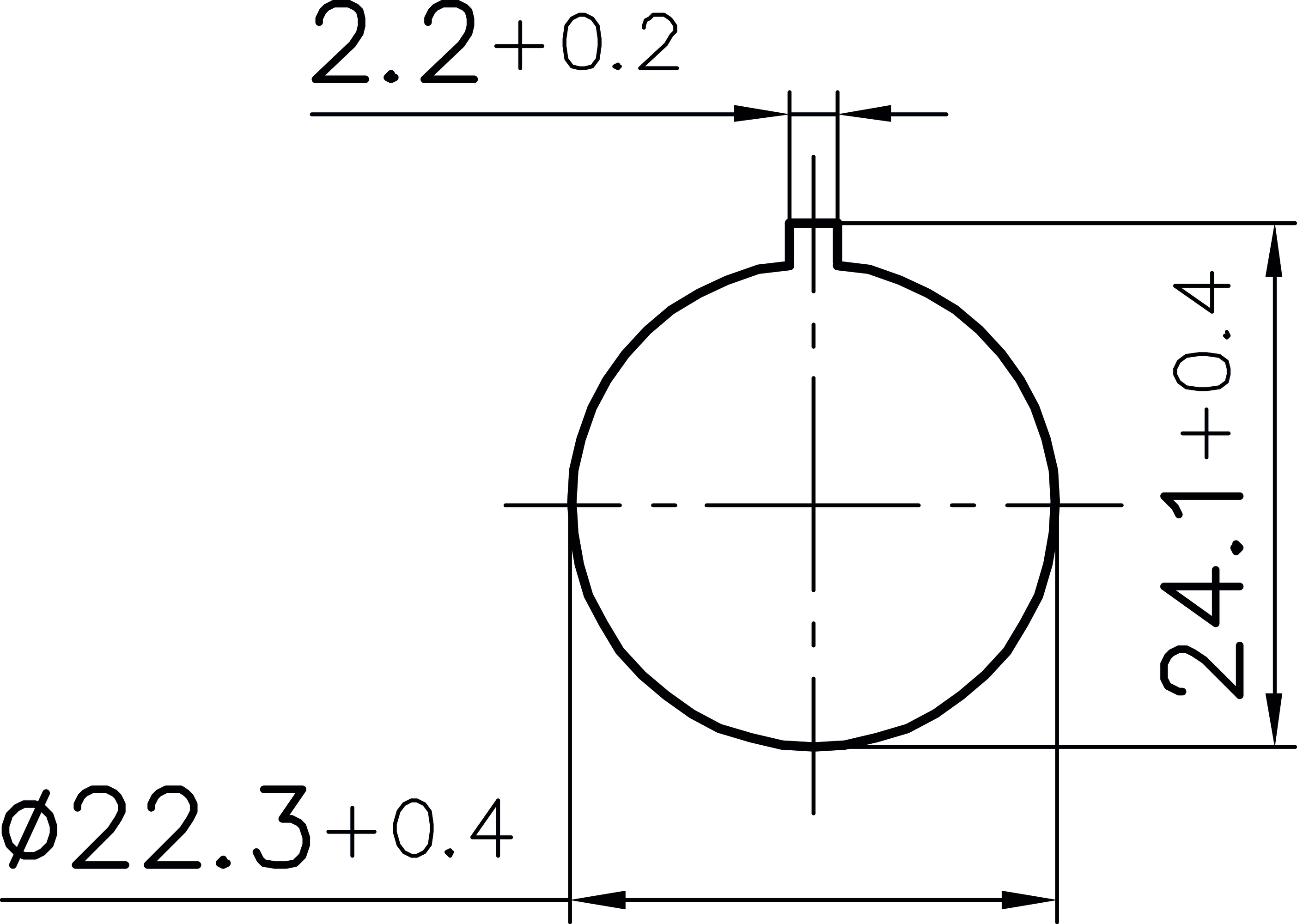

Mounting aperture
Ø 22.3 mm
Mechanical life
30,000 switching cycles
Front bezel colour
yellow
Illumination
no

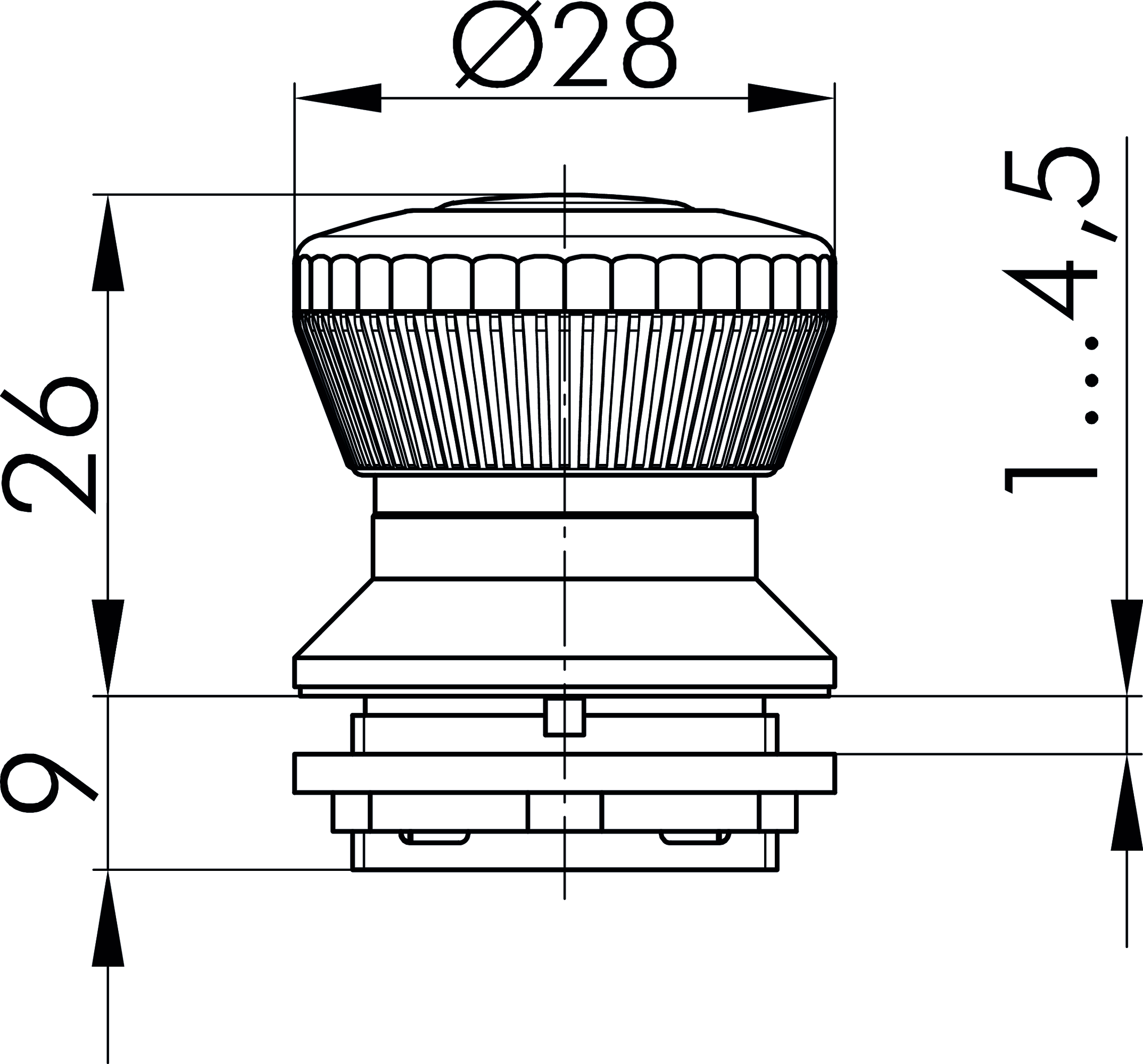

Technical sketches

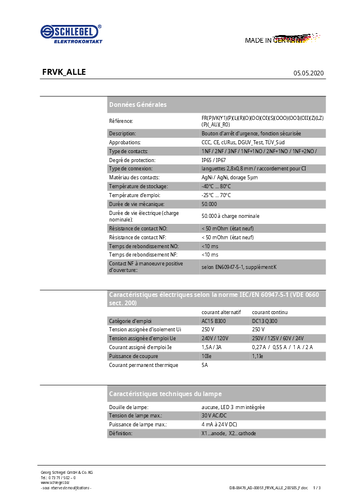

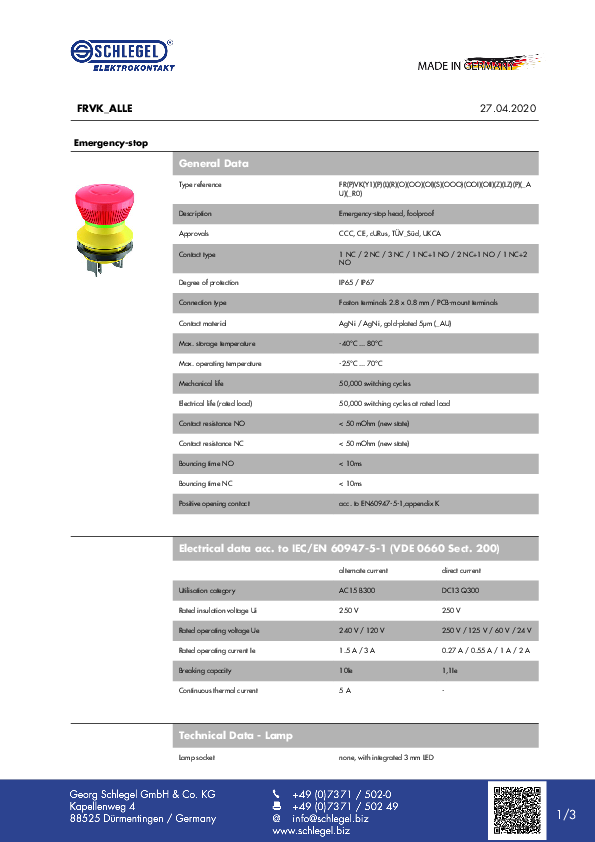

Datasheet_FRPVK
