FRPVKOO_698 - Emergency-stop with cylindrical head

Series
SHORTRON®
Mounting aperture
Ø 22.3 mm
Contact type
2NC
Connection
Faston terminals
Illumination
No
Front bezel colour
Yellow
Colour actuator
red
Shape
round
Degree of protection front
IP65
Operating temperature
-25°C ... 70°C
Storage temperature
-40°C ... 80°C
Rated operating voltage
120 V AC
240 V AC
24 V DC
60 V DC
125 V DC
250 V DC
Rated operating current
3 A AC
1.5 A AC
2 A DC
1 A DC
0.55 A DC
0.27 A DC
Rated insulation voltage IEC/EN 60947-5-1
250 V AC
250 V DC
Rated impulse voltage
4 kV
Mechanical life
30,000 switching cycles
Electrical life
30,000 switching cycles at rated voltage
Approvals
TÜV_Süd , CCC, cURus , CE, UKCA
Technical sketches

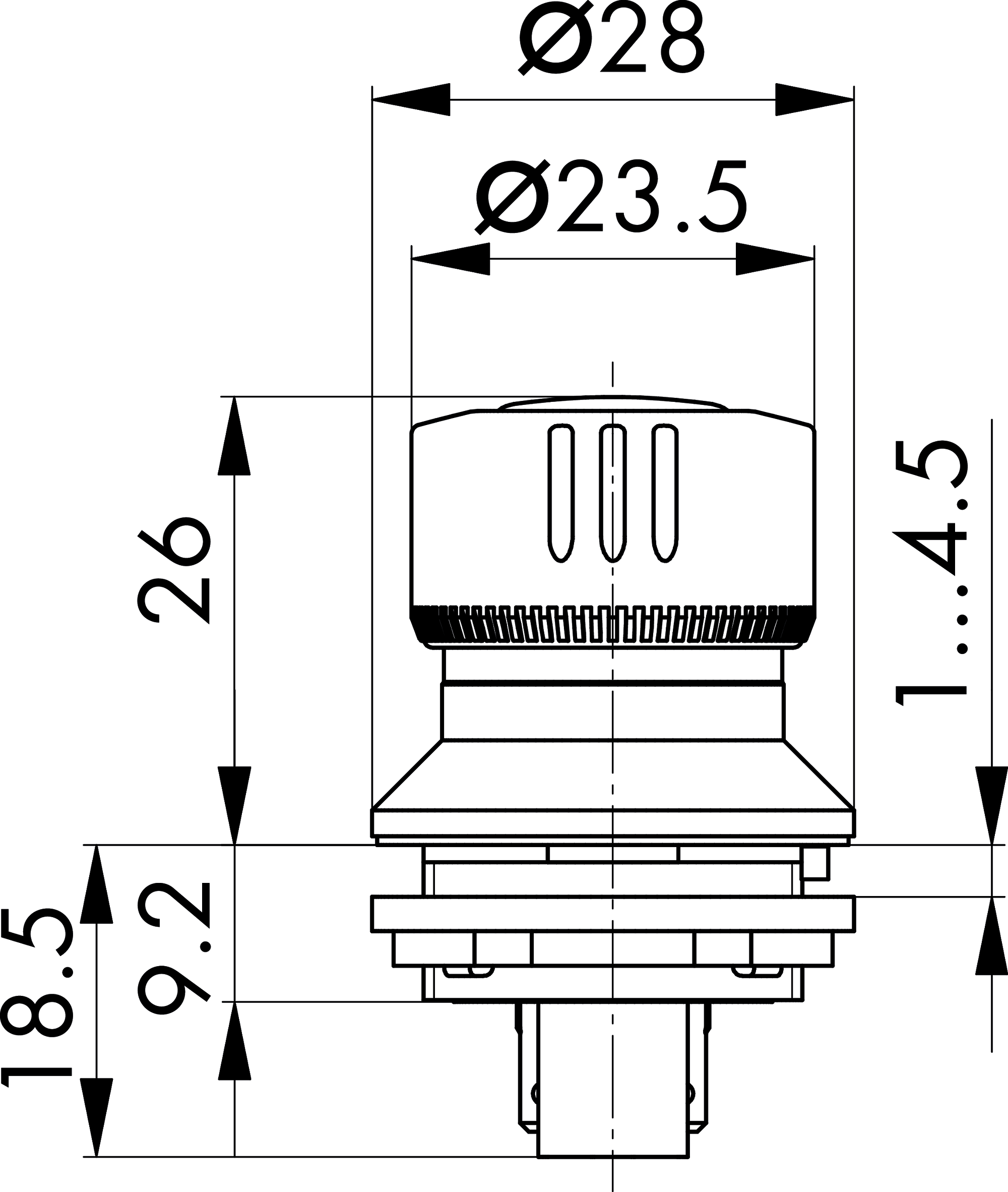

Maßskizze FRPVKOO_698

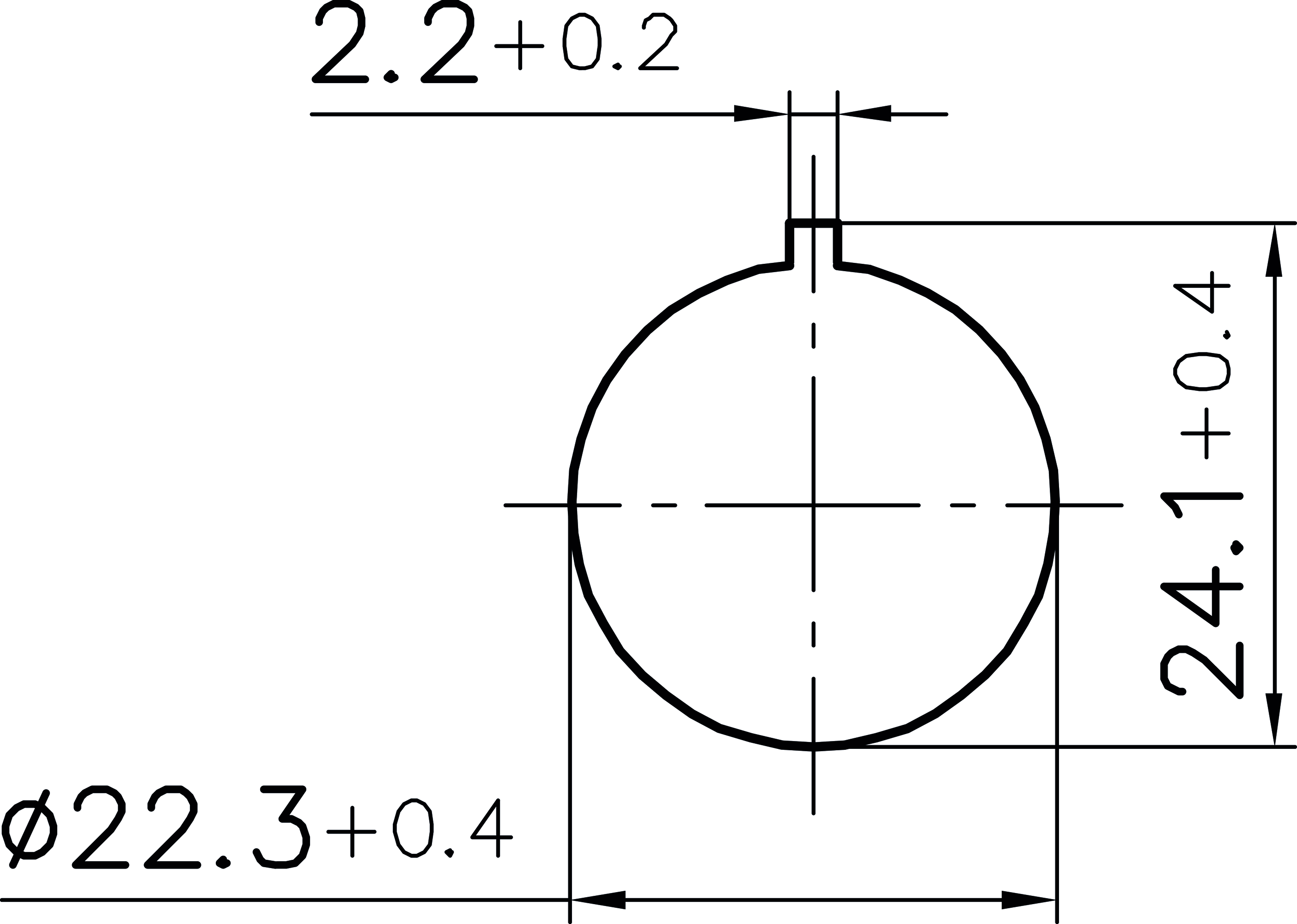

Bohrbild FRPVKOO_698

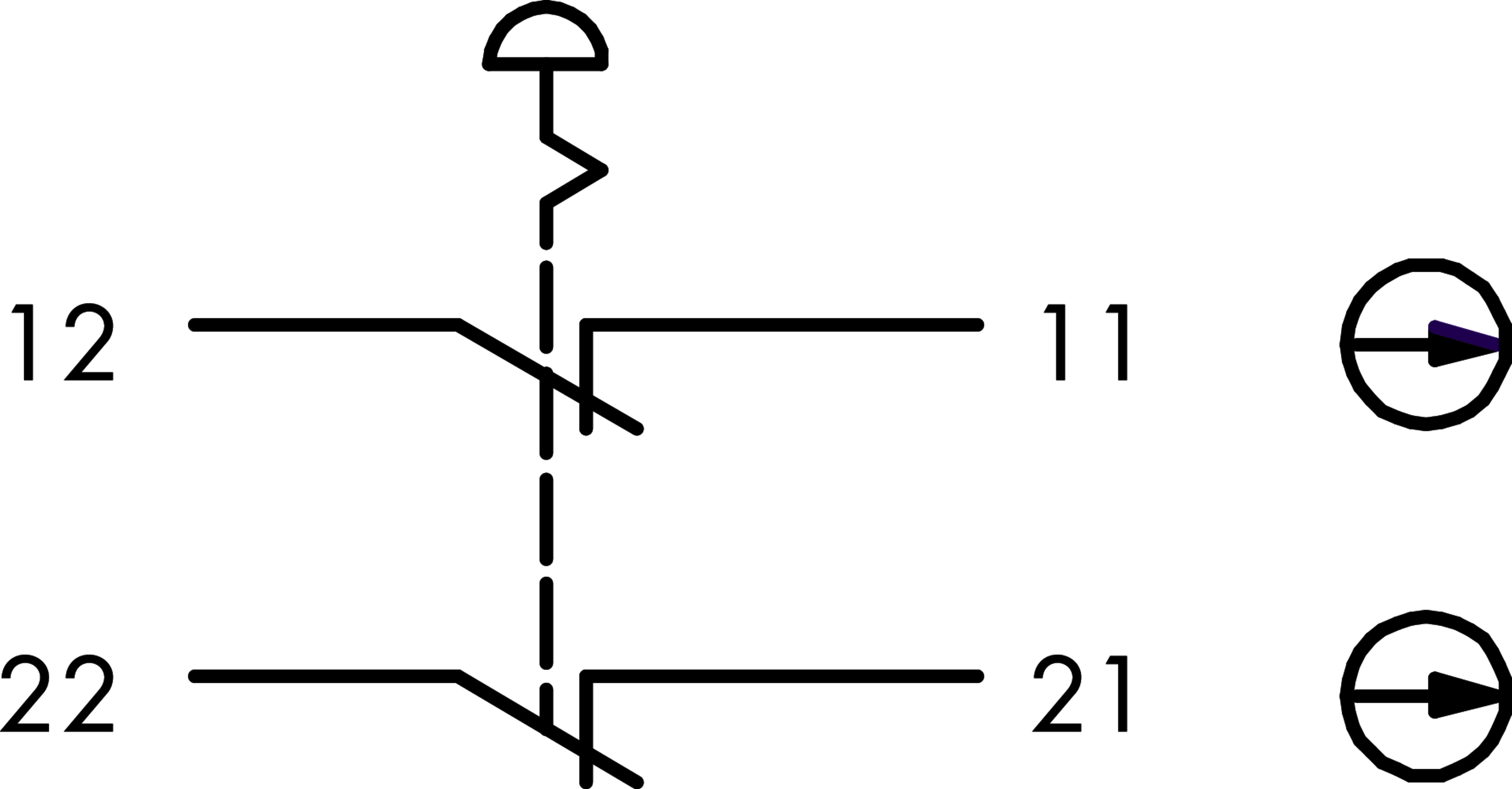

Schaltbild FRPVKOO_698

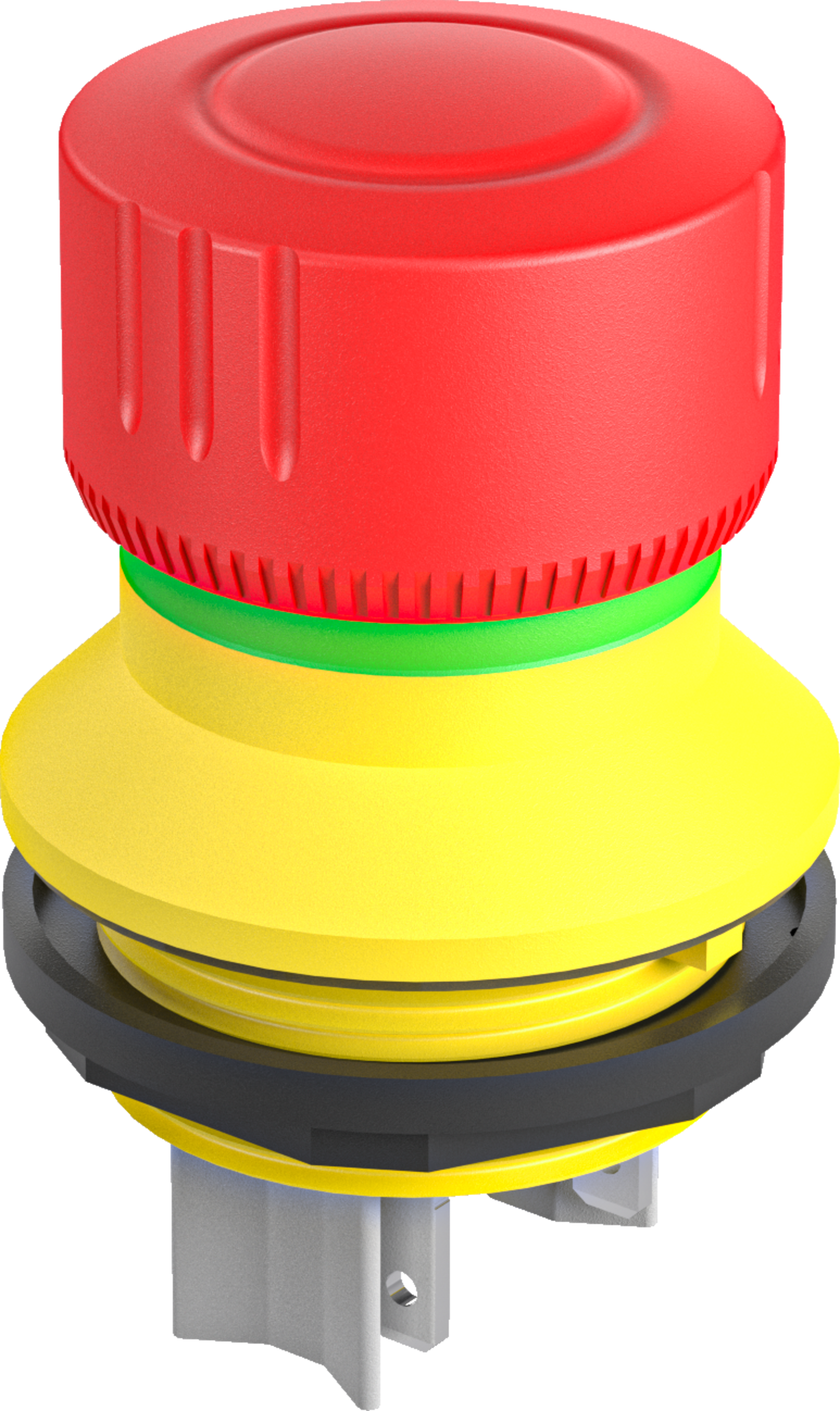

Produktbild FRPVKOO_698
