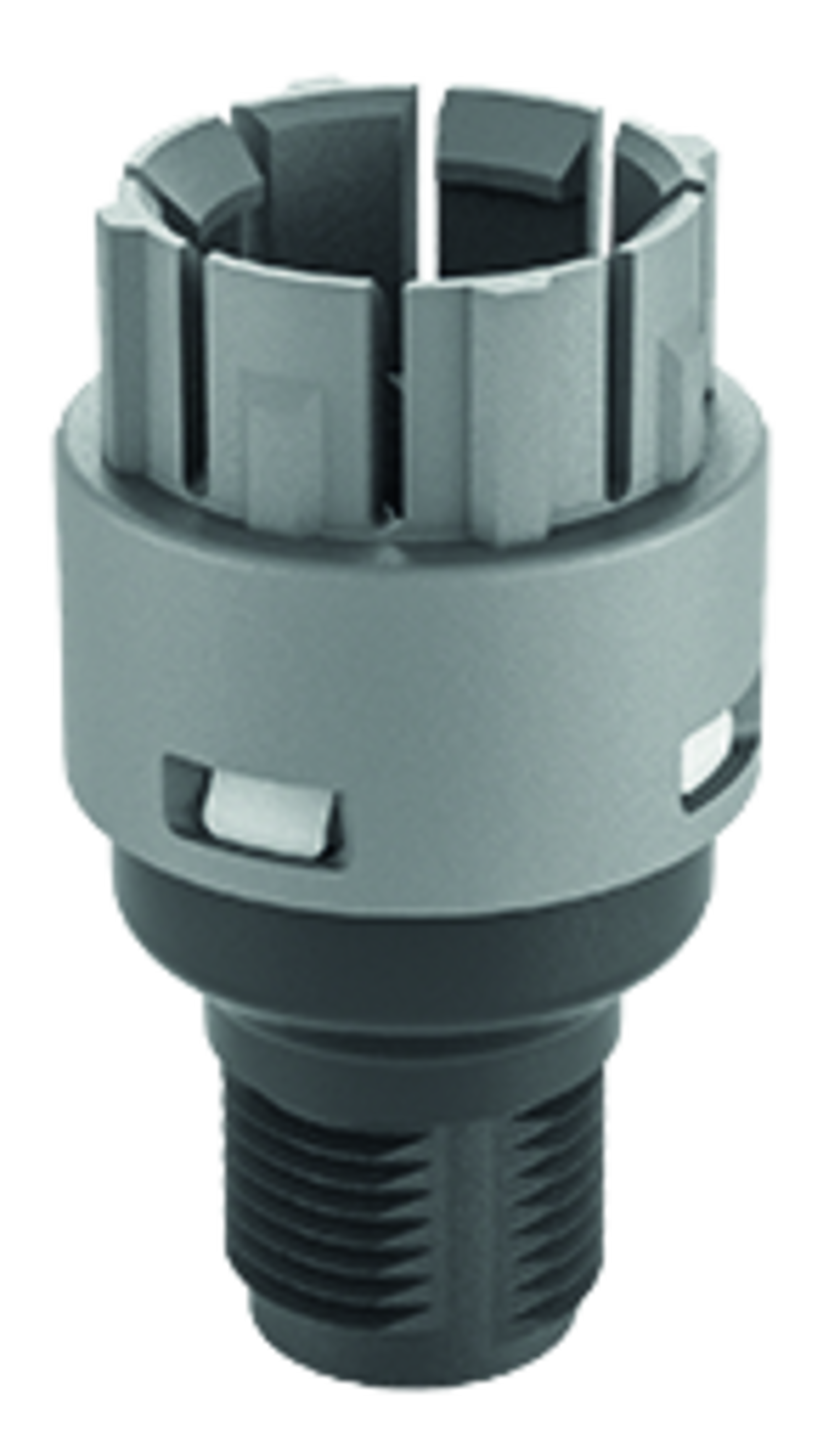

FRTOI_C118 - Contact block with 5-pole M12 connector, momentary

Series

Contact blocks FRT connect

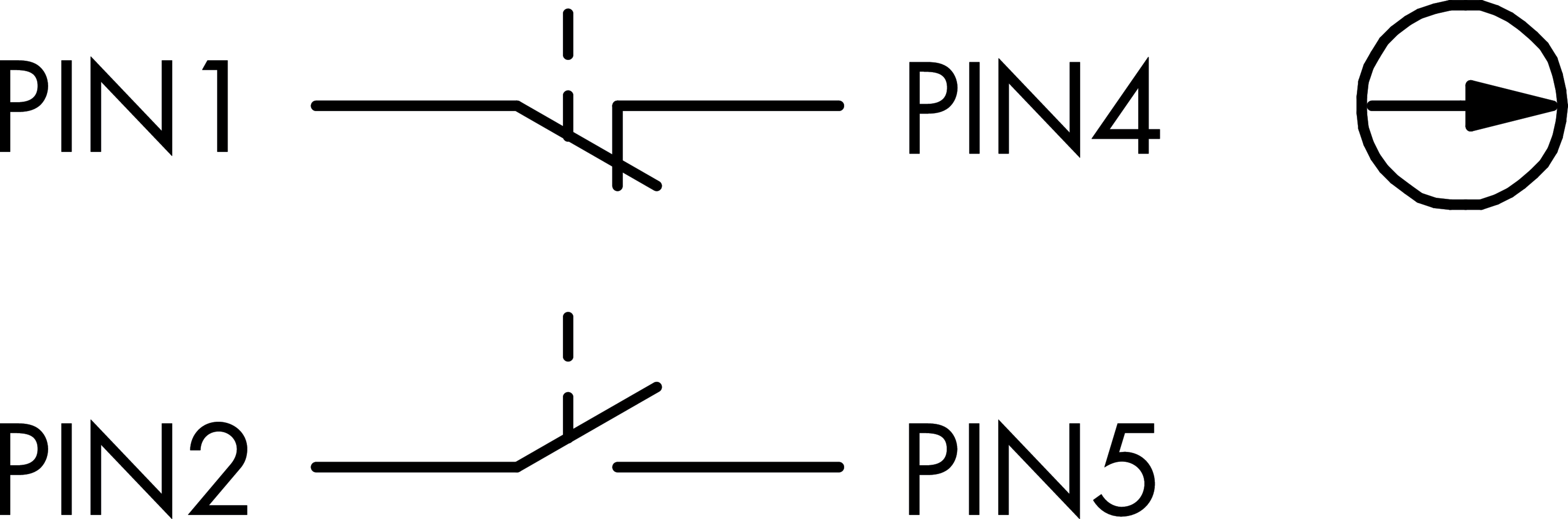

Contact type

1NC + 1NO

Switching function

Momentary function

Connection

M12

Illumination

Degree of protection front

IP00

Operating temperature

-25°C ... 70°C

Rated operating voltage

35 V AC
35 V DC

Rated operating current

2 A AC
2 A DC

Mechanical life

600,000 switching cycles

Electrical life

600,000 switching cycles at rated voltage

Approvals

CE, UKCA

Protection class

II (protective insulation)

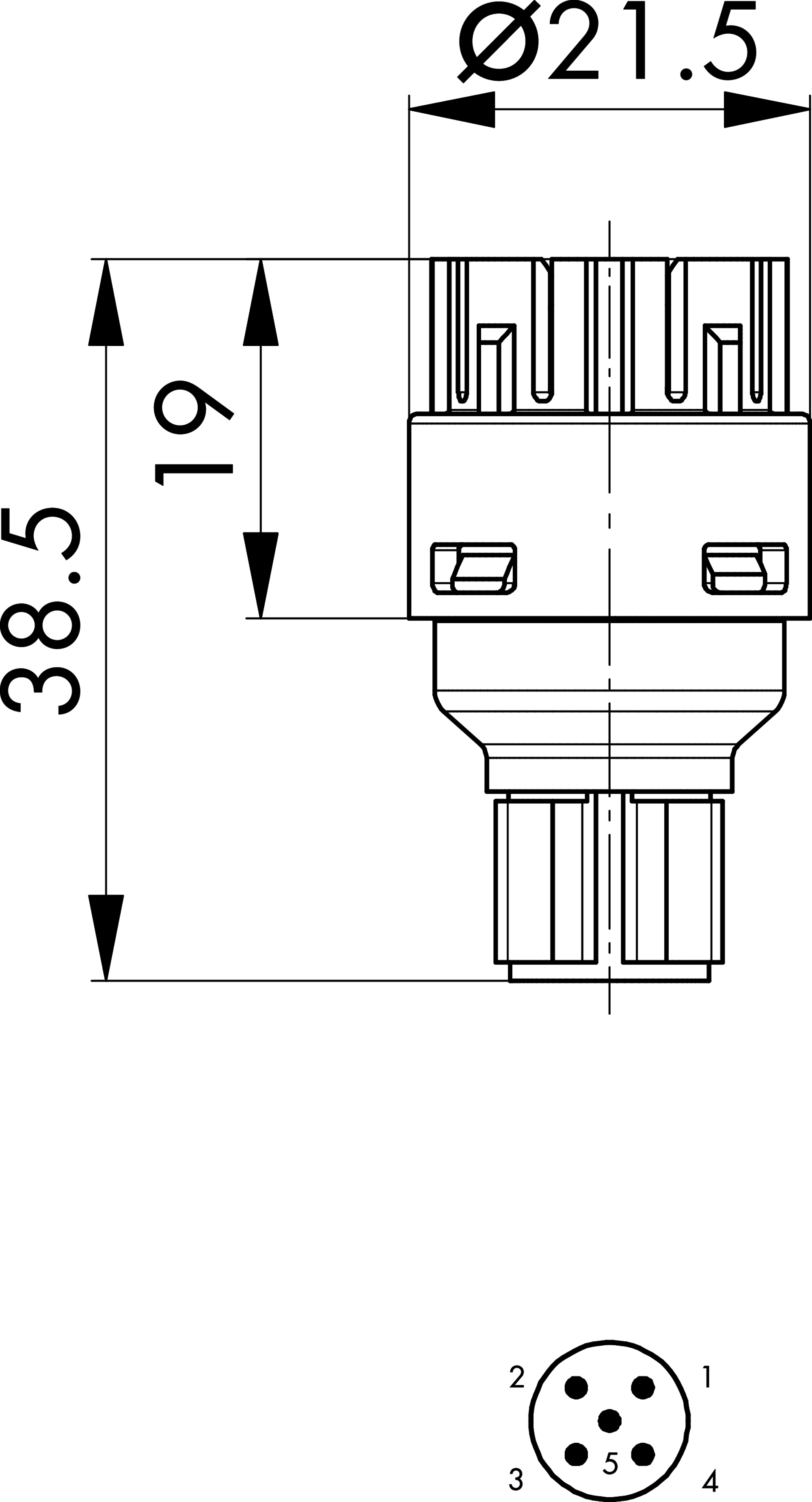

Technical sketches

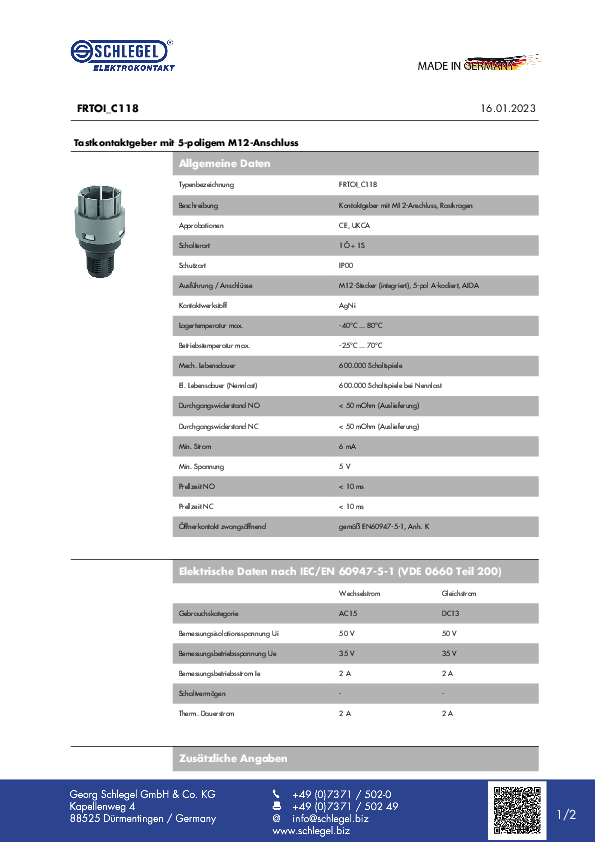

Downloads
