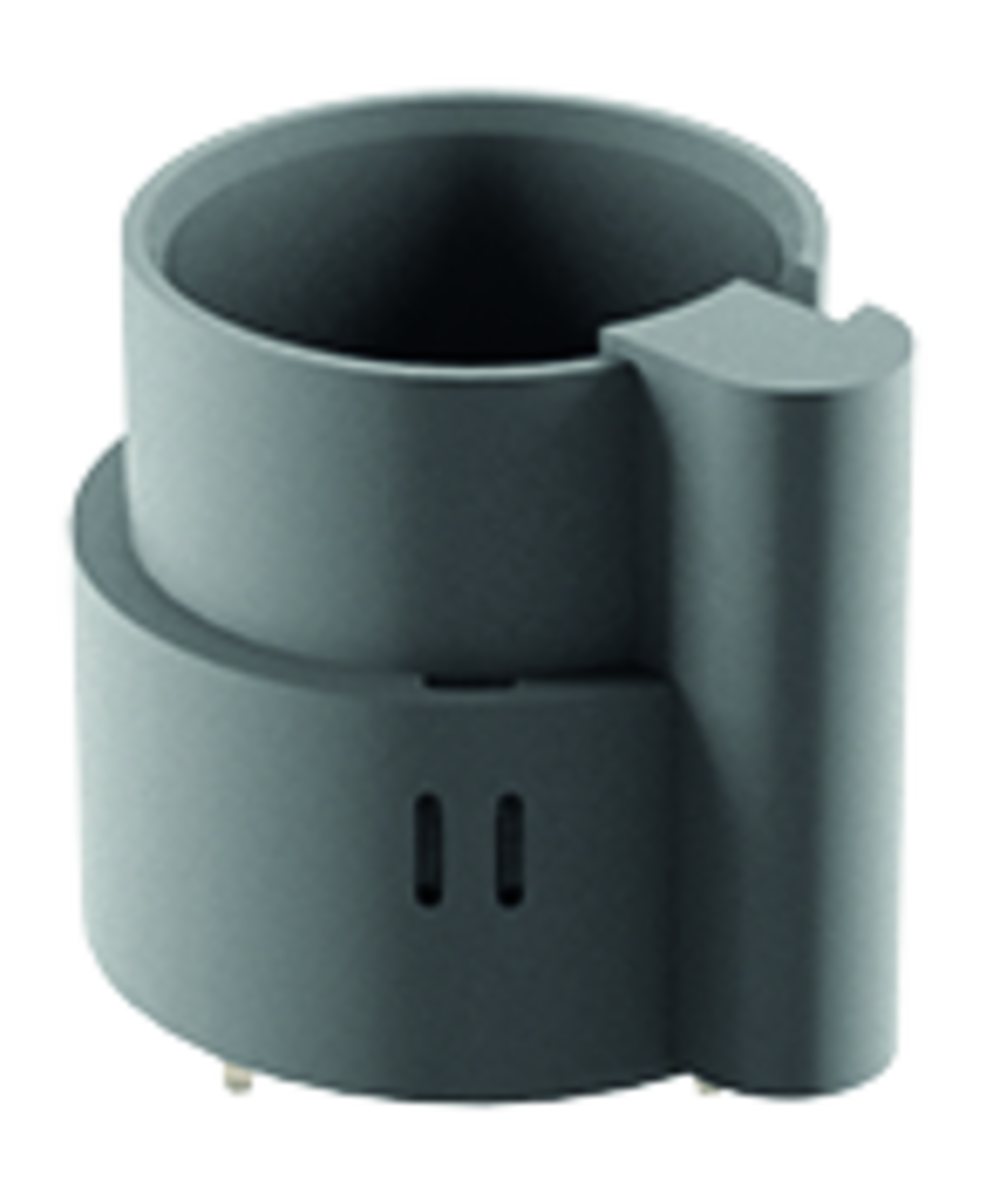

FRTPO - Push-button contact blocks with print connections
Small contact element with PCB connections for high switching capacities with separate plunger and latch fixing. The spring-loaded contacts ensure pleasant and quiet operation.
Series
Contact blocks FRTP...
Contact type
1NC
Switching function
Momentary function
Connection
PCB-mount terminals
Illumination
Yes
Illuminant
LED optionally retrofittable
Colour housing/enclosure
grey
Shape
round
Degree of protection front
IP00
Operating temperature
-25°C ... 70°C
Rated operating voltage
120 V AC
240 V AC
24 V DC
60 V DC
125 V DC
250 V DC
240 V AC
24 V DC
60 V DC
125 V DC
250 V DC
Rated operating current
3 A AC
1.5 A AC
2 A DC
1 A DC
0.55 A DC
0.27 A DC
1.5 A AC
2 A DC
1 A DC
0.55 A DC
0.27 A DC
Mechanical life
600,000 switching cycles
Electrical life
600,000 switching cycles at rated voltage
Approvals
VDE , CCC, cURus , ENEC10 , CE, UKCA

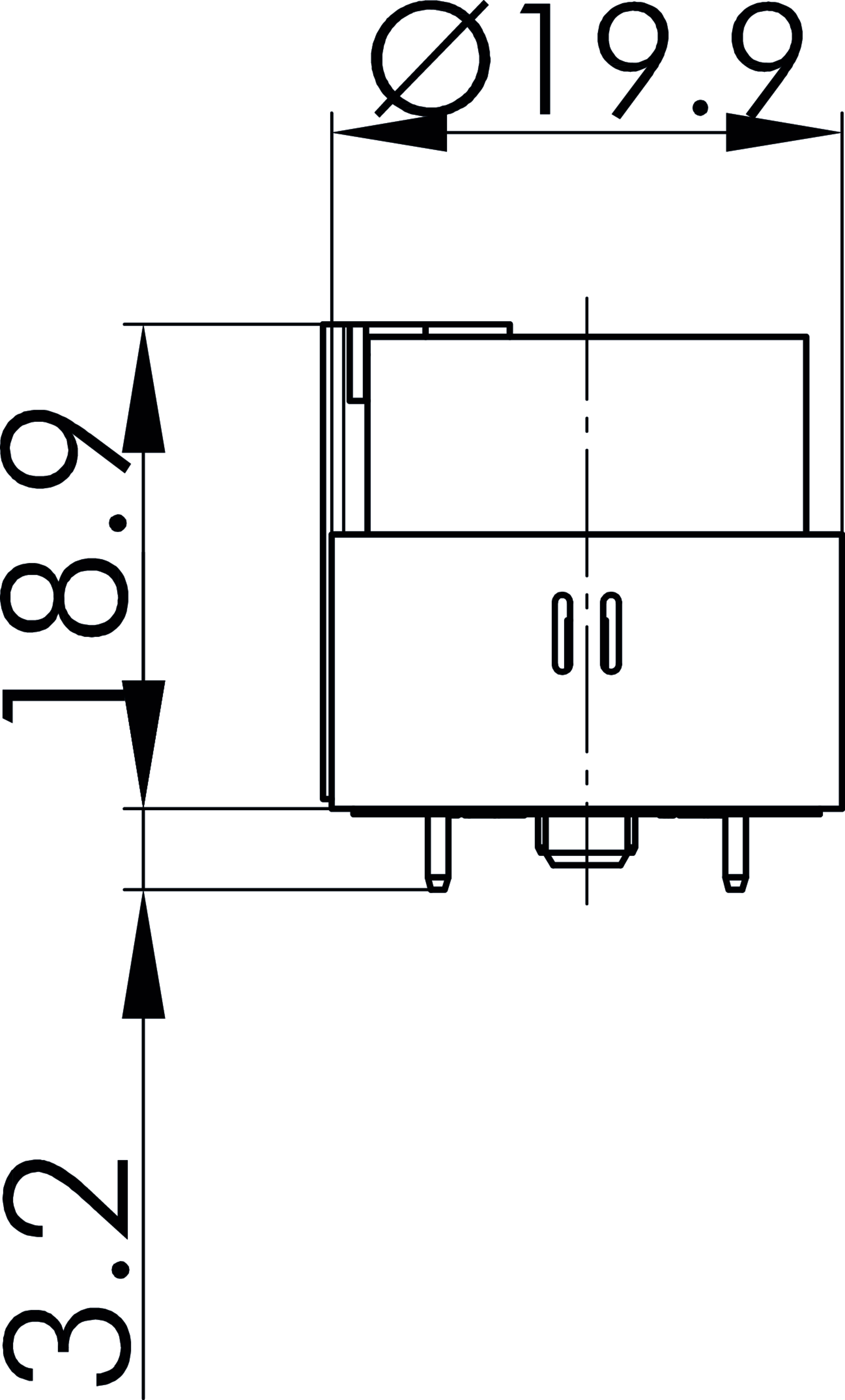

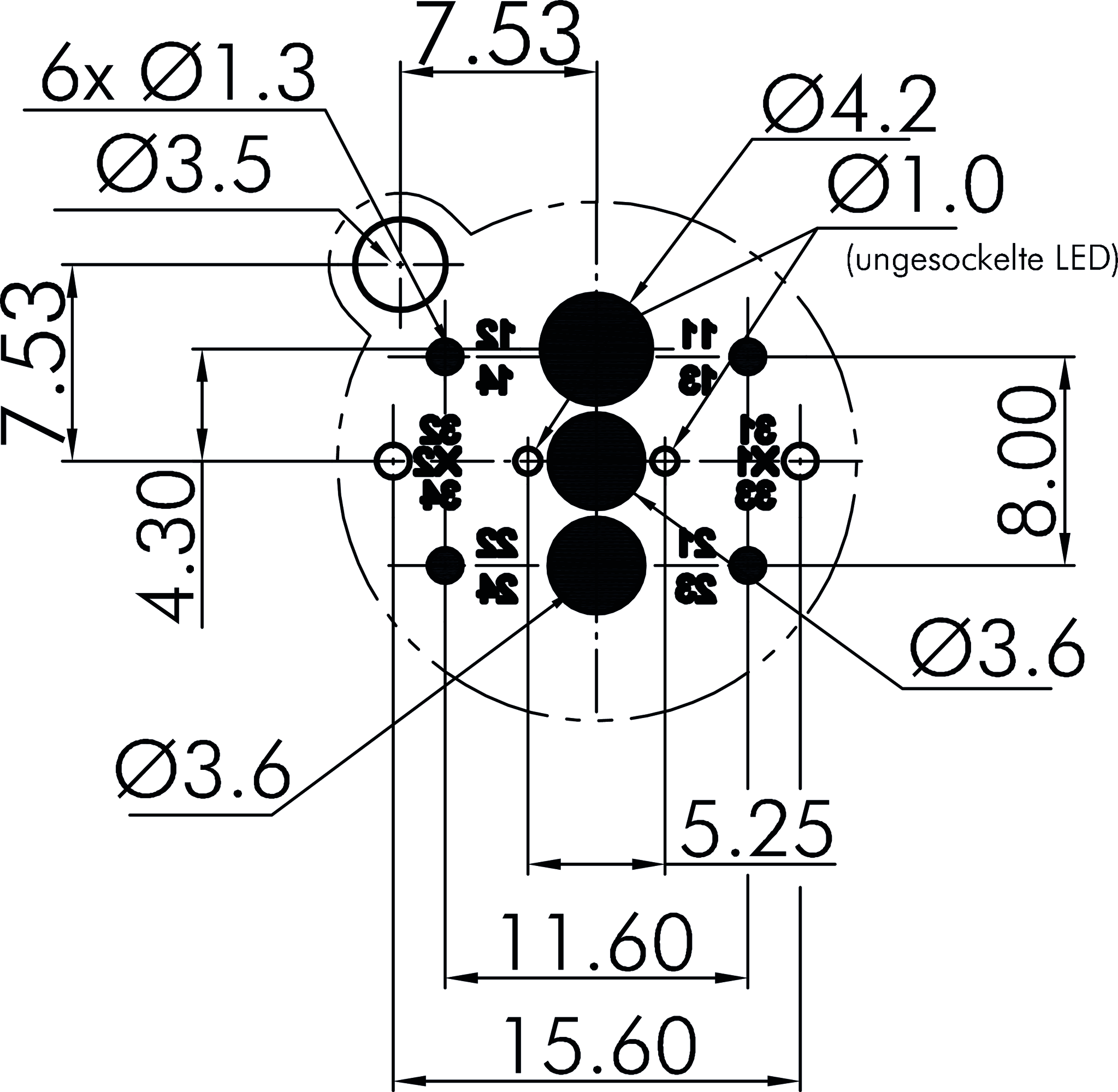

Technical sketches
Downloads

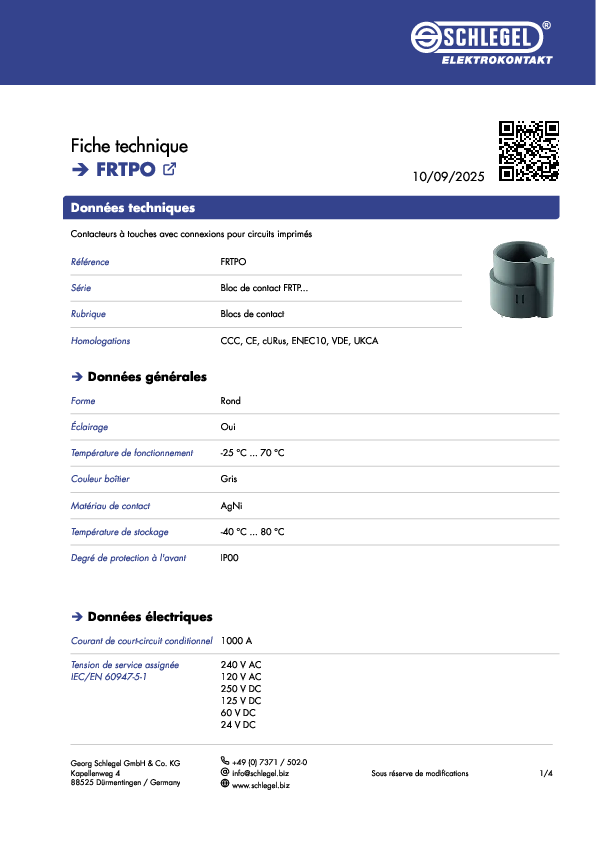

Datasheet_FRTPO
