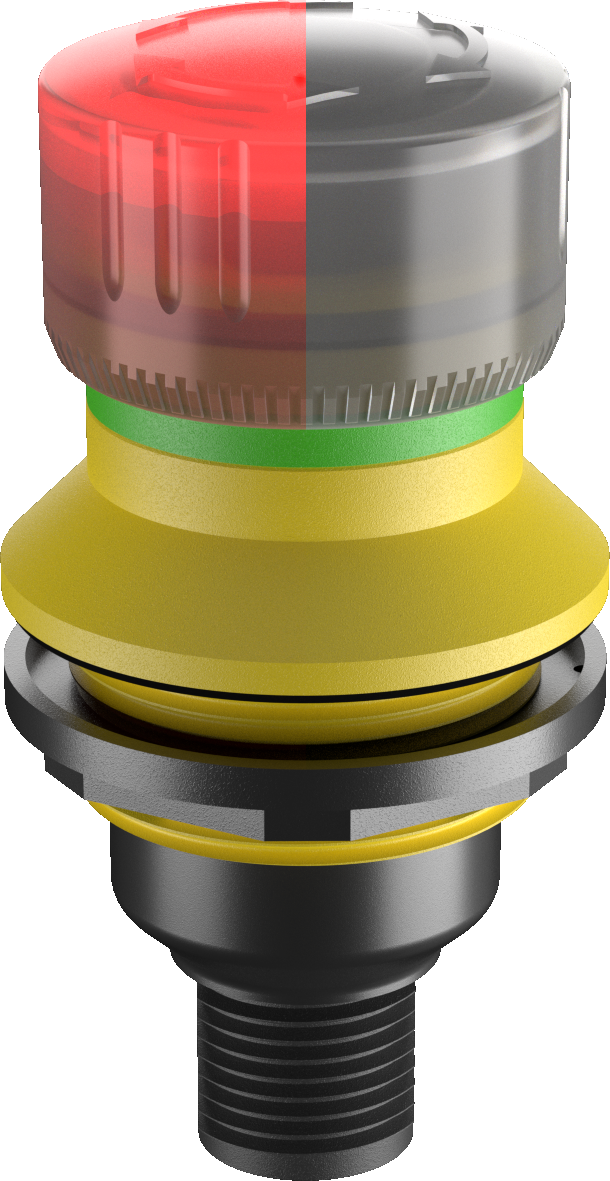

FRVKDOO_C113 - Emergency-stop, active/inactive (without diagnostic unit), with integrated 5-pole M12 connector
The active/inactive emergency stop switch indicates that it is ready for use by means of red lighting. If the emergency stop is not ready for use, the actuating element appears gray. Accidental actuation of the emergency stop on inactive systems, e.g. in dynamic production lines, can thus be reduced.
Series
SHORTRON® connect

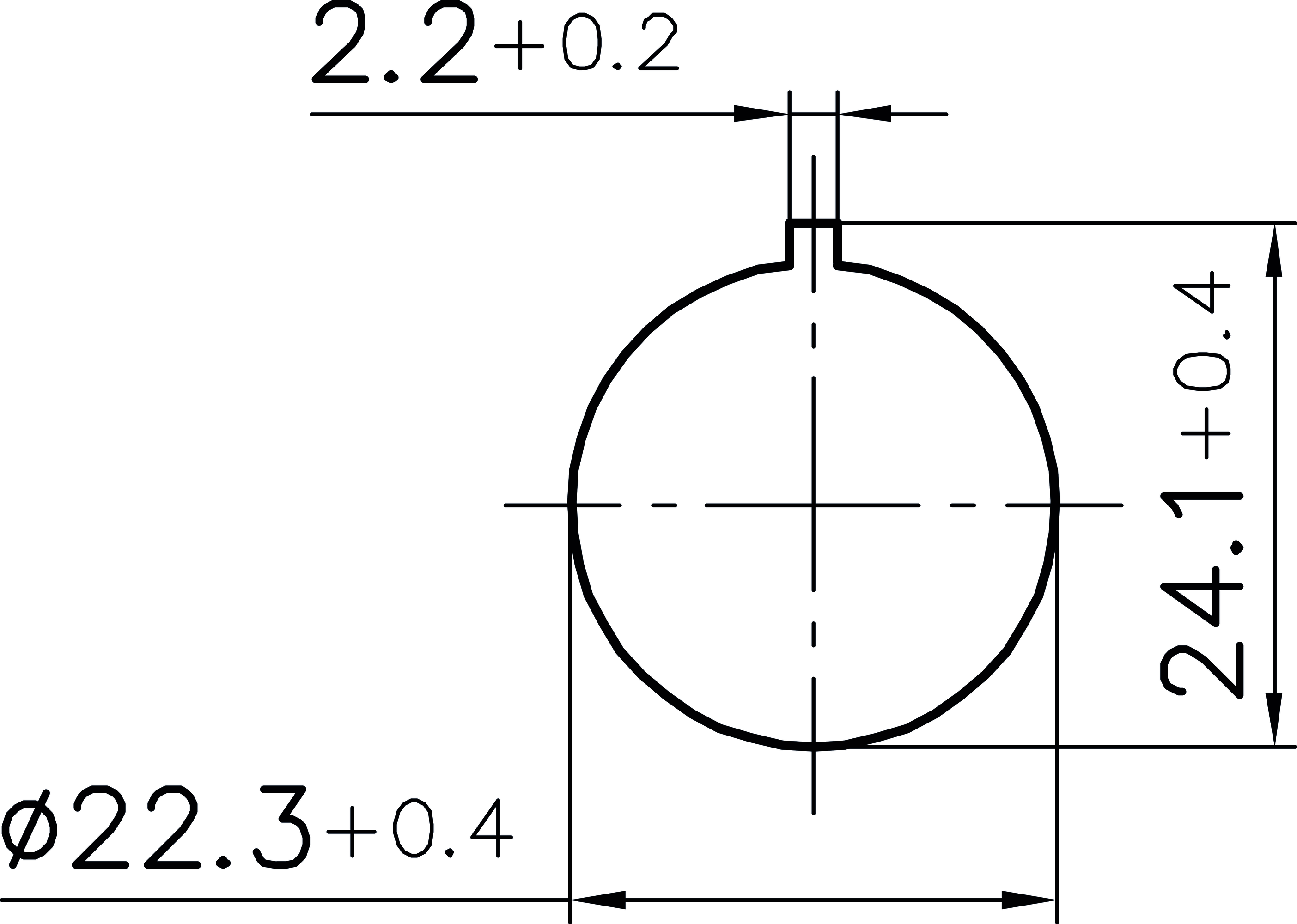

Mounting aperture
Ø 22.3 mm
Contact type
2NC
Connection
M12
Illumination
Yes
Illuminant
LED integrated
Shape
round
Degree of protection front
IP67
IP65
IP65
Operating temperature
-25°C ... 70°C
Rated operating voltage
24 V AC
24 V DC
24 V DC
Rated operating current
2 A AC
2 A DC
2 A DC
Mechanical life
50,000 switching cycles
Electrical life
50,000 switching cycles at rated voltage
Approvals
CE, UKCA

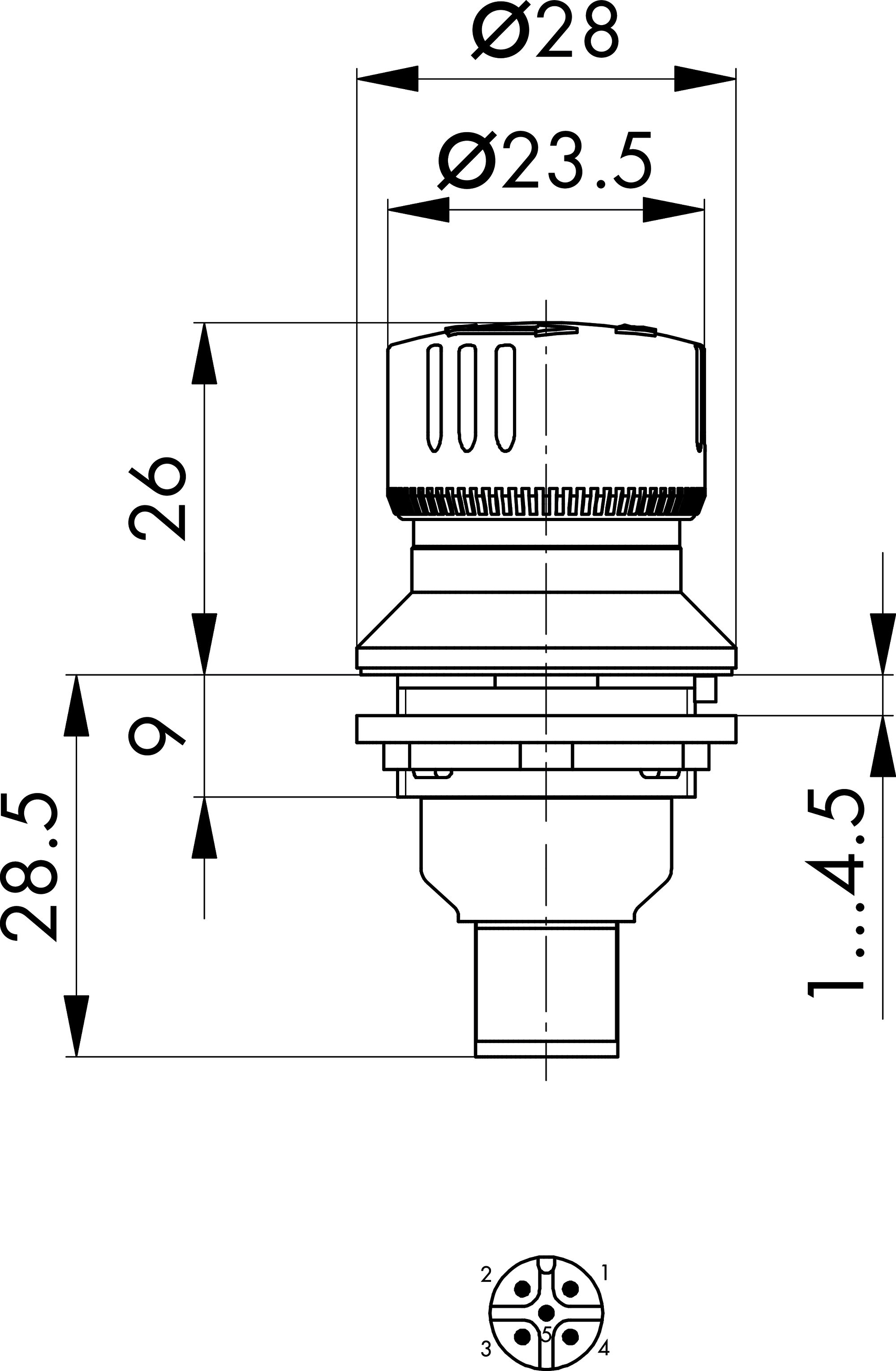

Technical sketches
Operating_Instructions_Emergency-Stop_FRVKD_en.pdf
