FRVKOO_C001 - Emergency-stop with 4-pole M12 connector

Series
SHORTRON® connect
Mounting aperture
Ø 22.3 mm
Contact type
2NC
Connection
M12
Illumination
No
Front bezel colour
Yellow
Colour actuator
red
Shape
round
Degree of protection front
IP67, IP65
Operating temperature
-25°C ... 70°C
Storage temperature
-40°C ... 80°C
Rated operating voltage
35 V AC
35 V DC
Rated operating current
4 A AC
2 A DC
Rated insulation voltage IEC/EN 60947-5-1
250 V AC
250 V DC
Rated impulse voltage
2,5 kV
Mechanical life
50,000 switching cycles
Electrical life
50,000 switching cycles at rated voltage
Approvals
TÜV_Süd , cURus , CE, UKCA
Technical sketches

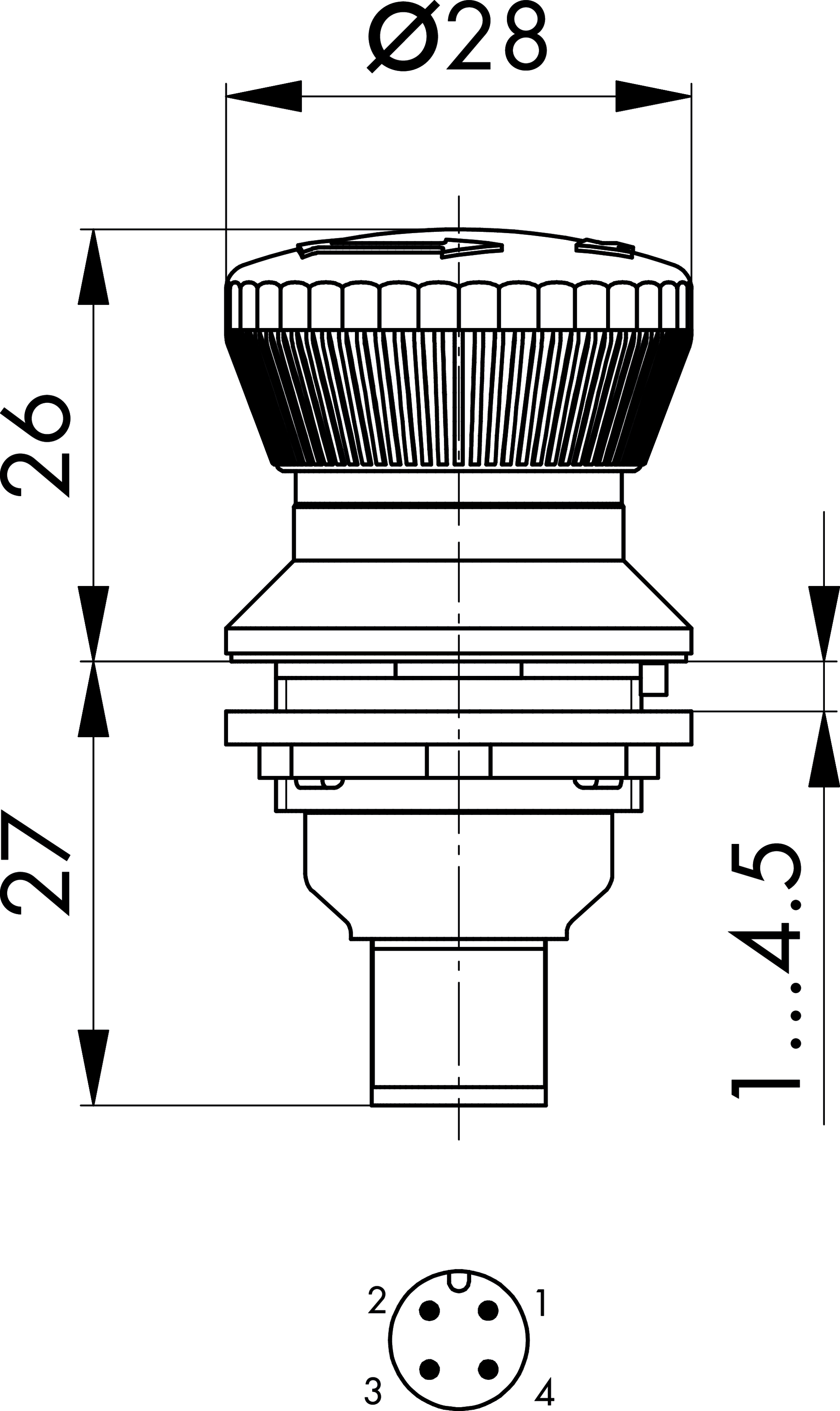

Maßskizze FRVKOO_C001

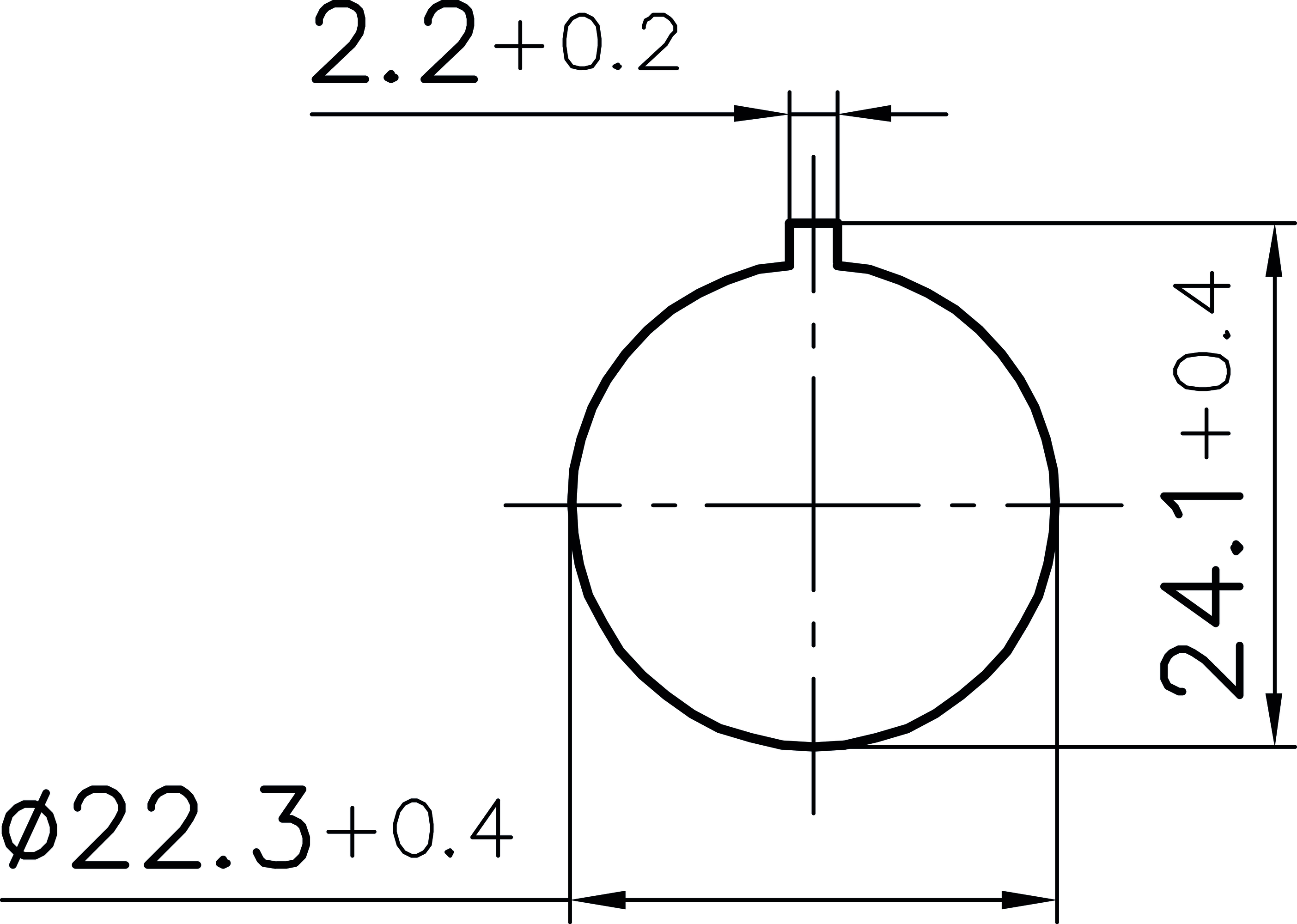

Bohrbild FRVKOO_C001

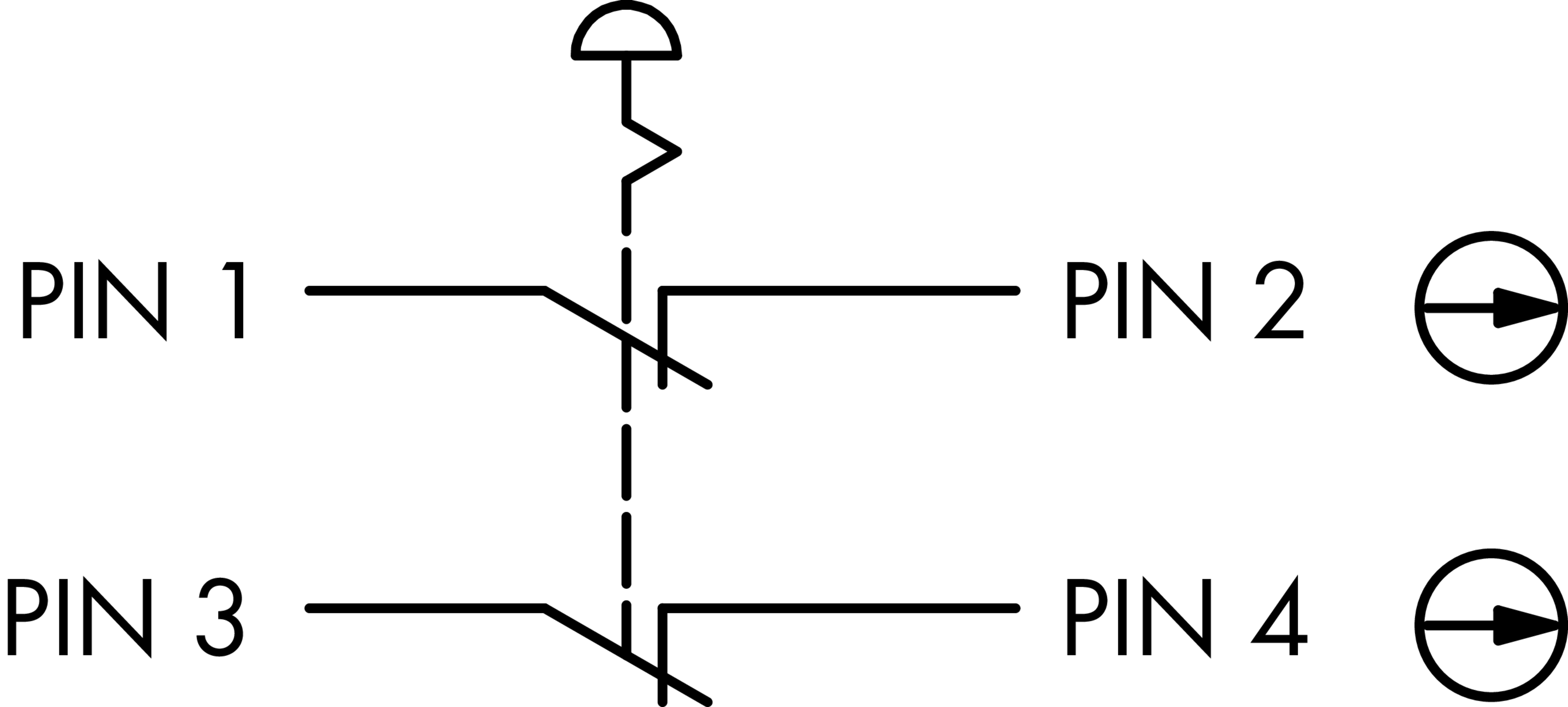

Schaltbild FRVKOO_C001

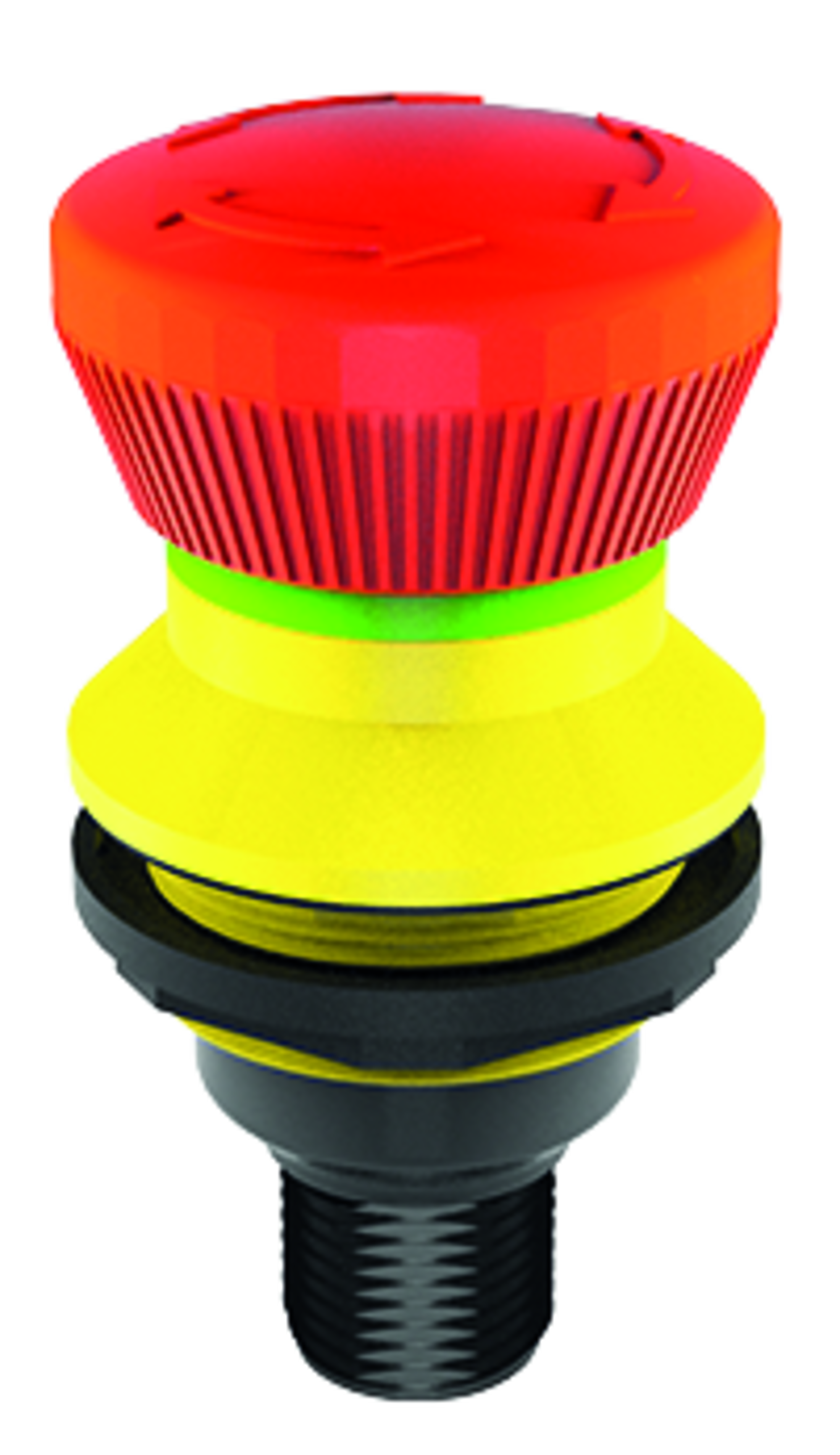

Produktbild FRVKOO_C001
