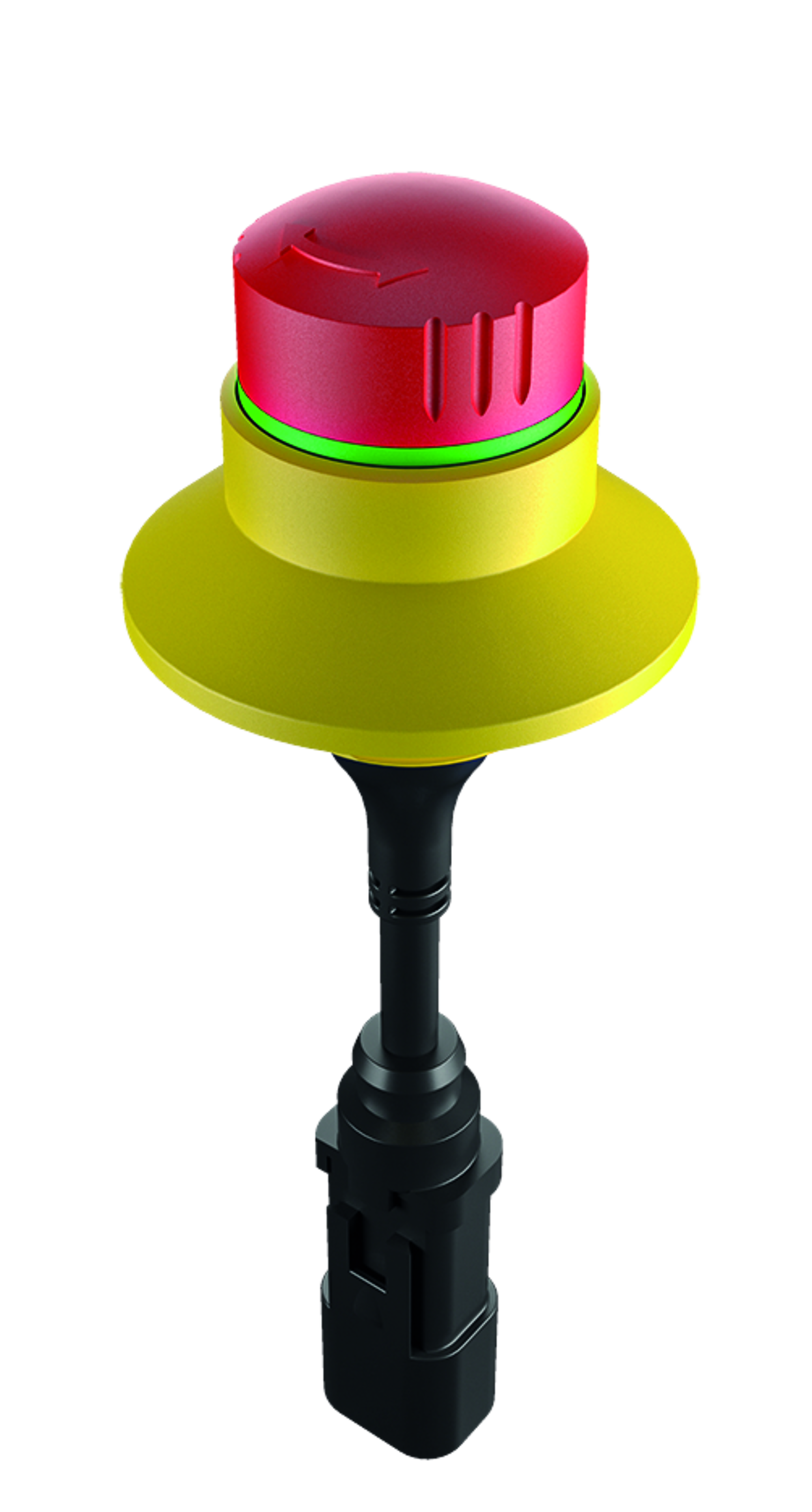

KRBUVOO_KD12 - Emergency stop with blocking protection collar
The KRBUVOO_KD12 emergency stop switch from the KOMBITAST® M12 series is a reliable control device for maximum safety. The switch has a 1500 mm cable length with Deutsch plug and a left/right rotary release. The installation opening is Ø 30.5. The special feature is that, in addition to the IP65/IP69K protection class from the front, the IP65/IP67 protection classes are achieved from the rear.
Degree of protection back
IP65
IP67
IP67
Series
KOMBITAST® M12
Mounting aperture
Ø 30.5 mm
Contact type
2NC
Switching function
Latching function
Connection
Deutsch Stecker DT04-4P
Colour actuator
red
Colour housing/enclosure
Yellow
Shape
round
Degree of protection front
IP69K
IP65
IP65
Operating temperature
-40°C ... 70°C
Rated operating voltage
35 V AC
35 V DC
35 V DC
Rated operating current
4 A AC
2 A DC
2 A DC
Mechanical life
50,000 switching cycles
Electrical life
50,000 switching cycles at rated voltage
Approvals
CE, UKCA
Cable length
1500 mm
Technical sketches
