KRBUVOO_M11 - Emergency-stop
Robust emergency stop switch with 2NC contacts and M12 plug (4-pin), rotary release left/right, 50,000 electrical life cycles.
Color Actuator
red
Cable Length
250mm
Operating Temperature
-40 ... 70°C
-30 ... 70°C
-30 ... 70°C
Connection Type
M12 plugs
Storage Temperature
-40 ... 80°C
-50 ... 85°C
-50 ... 85°C
Mounting Aperture
Ø 30,5mm
Release
Twist to release left/right
Anti Block Collar
Yes
Class of Protection
II (protective insulation)
Switching Function
Maintained function
Contact Type
2NC
Operating Travel
4,7mm
Shape
round
Electrical Life
50.000 switching cycles
Mechanical Life
50.000 switching cycles
Approbations
CE , UKCA
Series
KOMBITAST® M12
Front Bezel Color
yellow
Illumination
No
Rated Operating Voltage
35V AC
35V DC
35V DC

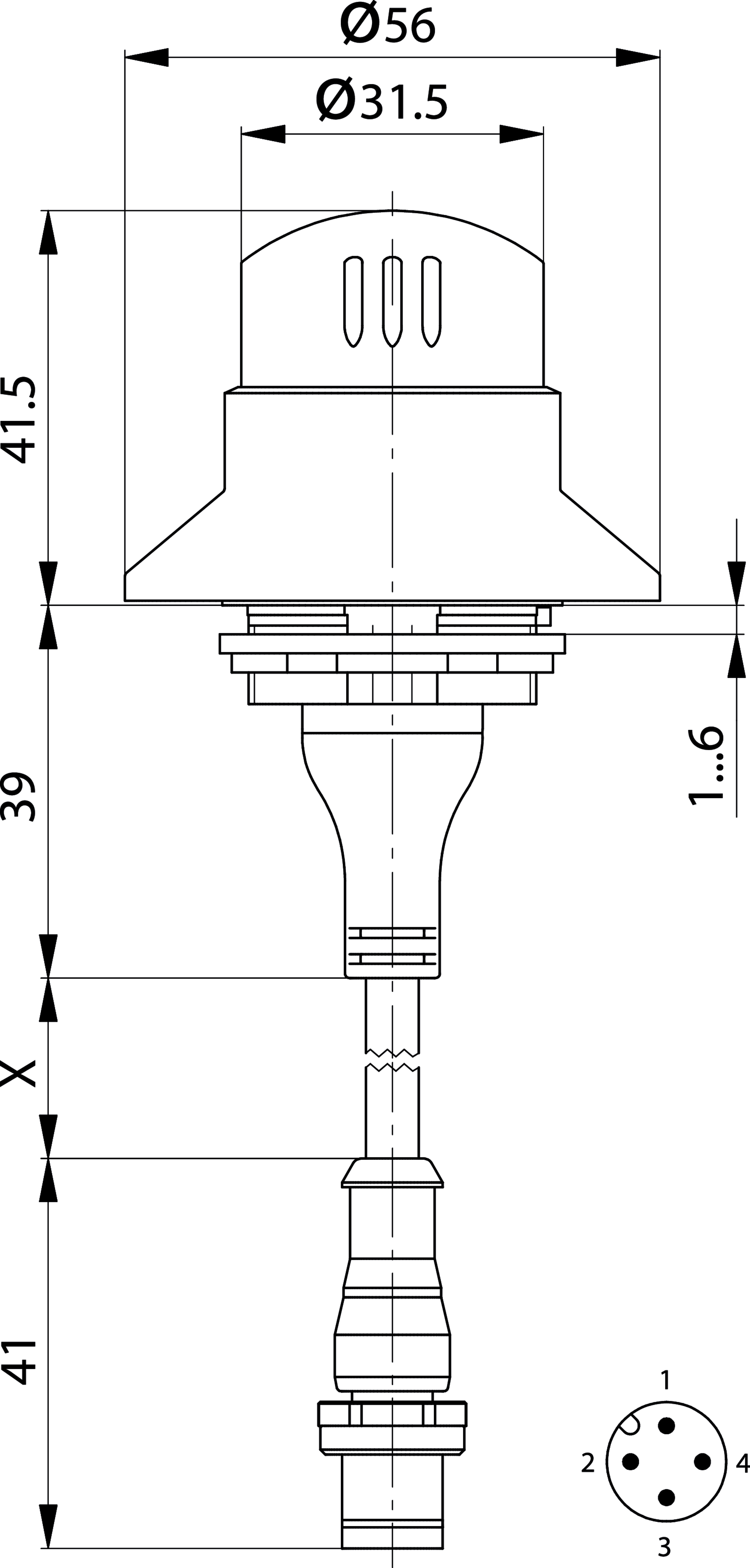

Technical sketches
Downloads

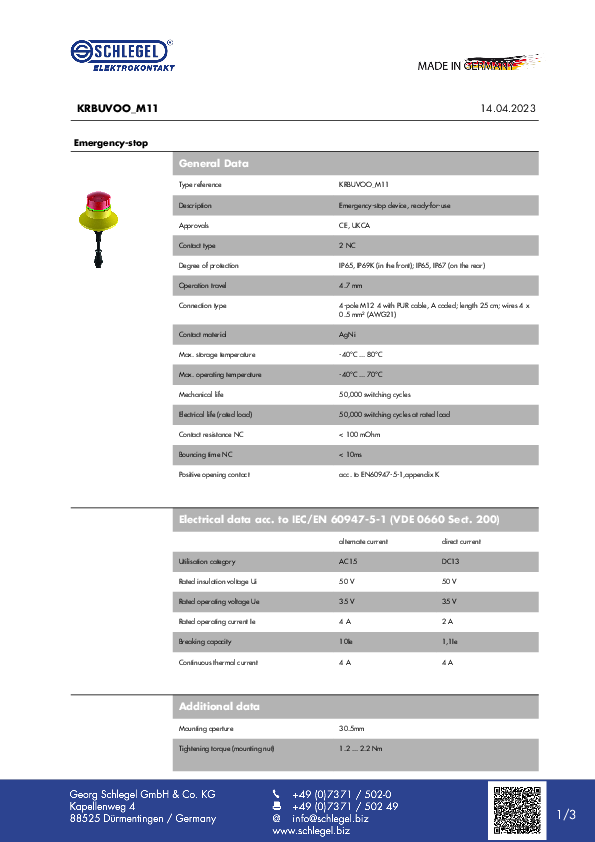

Datasheet_KRBUVOO_M11
