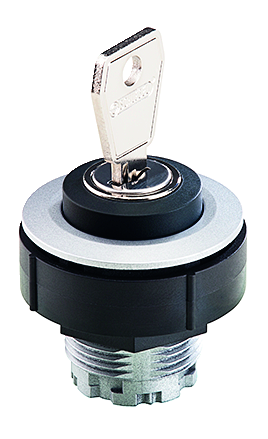

KRJMZSSA12E - Latching key switch (two-part plunger)
Key switch with three switching positions and latching switching function (two-part plunger). Switch position 1 is at 0°, switch position 2 at -90° and switch position 3 at 90°. The key can be removed in all switching positions.
Includes 2 keys. Different keying possible on request.
Series
KOMBITAST®-R-JUWEL
Mounting aperture
Ø 30.5 mm
Switching function
Latching function
Switching position
0° key removable
-90° maintained, key removable
90° maintained, key removable
-90° maintained, key removable
90° maintained, key removable
Front bezel colour
Silver-coloured
Shape
round
Degree of protection front
IP65
Operating temperature
-40°C ... 70°C
Approvals
cULus , CCC, CE, UKCA

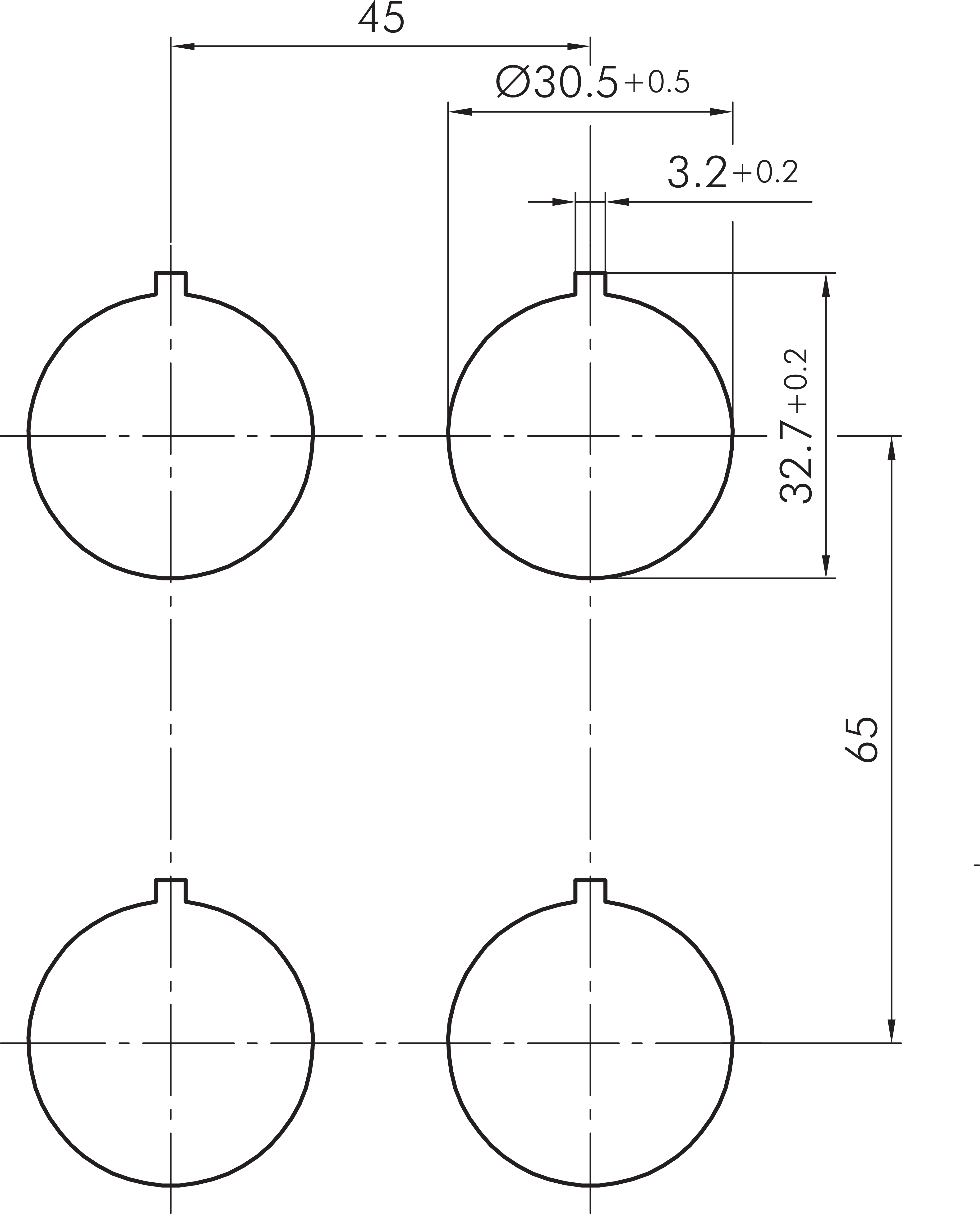

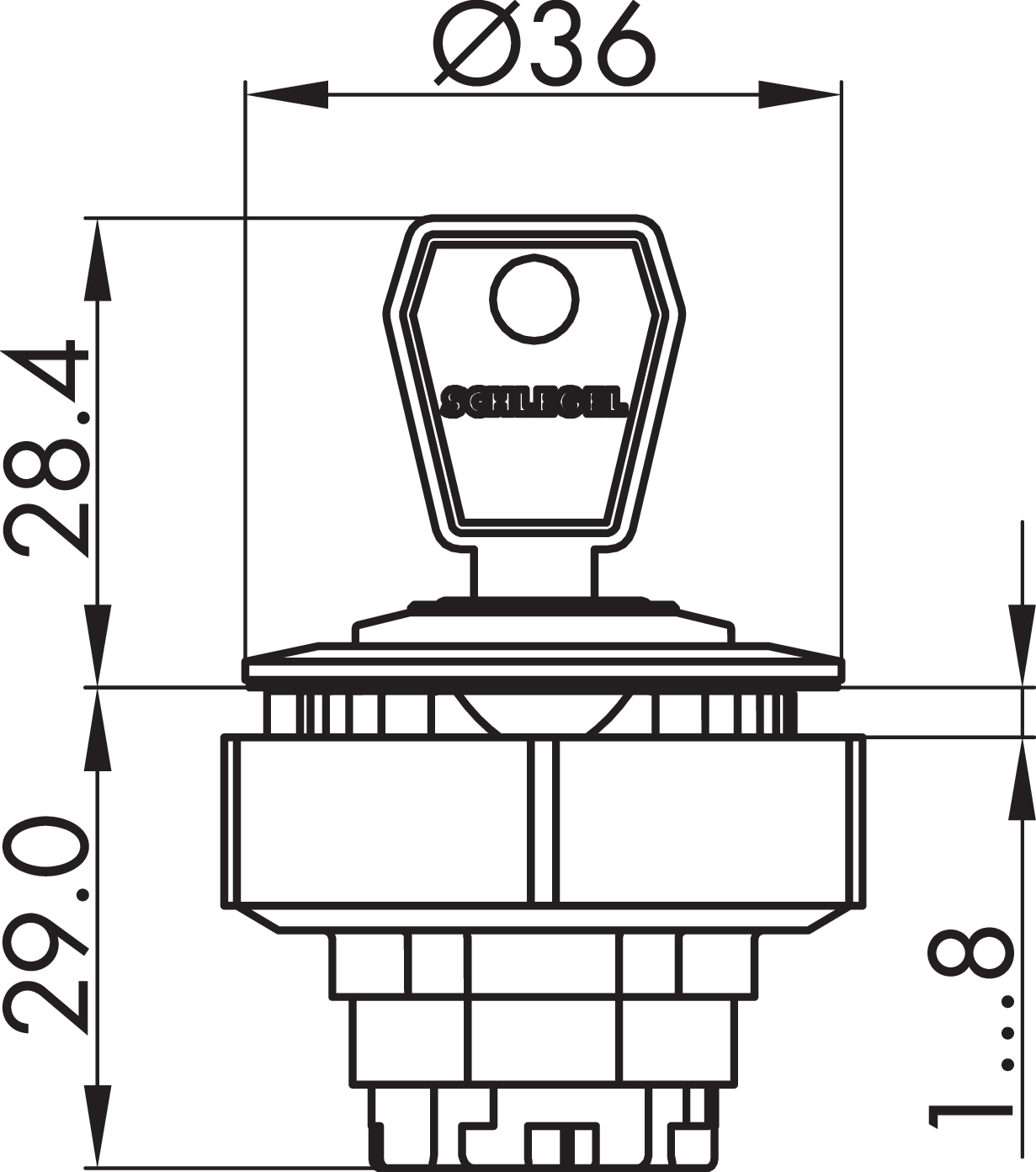

Technical sketches
