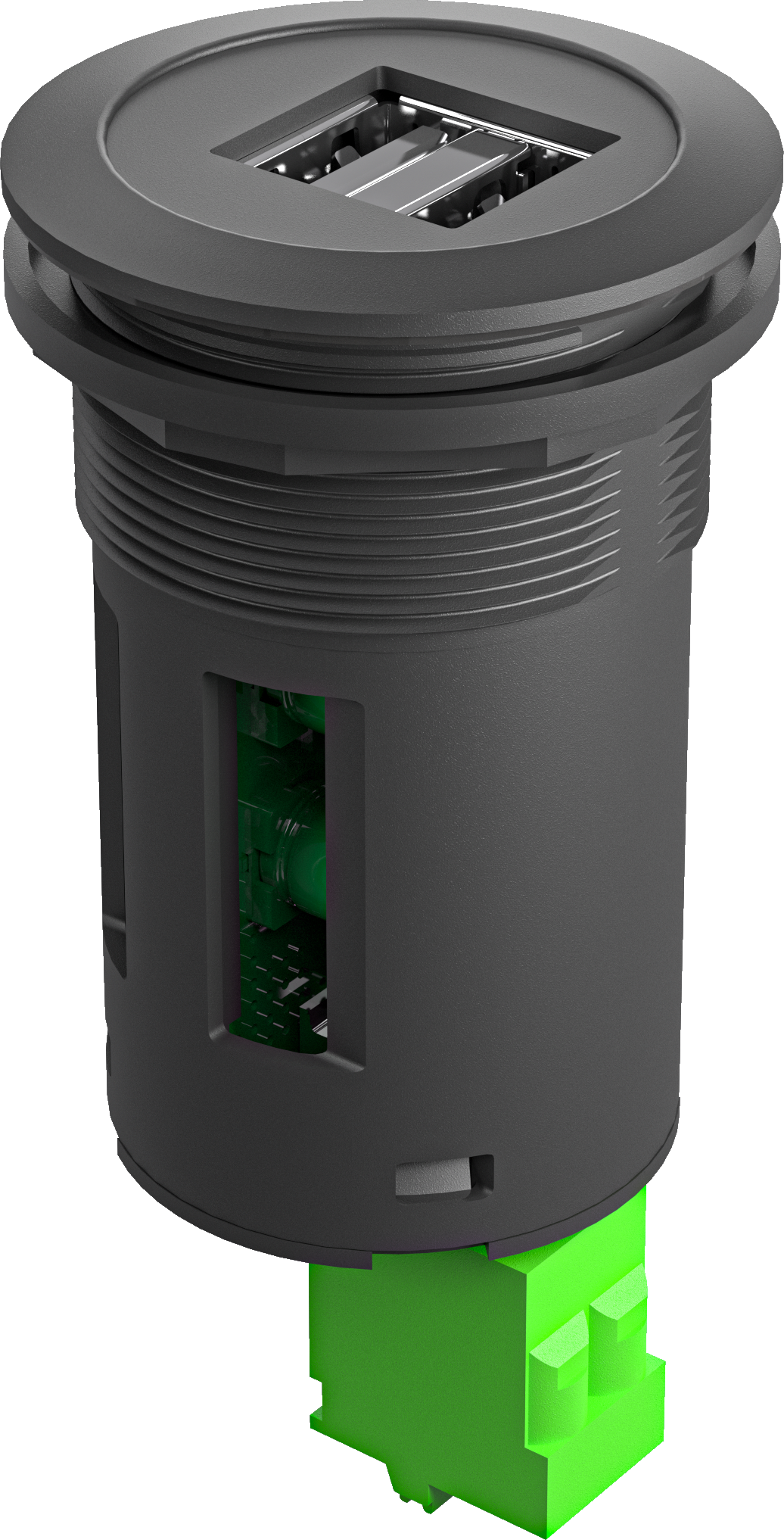

KRJSW_2USB_A_5V - Double USB charger 24V/5V 2x 2.4A
The KRJSW_2USB_A_5V panel jack from the KOMBITAST®-R-JUWEL series is ideal for charging USB devices in industrial and railroad applications. This panel mount socket offers two USB type A connections with 2.4A output current each at an output voltage of 5V DC, operating voltage 15 - 31.2V DC. Temperature range from -40 °C to 70 °C, mechanical service life of at least 5000 mating cycles. Round design with an installation depth of 70.5 mm. Easy installation is guaranteed thanks to the robust spring terminal connection.
Series
KOMBITAST®-R-JUWEL
Mounting aperture
Ø 30.5 mm
Connection
Federzugklemme
Front bezel colour
black
Shape
round
Degree of protection front
IP20
Operating temperature
-40°C ... 70°C
Mechanical life
5,000 mating cycles
Approvals
CE, UKCA
Technical sketches
Dokumente
